Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04

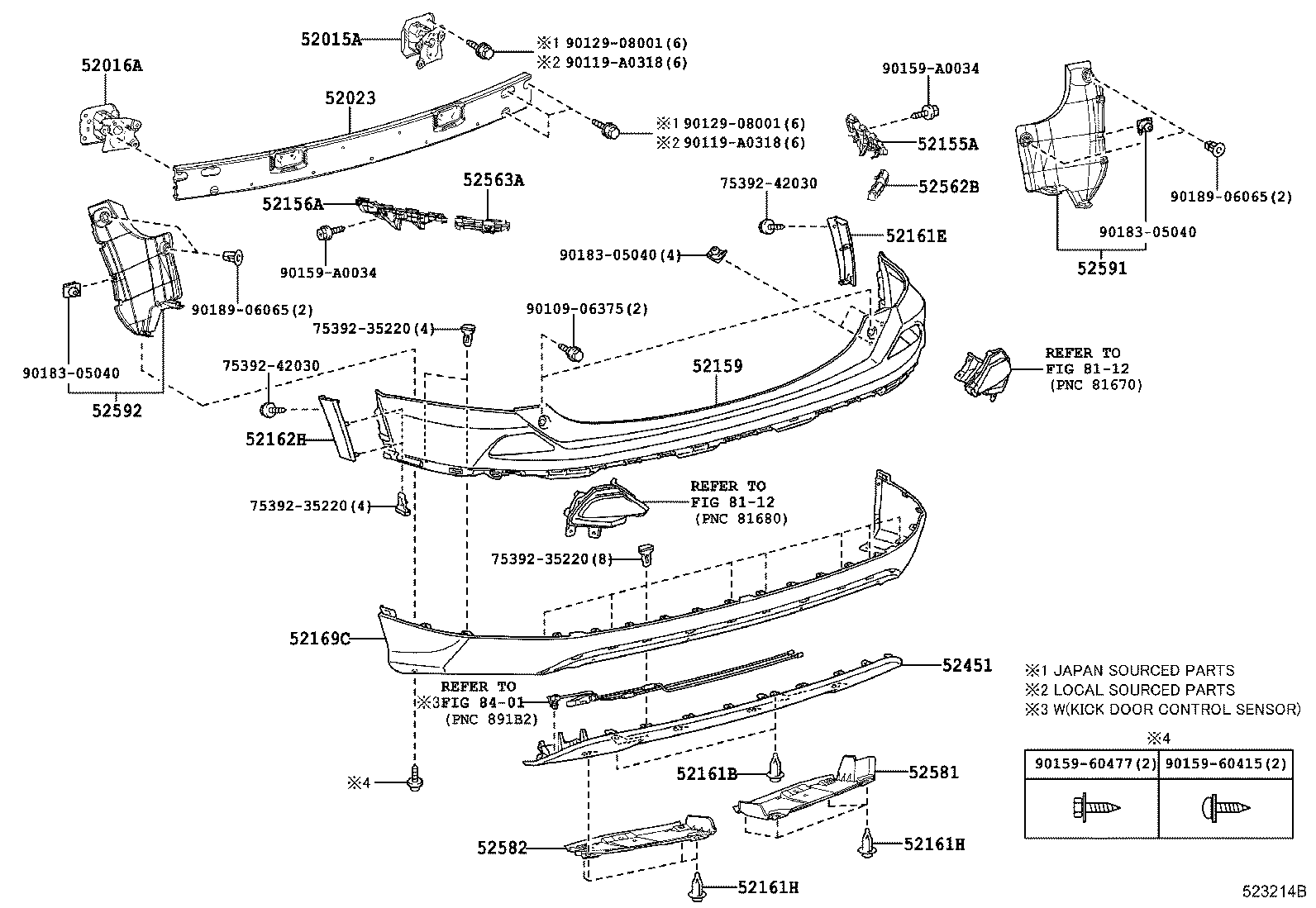

Rear Bumper & Bumper Stay
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52161E | Extension, Rear Bumper Side, RH |
| 52161H | Piece, Rear Bumper |
| 52162H | Extension, Rear Bumper Side, LH |
| 52169C | Cover, Rear Bumper, Lower |
| 52451 | Guard, Rear Bumper |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52581 | Protector, Rear Bumper, RH |
| 52582 | Protector, Rear Bumper, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
