Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04

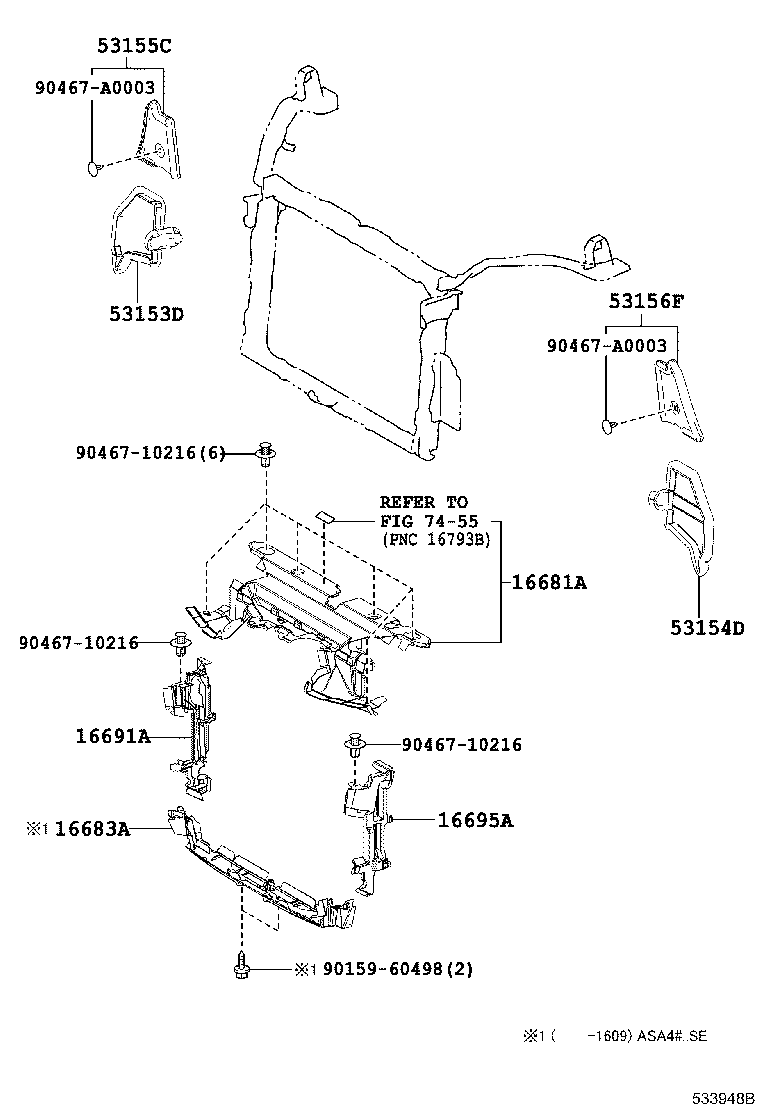

Front Fender Apron & Dash Panel
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16681A | Plate, Radiator Upper Air Guide |
| 16683A | Plate, Radiator Lower Air Guide |
| 16691A | Plate, Radiator Side Air Guide, Front RH |
| 16695A | Plate, Radiator Side Air Guide, Front LH |
| 52021B | Reinforcement Sub-assy, Front Bumper |
| 52129C | Arm, Front Bumper, Upper NO.2 RH |
| 52139C | Arm, Front Bumper, Upper NO.2 LH |
| 52144J | Stay, Front Bumper, Center |
| 53153D | Guide, Radiator Grille Side Air, RH |
| 53154D | Guide, Radiator Grille Side Air, LH |
| 53155C | Seal, Radiator Grille, NO.1 |
| 53156F | Seal, Radiator Grille, NO.2 |
| 53174E | Bracket, Radiator Support Side |
| 53187A | Stay, Radiator Support, RH |
| 53188B | Stay, Radiator Support, LH |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53209 | Brace Sub-assy, Hood Lock |
| 53211C | Support, Radiator, RH |
| 53212C | Support, Radiator, LH |
| 53216A | Support, Radiator, Upper |
| 53218A | Support, Radiator, Lower |
| 53219A | Support, Radiator, Lower Rear |
| 53257B | Bracket, Radiator Support TO Front Fender |
| 53258 | Bracket, Front End Panel Mounting, LH |
| 53261B | Bracket, Radiator Reserve Tank Mounting |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53705E | Member Sub-assy, Front Apron TO Cowl Side, RH |
| 53706D | Member Sub-assy, Front Apron TO Cowl Side, LH |
| 53707E | Apron Sub-assy, Fender Side, RH |
| 53708D | Apron Sub-assy, Fender Side, LH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53728D | Bracket, Fender Apron, RH |
| 53729G | Bracket, Fender Apron, LH |
| 53747A | Extension, Apron Fender Side, RH |
| 53748A | Extension, Apron Fender Side, LH |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 55101 | Panel Sub-assy, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
