Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04

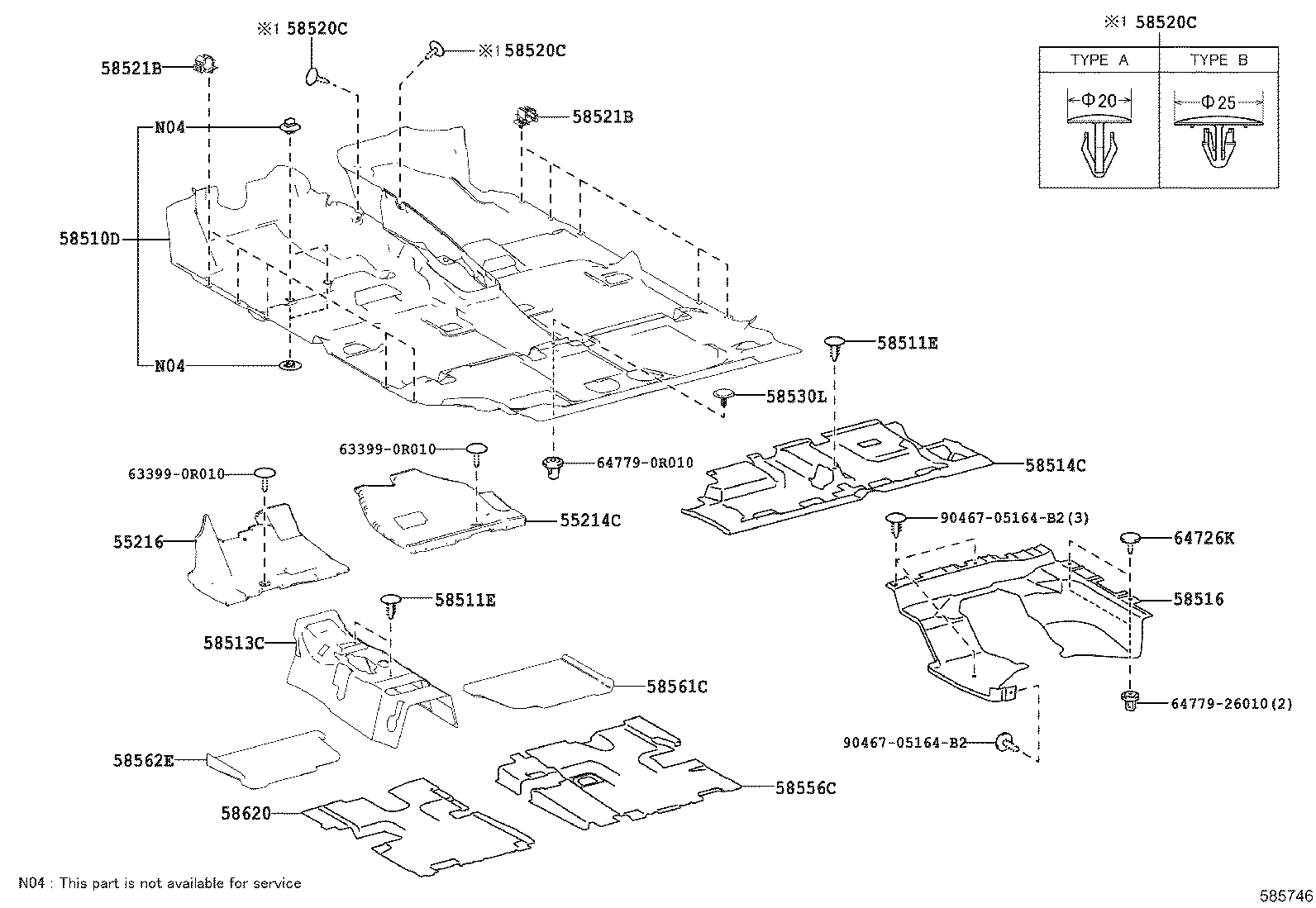

Floor Mat & Silencer Pad
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55214C | Pad, Dash Panel Insulator, NO.2 |
| 55216 | Pad, Dash Panel Insulator, NO.4 |
| 58510D | Carpet Assy, Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58513C | Mat, Floor, Front Center |
| 58514C | Mat, Froor, Rear |
| 58516 | Mat, Floor, Rear End |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530L | Clip, Floor Carpet, Center |
| 58556C | Silencer, Rear Floor |
| 58561C | Silencer, Front Floor, NO.1 |
| 58562E | Silencer, Front Floor, NO.2 |
| 58620 | Silencer, Rear Floor |
| 64726K | Clip, Luggage Trim, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
