Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 4 illustrations

Illustrations

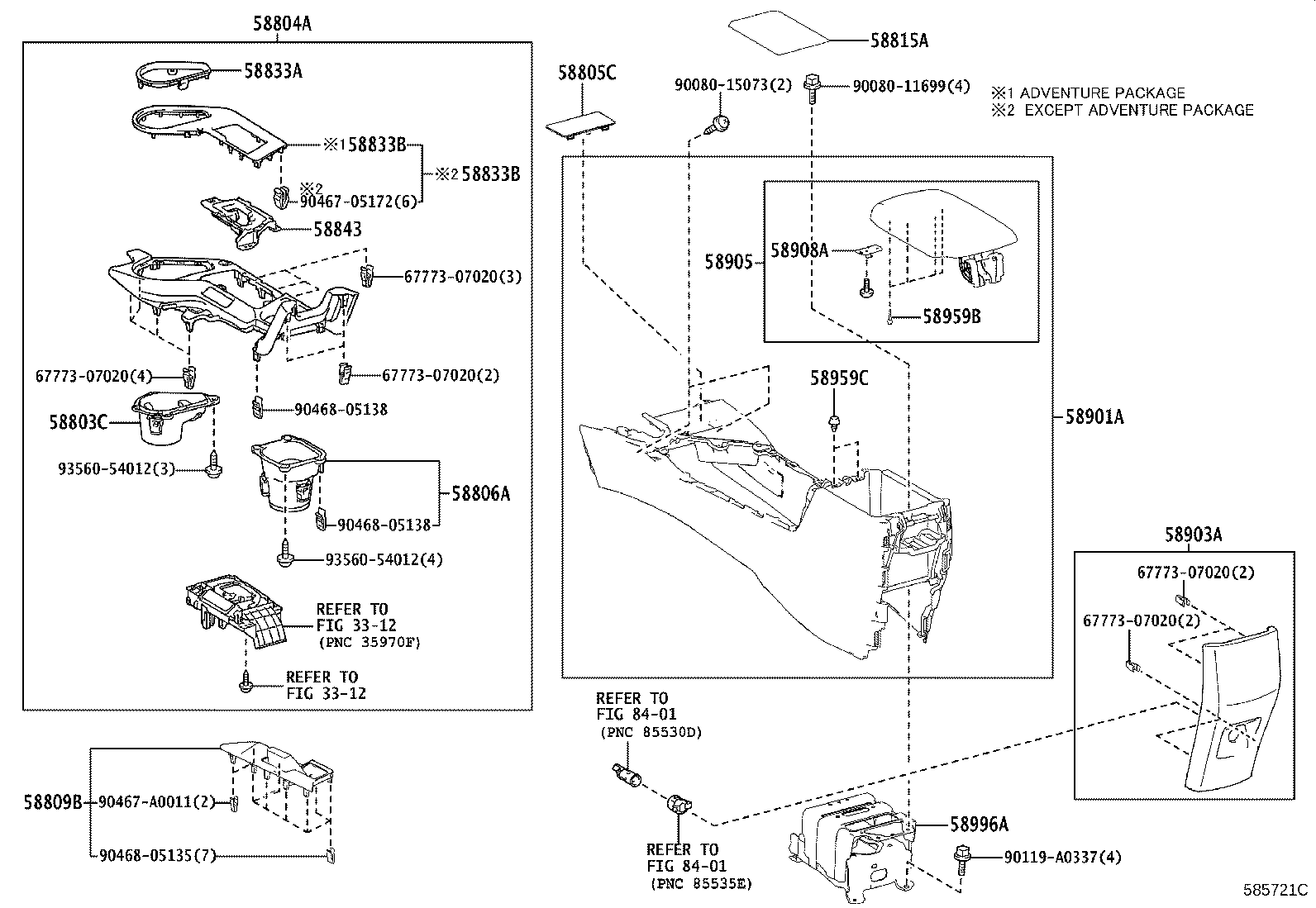

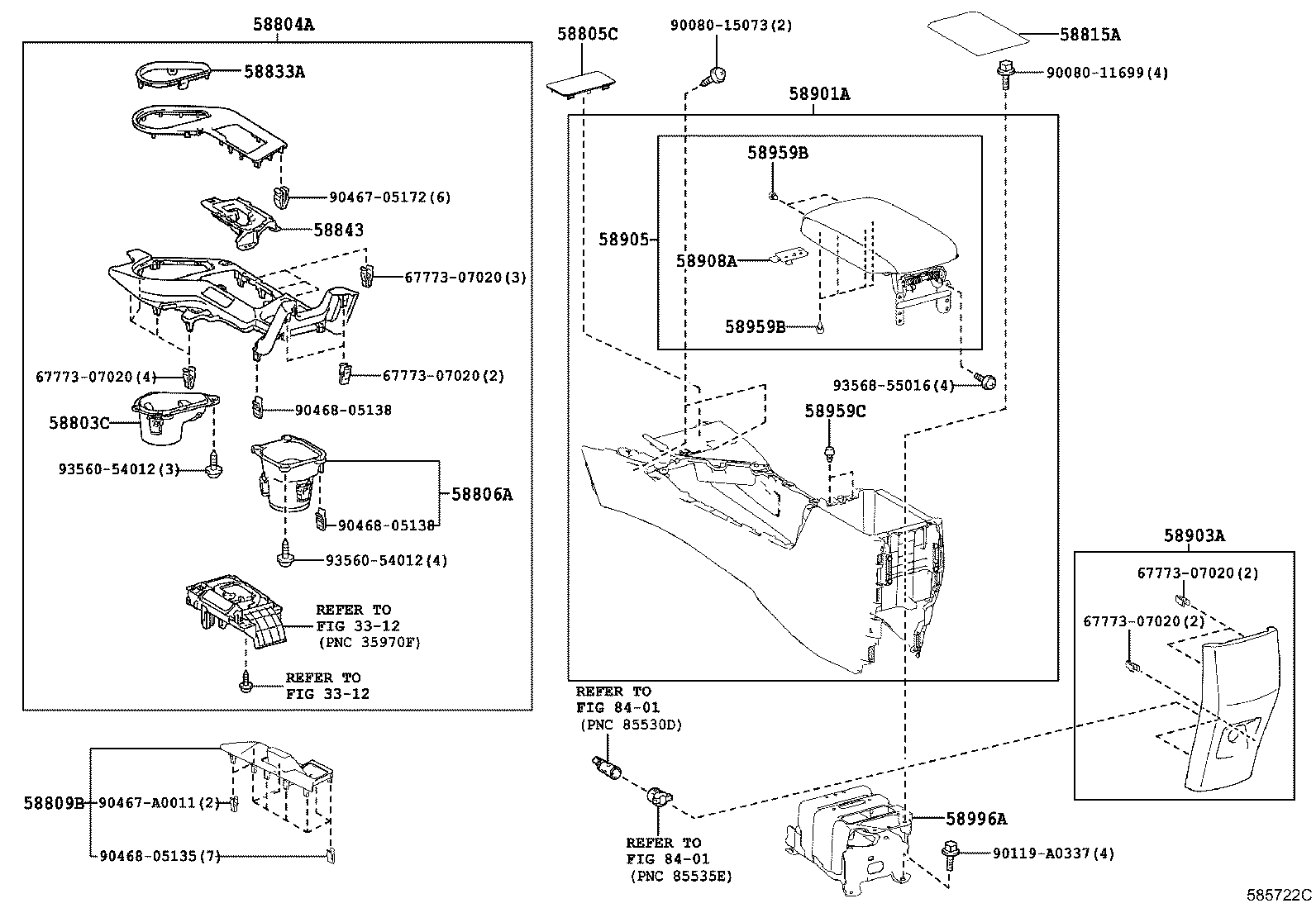

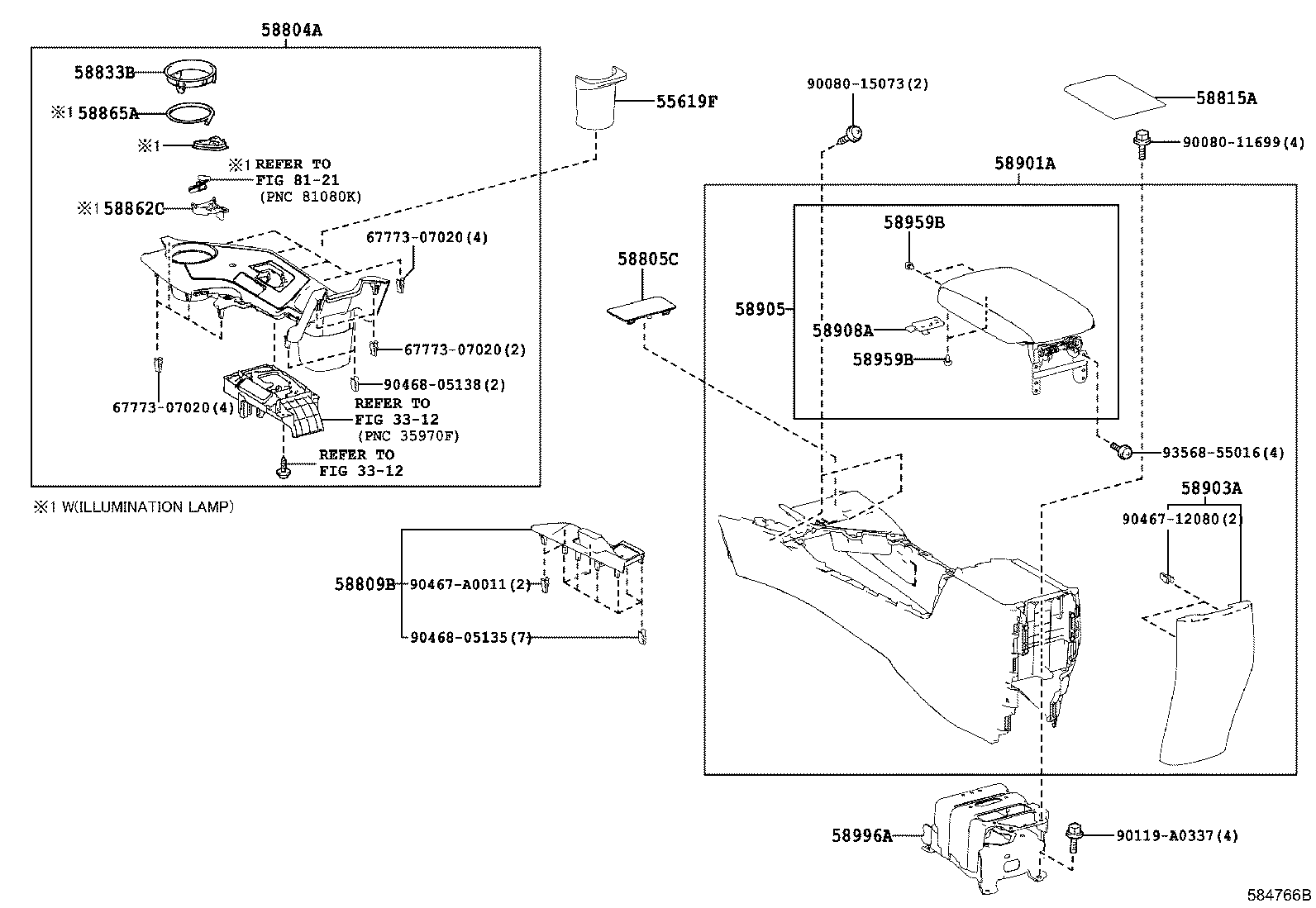

Figure 584765A 584765A 2013-01 → 2015-11 Figure 584766B 584766B 2013-01 → 2015-11 Figure 585721C 585721C 2015-11 → — Figure 585722C 585722C 2015-11 → —

Part groups

PNCDescription
55619F Holder, Console Box Cup, NO.2
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58806A Pocket Sub-assy, Console Box
58809B Cover Sub-assy, Parking Brake Hole
58815A Carpet, Console Box
58833A Cover, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58843 Bezel, Shifting Hole
58862C Support, Console Box, NO.2
58865A Lens, Front Console Box, NO.1
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58959B Cushion, Console Compartment Door
58959C Cushion, Console Compartment Door
58996A Bracket, Console Box Mounting, NO.2
