Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04

Roof Panel & Back Panel

40 part groups · 3 illustrations

PNC	Description
63102A	Panel Sub-assy, Windshield Header
63103B	Reinforcement Sub-assy, Roof Panel, Center
63104E	Reinforcement Sub-assy, Roof Panel, Rear
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63141G	Reinforcement, Roof Panel, NO.1
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63144B	Reinforcement, Roof Panel, NO.4
63146A	Bracket, Roof Panel Reinforcement, NO.1
63147	Bracket, Roof Panel Reinforcement
63149D	Reinforcement, Roof Panel, NO.8
63169B	Plate, Roof Panel Reinforcement, RH
63179	Plate, Roof Panel Reinforcement, LH
63185D	Bracket, Roof Rack, Front
63187A	Bracket, Roof Rack, Rear

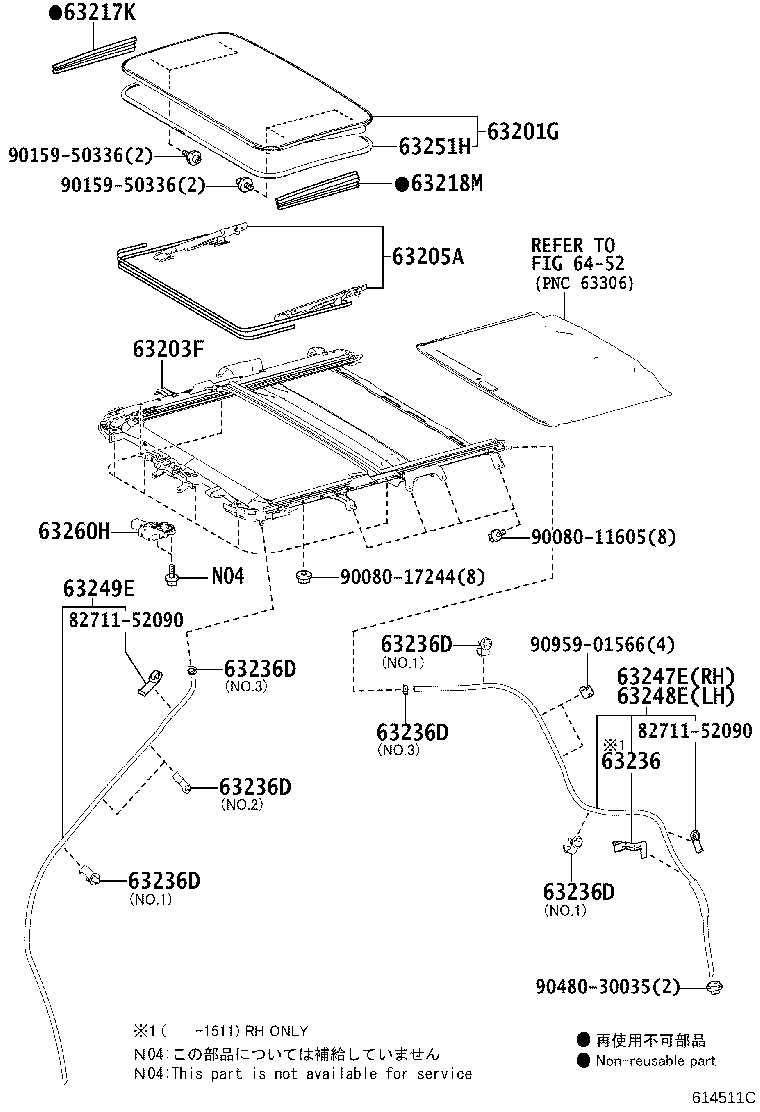

63201G	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63205A	Cable Sub-assy, Sliding Roof Drive
63217K	Garnish, Sliding Roof Side, RH
63218M	Garnish, Sliding Roof Side, LH
63230A	Bolt Assy, Removable Roof
63236	Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D	Clamp, Sliding Roof Drain Hose
63247E	Hose, Sliding Roof Drain, Rear RH
63248E	Hose, Sliding Roof Drain, Rear LH
63249E	Hose, Sliding Roof Drain
63251H	Weatherstrip, Sliding Roof
63260H	Gear Assy, Sliding Roof Drive
63401C	Cover Sub-assy, Roof Rack, Front RH
63402C	Cover Sub-assy, Roof Rack, Front LH
63403C	Cover Sub-assy, Roof Rack, Rear RH
63404C	Cover Sub-assy, Roof Rack, Rear LH
63435F	Seal, Roof Carrier, NO.1
63437A	Seal, Roof Carrier, NO.2
63460A	Rack Assy, Roof, RH
63470B	Rack Assy, Roof, LH
63479	Retainer, Roof Inner Rack

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
