Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

19 part groups · 2 illustrations

Illustrations

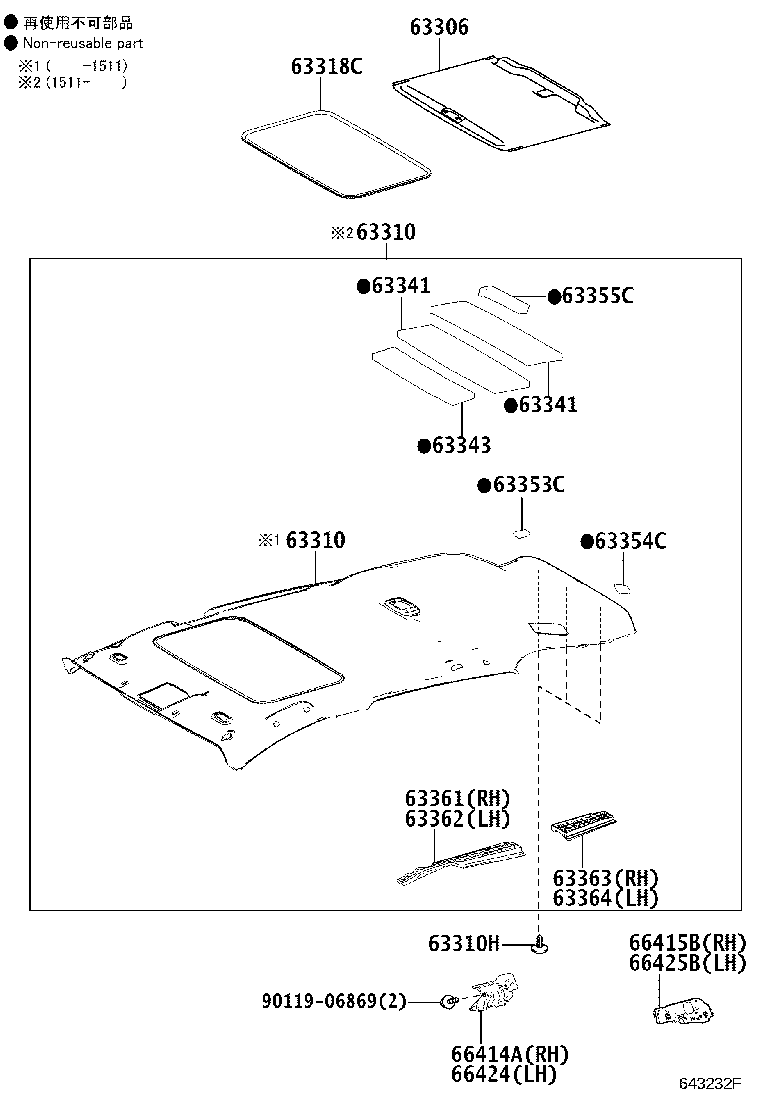

Figure 643231H 643231H 2013-01 → — Figure 643232F 643232F 2013-01 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63353C Pad, Roof Headlining, Center
63354C Pad, Roof Headlining Front Side
63355C Pad, Roof Headlining, RH
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
