Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04

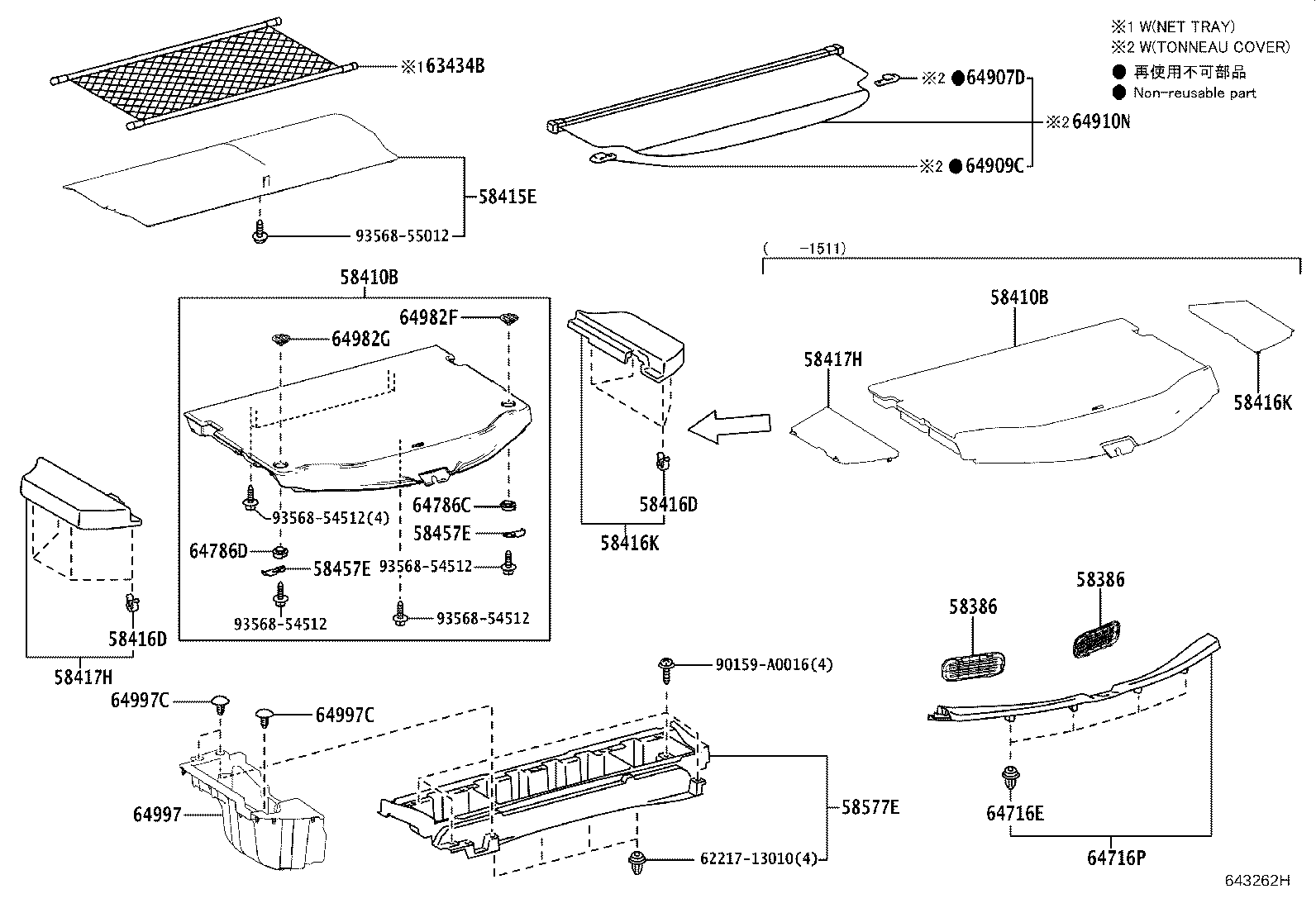

Deck Board & Deck Trim Cover
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58386 | Plate, Rear Floor Finish |
| 58400C | Belt Assy, Luggage Hold |
| 58410B | Board Assy, Deck |
| 58415E | Board, Rear Floor, NO.1 |
| 58416D | Clip, Rear Floor Board |
| 58416K | Board, Rear Floor, NO.2 |
| 58417H | Board, Rear Floor, NO.3 |
| 58457E | Bracket, Deck Board, Rear |
| 58577E | Plate, Rear Floor Mat Support Side, NO.1 |
| 63434B | Net, Room Rack |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64716P | Cover, Deck Trim, Rear |
| 64786C | Plate, Jack Cover |
| 64786D | Plate, Jack Cover, NO.2 |
| 64907D | Stopper Sub-assy, Tonneau Cover, RH |
| 64909C | Stopper Sub-assy, Tonneau Cover, LH |
| 64910N | Cover Assy, Tonneau |
| 64982F | Knob, Deck Board |
| 64982G | Knob, Deck Board, NO.2 |
| 64997 | Box, Deck Floor, LH |
| 64997C | Clip(FOR DECK FLOOR BOX) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
