Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04
Seat & Seat Track
111 part groups · 7 illustrations

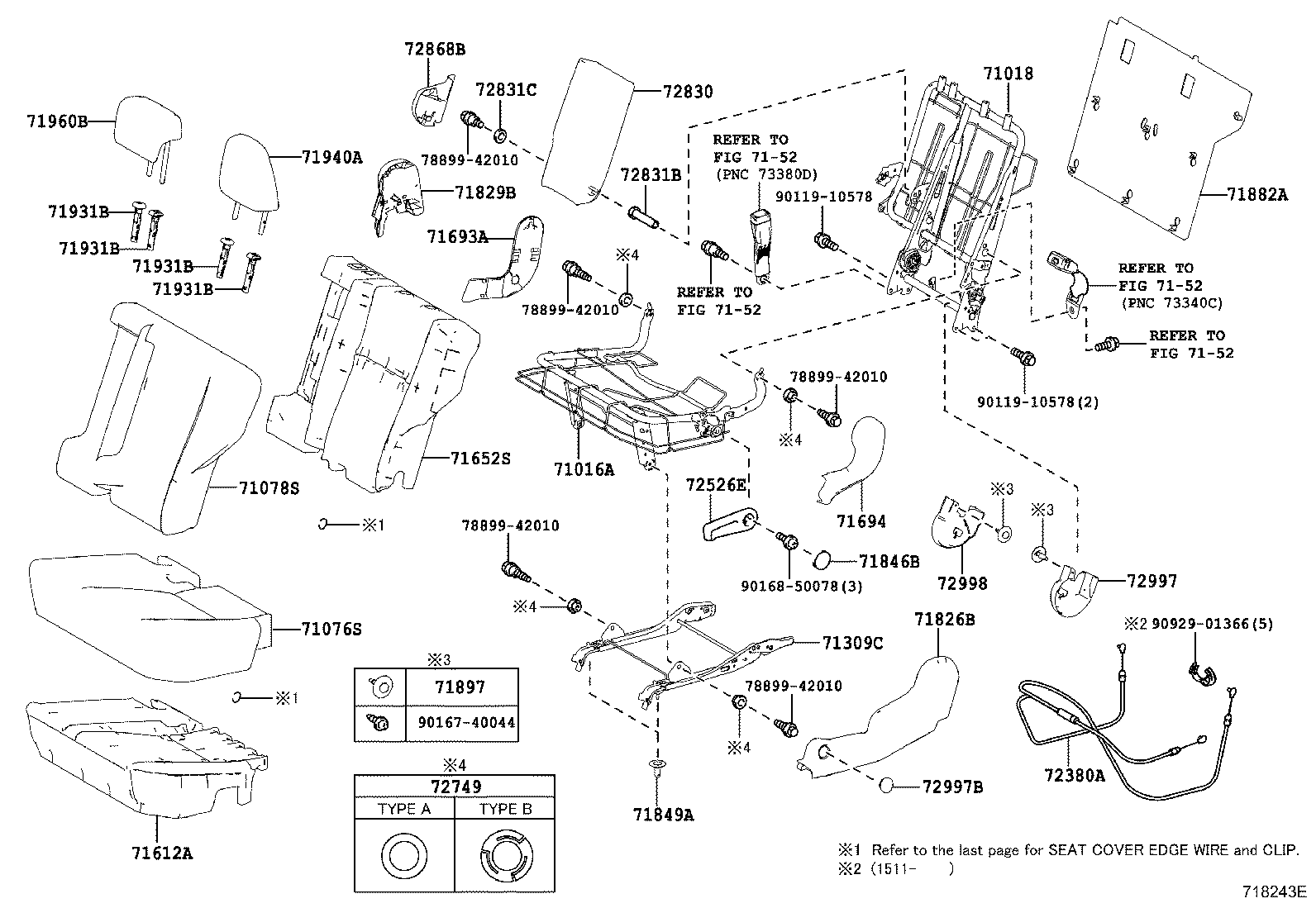

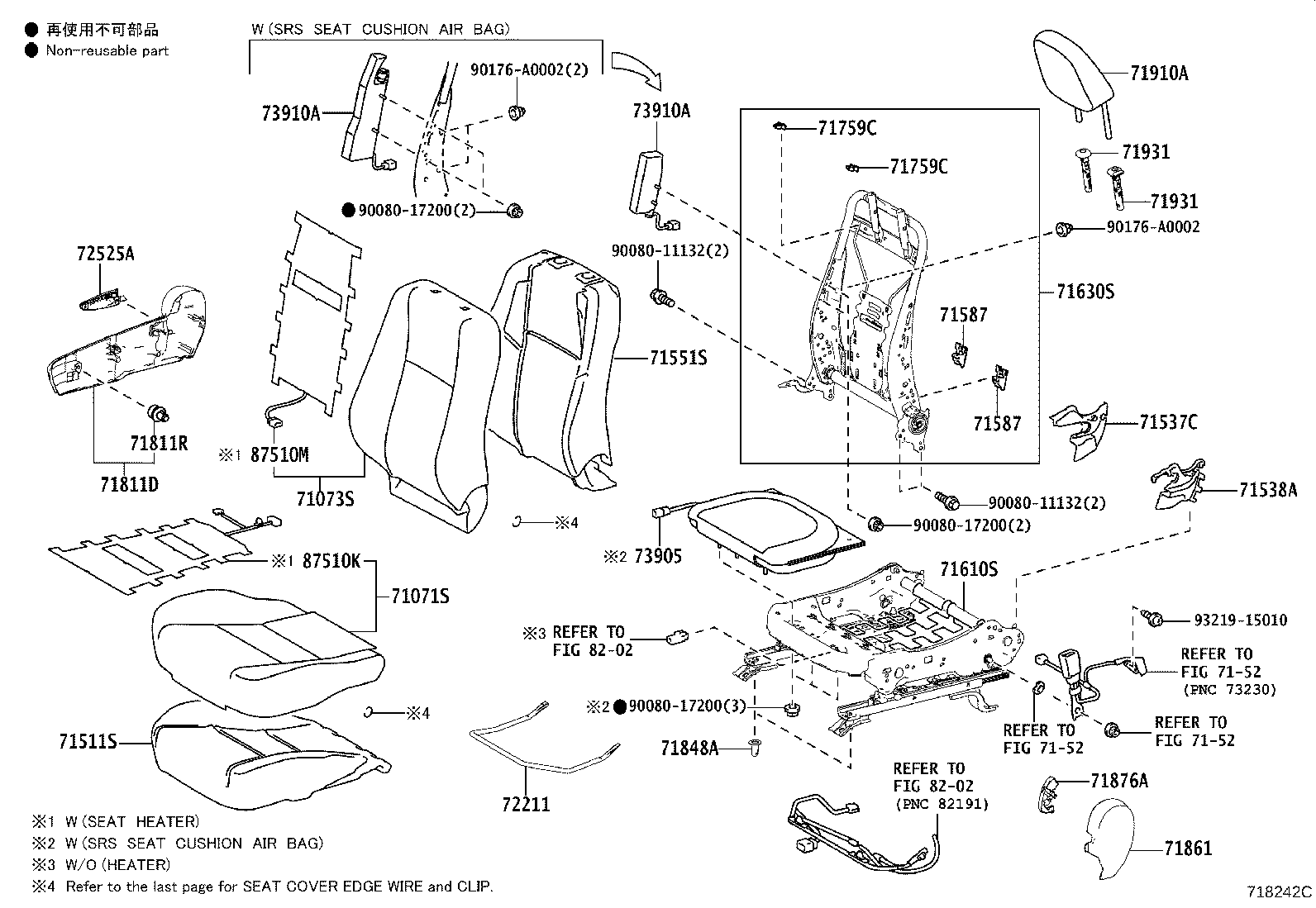

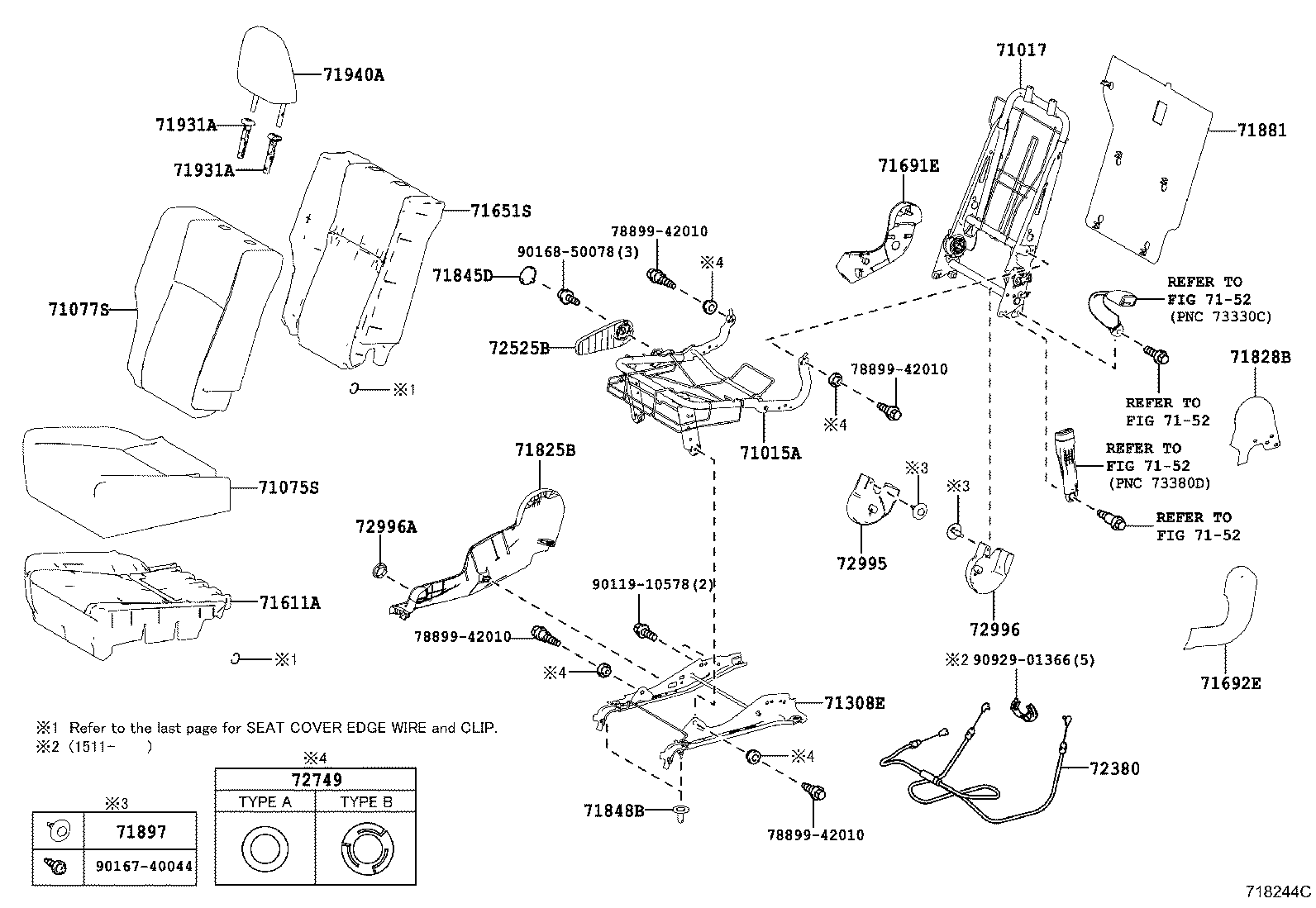

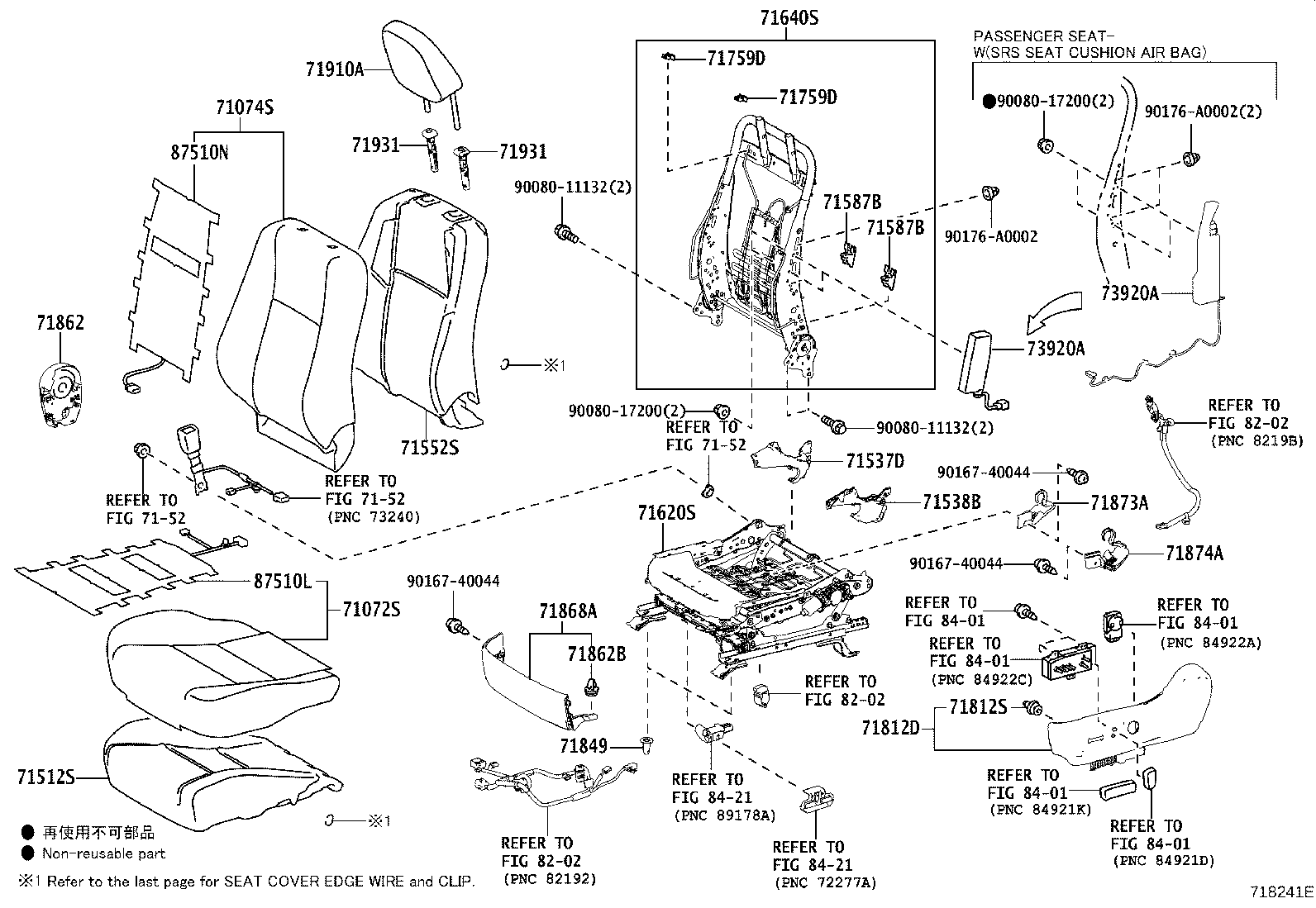

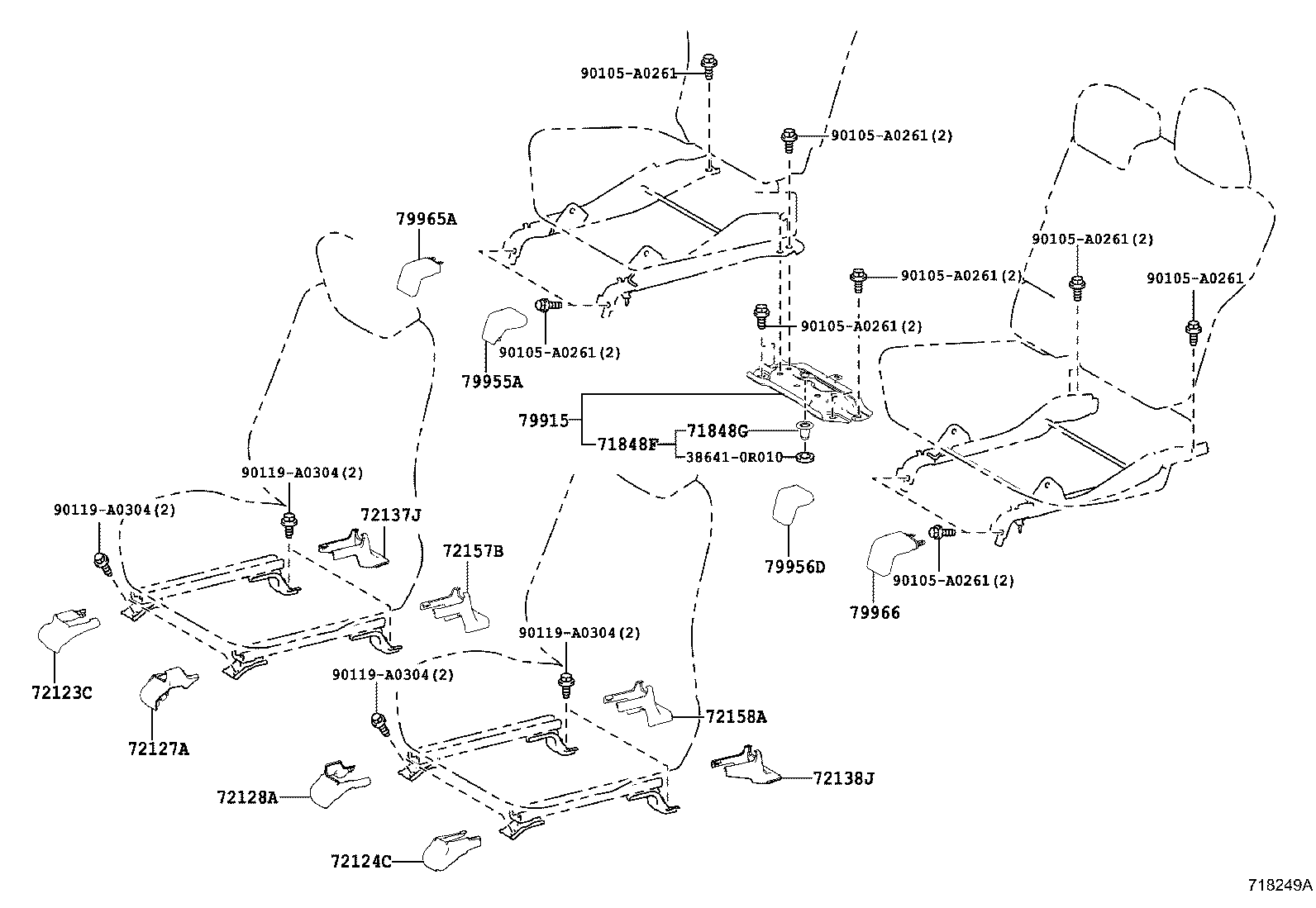

Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71308E | Leg Sub-assy, Rear Seat, RH |
| 71309C | Leg Sub-assy, Rear Seat, Rear LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71587B | Protector, Front Seatback Edge |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71647H | Protector, Front Seat Cushion Edge |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71691E | Cover, Rear Seat Cushion Hinge, NO.1 |
| 71692E | Cover, Rear Seat Cushion Hinge, NO.2 |
| 71693A | Cover, Rear Seat Cushion Hinge, NO.3 |
| 71694 | Cover, Rear Seat Cushion Hinge, Lower LH |
| 71759C | Hook, Front Seatback, NO.1 |
| 71759D | Hook, Front Seatback, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811R | Clip, Front Seat Cushion Shield, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812S | Clip, Front Seat Cushion Shield, LH |
| 71825B | Moulding, Rear Seat Cushion, RH |
| 71826B | Moulding, Rear Seat Cushion, LH |
| 71828B | Moulding, Rear Seat Cushion, Rear RH |
| 71829B | Moulding, Rear Seat Cushion, Rear LH |
| 71845D | Cap, Rear Seat Cover, RH |
| 71846B | Cap, Rear Seatback Board, NO.1 |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71848F | Cap, Seat Adjuster Cover, NO.1 |
| 71848G | Cap, Seat Adjuster Cover, NO.2 |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71849A | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71862B | Clip(FOR FRONT SEAT SHIELD, LH) |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71881 | Board, Rear Seatback, RH |
| 71882A | Board, Rear Seatback, LH |
| 71897 | Hook, Seat Cover Side |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72123C | Cover, Seat Track Bracket, Outer Front RH |
| 72124C | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157B | Cover, Rear Seat Track Bracket, Inner RH |
| 72158A | Cover, Rear Seat Track Bracket, Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211B | Handle, Seat Track Adjusting |
| 72380 | Cable Assy, Seat Adjuster Control, NO.2 |
| 72380A | Cable Assy, Seat Adjuster Control, NO.2 |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72526E | Handle, Reclining Adjuster Release, LH |
| 72749 | Spacer, Rear Seat Reclining |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72831B | Plate, Rear Seat Center Armrest, NO.1 |
| 72831C | Plate, Rear Seat Center Armrest, NO.2 |
| 72868B | Cover, Center Armrest Hinge |
| 72995 | Cover, Rear Seat Cushion, RH |
| 72996 | Cover, Rear Seatback, RH |
| 72996A | Cover, Rear Seatback |
| 72997 | Cover, Rear Seatback, LH |
| 72997B | Cover, Rear Seatback |
| 72998 | Cover, Rear Seat Cushion, LH |
| 73905 | Airbag Sub-assy, Front Seat, RH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 79915 | Bracket, Seat Leg |
| 79955A | Cover, Rear Seat Front Bracket, RH |
| 79956D | Cover, Rear Seat Front Bracket, LH |
| 79965A | Cover, Rear Seat Leg Side, NO.2 |
| 79966 | Cover, Rear Seat Leg Side, NO.3 |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
