Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

20 part groups · 2 illustrations

Illustrations

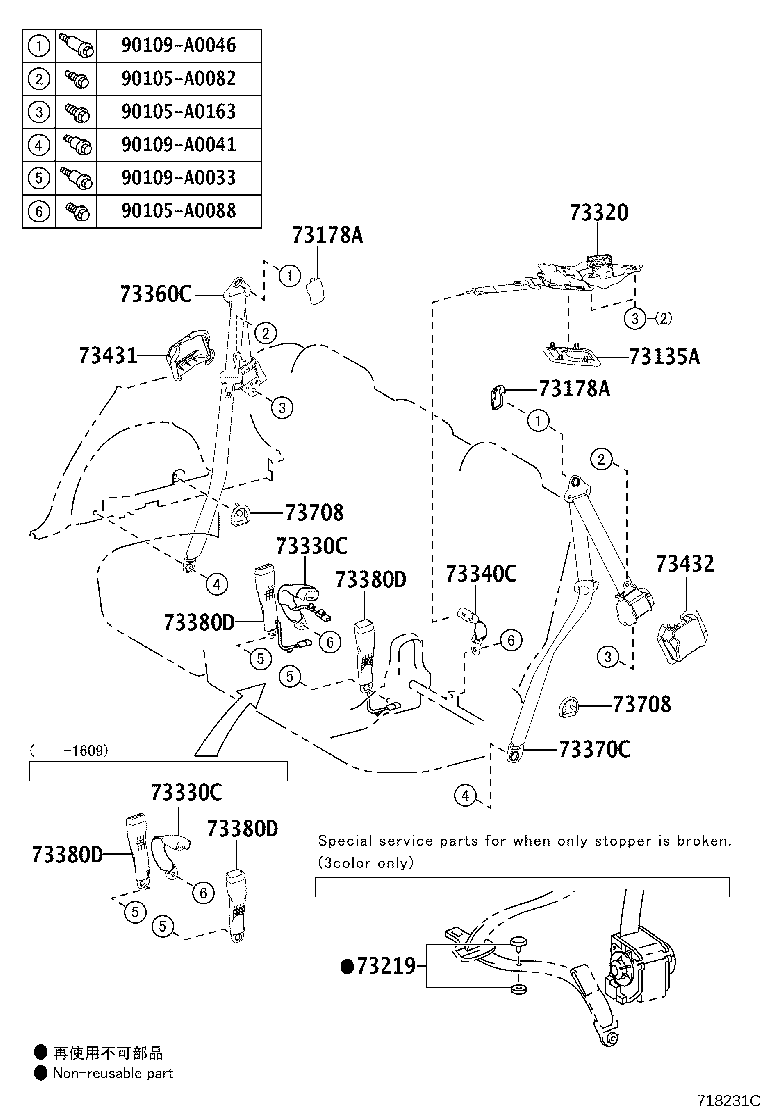

Figure 718232B 718232B 2013-01 → — Figure 718231C 718231C 2013-01 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73135A Cover, Shoulder Belt Anchor, RH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380D Belt Assy, Rear Seat, Inner
73431 Cover, Rear Seat Belt Retractor, RH
73432 Cover, Rear Seat Belt Retractor, LH
73708 Bracket Set, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
