Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04

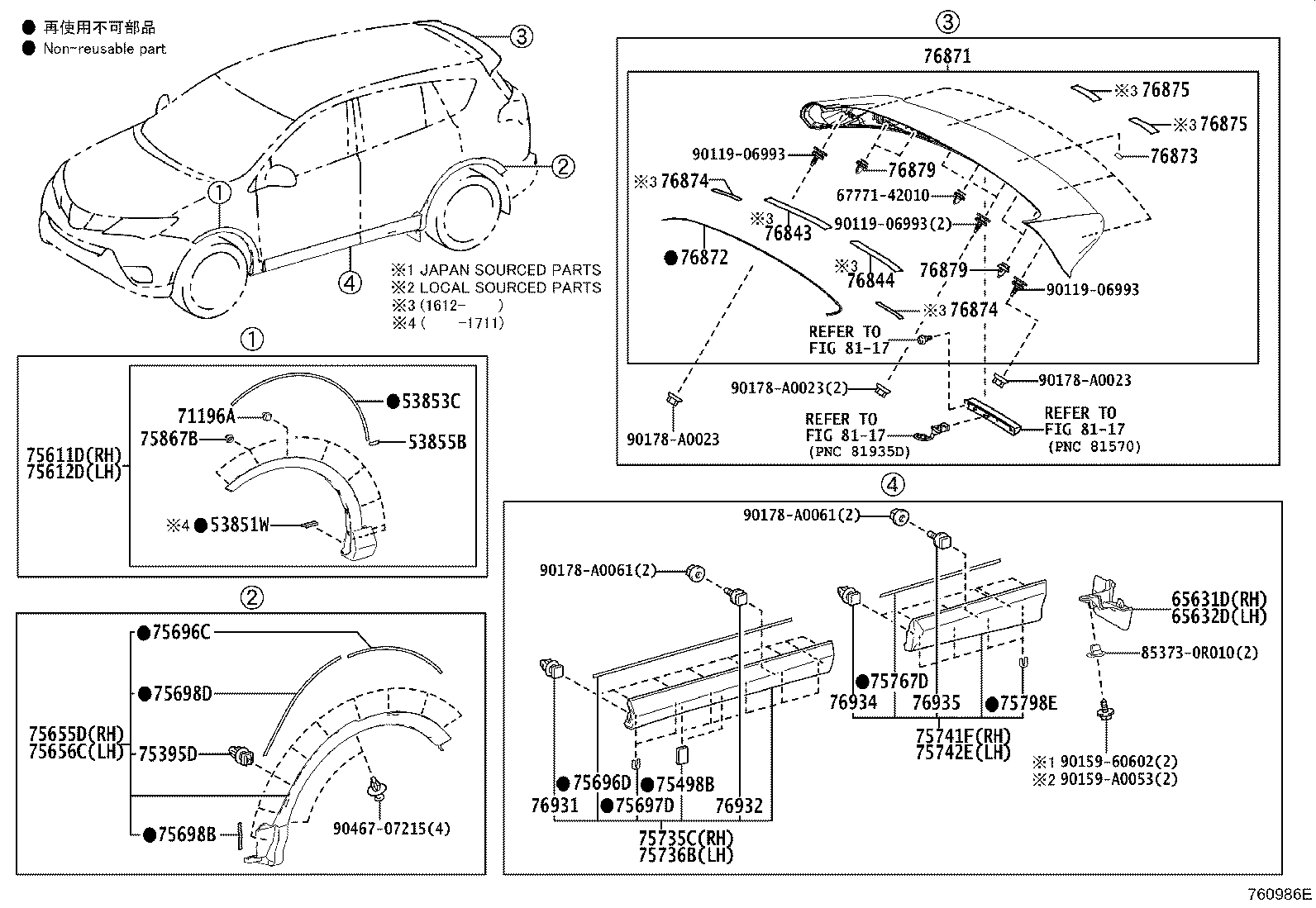

Spoiler & Side Mudguard
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53851W | Pad, Front Wheel Opening Extension, NO.1 |
| 53853C | Pad, Front Wheel Opening Extension, NO.3 |
| 53855B | Pad, Front Wheel Opening Extension, NO.5 |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 71196A | Clip |
| 75395D | Clip, Outside Moulding, NO.1 |
| 75498B | Seal, Outside Moulding, NO.2 |
| 75611D | Moulding, Front Fender, Outside Front RH |
| 75612D | Moulding, Front Fender, Outside Front LH |
| 75655D | Moulding, Quarter, Outside Center RH |
| 75656C | Moulding, Quarter, Outside Center LH |
| 75696C | Pad, Body Outside Moulding, NO.1 |
| 75696D | Pad, Body Outside Moulding |
| 75697D | Pad, Body Outside Moulding, NO.2 |
| 75698B | Pad, Body Outside Moulding, NO.3 |
| 75698D | Pad, Body Outside Moulding, NO.3 |
| 75735C | Moulding, Front Door Outside, Lower RH |
| 75736B | Moulding, Front Door, Outside Lower LH |
| 75741F | Moulding, Rear Door, Outside RH |
| 75742E | Moulding, Rear Door, Outside LH |
| 75767D | Pad, Rear Door Moulding,NO.1 |
| 75798E | Pad, Rear Door Outside Moulding, RR |
| 75867B | Clip, Rocker Panel Moulding |
| 76843 | Protector, Rear Spoiler, NO.11 RH |
| 76844 | Protector, Rear Spoiler, NO.11 LH |
| 76871 | Spoiler, Rear |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76931 | Retainer, Side Mudguard, NO.3 |
| 76932 | Retainer, Side Mudguard, NO.4 |
| 76934 | Retainer, Side Mudguard, NO.6 |
| 76935 | Retainer, Side Mudguard, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
