Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04
Fuel Tank & Tube
62 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23220A | Pump Assy, Fuel W/Filter |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77013 | Tube Sub-assy, Fuel Tank Breather, NO.2 |
| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77024A | Plate Sub-assy, Fuel Suction |

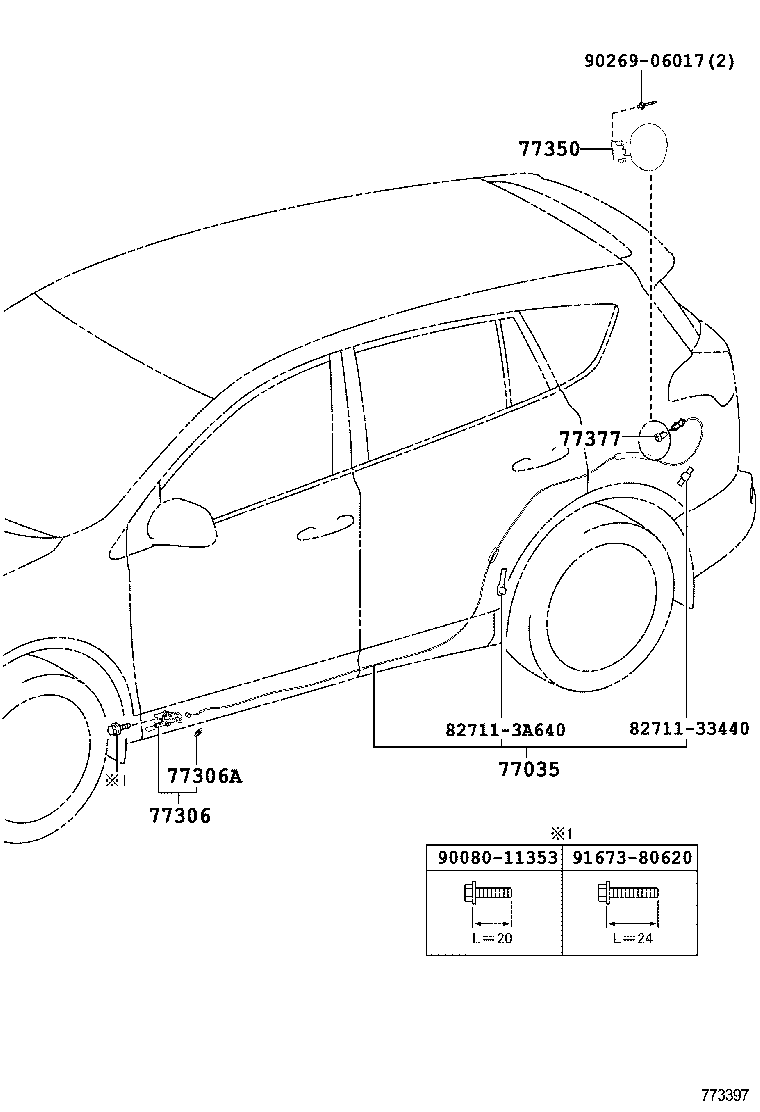

| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77211B | Clamp (FOR FUEL FILLER PIPE) |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77240 | Tube Assy, Fuel Suction |
| 77241W | Clip, Tube Joint |

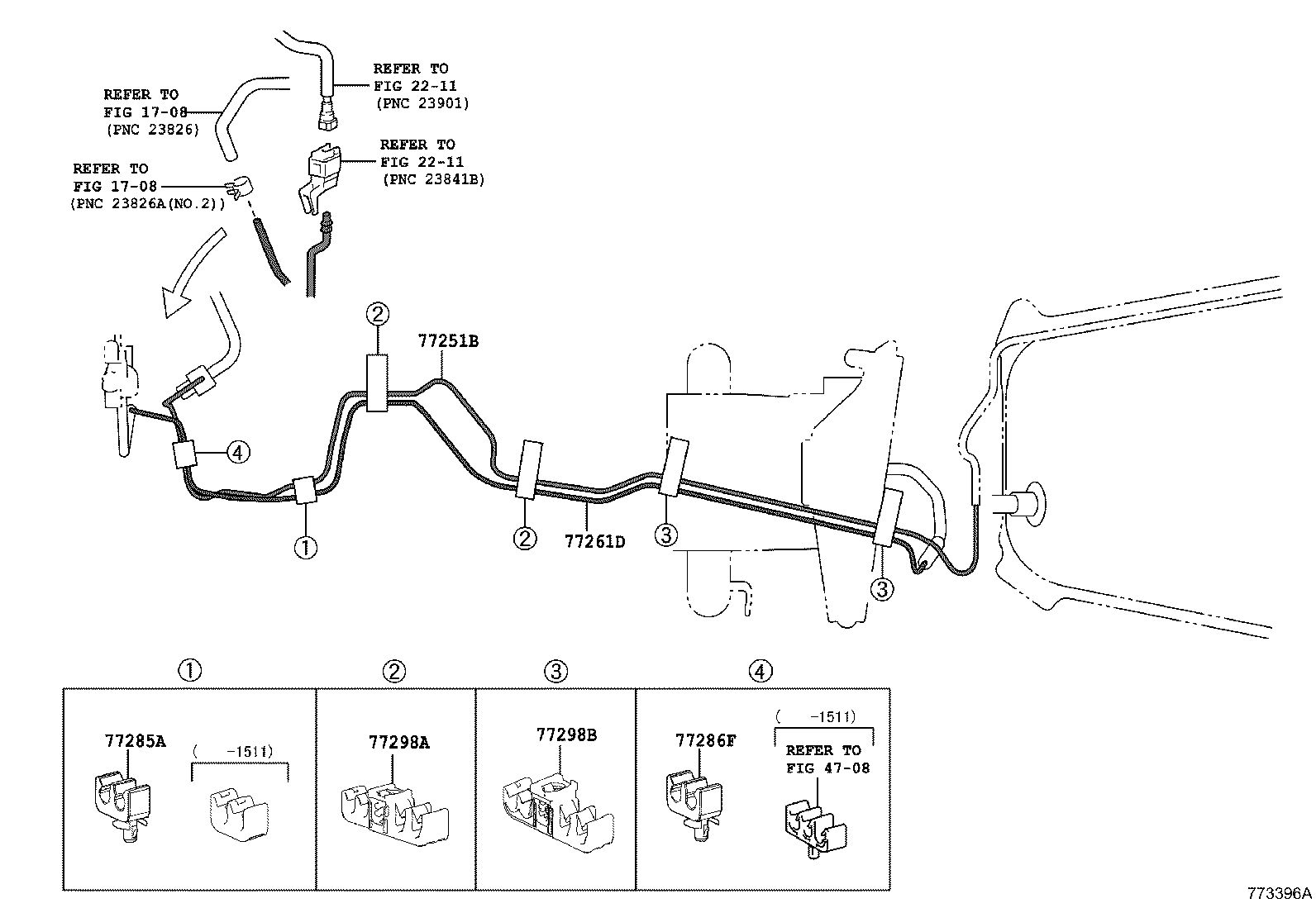

| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77276 | Protector, Fuel Hose |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77281R | Clamp, Fuel Filler Pipe, NO.2 |
| 77285A | Support, Fuel Return And Main Tube |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295D | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77299C | Clamp (FOR FUEL FILLER PIPE) |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77611 | Band, Fuel Tank |
| 77612B | Band, Fuel Tank, NO.2 |
| 77613C | Band, Fuel Tank, NO.3 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77681A | Seat, Fuel Tank Band |
| 77682A | Seat, Fuel Tank Band, NO.2 |
| 77683 | Seat, Fuel Tank Band, NO.3 |
| 77740 | Canister Assy, Charcoal |
| 77740R | Pump Sub-assy, Leak Detection |
| 77745 | Filter, Charcoal Canister, NO.1 |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
