Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

18 part groups · 3 illustrations

Illustrations

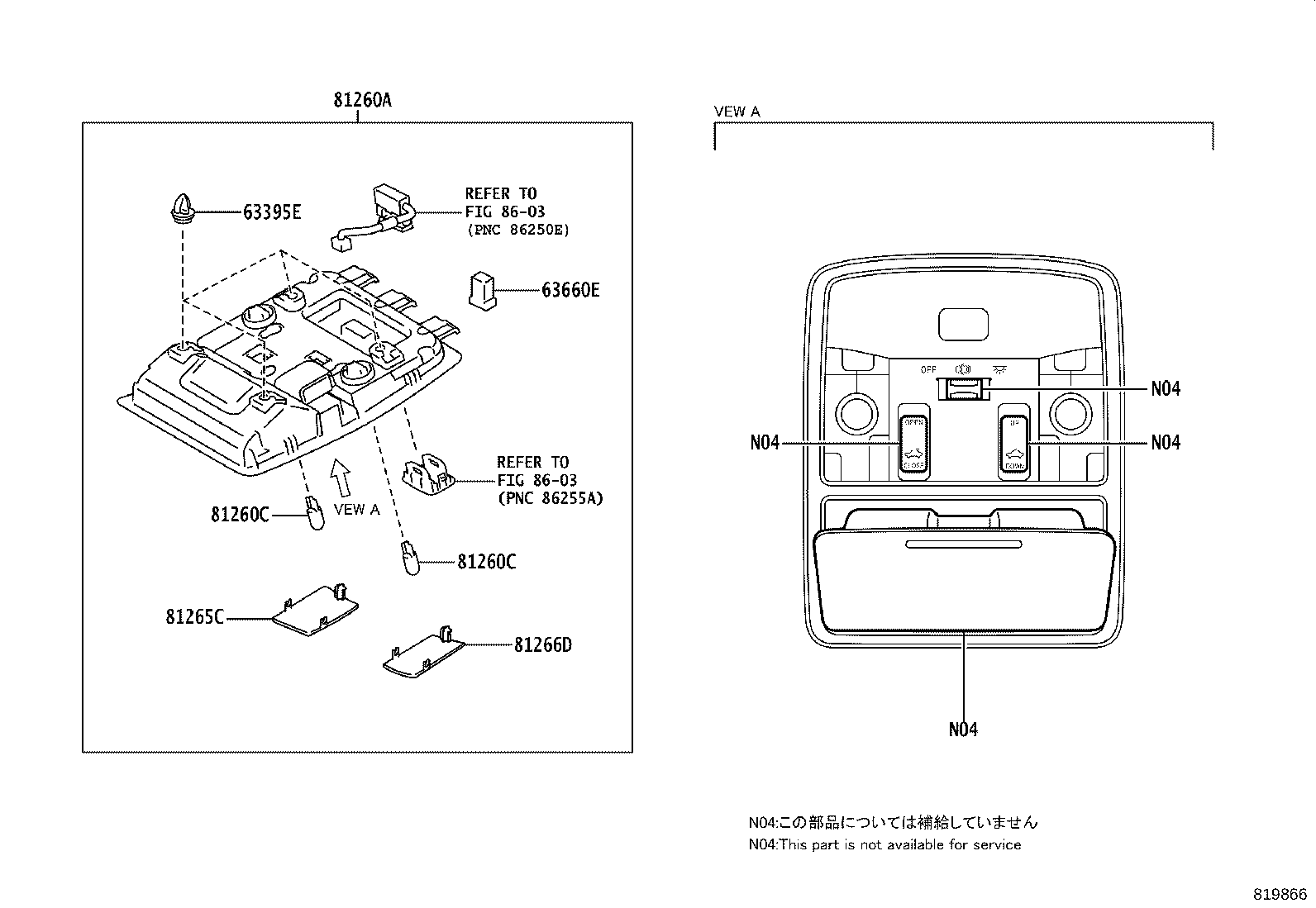

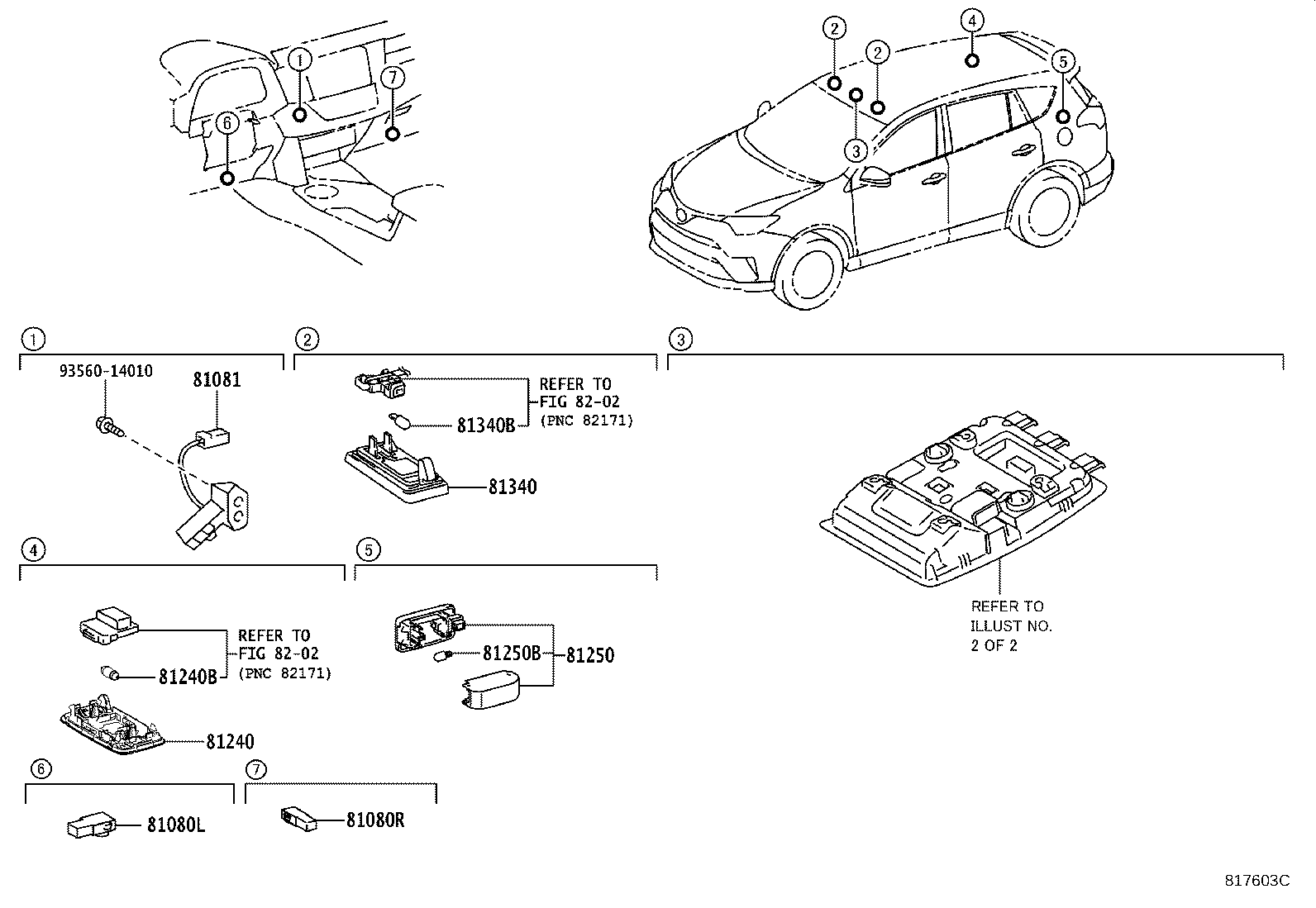

Figure 816456B 816456B 2013-01 → 2015-11 Figure 817603C 817603C 2015-11 → — Figure 819866 819866 2015-11 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
63660E Lock Assy, Roof Console
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080R Lamp Assy, Interior Illumination, NO.1 RH
81081 Lamp Sub-assy, Interior Illumination
81208 Lamp Sub-assy, Map
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81363 Lens, Room Lamp, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
