Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

111 part groups · 10 illustrations

Illustrations

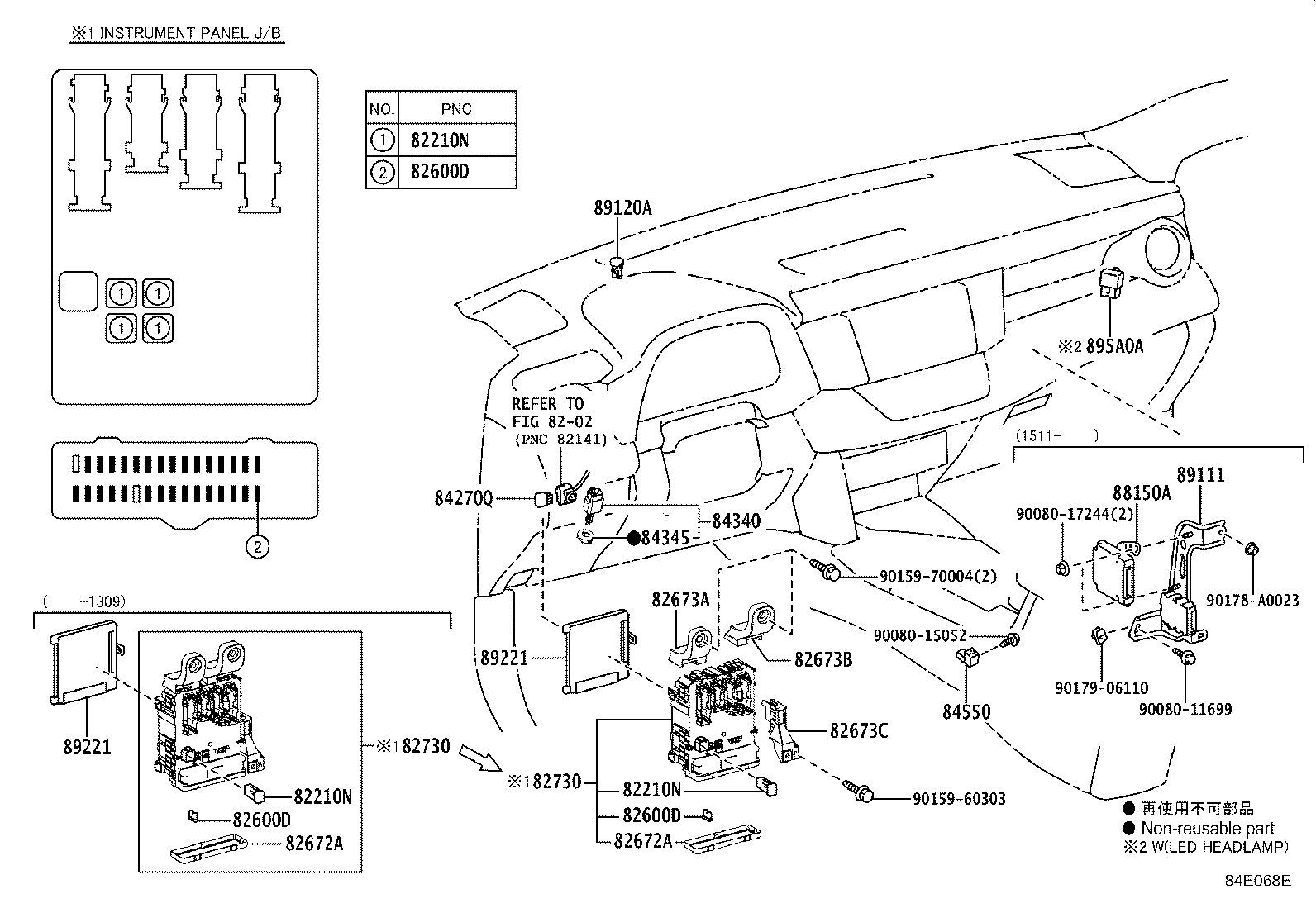

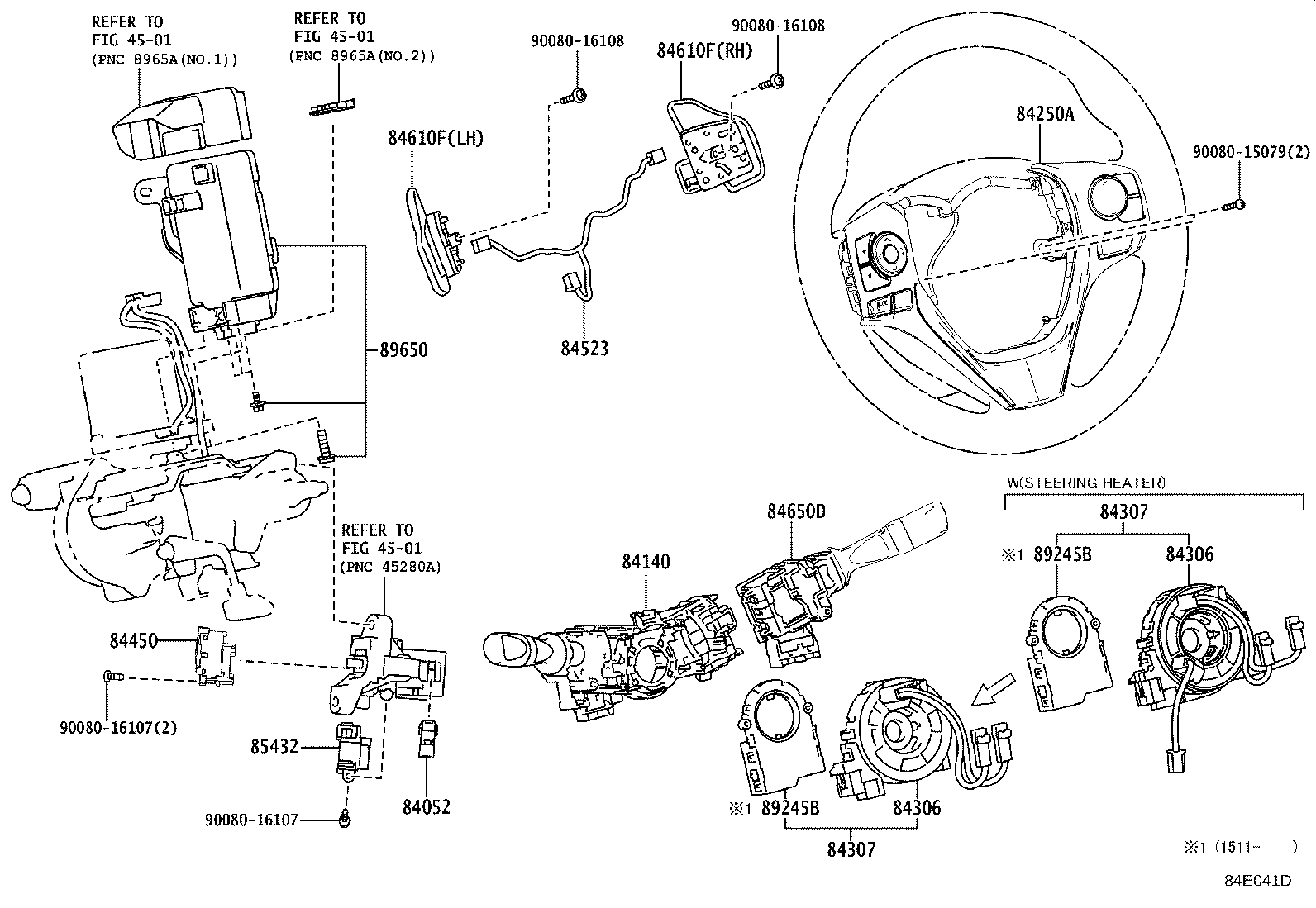

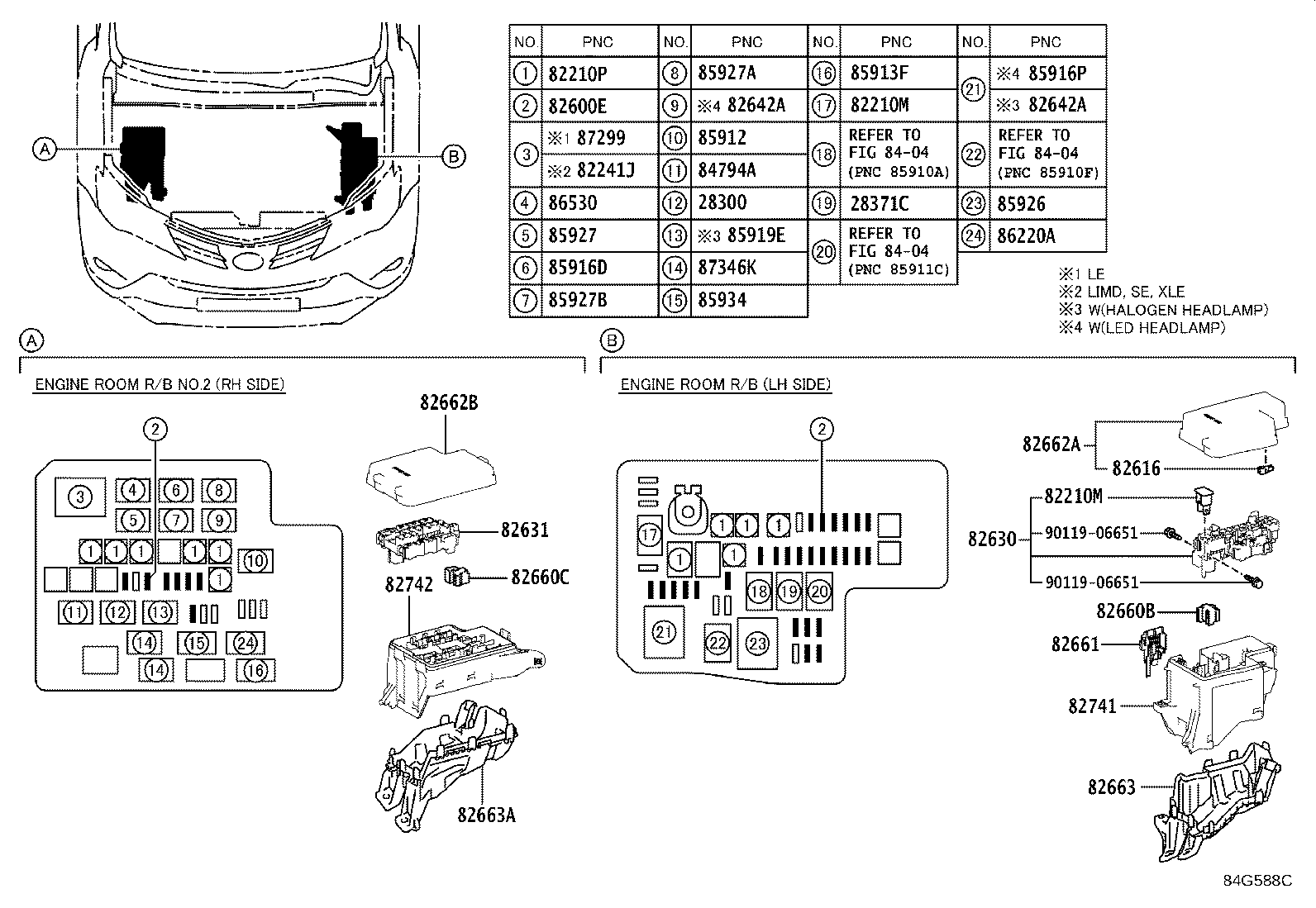

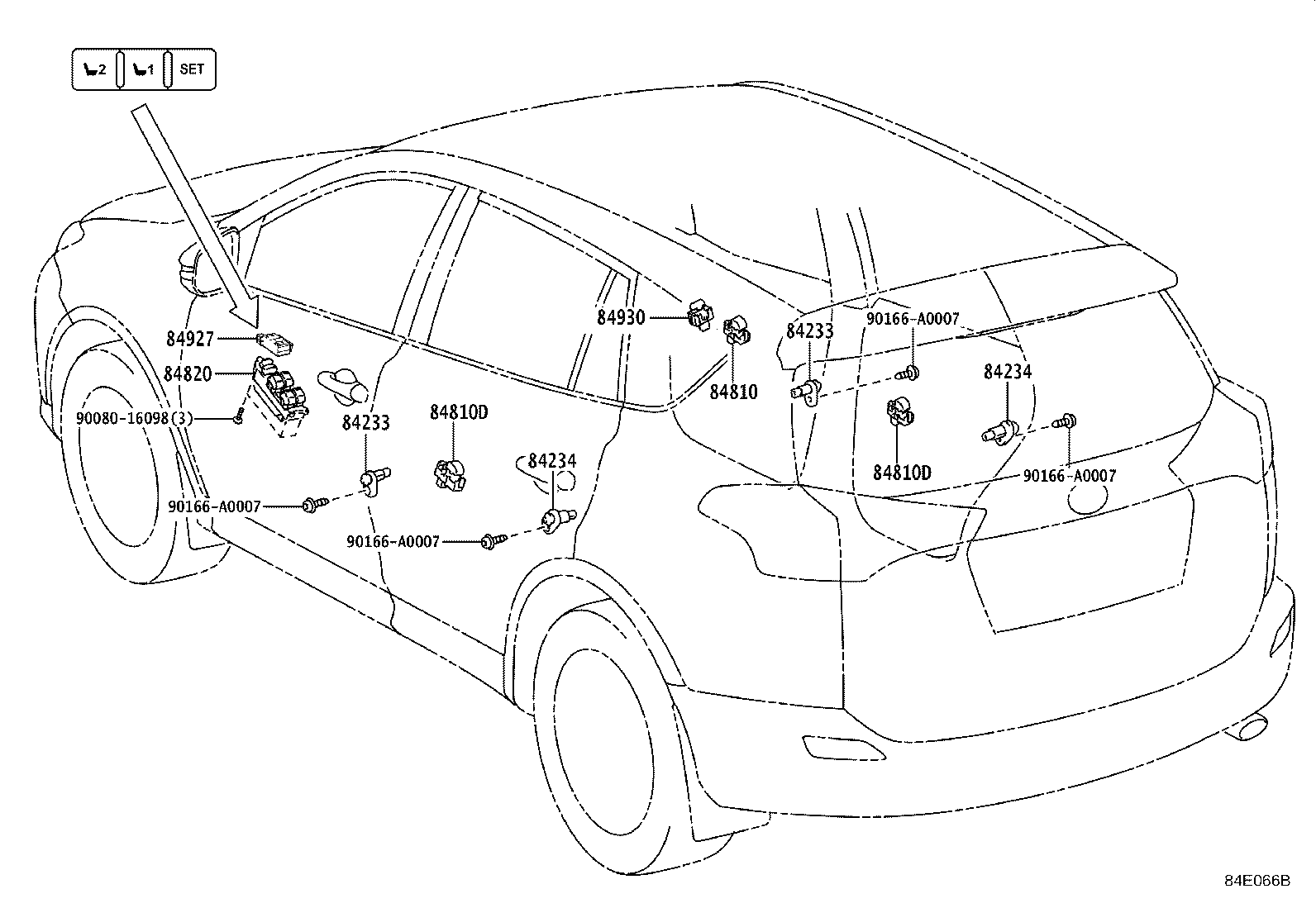

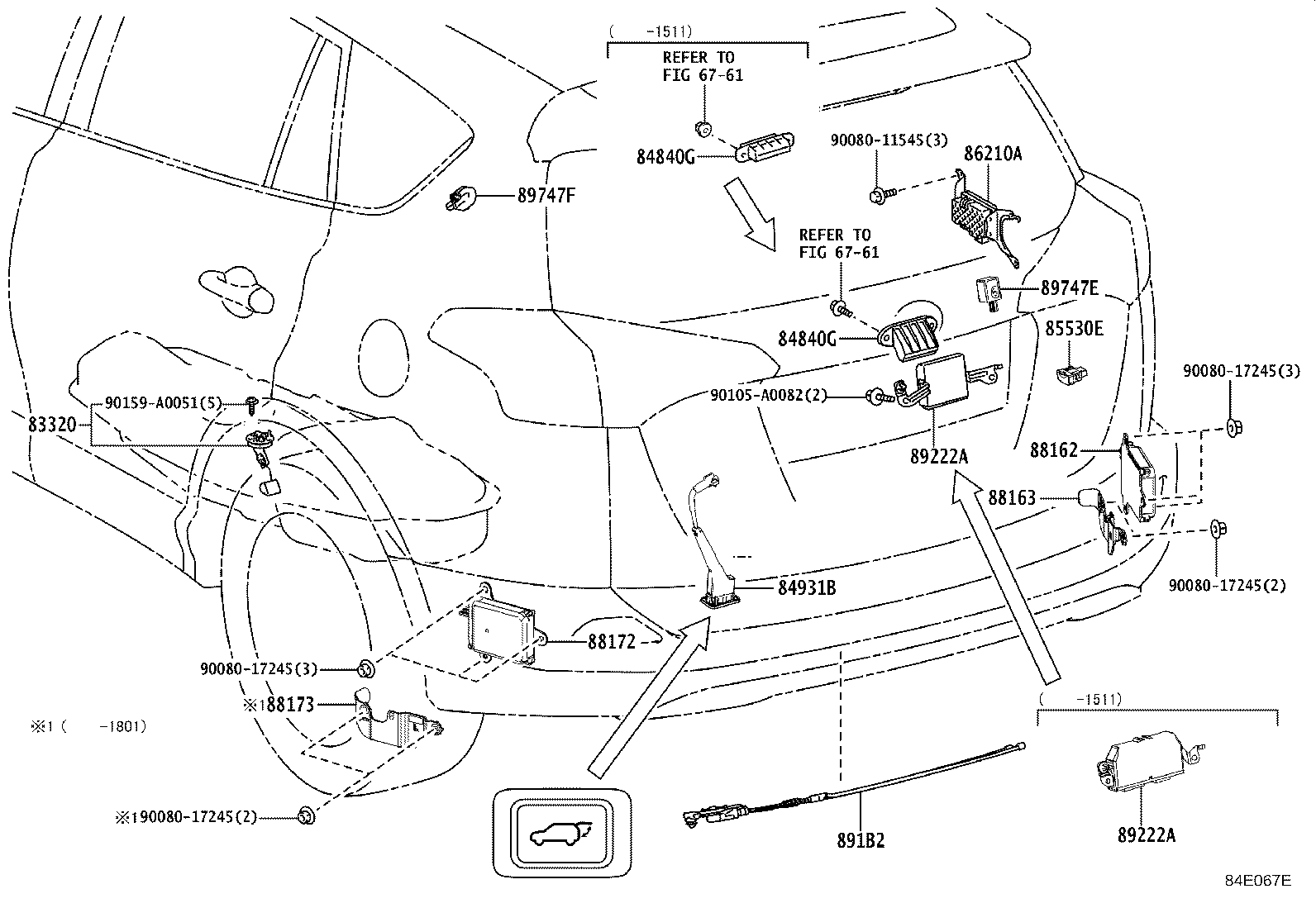

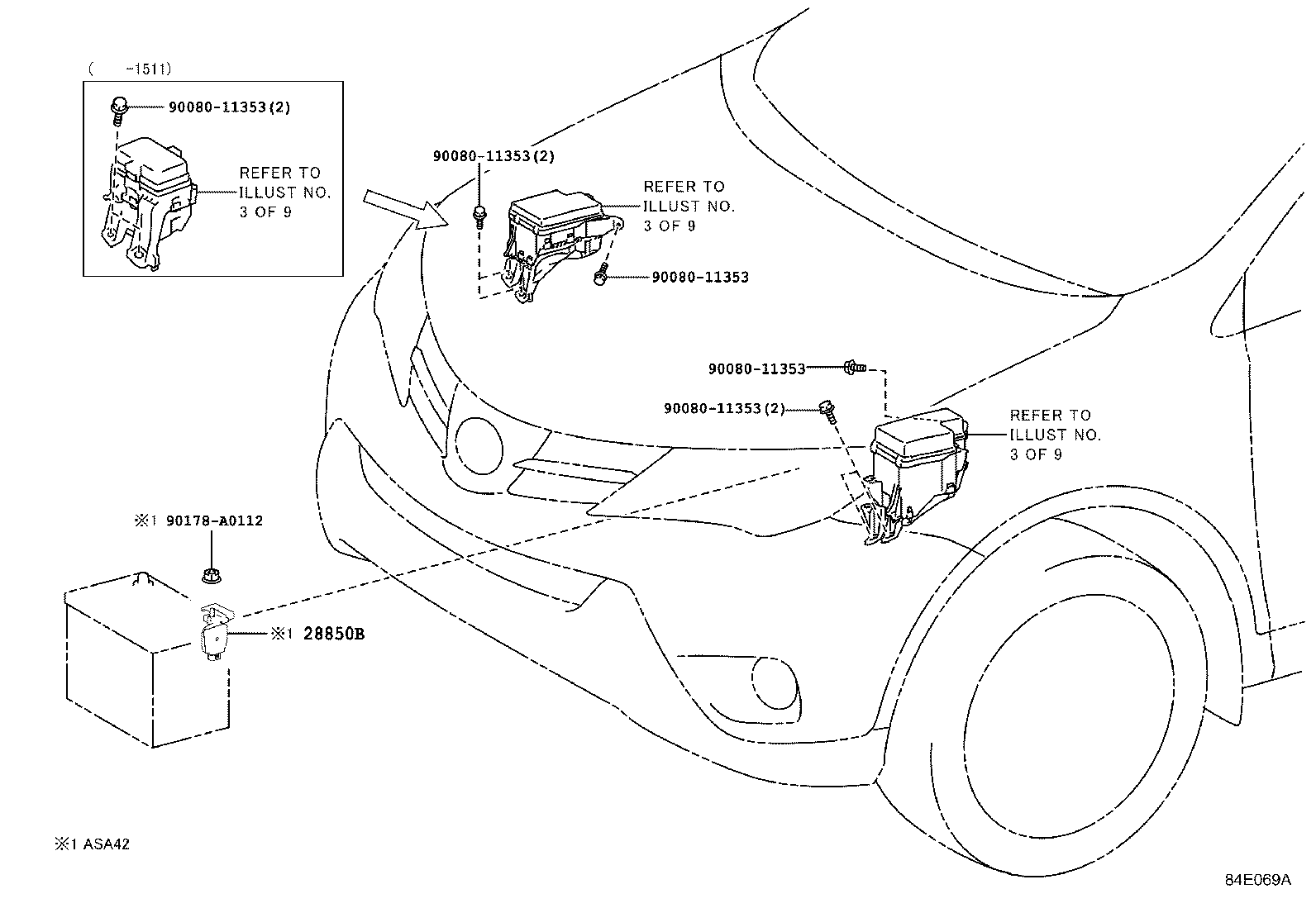

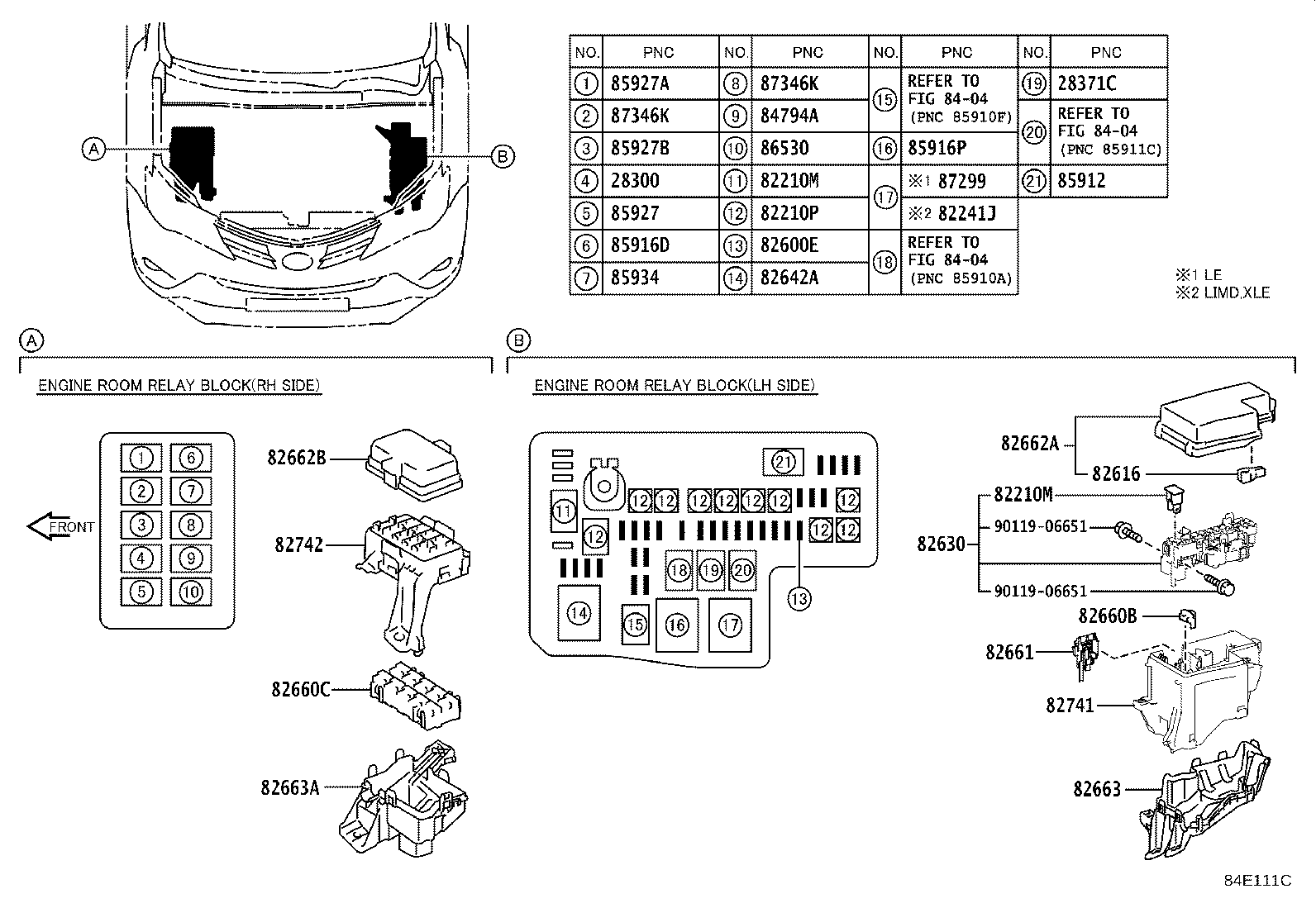

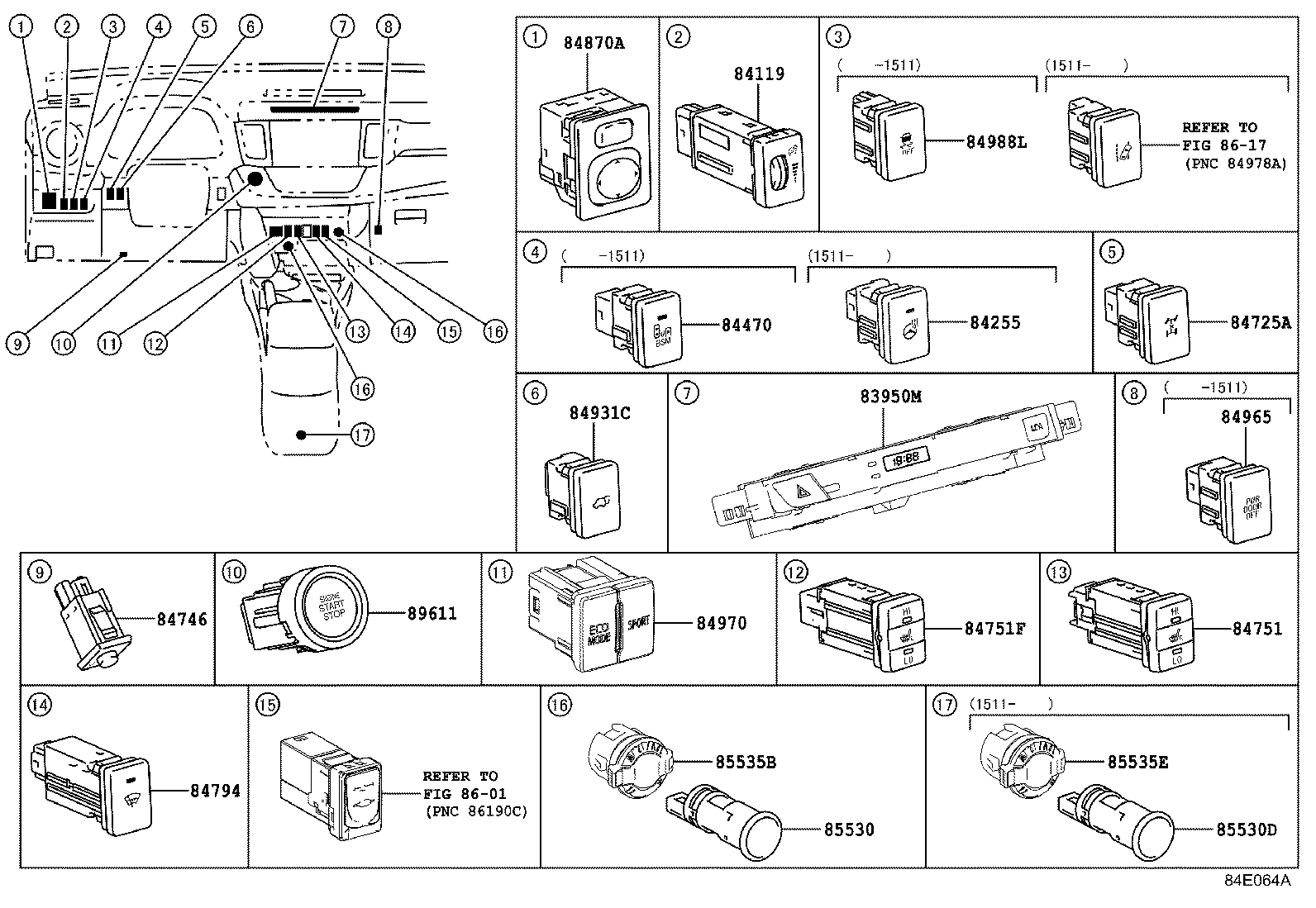

Figure 84E065 84E065 2013-01 → — Figure 84E069A 84E069A 2013-01 → — Figure 84E111C 84E111C 2013-01 → 2015-11 Figure 84G588C 84G588C 2015-11 → — Figure 84E068E 84E068E 2013-01 → — Figure 84E064A 84E064A 2013-01 → — Figure 84E041D 84E041D 2013-01 → — Figure 84E063A 84E063A 2013-01 → — Figure 84E066B 84E066B 2013-01 → — Figure 84E067E 84E067E 2013-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28850B Computer Assy, Alternator Control
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82241J Pin, Short
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82630 Holder Assy, Fuse
82631 Holder, Fuse
82642A Relay, Running Light
82660B Block Assy, Relay
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84725A Switch, Differential Lock
84746 Switch, Tire Pressure Warning
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84921D Knob, Power Seat Switch, LH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931B Switch, Door Control
84931C Switch, Back Door Control
84965 Switch, Power Back Door Main
84970 Switch Assy, Combination
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85912 Relay, Defogger
85913F Relay, Steering Heater
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85919E Relay, Stop Lamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85934 Relay, Magnet-clutch
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
87299 Relay, Heater
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B2 Sensor, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89245B Sensor, Steering
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89747E Buzzer, Power Back Door Warning
89747F Buzzer, Blind Spot Monitor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
