Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 3 illustrations

Illustrations

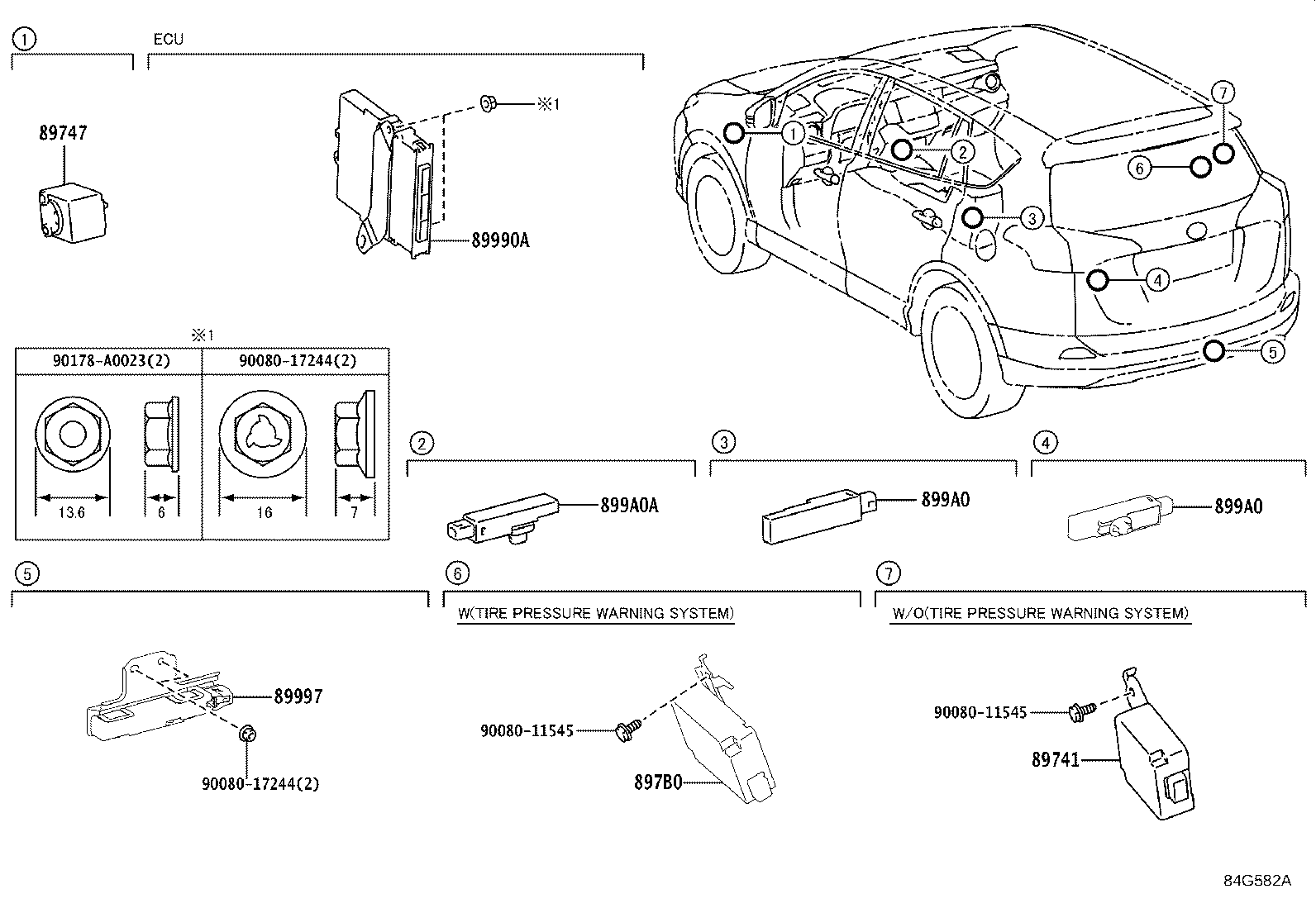

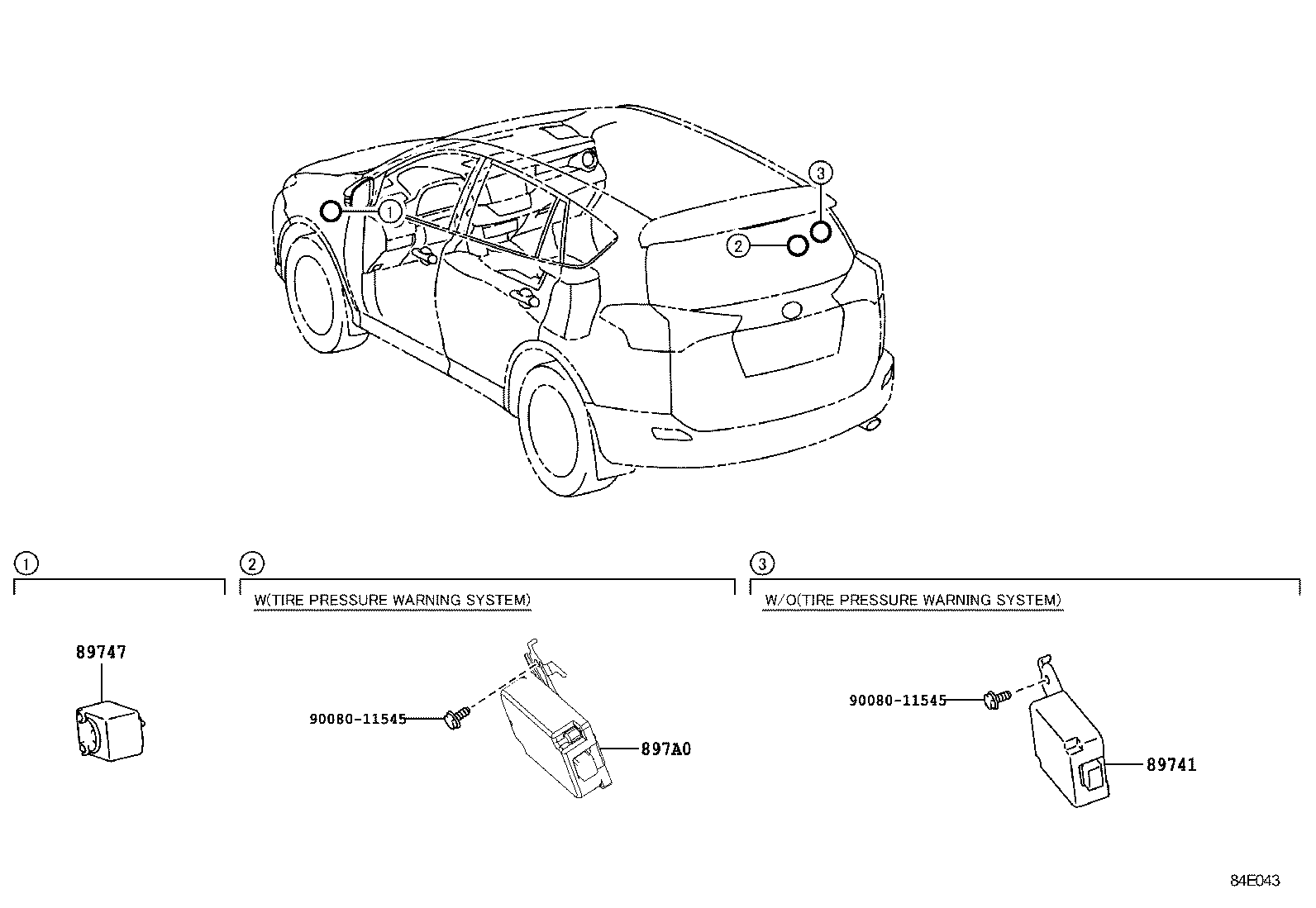

Figure 84E042A 84E042A 2013-01 → 2015-11 Figure 84G582A 84G582A 2015-11 → — Figure 84E043 84E043 2013-01 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
897A0 Receiver Assy,Door Control & Tire Pressure Monitoring System
897B0 Receiver Assy, Electrical Key & Tpms
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
