Toyota RAV4 (NAP)

2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

10 part groups · 2 illustrations

Illustrations

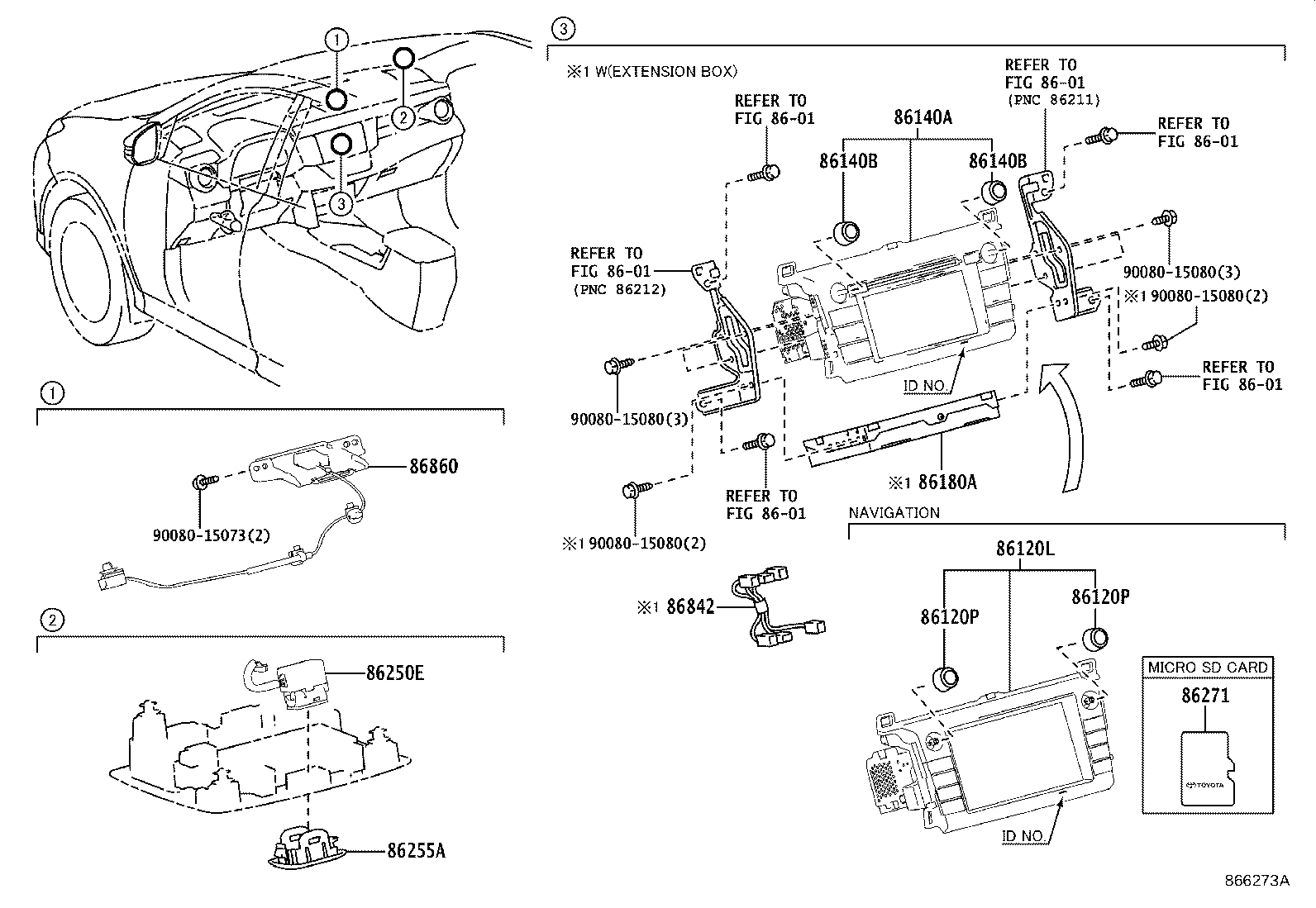

Figure 865337J 865337J 2013-01 → 2015-11 Figure 866273A 866273A 2015-11 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86180A Tuner Assy, Stereo Component
86250E Microphone Assy, Amplifier
86255A Case, Microphone, NO.1
86271 Disc, Disc Player
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
