Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

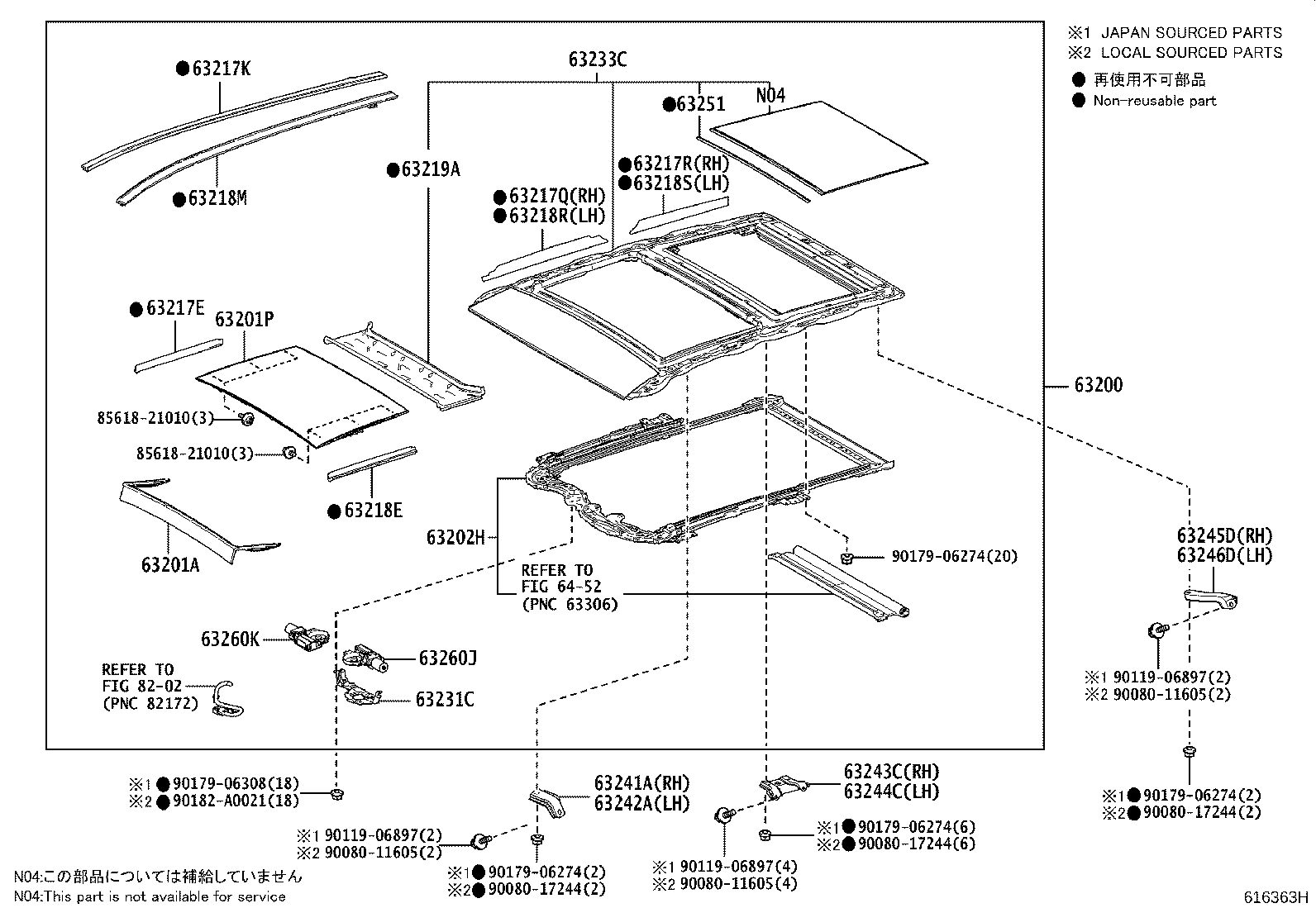

Exploded illustration 616363H 6452 — not listed in this catalogue 8202 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (4 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (4 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (5 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (5 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (4 parts) 63200 — HOUSING ASSY, MOON ROOF (13 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (4 parts) 8561821010 — not listed in this catalogue 8561821010 — not listed in this catalogue 9011906897 — not listed in this catalogue 9008011605 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9008017244 — not listed in this catalogue 9017906308 — not listed in this catalogue 90182A0021 — not listed in this catalogue 63201A — PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF (4 parts) 63217E — GARNISH, SLIDING ROOF, FRONT RH (4 parts) 63231C — BRACKET, ROOM LAMP (4 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (4 parts) 63260K — GEAR ASSY, SLIDING ROOF DRIVE (4 parts) 63218E — GARNISH, SLIDING ROOF, FRONT LH (4 parts) 63233C — PANEL, SLIDING ROOF HOUSING (6 parts) 63251 — WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF (5 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (12 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (12 parts) 63202H — RAIL SUB-ASSY, SLIDE ROOF (10 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (5 parts) 63219A — GARNISH, SLIDING ROOF, REAR (4 parts) 63217Q — GARNISH, SLIDING ROOF SIDE, RH (4 parts) 63218R — GARNISH, SLIDING ROOF SIDE, LH (4 parts) 63217R — GARNISH, SLIDING ROOF SIDE, RH (4 parts) 63218S — GARNISH, SLIDING ROOF SIDE, LH (4 parts) 9011906897 — not listed in this catalogue 9008011605 — not listed in this catalogue 9011906897 — not listed in this catalogue 9008011605 — not listed in this catalogue 9017906274 — not listed in this catalogue 9008017244 — not listed in this catalogue 9017906274 — not listed in this catalogue 9008017244 — not listed in this catalogue
616363H · 24 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
133 parts on this figure
Part number Description Fitment Price
63200 — Housing Assy, Moon Roof
63200-42150-B1 note Housing Assy, Moon Roof
2020-01 → 2020-05 ended
AXAH54 G USA —
63200-42150-C1 note Housing Assy, Moon Roof
2020-01 → 2020-05 ended
AXAH54 M USA —
63200-42151-B1 note Housing Assy, Moon Roof
2020-06 → 2020-09 ended
AXAH54,AXAL54 G USA —
63200-42151-C1 note Housing Assy, Moon Roof
2020-06 → 2020-09 ended
AXAH54,AXAL54 M USA —
63200-42152-B1 note Housing Assy, Moon Roof
2020-09 → 2020-11 ended
AXAH54,AXAL54 G USA —
63200-42152-C1 note Housing Assy, Moon Roof
2020-09 → 2020-11 ended
AXAH54,AXAL54 M USA —
63200-42153-B1 note Housing Assy, Moon Roof
2020-12 → 2021-06 ended
AXAH54,AXAL54 G USA —
63200-42153-C1 note Housing Assy, Moon Roof
2020-12 → 2021-06 ended
AXAH54,AXAL54 M USA —
63200-42154-B1 note Housing Assy, Moon Roof
2021-07 → 2022-11 ended
AXAH54,AXAL54 G USA —
63200-42154-C1 note Housing Assy, Moon Roof
2021-07 → 2021-12 ended
AXAH54,AXAL54 M USA —
63200-42154-C1 note Housing Assy, Moon Roof
2021-12 → 2022-11 ended
AXAH54,AXAL54 P USA —
63200-42154-B1 note Housing Assy, Moon Roof
2022-11 → —
AXAH54,AXAL54 G USA —
63200-42154-C1 note Housing Assy, Moon Roof
2022-11 → —
AXAH54,AXAL54 P USA —
63201A — Panel Sub-assy, Sliding Roof OR Removable Roof
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63201P — Glass Sub-assy, Sliding Roof
63201-42160 note Glass Sub-assy, Sliding Roof
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63201-42160 note Glass Sub-assy, Sliding Roof
2020-09 → 2021-06 ended
AXAH54,AXAL54 (G,M) USA —
63201-42161 note Glass Sub-assy, Sliding Roof
2021-07 → 2021-12 ended
AXAH54,AXAL54 M USA —
63201-42161 note Glass Sub-assy, Sliding Roof
2021-07 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63201-42161 note Glass Sub-assy, Sliding Roof
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63202H — Rail Sub-assy, Slide Roof
63202-42100-B1 note Rail Sub-assy, Slide Roof
2020-01 → 2020-07 ended
AXAH54 G USA —
63202-42100-B1 note Rail Sub-assy, Slide Roof
2020-01 → 2020-09 ended
AXAL54 G —
63202-42100-C1 note Rail Sub-assy, Slide Roof
2020-01 → 2020-07 ended
AXAH54 M USA —
63202-42100-C1 note Rail Sub-assy, Slide Roof
2020-01 → 2020-09 ended
AXAL54 M —
63202-42101-B1 note Rail Sub-assy, Slide Roof
2020-09 → 2021-11 ended
AXAH54,AXAL54 G USA —
63202-42101-C1 note Rail Sub-assy, Slide Roof
2020-09 → 2021-11 ended
AXAH54,AXAL54 M USA —
63202-42102-B1 note Rail Sub-assy, Slide Roof
2021-12 → 2022-11 ended
AXAH54,AXAL54 G USA —
63202-42102-C1 note Rail Sub-assy, Slide Roof
2021-12 → 2022-11 ended
AXAH54,AXAL54 P USA —
63202-42102-B1 note Rail Sub-assy, Slide Roof
2022-11 → —
AXAH54,AXAL54 G USA —
63202-42102-C1 note Rail Sub-assy, Slide Roof
2022-11 → —
AXAH54,AXAL54 P USA —
63217E — Garnish, Sliding Roof, Front RH
63217-42010 note Garnish, Sliding Roof, Front RH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63217-42010 note Garnish, Sliding Roof, Front RH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63217-42010 note Garnish, Sliding Roof, Front RH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63217-42010 note Garnish, Sliding Roof, Front RH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63217K — Garnish, Sliding Roof Side, RH
63217-0E070 Garnish, Sliding Roof Side, RH
2018-12 → 2020-09 ended
AXAA5#,AXAH54,AXAL54 G,M,V —
63217-0E070 note Garnish, Sliding Roof Side, RH
2018-12 → 2020-09 ended
AXAA5#,AXAH54,AXAL54 M,V —
63217-42040 note Garnish, Sliding Roof Side, RH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63217-0E070 Garnish, Sliding Roof Side, RH
2020-09 → 2021-12 ended
AXAA5#,AXAH54,AXAL54 M,V —
63217-0E070 Garnish, Sliding Roof Side, RH
2020-09 → 2022-11 ended
AXAA5#,AXAH54,AXAL54 G,P —
63217-0E070 note Garnish, Sliding Roof Side, RH
2021-12 → 2022-11 ended
AXAA52 M USA;AXAA54,AXAH54,AXAL54 M,S,V —
63217-0E070 note Garnish, Sliding Roof Side, RH
2021-12 → —
AXAA52 M CND —
63217-42040 note Garnish, Sliding Roof Side, RH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63217-42040 note Garnish, Sliding Roof Side, RH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63217-0E070 Garnish, Sliding Roof Side, RH
2022-11 → —
AXAA5#,AXAH54,AXAL54 G,P —
63217-0E070 note Garnish, Sliding Roof Side, RH
2022-11 → —
AXAA52 M USA;AXAA54,AXAH54,AXAL54 M,S,V —
63217-42040 note Garnish, Sliding Roof Side, RH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63217Q — Garnish, Sliding Roof Side, RH
63217-42020 note Garnish, Sliding Roof Side, RH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63217-42020 note Garnish, Sliding Roof Side, RH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63217-42020 note Garnish, Sliding Roof Side, RH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63217-42020 note Garnish, Sliding Roof Side, RH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63217R — Garnish, Sliding Roof Side, RH
63217-42030 note Garnish, Sliding Roof Side, RH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63217-42030 note Garnish, Sliding Roof Side, RH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63217-42030 note Garnish, Sliding Roof Side, RH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63217-42030 note Garnish, Sliding Roof Side, RH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63218E — Garnish, Sliding Roof, Front LH
63218-42020 note Garnish, Sliding Roof, Front LH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63218-42020 note Garnish, Sliding Roof, Front LH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63218-42020 note Garnish, Sliding Roof, Front LH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63218-42020 note Garnish, Sliding Roof, Front LH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63218M — Garnish, Sliding Roof Side, LH
63217-0E070 Garnish, Sliding Roof Side, LH
2018-12 → 2020-09 ended
AXAA5#,AXAH54,AXAL54 G,M,V —
63217-0E070 note Garnish, Sliding Roof Side, LH
2018-12 → 2020-09 ended
AXAA5#,AXAH54,AXAL54 M,V —
63218-42050 note Garnish, Sliding Roof Side, LH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63217-0E070 Garnish, Sliding Roof Side, LH
2020-09 → 2021-12 ended
AXAA5#,AXAH54,AXAL54 M,V —
63217-0E070 note Garnish, Sliding Roof Side, LH
2021-12 → —
AXAA52 M CND —
63217-0E070 Garnish, Sliding Roof Side, LH
2020-09 → 2022-11 ended
AXAA5#,AXAH54,AXAL54 G,P —
63217-0E070 note Garnish, Sliding Roof Side, LH
2021-12 → 2022-11 ended
AXAA52 M USA;AXAA54,AXAH54,AXAL54 M,S,V —
63218-42050 note Garnish, Sliding Roof Side, LH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63218-42050 note Garnish, Sliding Roof Side, LH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63217-0E070 Garnish, Sliding Roof Side, LH
2022-11 → —
AXAA5#,AXAH54,AXAL54 G,P —
63217-0E070 note Garnish, Sliding Roof Side, LH
2022-11 → —
AXAA52 M USA;AXAA54,AXAH54,AXAL54 M,S,V —
63218-42050 note Garnish, Sliding Roof Side, LH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63218R — Garnish, Sliding Roof Side, LH
63218-42030 note Garnish, Sliding Roof Side, LH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63218-42030 note Garnish, Sliding Roof Side, LH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63218-42030 note Garnish, Sliding Roof Side, LH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63218-42030 note Garnish, Sliding Roof Side, LH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63218S — Garnish, Sliding Roof Side, LH
63218-42040 note Garnish, Sliding Roof Side, LH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63218-42040 note Garnish, Sliding Roof Side, LH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63218-42040 note Garnish, Sliding Roof Side, LH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63218-42040 note Garnish, Sliding Roof Side, LH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63219A — Garnish, Sliding Roof, Rear
63219-42010 note Garnish, Sliding Roof, Rear
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63219-42010 note Garnish, Sliding Roof, Rear
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63219-42010 note Garnish, Sliding Roof, Rear
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63219-42010 note Garnish, Sliding Roof, Rear
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63231C — Bracket, Room Lamp
63231-42050 note Bracket, Room Lamp
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63231-42050 note Bracket, Room Lamp
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63231-42050 note Bracket, Room Lamp
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63231-42050 note Bracket, Room Lamp
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63233C — Panel, Sliding Roof Housing
63233-42050 note Panel, Sliding Roof Housing
2020-01 → 2020-05 ended
AXAH54 (G,M) USA —
63233-42051 note Panel, Sliding Roof Housing
2020-06 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63233-42051 note Panel, Sliding Roof Housing
2020-09 → 2020-11 ended
AXAH54,AXAL54 (G,M) USA —
63233-42052 note Panel, Sliding Roof Housing
2020-12 → 2021-12 ended
AXAH54,AXAL54 M USA —
63233-42052 note Panel, Sliding Roof Housing
2020-12 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63233-42052 note Panel, Sliding Roof Housing
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-42050 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63243-42050 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-09 → 2020-11 ended
AXAH54,AXAL54 (G,M) USA —
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-12 → 2021-12 ended
AXAH54,AXAL54 M USA —
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-12 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-42030 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63244-42030 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-09 → 2020-11 ended
AXAH54,AXAL54 (G,M) USA —
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-12 → 2021-12 ended
AXAH54,AXAL54 M USA —
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-12 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63251 — Weatherstrip, Sliding Roof Panel OR Removable Roof
63251-42050 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2019-03 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63251-42050 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2020-09 → 2020-11 ended
AXAH54,AXAL54 (G,M) USA —
63251-42051 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2020-12 → 2021-12 ended
AXAH54,AXAL54 M USA —
63251-42051 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2020-12 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63251-42051 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63260J — Gear Assy, Sliding Roof Drive
63260-42130 note Gear Assy, Sliding Roof Drive
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63260-42130 note Gear Assy, Sliding Roof Drive
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63260-42130 note Gear Assy, Sliding Roof Drive
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63260-42130 note Gear Assy, Sliding Roof Drive
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
63260K — Gear Assy, Sliding Roof Drive
63260-42140 note Gear Assy, Sliding Roof Drive
2020-01 → 2020-09 ended
AXAH54,AXAL54 (G,M) USA —
63260-42140 note Gear Assy, Sliding Roof Drive
2020-09 → 2021-12 ended
AXAH54,AXAL54 M USA —
63260-42140 note Gear Assy, Sliding Roof Drive
2020-09 → 2022-11 ended
AXAH54,AXAL54 (G,P) USA —
63260-42140 note Gear Assy, Sliding Roof Drive
2022-11 → —
AXAH54,AXAL54 (G,P) USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
