Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 3 illustrations

Illustrations

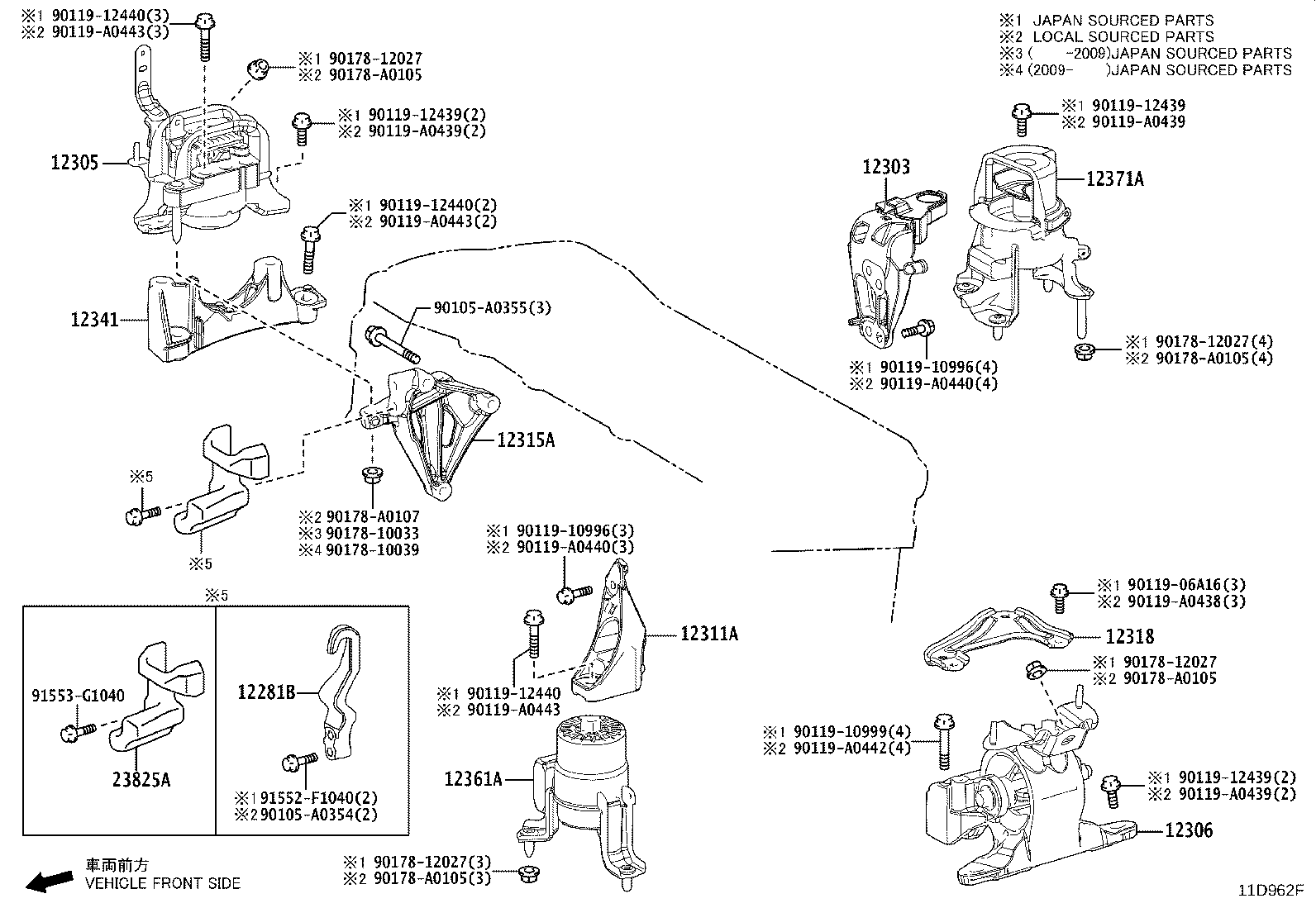

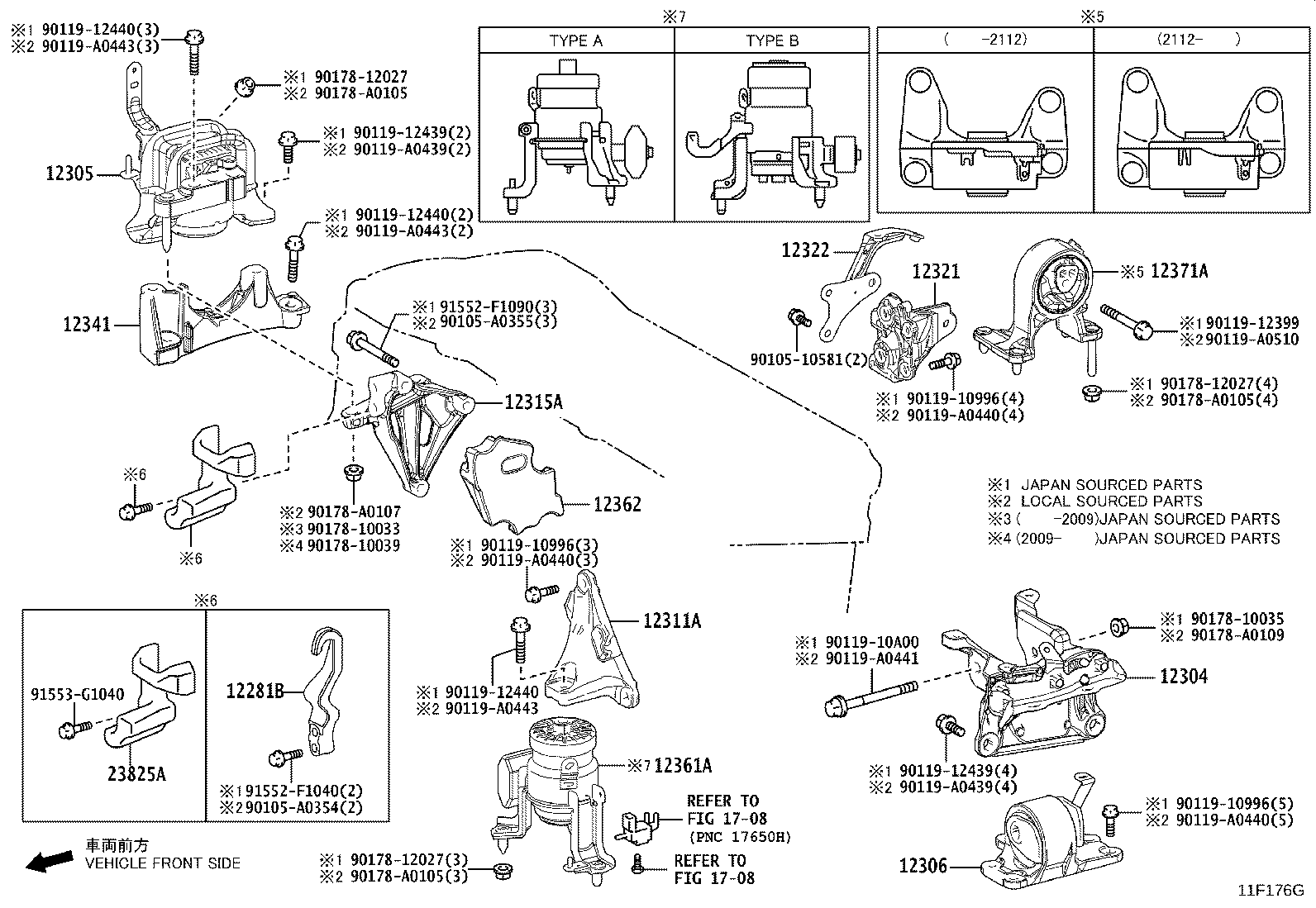

Figure 11F177C 11F177C 2018-12 → — Figure 11F176G 11F176G 2018-12 → — Figure 11D962F 11D962F 2019-03 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12303 Bracket Sub-assy, Engine Mounting, Rear
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12341 Spacer, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
23825A Guard, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
