Toyota RAV4 (NAP)
2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States
Supported model
Data version 2022-10
Hood & Front Fender
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53336A | Bracket, Hood Stay |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53361A | Weatherstrip, Hood |
| 53384F | Cushion, Hood, Center |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |

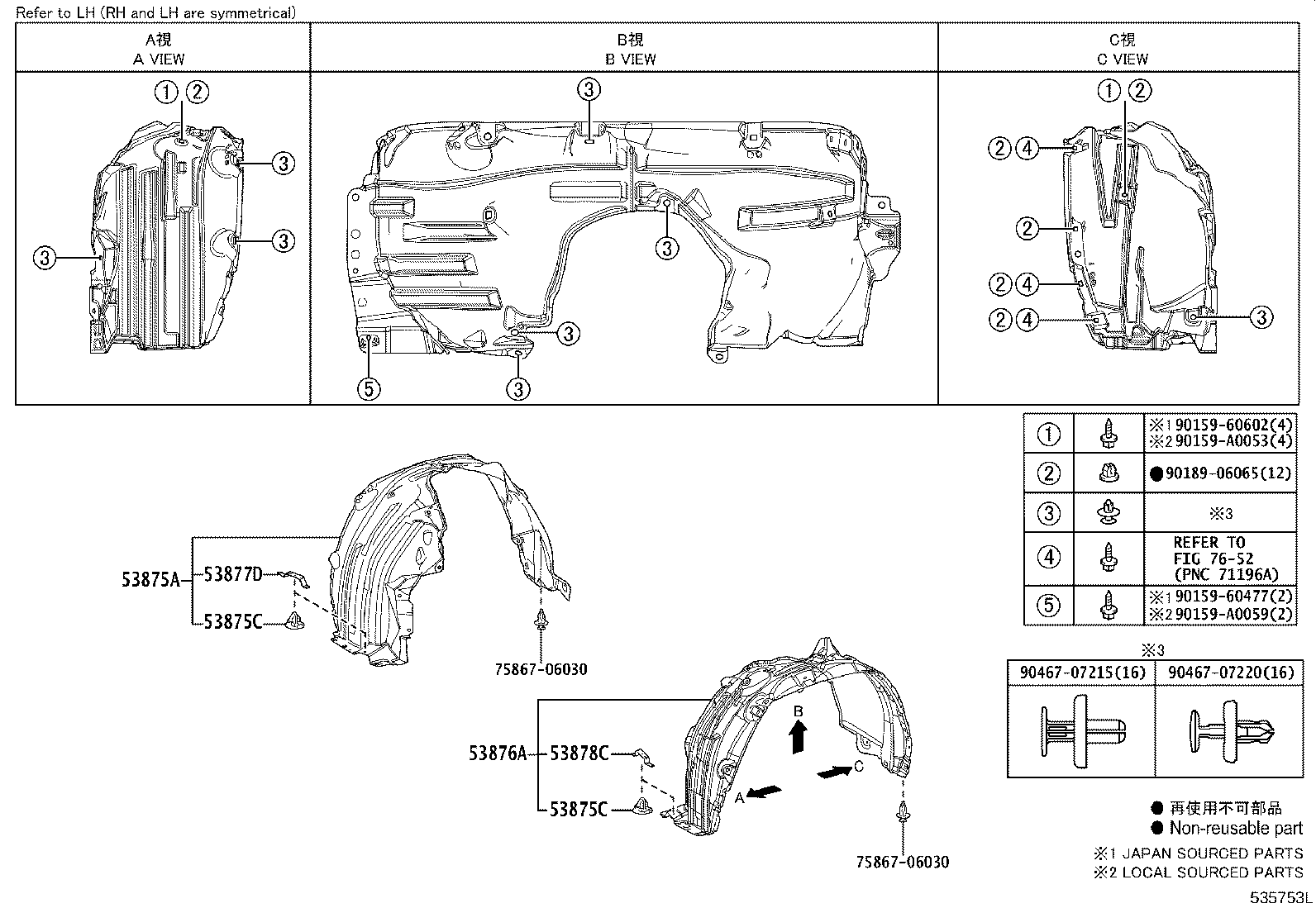

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53875Q | Screw, NO.2 |
| 53876A | Liner, Front Fender, LH |
| 53877D | Bracket, Front Fender Liner, RH |
| 53878C | Spacer, Front Fender |
| 53895B | Shield, Front Fender Splash, Front RH |
| 53896B | Shield, Front Fender Splash, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
