Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

16 part groups · 2 illustrations

Illustrations

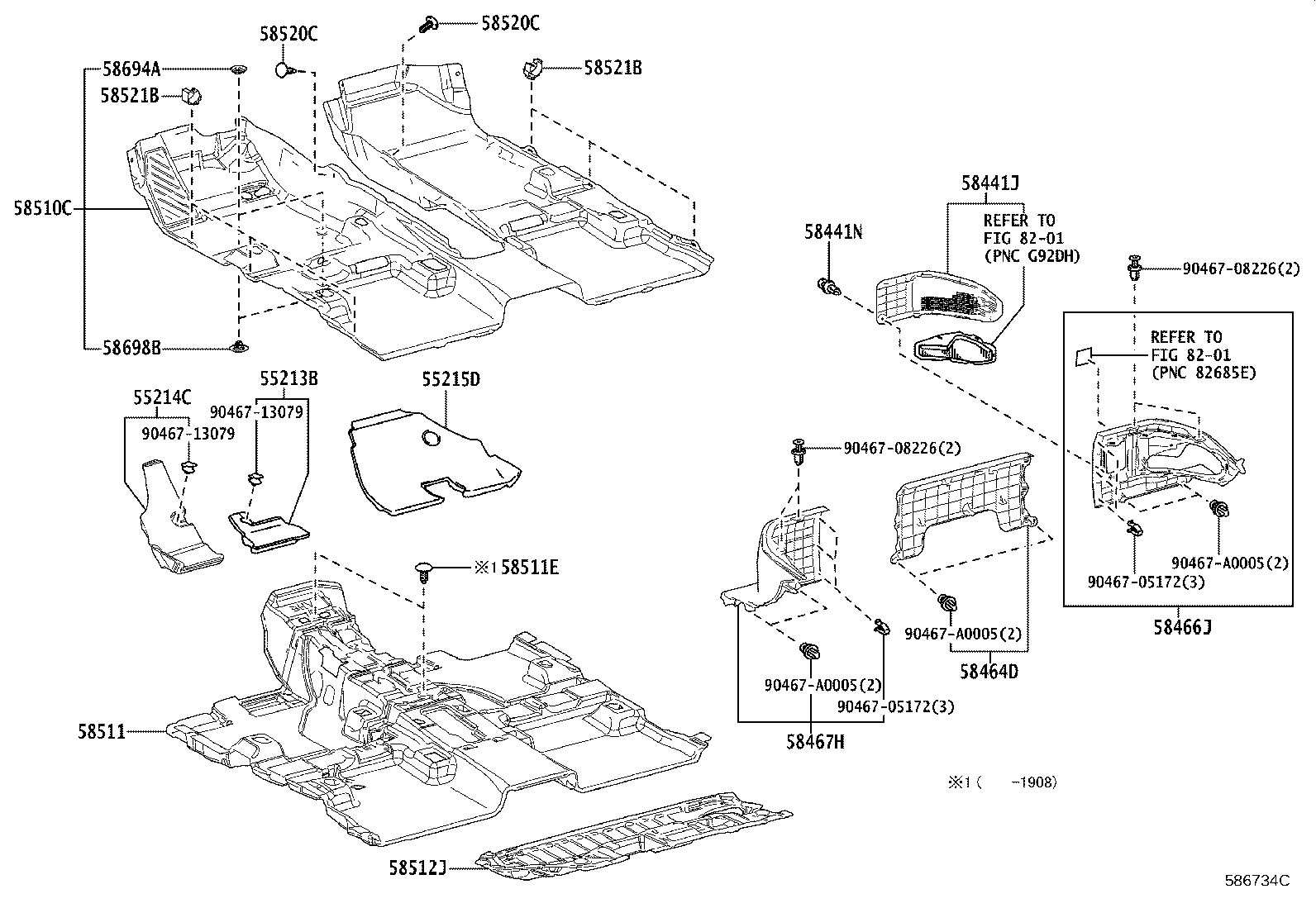

Figure 586733B 586733B 2018-12 → — Figure 586734C 586734C 2019-03 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441J Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58464D Board, Battery Service Cover
58466J Board, Battery Service Cover, NO.2
58467H Board, Battery Service Cover, NO.3
58510C Carpet Assy, Front Floor, Front
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58512J Mat, Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
