Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

18 part groups · 6 illustrations

Illustrations

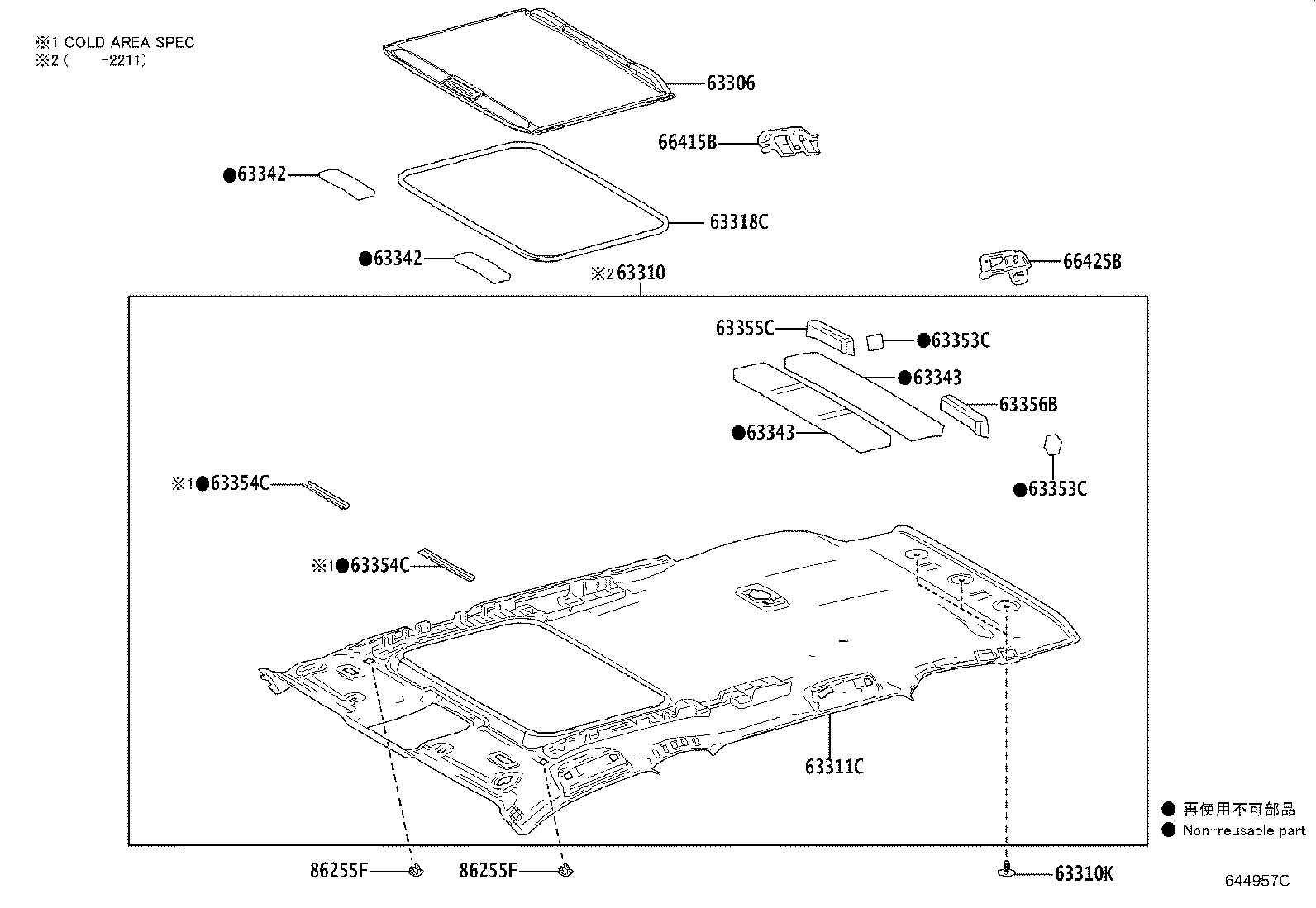

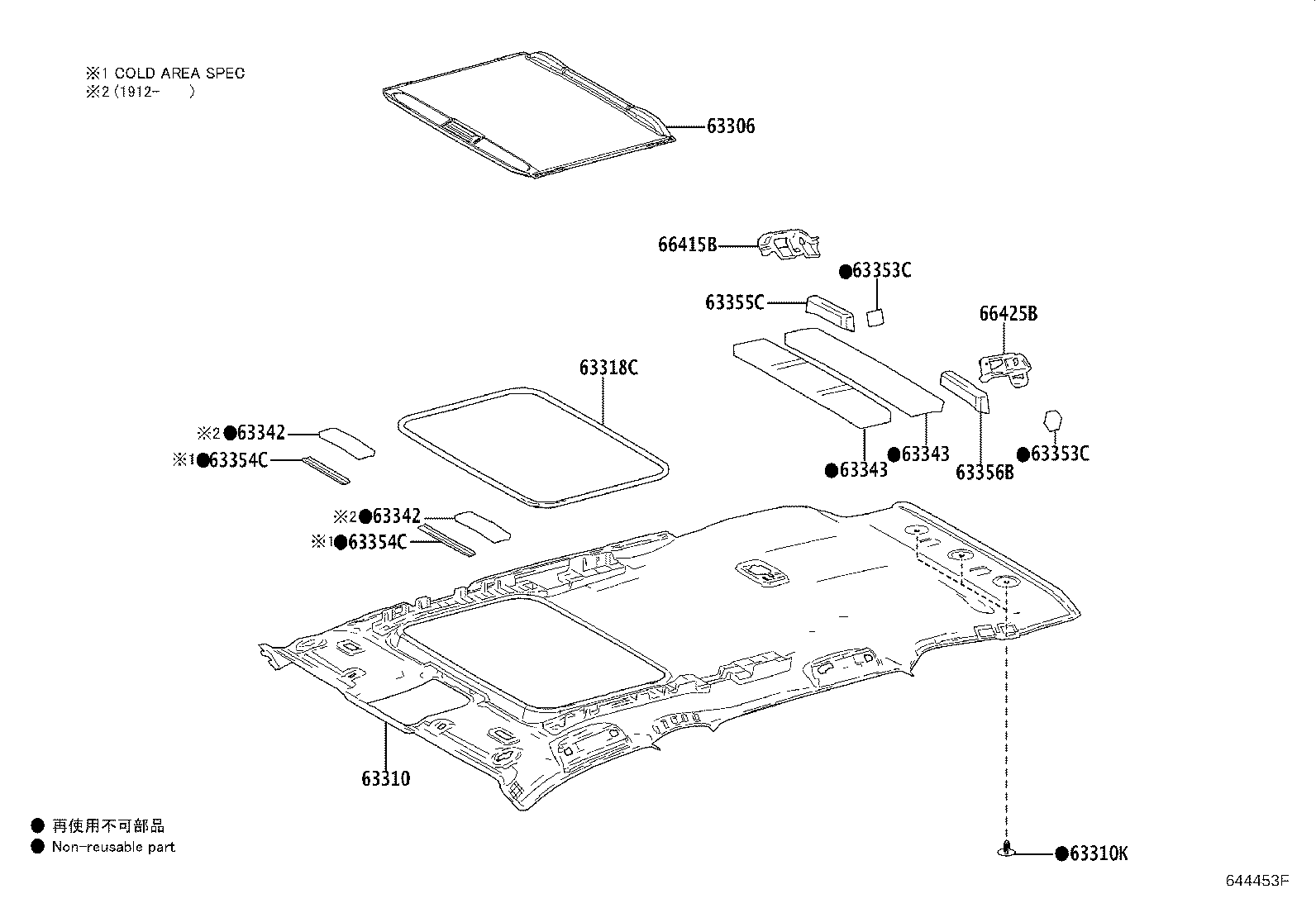

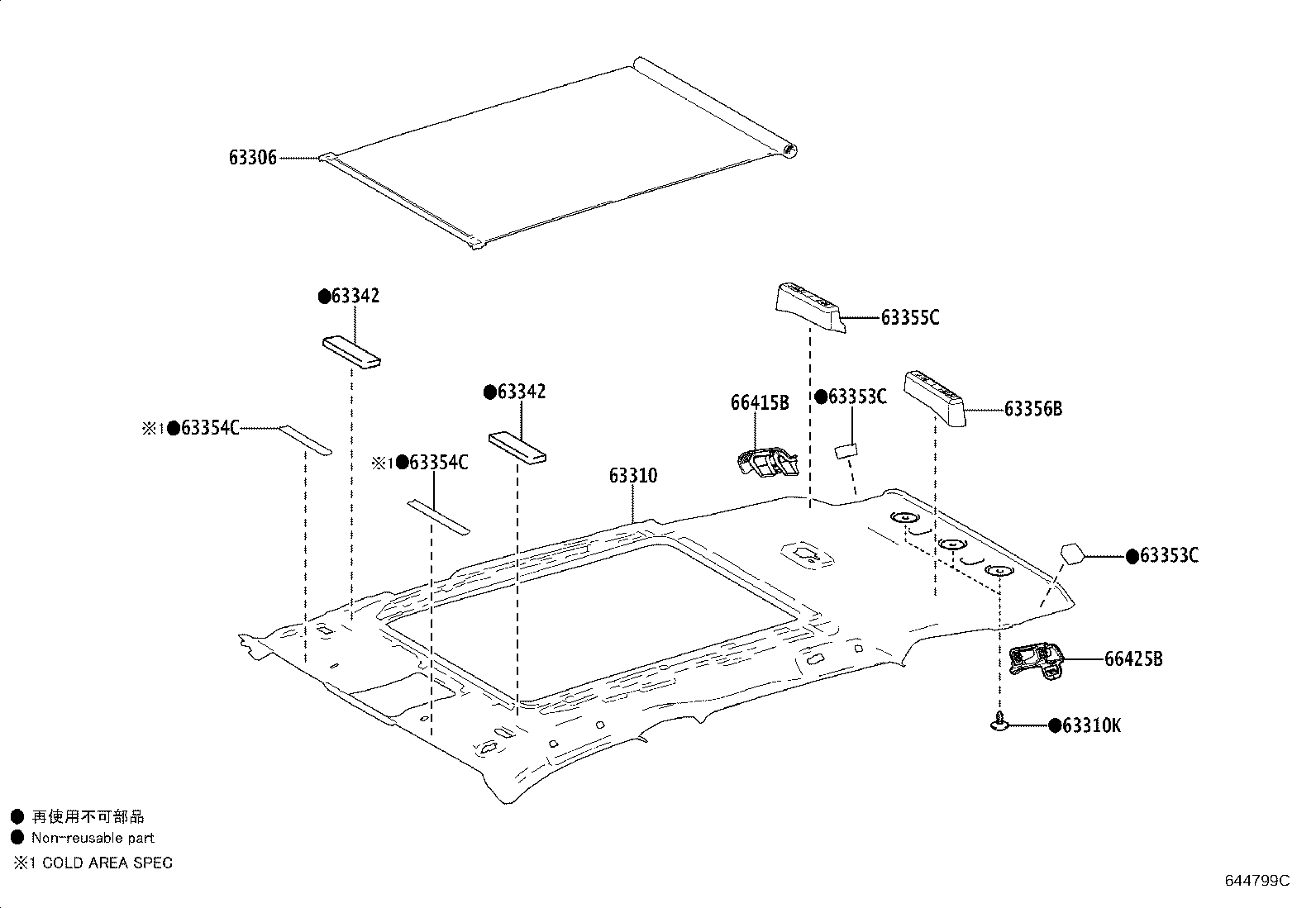

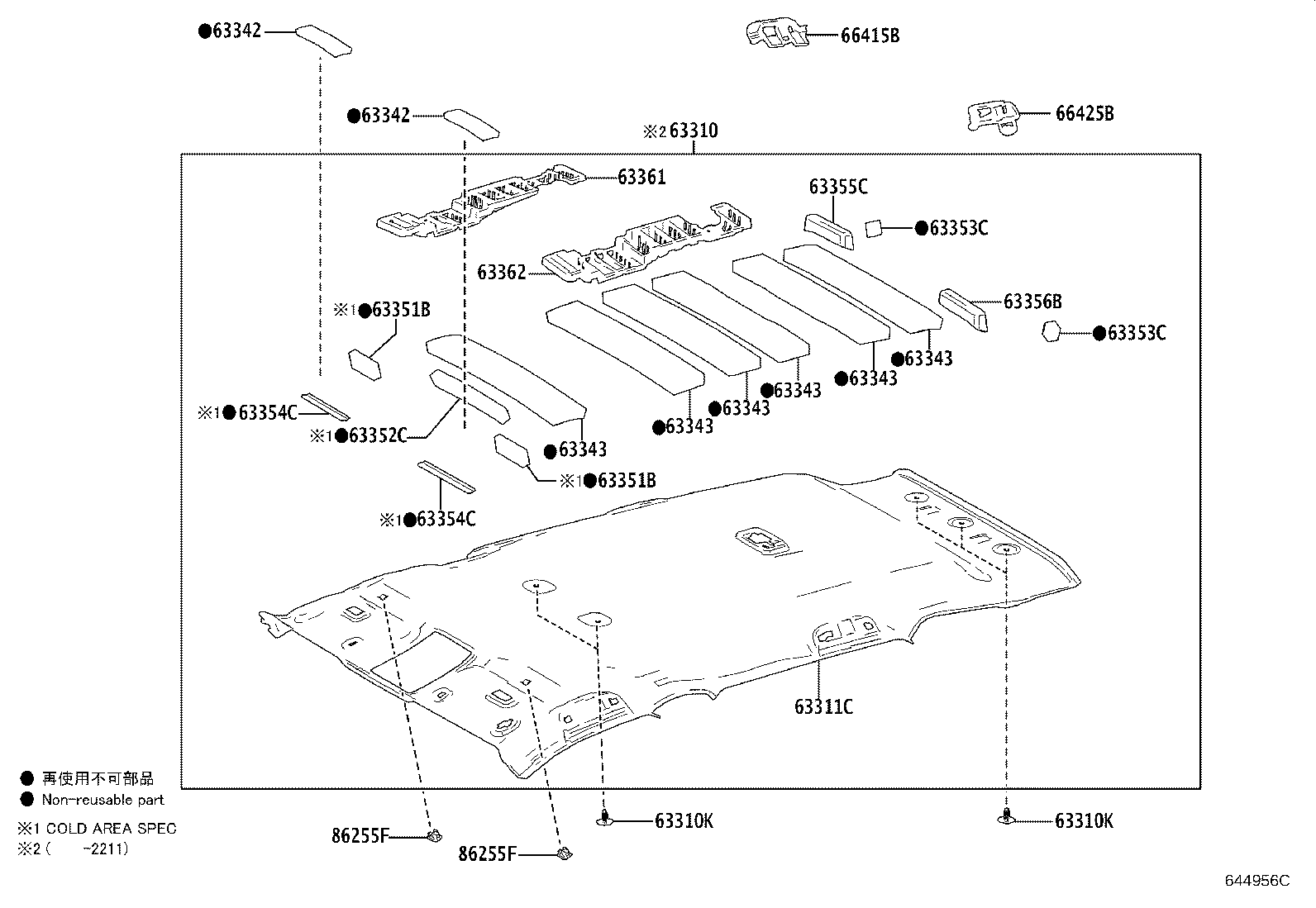

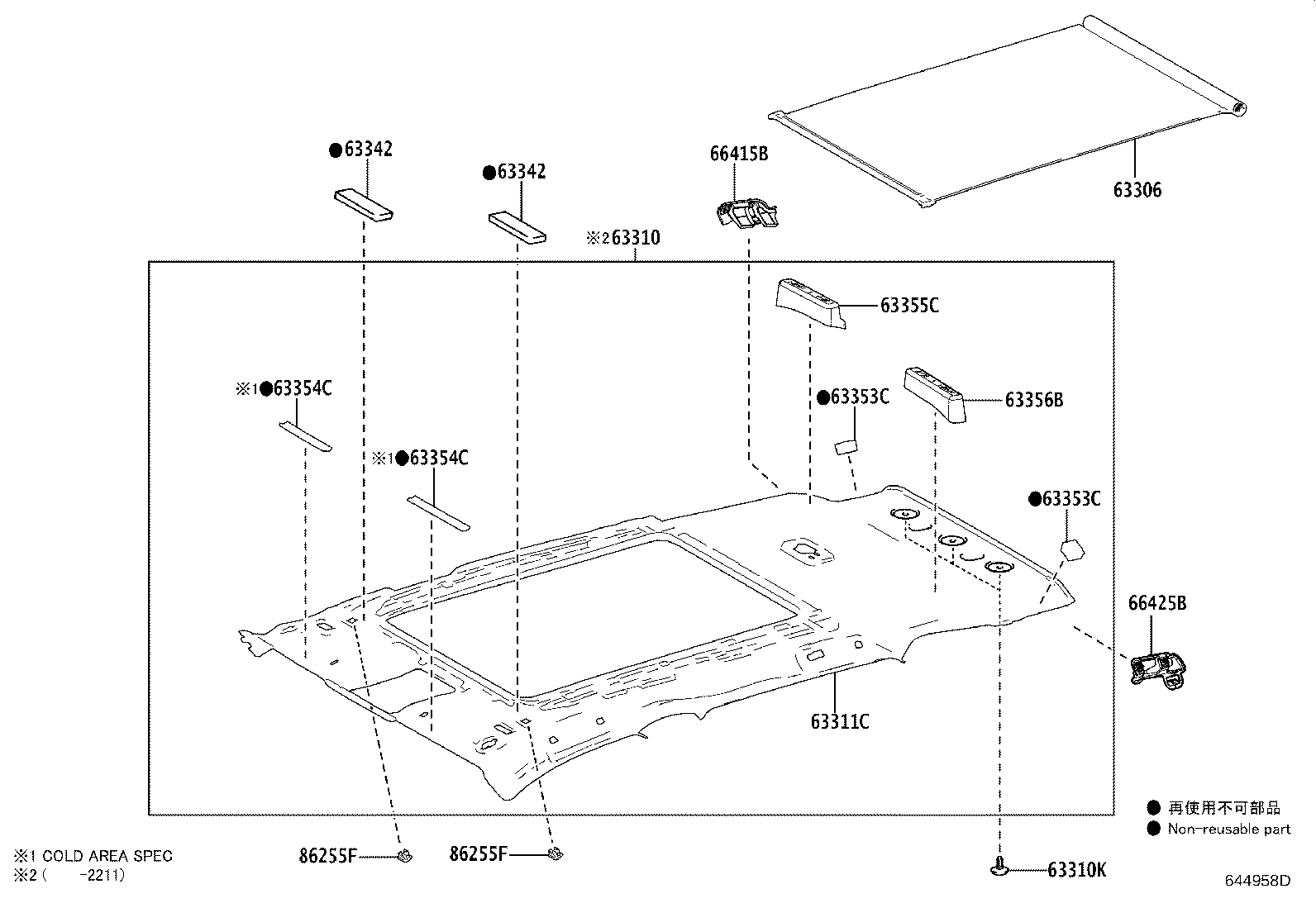

Figure 644452H 644452H 2018-12 → 2020-09 Figure 644453F 644453F 2018-12 → 2020-09 Figure 644799C 644799C 2020-01 → 2020-09 Figure 644956C 644956C 2020-09 → — Figure 644957C 644957C 2020-09 → — Figure 644958D 644958D 2020-09 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63311C Headlining, Roof
63318C Moulding, Sun Roof Opening Trim
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63353C Pad, Roof Headlining, Center
63354C Pad, Roof Headlining Front Side
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
