Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

22 part groups · 3 illustrations

Illustrations

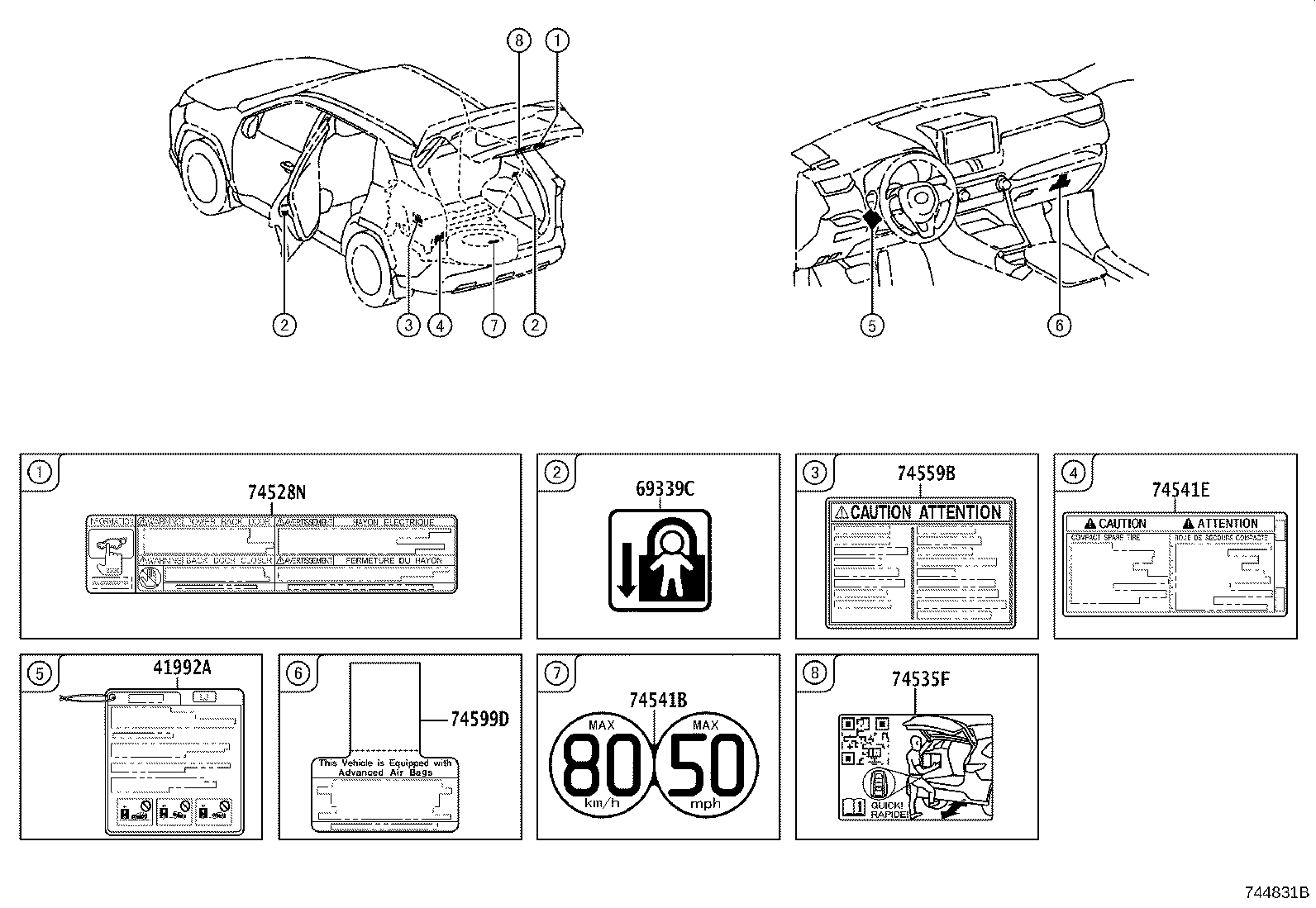

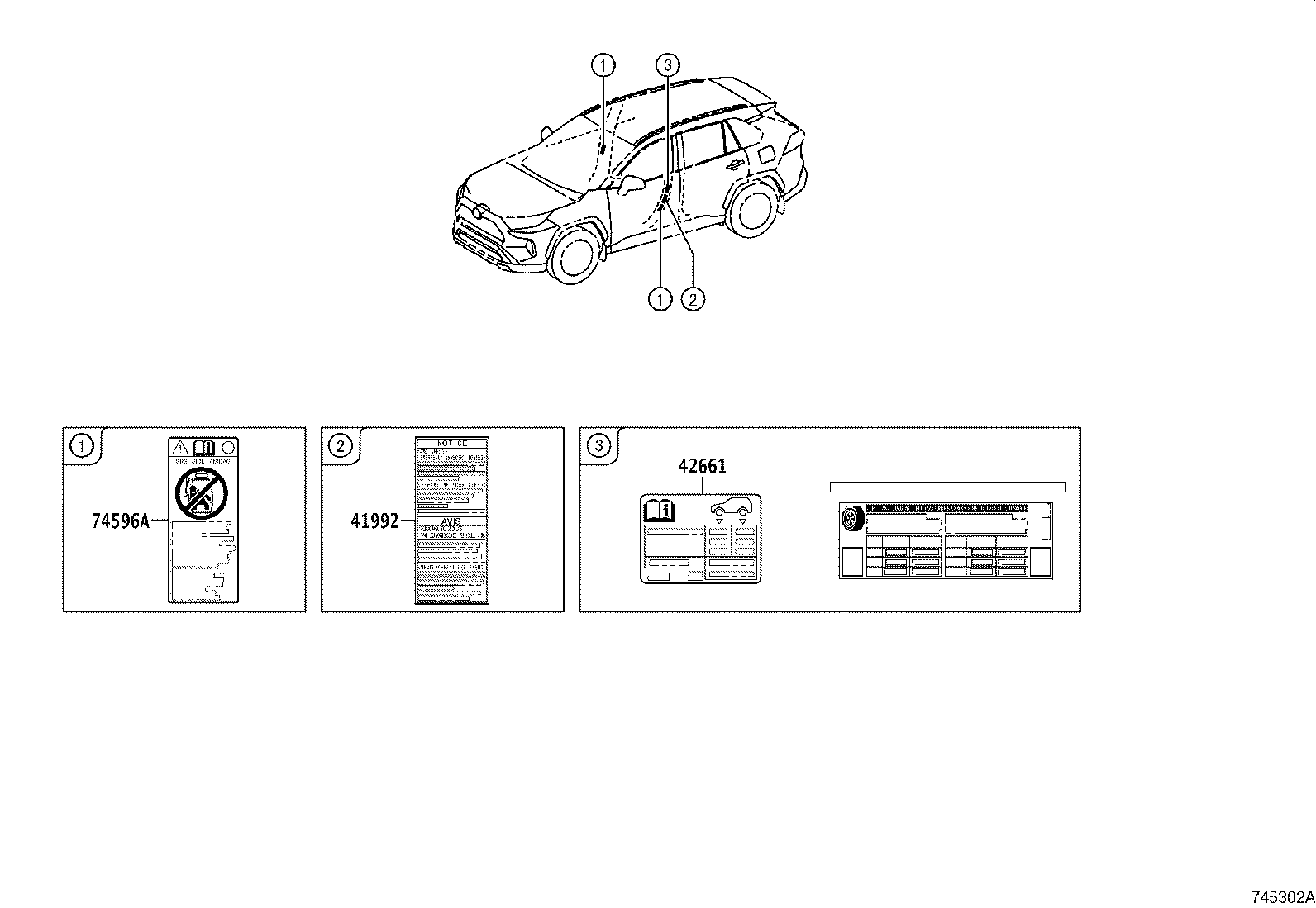

Figure 744830D 744830D 2018-12 → — Figure 745302A 745302A 2018-12 → — Figure 744831B 744831B 2018-12 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11293D Label, Engine Caution
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
41992A Label, Differential Notice, NO.2
42661 Label, Tire Pressure Information
69339C Label, Child Protector Information
74515C Label, Theft Warning Information
74528N Label, Back Door Caution, NO.2
74535F Label, Gate Helper Information
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74559C Label, Fuel Information, NO.2
74596A Label, Side Airbag Caution
74599D Label, Driver & Passenger Airbag Information
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
