Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

23 part groups · 6 illustrations

Illustrations

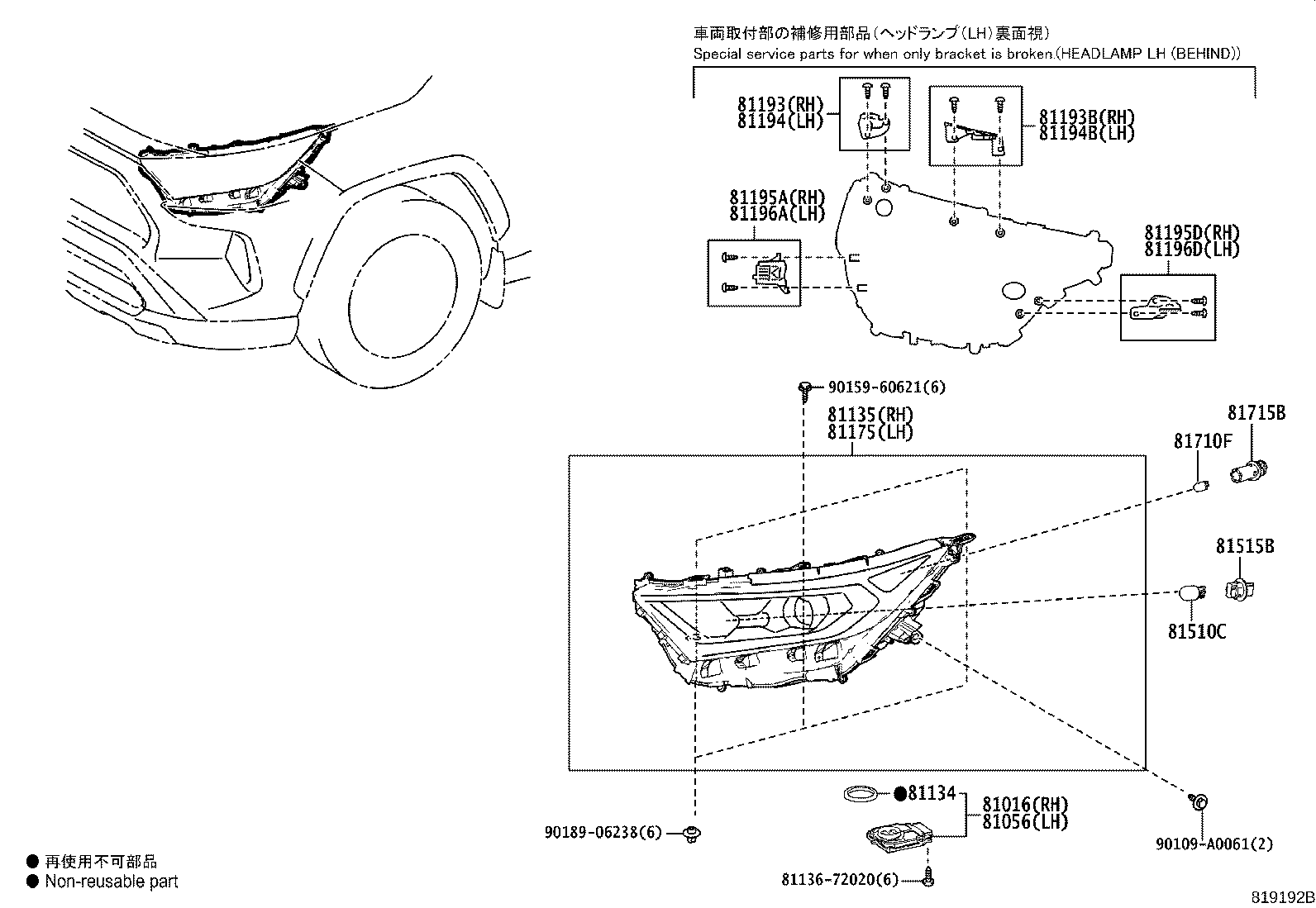

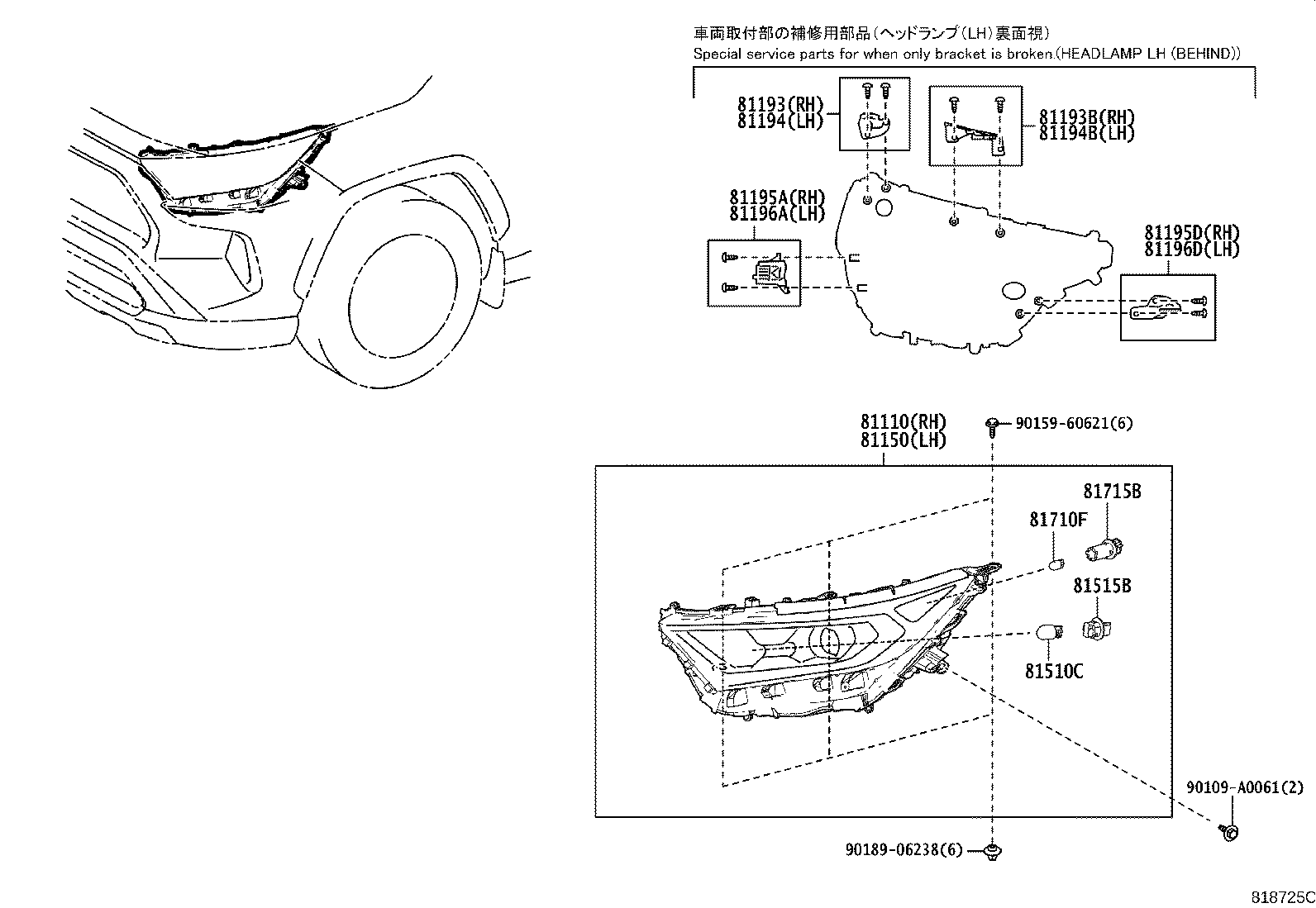

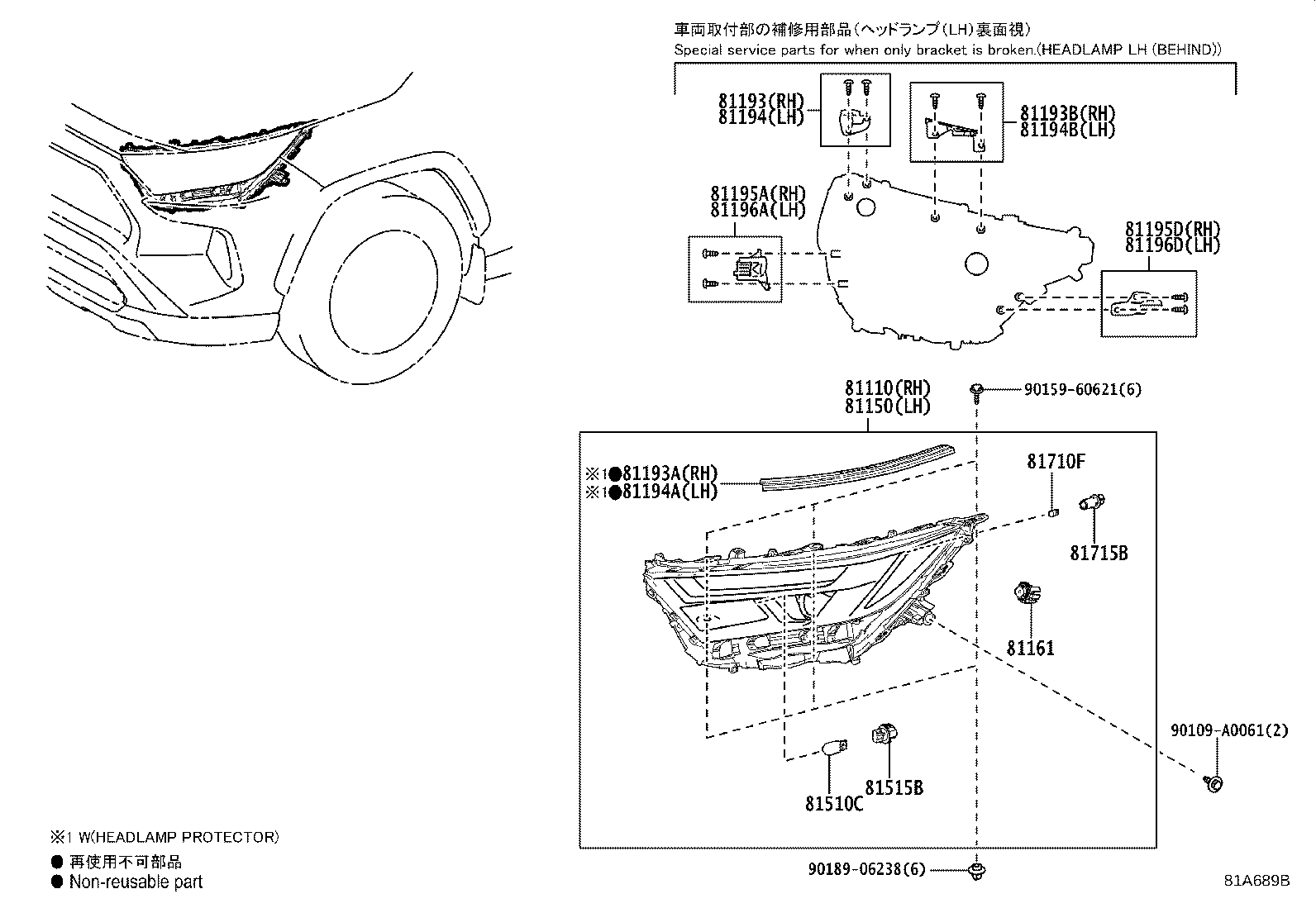

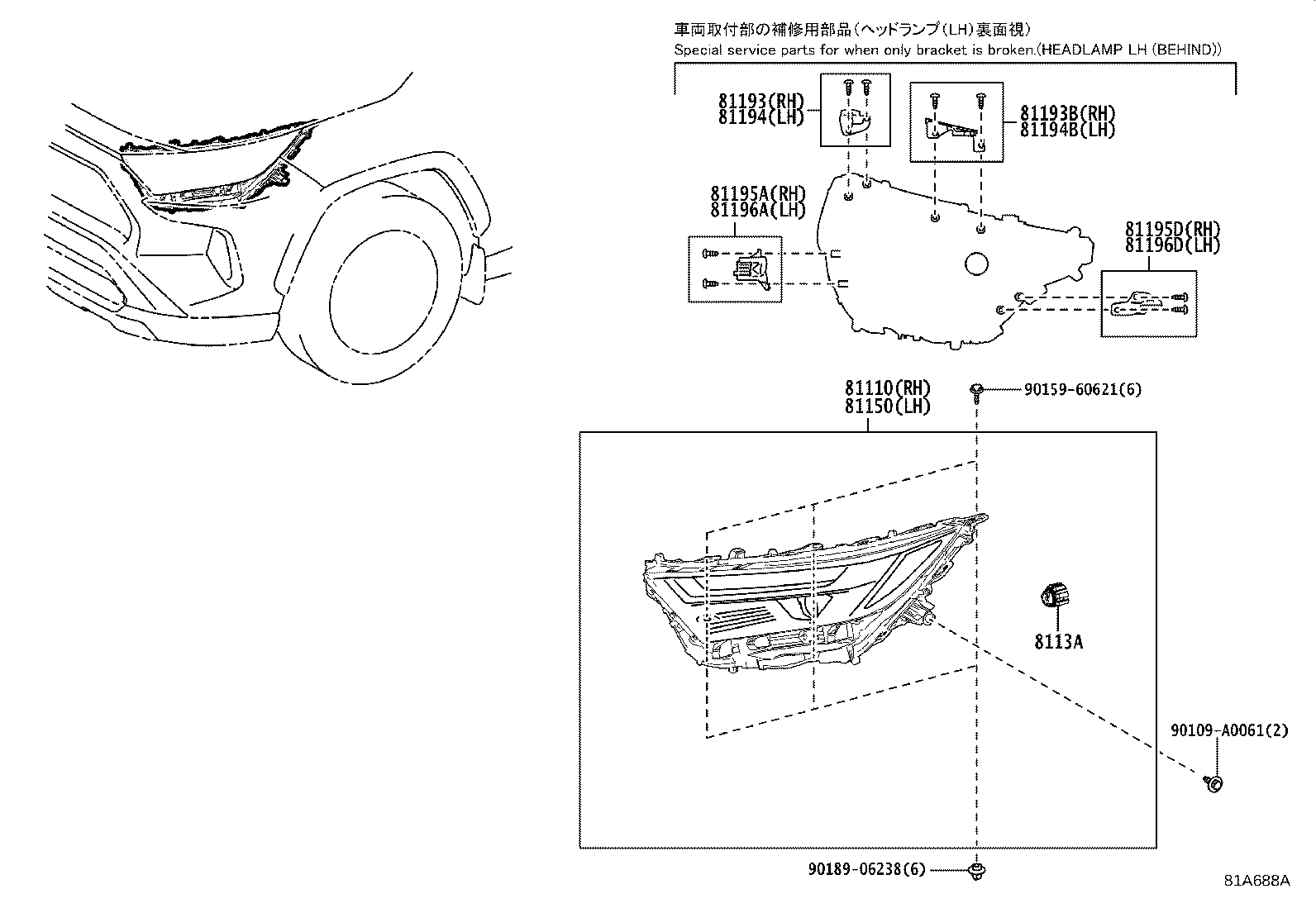

Figure 818724C 818724C 2018-12 → 2021-12 Figure 818724C 818724C 2021-12 → — Figure 818725C 818725C 2019-03 → 2021-12 Figure 819192B 819192B 2019-03 → 2021-12 Figure 81A688A 81A688A 2021-12 → — Figure 81A689B 81A689B 2021-12 → —

Part groups

PNCDescription
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81110 Headlamp Assy, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
8113A Led, Headlamp Front Turn Signal
81150 Headlamp Assy, LH
81161 Led, Clearance Lamp
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
81715B Socket & Wire, Front Side Marker Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
