Toyota RAV4 (NAP)
2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States
Supported model
Data version 2022-10

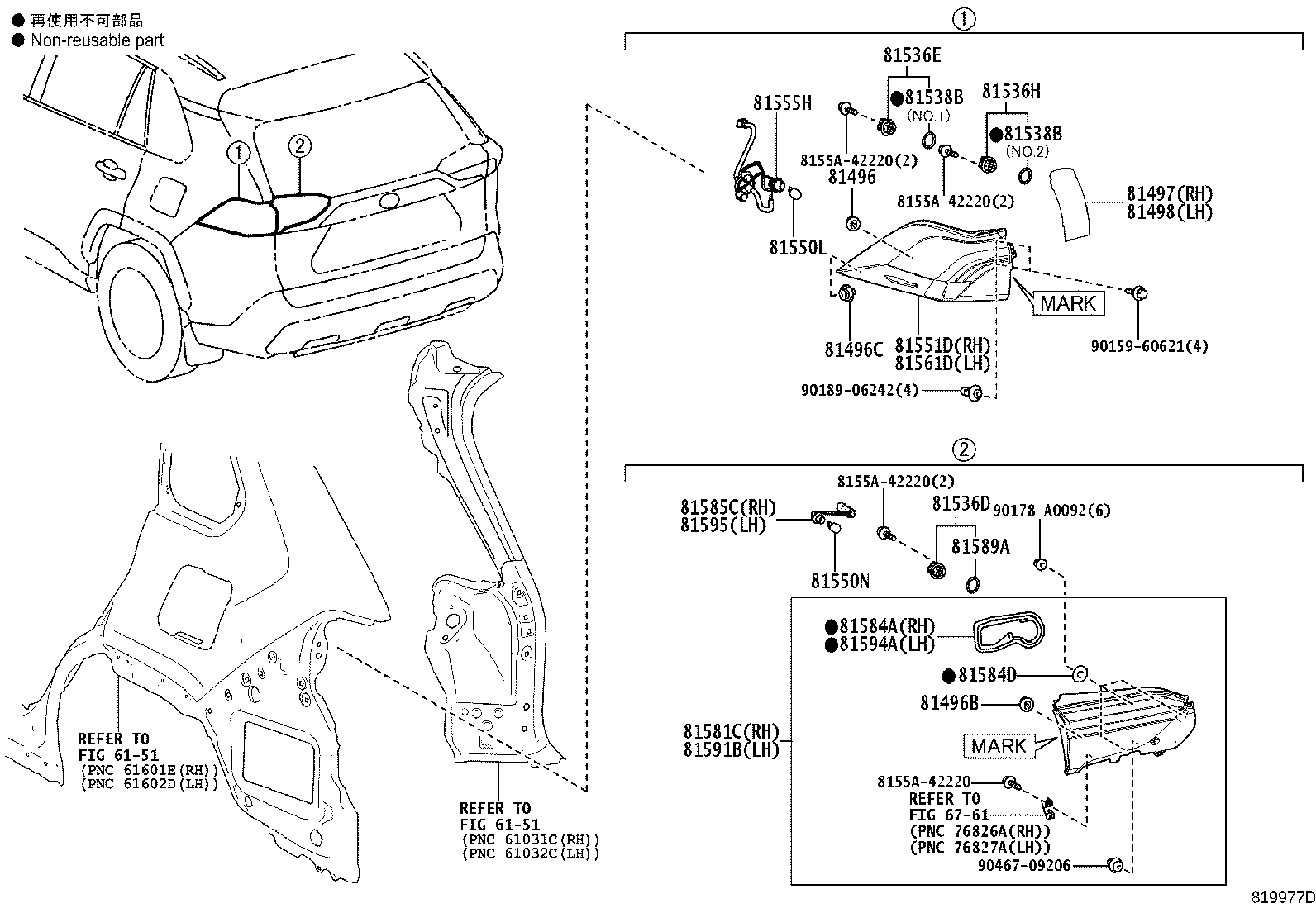

Rear Combination Lamp
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536D | Led, Taillamp |
| 81536E | Led, Stop Lamp |
| 81536H | Led, Taillamp, NO.2 |
| 81538B | Gasket, Rear Combination Lamp, NO.3 RH |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555H | Socket & Wire, Rear Combination Lamp |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81580A | Lamp Assy, Rear |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81584D | Gasket, Rear Lamp |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81589A | Gasket, Rear Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
