Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

17 part groups · 3 illustrations

Illustrations

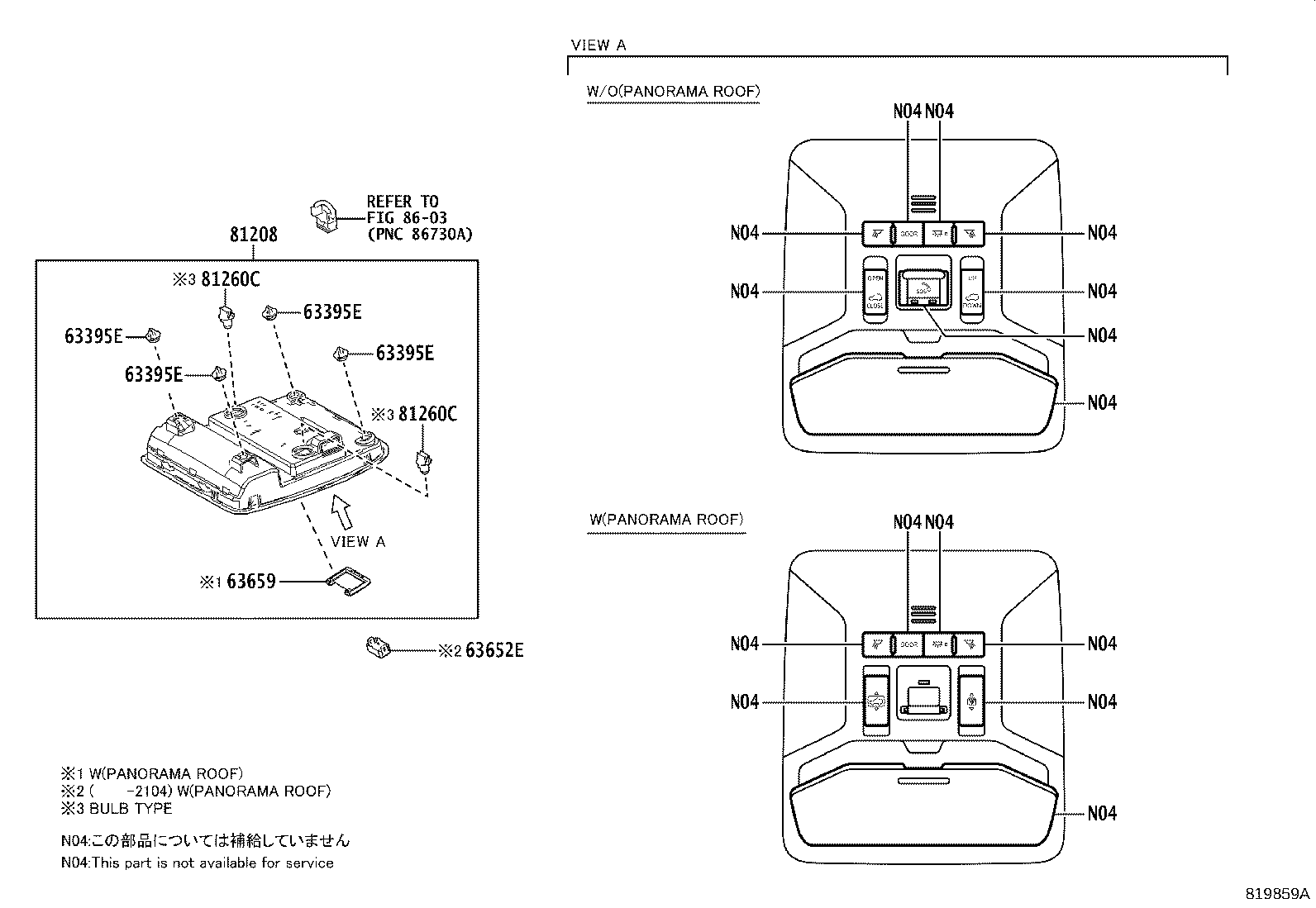

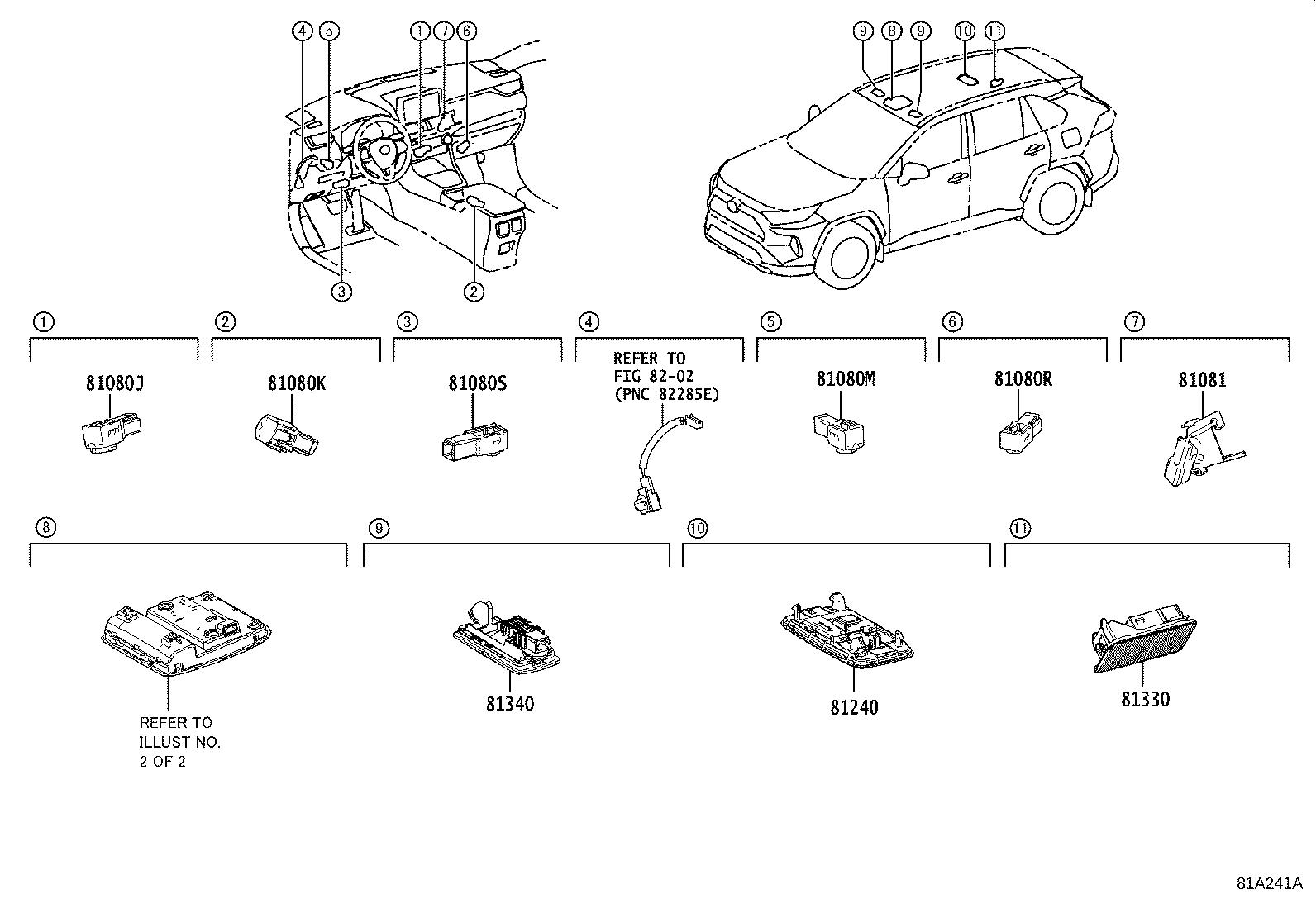

Figure 818723G 818723G 2018-12 → 2021-12 Figure 81A241A 81A241A 2021-12 → — Figure 819859A 819859A 2018-12 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
63652E Cover, Roof Console Box, NO.1
63659 Case, Roof Console Cover
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080M Lamp Assy, Interior Illumination, NO.1
81080R Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81081 Lamp Sub-assy, Interior Illumination
81208 Lamp Sub-assy, Map
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
