Toyota RAV4 (NAP)

2018-12 → present · chassis AXAA5#,AXAH54,AXAL54 · catalogue 665430 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

10 part groups · 3 illustrations

Illustrations

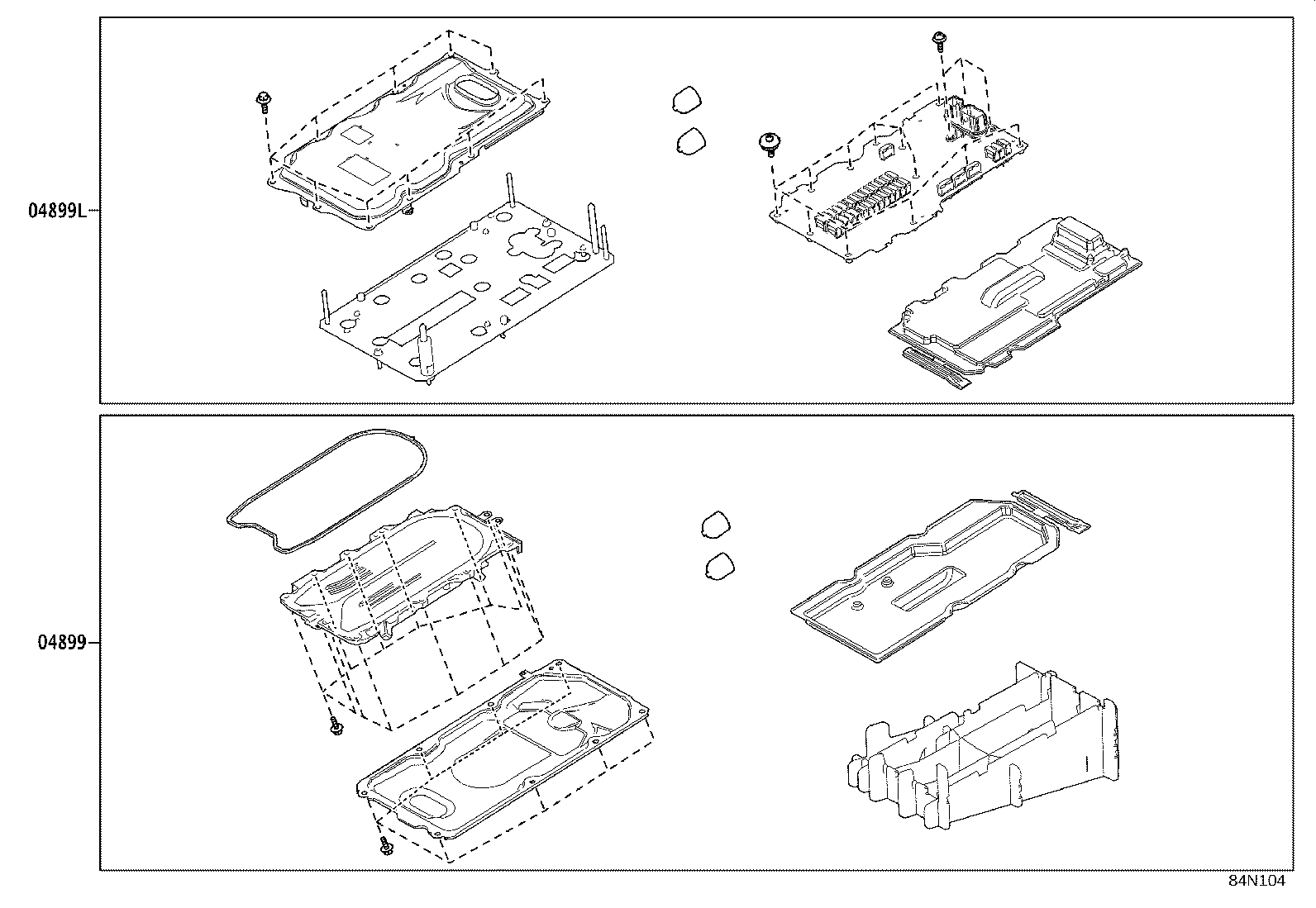

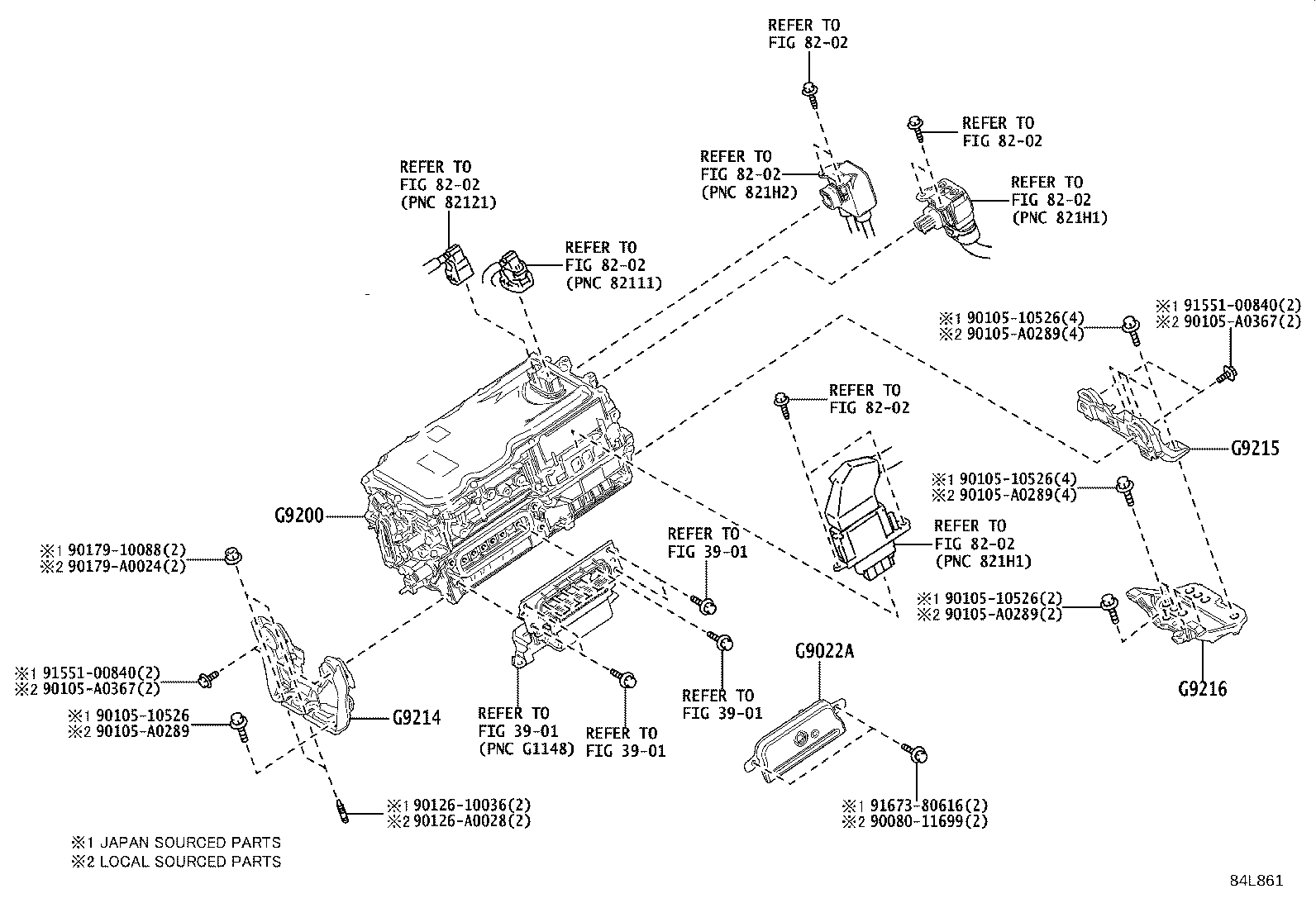

Figure 84J505C 84J505C 2019-03 → 2020-06 Figure 84L861 84L861 2020-06 → — Figure 84N104 84N104 2020-09 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9022A Cover Sub-assy, Inverter, Upper
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G921F Protector, Inverter, NO.2
G92D0 Protector Assy, Hybrid Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
