Toyota RAV4 Phev

2020-06 → present · chassis AXAP54 · catalogue 666410 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

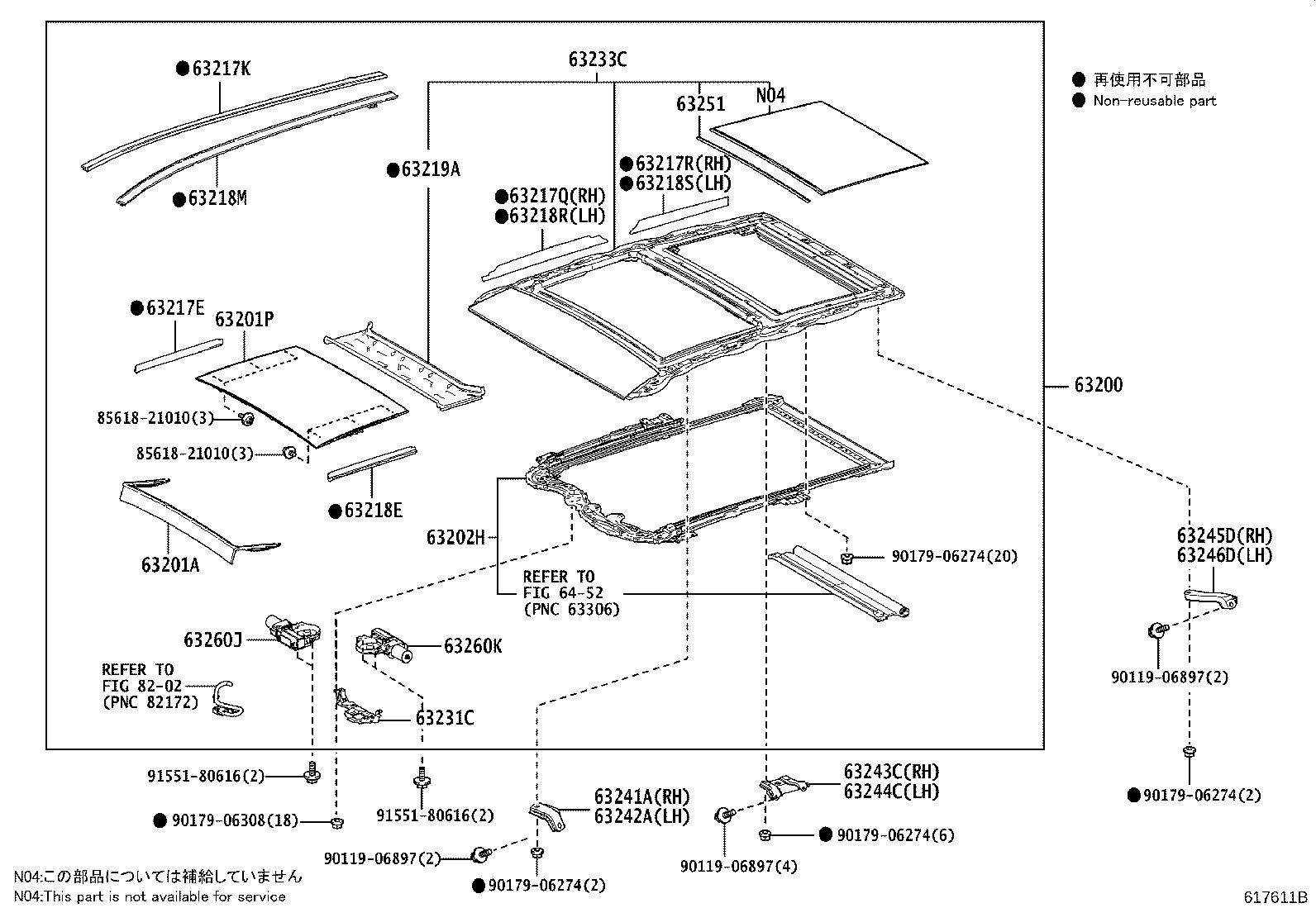

Exploded illustration 617611B 9155180616 — not listed in this catalogue 63260K — GEAR ASSY, SLIDING ROOF DRIVE (3 parts) 6452 — not listed in this catalogue 8202 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (3 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (3 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (4 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (4 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (3 parts) 63200 — HOUSING ASSY, MOON ROOF (6 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (3 parts) 8561821010 — not listed in this catalogue 8561821010 — not listed in this catalogue 9011906897 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906308 — not listed in this catalogue 63201A — PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF (3 parts) 63217E — GARNISH, SLIDING ROOF, FRONT RH (3 parts) 63231C — BRACKET, ROOM LAMP (3 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (3 parts) 63218E — GARNISH, SLIDING ROOF, FRONT LH (3 parts) 63233C — PANEL, SLIDING ROOF HOUSING (4 parts) 63251 — WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF (4 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (12 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (12 parts) 63202H — RAIL SUB-ASSY, SLIDE ROOF (5 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (4 parts) 63219A — GARNISH, SLIDING ROOF, REAR (3 parts) 63217Q — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63218R — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 63217R — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63218S — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9155180616 — not listed in this catalogue
617611B · 24 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
63200 — Housing Assy, Moon Roof
63200-42151-C1 note Housing Assy, Moon Roof
2020-06 → 2020-07 ended
AXAP54 XSE —
63200-42152-C1 note Housing Assy, Moon Roof
2020-08 → 2020-11 ended
AXAP54 XSE —
63200-42153-C1 note Housing Assy, Moon Roof
2020-12 → 2021-06 ended
AXAP54 XSE —
63200-42154-C1 note Housing Assy, Moon Roof
2021-07 → 2022-10 ended
AXAP54 XSE —
63200-42154-C1 note Housing Assy, Moon Roof
2022-10 → 2023-10 ended
AXAP54 XSE —
63200-42154-C1 note Housing Assy, Moon Roof
2023-10 → —
AXAP54 XSE —
63201A — Panel Sub-assy, Sliding Roof OR Removable Roof
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2020-06 → 2022-10 ended
AXAP54 XSE —
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2022-10 → 2023-10 ended
AXAP54 XSE —
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2023-10 → —
AXAP54 XSE —
63201P — Glass Sub-assy, Sliding Roof
63201-42160 note Glass Sub-assy, Sliding Roof
2020-06 → 2021-06 ended
AXAP54 XSE —
63201-42161 note Glass Sub-assy, Sliding Roof
2021-07 → 2022-10 ended
AXAP54 XSE —
63201-42161 note Glass Sub-assy, Sliding Roof
2022-10 → 2023-10 ended
AXAP54 XSE —
63201-42161 note Glass Sub-assy, Sliding Roof
2023-10 → —
AXAP54 XSE —
63202H — Rail Sub-assy, Slide Roof
63202-42100-C1 note Rail Sub-assy, Slide Roof
2020-06 → 2020-07 ended
AXAP54 XSE —
63202-42101-C1 note Rail Sub-assy, Slide Roof
2020-08 → 2021-11 ended
AXAP54 XSE —
63202-42102-C1 note Rail Sub-assy, Slide Roof
2021-12 → 2022-10 ended
AXAP54 XSE —
63202-42102-C1 note Rail Sub-assy, Slide Roof
2022-10 → 2023-10 ended
AXAP54 XSE —
63202-42102-C1 note Rail Sub-assy, Slide Roof
2023-10 → —
AXAP54 XSE —
63217E — Garnish, Sliding Roof, Front RH
63217-42010 note Garnish, Sliding Roof, Front RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-42010 note Garnish, Sliding Roof, Front RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-42010 note Garnish, Sliding Roof, Front RH
2023-10 → —
AXAP54 XSE —
63217K — Garnish, Sliding Roof Side, RH
63217-42040 note Garnish, Sliding Roof Side, RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-47020 Garnish, Sliding Roof Side, RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, RH
2020-06 → 2022-10 ended
AXAP54 SE —
63217-42040 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-47020 Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAP54 SE —
63217-47020 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-42040 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAP54 XSE —
63217-47020 Garnish, Sliding Roof Side, RH
2023-10 → —
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAP54 SE —
63217Q — Garnish, Sliding Roof Side, RH
63217-42020 note Garnish, Sliding Roof Side, RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-42020 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-42020 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAP54 XSE —
63217R — Garnish, Sliding Roof Side, RH
63217-42030 note Garnish, Sliding Roof Side, RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-42030 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-42030 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAP54 XSE —
63218E — Garnish, Sliding Roof, Front LH
63218-42020 note Garnish, Sliding Roof, Front LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63218-42020 note Garnish, Sliding Roof, Front LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63218-42020 note Garnish, Sliding Roof, Front LH
2023-10 → —
AXAP54 XSE —
63218M — Garnish, Sliding Roof Side, LH
63217-47020 Garnish, Sliding Roof Side, LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, LH
2020-06 → 2022-10 ended
AXAP54 SE —
63218-42050 note Garnish, Sliding Roof Side, LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63217-47020 Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAP54 SE —
63218-42050 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63217-47020 Garnish, Sliding Roof Side, LH
2023-10 → —
AXAP54 XSE —
63217-47020 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAP54 SE —
63217-47020 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAP54 XSE —
63218-42050 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAP54 XSE —
63218R — Garnish, Sliding Roof Side, LH
63218-42030 note Garnish, Sliding Roof Side, LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63218-42030 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63218-42030 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAP54 XSE —
63218S — Garnish, Sliding Roof Side, LH
63218-42040 note Garnish, Sliding Roof Side, LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63218-42040 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63218-42040 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAP54 XSE —
63219A — Garnish, Sliding Roof, Rear
63219-42010 note Garnish, Sliding Roof, Rear
2020-06 → 2022-10 ended
AXAP54 XSE —
63219-42010 note Garnish, Sliding Roof, Rear
2022-10 → 2023-10 ended
AXAP54 XSE —
63219-42010 note Garnish, Sliding Roof, Rear
2023-10 → —
AXAP54 XSE —
63231C — Bracket, Room Lamp
63231-42050 note Bracket, Room Lamp
2020-06 → 2022-10 ended
AXAP54 XSE —
63231-42050 note Bracket, Room Lamp
2022-10 → 2023-10 ended
AXAP54 XSE —
63231-42050 note Bracket, Room Lamp
2023-10 → —
AXAP54 XSE —
63233C — Panel, Sliding Roof Housing
63233-42051 note Panel, Sliding Roof Housing
2020-06 → 2020-11 ended
AXAP54 XSE —
63233-42052 note Panel, Sliding Roof Housing
2020-12 → 2022-10 ended
AXAP54 XSE —
63233-42052 note Panel, Sliding Roof Housing
2022-10 → 2023-10 ended
AXAP54 XSE —
63233-42052 note Panel, Sliding Roof Housing
2023-10 → —
AXAP54 XSE —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2023-10 → —
AXAP54 XSE —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2023-10 → —
AXAP54 XSE —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-42050 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-06 → 2020-11 ended
AXAP54 XSE —
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-12 → 2022-10 ended
AXAP54 XSE —
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2023-10 → —
AXAP54 XSE —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-42030 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-06 → 2020-11 ended
AXAP54 XSE —
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-12 → 2022-10 ended
AXAP54 XSE —
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2023-10 → —
AXAP54 XSE —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2020-06 → 2022-10 ended
AXAP54 XSE —
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → 2023-10 ended
AXAP54 XSE —
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2023-10 → —
AXAP54 XSE —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2020-06 → 2022-10 ended
AXAP54 XSE —
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → 2023-10 ended
AXAP54 XSE —
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2023-10 → —
AXAP54 XSE —
63251 — Weatherstrip, Sliding Roof Panel OR Removable Roof
63251-42050 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2020-06 → 2020-11 ended
AXAP54 XSE —
63251-42051 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2020-12 → 2022-10 ended
AXAP54 XSE —
63251-42051 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2022-10 → 2023-10 ended
AXAP54 XSE —
63251-42051 note Weatherstrip, Sliding Roof Panel OR Removable Roof
2023-10 → —
AXAP54 XSE —
63260J — Gear Assy, Sliding Roof Drive
63260-42130 note Gear Assy, Sliding Roof Drive
2020-06 → 2022-10 ended
AXAP54 XSE —
63260-42130 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-10 ended
AXAP54 XSE —
63260-42130 note Gear Assy, Sliding Roof Drive
2023-10 → —
AXAP54 XSE —
63260K — Gear Assy, Sliding Roof Drive
63260-42140 note Gear Assy, Sliding Roof Drive
2020-06 → 2022-10 ended
AXAP54 XSE —
63260-42140 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-10 ended
AXAP54 XSE —
63260-42140 note Gear Assy, Sliding Roof Drive
2023-10 → —
AXAP54 XSE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
