Front Bumper & Bumper Stay

29 part groups · 2 illustrations

Illustrations

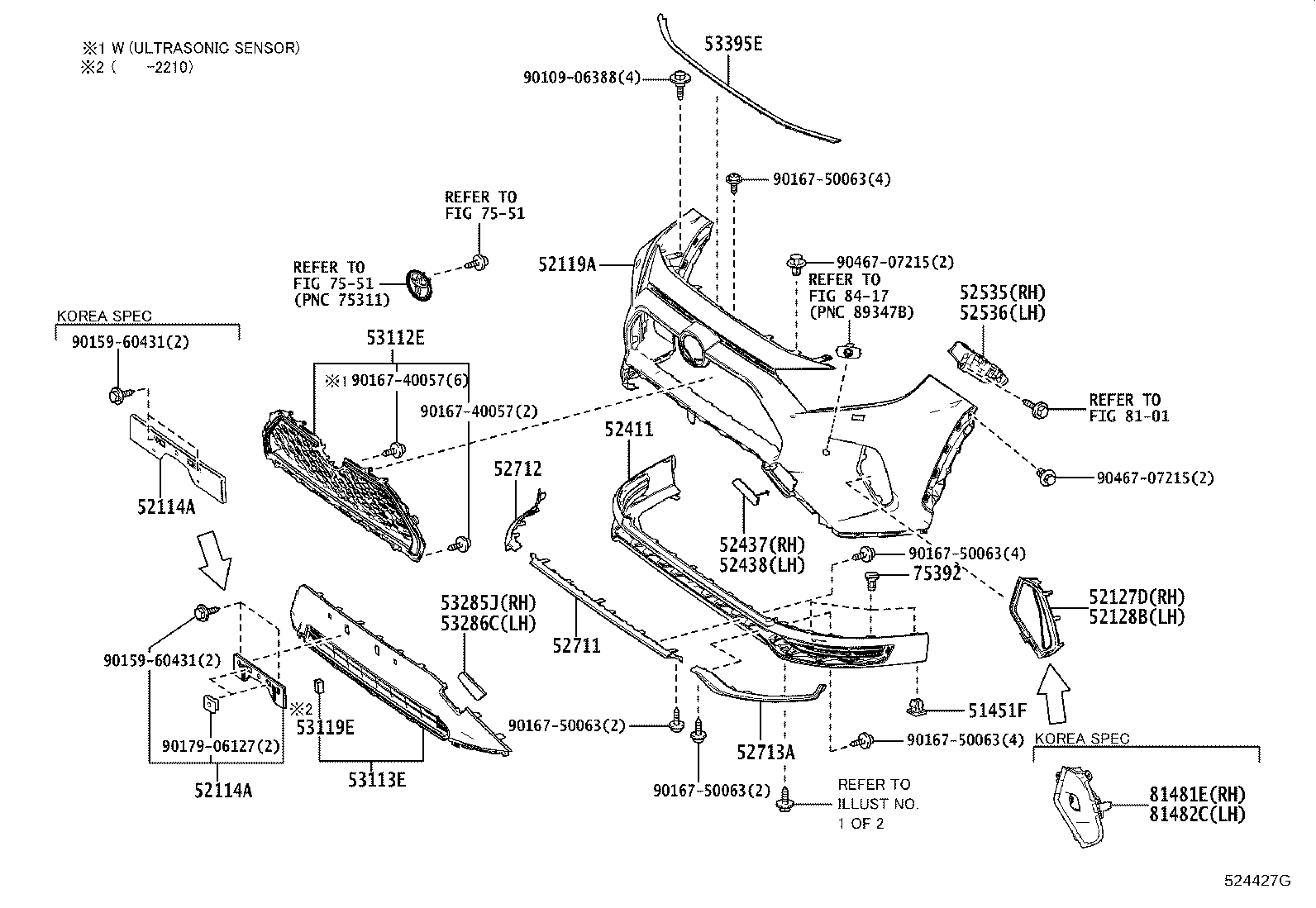

Figure 524421C 524421C 2020-06 → — Figure 524427G 524427G 2020-06 → —

Part groups

PNCDescription
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52102F Extension Sub-assy, Front Bumper, RH
52103C Extension Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52132A Reinforcement, Front Bumper, NO.2
52411 Guard, Front Bumper
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52614 Absorber, Front Bumper Energy, NO.2
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53119E Protector, Radiator Grille
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
53395E Seal, Hood TO Front End Panel
75392 Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
