Toyota RAV4 Phev

2020-06 → present · chassis AXAP54 · catalogue 666410 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

21 part groups · 3 illustrations

Illustrations

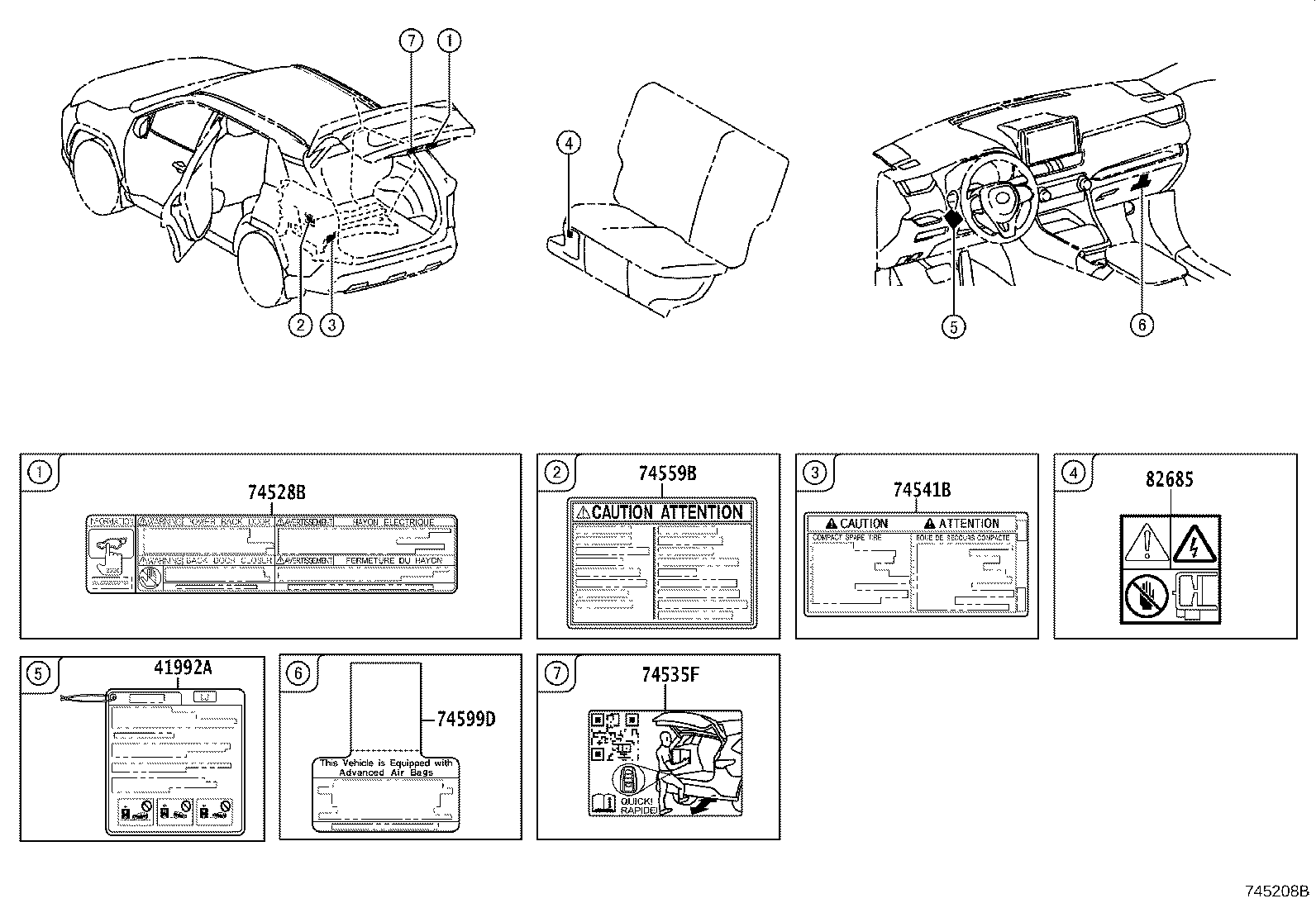

Figure 745206A 745206A 2020-06 → — Figure 745207B 745207B 2020-06 → — Figure 745208B 745208B 2020-06 → —

Part groups

PNCDescription
11293D Label, Engine Caution
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
41992A Label, Differential Notice, NO.2
74514A Label, Certification Regulation Information
74515C Label, Theft Warning Information
74528B Label, Back Door Caution
74535F Label, Gate Helper Information
74541B Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74559C Label, Fuel Information, NO.2
74573D Label, Electric Vehicle Battery Caution
74599D Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
82685 Plate, Caution
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
