Toyota RAV4 Phev

2020-06 → present · chassis AXAP54 · catalogue 666410 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

31 part groups · 3 illustrations

Illustrations

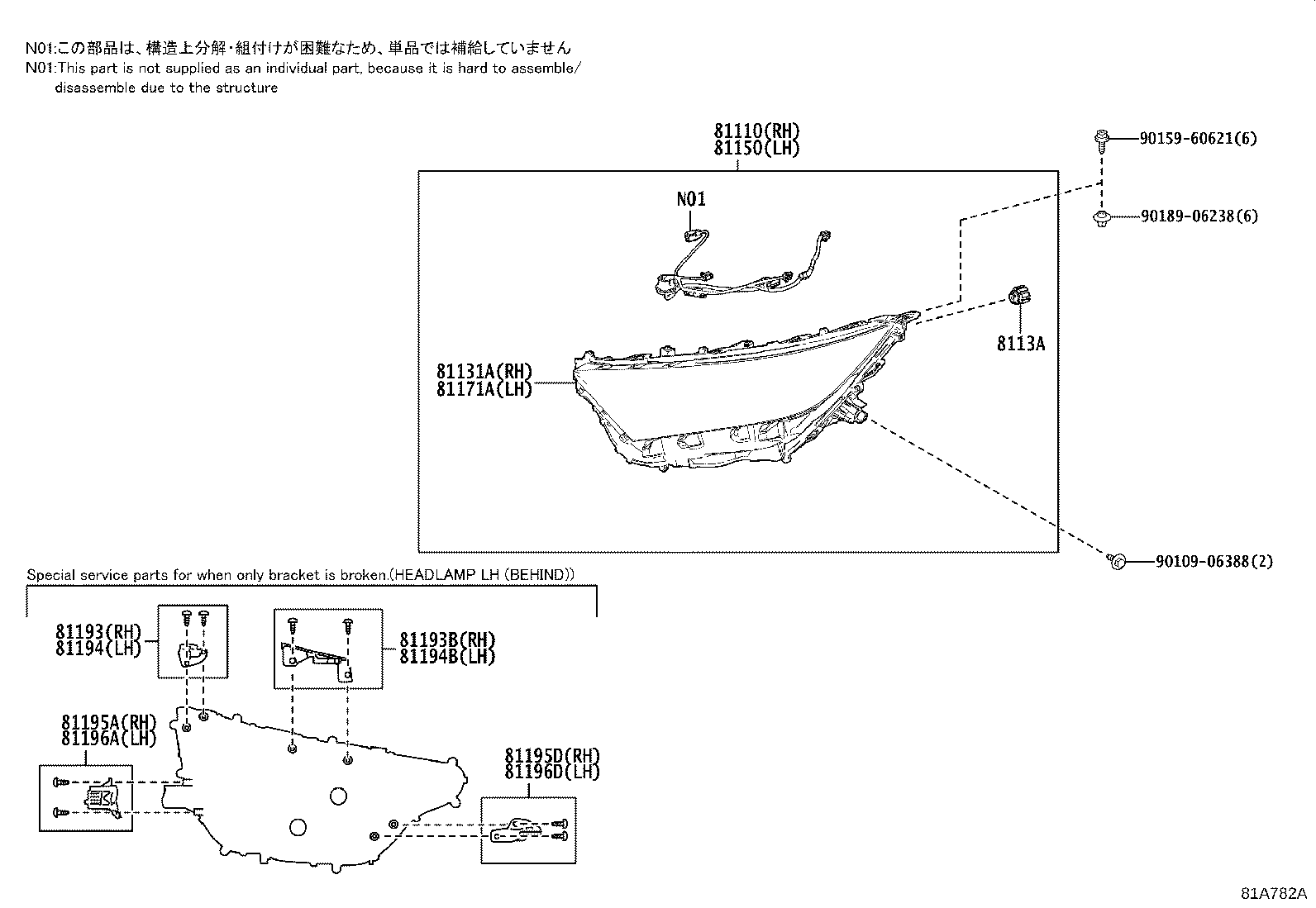

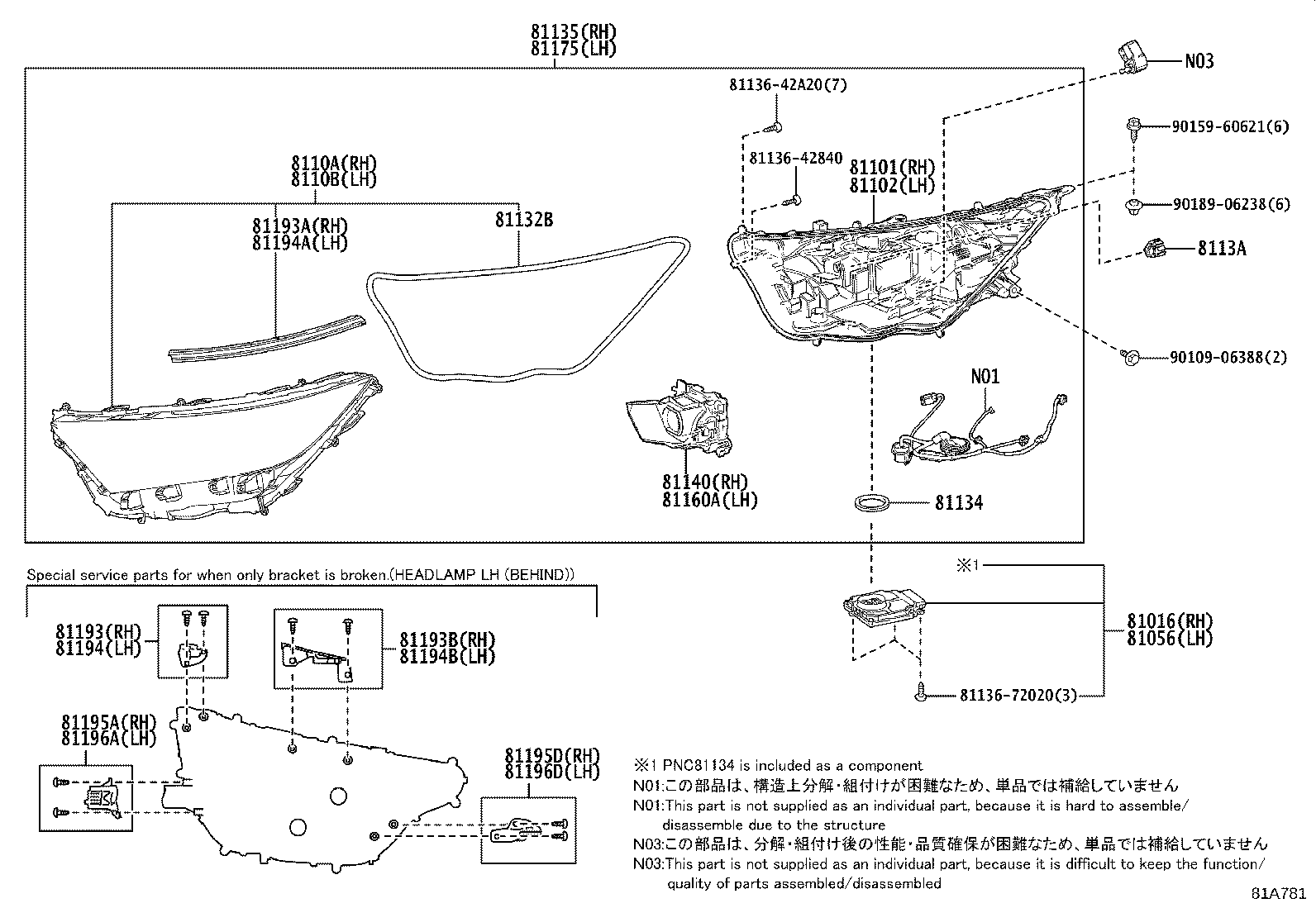

Figure 819395C 819395C 2020-06 → 2021-12 Figure 81A782A 81A782A 2021-12 → — Figure 81A781 81A781 2022-10 → —

Part groups

PNCDescription
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81101 Housing Sub-assy, Headlamp, RH
81102 Housing Sub-assy, Headlamp, LH
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81131A Unit, Headlamp, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
8113A Led, Headlamp Front Turn Signal
81140 Unit Assy, Headlamp Led, RH
81150 Headlamp Assy, LH
81160A Unit Assy, Headlamp Led, LH
81171A Unit, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
81715B Socket & Wire, Front Side Marker Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
