Toyota RAV4 Phev
2020-06 → present · chassis AXAP54 · catalogue 666410 · United States
Supported model
Data version 2023-10

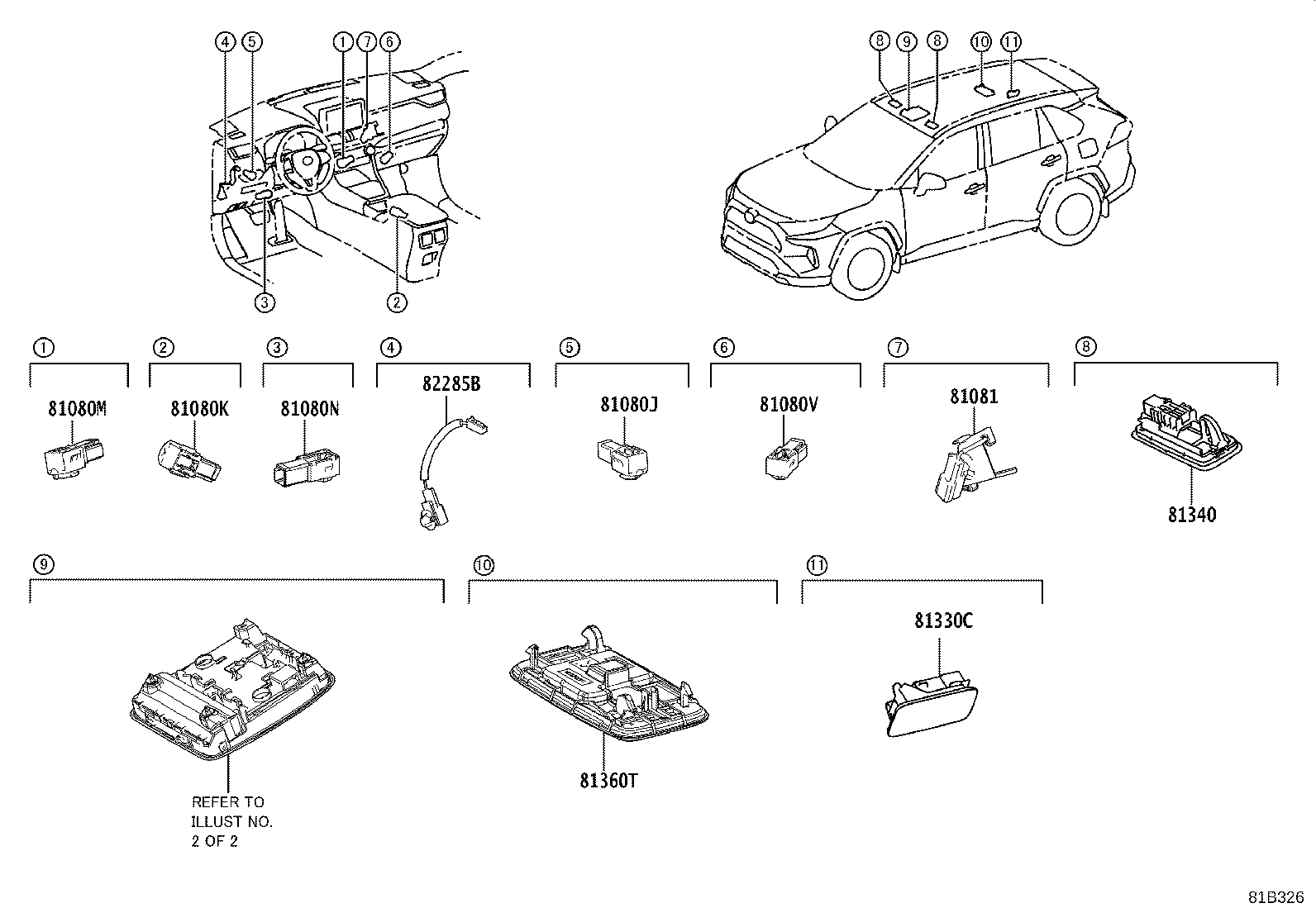

Interior Lamp
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

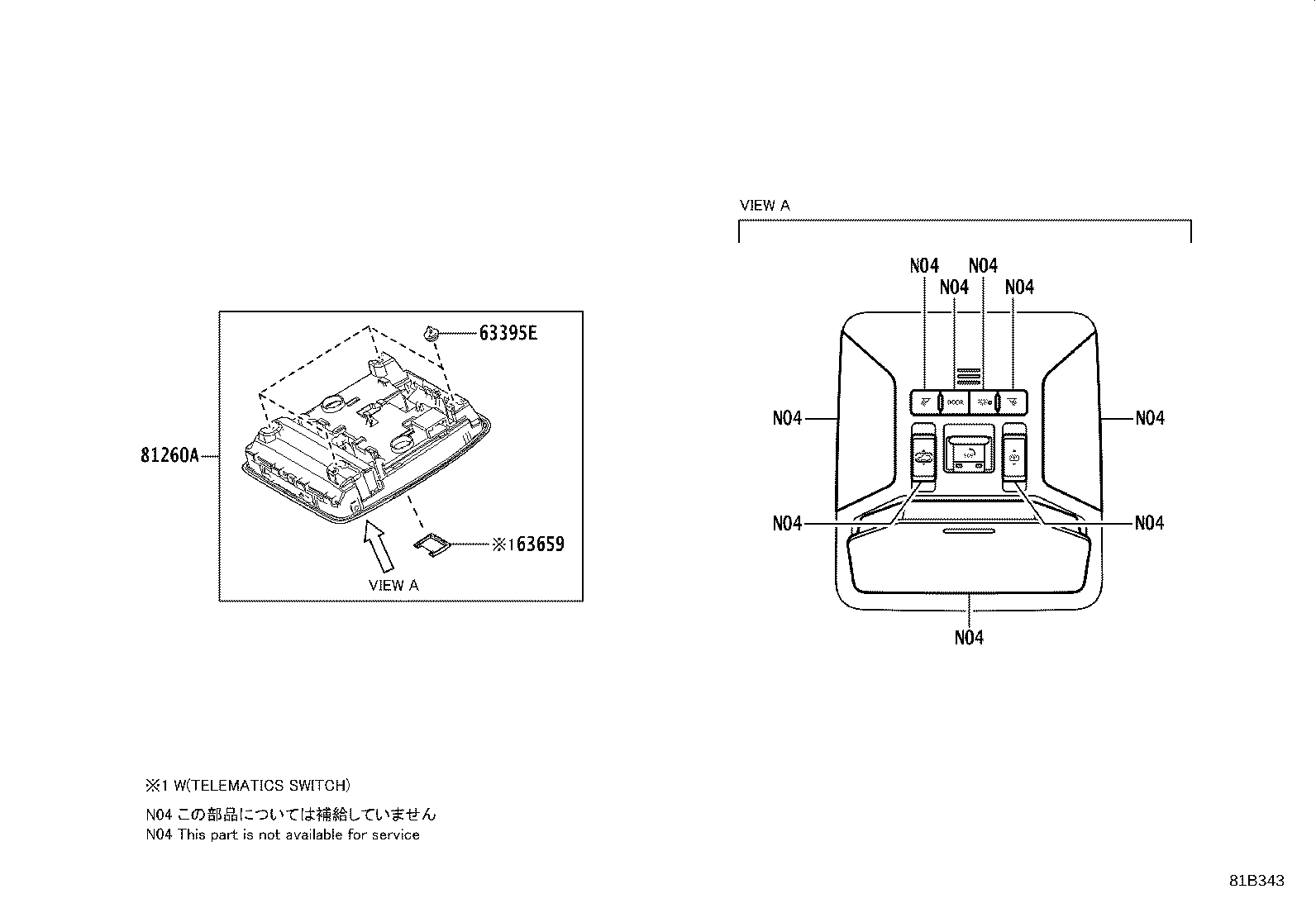

| 63395E | Clip(FOR MAP LAMP) |
| 63659 | Case, Roof Console Cover |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080N | Lamp Assy, Interior Illumination, NO.1 |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81330C | Lamp Assy, Luggage Compartment |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
| 81360U | Bulb, Spot Lamp |
| 82285B | Wire, Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
