Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MA4926F 17700 — CLEANER ASSY, AIR (22 parts) 17700A — NUT, WING(FOR AIR CLEANER) (1 parts) 9017908146 — not listed in this catalogue 9461210800 — not listed in this catalogue 9033903005 — not listed in this catalogue 17853 — INSULATOR, AIR CLEANER BRACKET (1 parts) 9033919002 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (6 parts) 9017908146 — not listed in this catalogue 9461210800 — not listed in this catalogue 17882 — HOSE, AIR CLEANER, NO.2 (3 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17700T — BOLT, STUD(FOR AIR CLEANER) (1 parts) 9165140614 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (6 parts) 17881 — HOSE, AIR CLEANER, NO.1 (3 parts) 17805 — CONNECTOR SUB-ASSY, INTAKE AIR (2 parts) 17883 — HOSE, AIR CLEANER, NO.3 (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (14 parts) 17845 — GASKET, AIR CLEANER CAP (4 parts) 17728 — VALVE, THERMOSTATIC (1 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17729 — GASKET, THERMOSTAT VALVE (1 parts) 17749 — SUPPORT, THERMOSTAT VALVE (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (2 parts) 17680D — VALVE ASSY, MIXTURE CONTROL (2 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 1709 — not listed in this catalogue 17680E — HOSE, AIR(FOR MIXTURE CONTROL VALVE) (2 parts) 17061 — DIAPHRAGM SUB-ASSY (2 parts) 17728A — BUSH (1 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (2 parts)

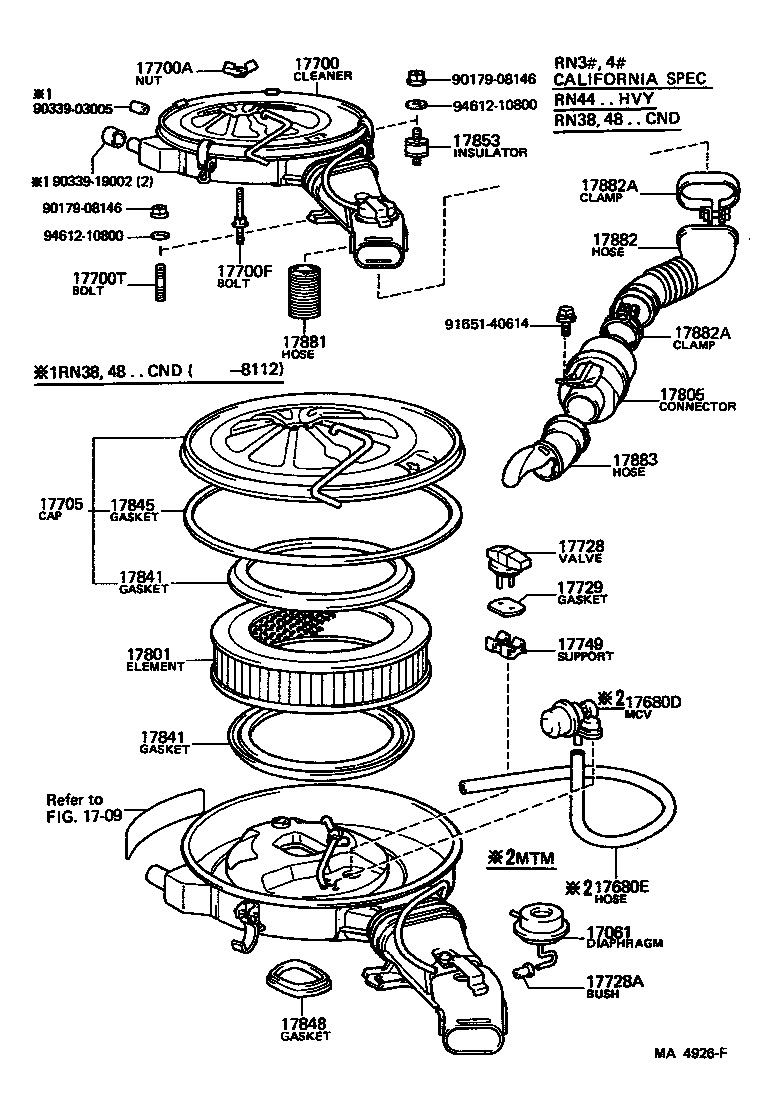

MA4926F · 24 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-13010 Diaphragm Sub-assy
1979-08 → 1980-08 ended
20R RN3#,4# —
17061-37010 Diaphragm Sub-assy
1980-08 → 1983-07 ended
22R RN3#,4# —
17680D — Valve Assy, Mixture Control
17680-35010 Valve Assy, Mixture Control
1980-08 → 1983-07 ended
22R RN44 HVY —
17680-35010 note Valve Assy, Mixture Control
1980-08 → 1983-07 ended
22R RN3#,4# MTM (3QT,HLF) +1 —
17680E — Hose, Air(FOR MIXTURE CONTROL VALVE)
17346-35010 Hose, Air(FOR MIXTURE CONTROL VALVE)
1980-08 → 1983-07 ended
22R RN44 HVY —
17346-35010 note Hose, Air(FOR MIXTURE CONTROL VALVE)
1980-08 → 1983-07 ended
22R RN3#,4# MTM (3QT,HLF) +1 —
17700 — Cleaner Assy, Air
17700-35040 Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RN44 HVY —
17700-35040 note Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RN3#,4# MTM (3QT,HLF) —
17700-35050 note Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RN44 4FC —
17700-35050 Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RN38,48 CND —
17700-35060 Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RN38,48 USA —
17700-35080 note Cleaner Assy, Air
1981-08 → 1982-08 ended
22R RN3#,4# MTM (3QT,HLF) +1 —
17700-35080 Cleaner Assy, Air
1981-08 → 1982-08 ended
22R RN44 HVY —
17700-35081 Cleaner Assy, Air
1982-08 → 1983-07 ended
22R RN44 HVY —
17700-35081 note Cleaner Assy, Air
1982-08 → 1983-07 ended
22R RN3#,4# MTM (3QT,HLF) +1 —
17700-35090 Cleaner Assy, Air
1981-08 → 1981-12 ended
22R RN38,48 CND —
17700-35090 note Cleaner Assy, Air
1981-08 → 1982-08 ended
22R RN34,44 4FC USA —
17700-35091 note Cleaner Assy, Air
1982-08 → 1983-07 ended
22R RN44 4FC USA —
17700-35100 Cleaner Assy, Air
1981-08 → 1982-08 ended
22R RN38,48 USA —
17700-35100 Cleaner Assy, Air
1981-08 → 1982-08 ended
22R RN34,44 3QT,HLF —
17700-35101 Cleaner Assy, Air
1982-08 → 1983-07 ended
22R RN34,44 3QT,HLF —
17700-35101 Cleaner Assy, Air
1982-08 → 1983-07 ended
22R RN38,48 USA —
17700-35120 Cleaner Assy, Air
1981-12 → 1983-07 ended
22R RN38,48 CND —
17700-38090 Cleaner Assy, Air
1978-08 → 1979-08 ended
20R RN32,42 —
17700-38091 Cleaner Assy, Air
1979-08 → 1980-08 ended
20R RN32,42 —
17700-38100 Cleaner Assy, Air
1979-01 → 1979-08 ended
20R RN37 —
17700-38110 Cleaner Assy, Air
1979-08 → 1980-08 ended
20R RN37 —
17700-54071 Cleaner Assy, Air
1981-01 → 1983-07 ended
L LN40 —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1978-08 → 1983-07 ended
20R,22R RN3#,4# —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06020 note Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1983-07 ended
22R RN3#,4# —
90116-06280 note Bolt, Stud(FOR AIR CLEANER SETTING)
1978-08 → 1980-08 ended
20R RN3#,4# —
17700T — Bolt, Stud(FOR AIR CLEANER)
90116-08033 note Bolt, Stud(FOR AIR CLEANER)
1978-08 → 1983-07 ended
20R,22R RN3#,4# —
17705 — Cap Sub-assy, Air Cleaner
17705-35030 note Cap Sub-assy, Air Cleaner
1980-08 → 1981-08 ended
22R RN3#,4# (3QT,HLF) USA —
17705-35030 Cap Sub-assy, Air Cleaner
1980-08 → 1981-08 ended
22R RN44 HVY —
17705-35030 Cap Sub-assy, Air Cleaner
1980-08 → 1981-08 ended
22R RN38,48 CND —
17705-35040 Cap Sub-assy, Air Cleaner
1980-08 → 1981-08 ended
22R RN38,48 USA —
17705-35060 Cap Sub-assy, Air Cleaner
1981-08 → 1983-07 ended
22R RN38,48 CND —
17705-35060 Cap Sub-assy, Air Cleaner
1981-08 → 1983-07 ended
22R RN44 HVY —
17705-35060 note Cap Sub-assy, Air Cleaner
1981-08 → 1983-07 ended
22R RN3#,4# (3QT,HLF) USA —
17705-35070 Cap Sub-assy, Air Cleaner
1981-08 → 1983-07 ended
22R RN38,48 USA —
17705-35070 Cap Sub-assy, Air Cleaner
1981-08 → 1983-07 ended
22R RN34,44 3QT,HLF —
17705-38020 Cap Sub-assy, Air Cleaner
1978-08 → 1979-08 ended
20R RN32,42 —
17705-38050 Cap Sub-assy, Air Cleaner
1979-01 → 1979-08 ended
20R RN37 —
17705-38051 Cap Sub-assy, Air Cleaner
1979-08 → 1980-08 ended
20R RN37 —
17705-38060 Cap Sub-assy, Air Cleaner
1979-08 → 1980-08 ended
20R RN32,42 —
17705-54032 Cap Sub-assy, Air Cleaner
1981-01 → 1983-07 ended
L LN40 —
17728 — Valve, Thermostatic
17728-24010 Valve, Thermostatic
1979-08 → 1983-07 ended
20R,22R RN3#,4# —
17728A — Bush
90386-03001 Bush
1979-08 → 1983-07 ended
20R,22R RN3#,4# —
17729 — Gasket, Thermostat Valve
17729-34010 Gasket, Thermostat Valve
1979-08 → 1983-07 ended
20R,22R RN3#,4# —
17749 — Support, Thermostat Valve
17749-34010 Support, Thermostat Valve
1979-08 → 1983-07 ended
20R,22R RN3#,4# —
17801 — Element Sub-assy, Air Cleaner Filter
17801-41090 Element Sub-assy, Air Cleaner Filter
1978-08 → 1983-07 ended
20R,22R RN3#,4# —
17801-54030 Element Sub-assy, Air Cleaner Filter
1981-01 → 1983-07 ended
L LN40 —
17805 — Connector Sub-assy, Intake Air
17805-89102 Connector Sub-assy, Intake Air
1980-08 → 1983-07 ended
22R RN3#,4# —
17805-89103 Connector Sub-assy, Intake Air
1981-01 → 1983-07 ended
L LN40 —
17841 — Gasket, Filter Element
17841-41050 Gasket, Filter Element
1978-08 → 1983-07 ended
20R,22R RN3#,4# —
17841-54010 Gasket, Filter Element
1981-01 → 1983-07 ended
L LN40 —
17845 — Gasket, Air Cleaner Cap
17845-35010 Gasket, Air Cleaner Cap
1980-08 → 1983-07 ended
22R RN3#,4# —
17845-38011 Gasket, Air Cleaner Cap
1978-08 → 1980-08 ended
20R RN32,42 —
17845-38020 Gasket, Air Cleaner Cap
1979-01 → 1980-08 ended
20R RN37 —
17845-54010 Gasket, Air Cleaner Cap
1981-01 → 1983-07 ended
L LN40 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-35010 Gasket, Air Cleaner TO Carburetor
1980-08 → 1983-07 ended
22R RN3#,4# —
90430-72003 Gasket, Air Cleaner TO Carburetor
1978-08 → 1980-08 ended
20R RN3#,4# —
17853 — Insulator, Air Cleaner Bracket
17853-38010 Insulator, Air Cleaner Bracket
1978-08 → 1983-07 ended
20R,22R RN3#,4# —
17881 — Hose, Air Cleaner, NO.1
17881-26010 Hose, Air Cleaner, NO.1
1978-08 → 1980-08 ended
20R RN3#,4# —
17881-37030 Hose, Air Cleaner, NO.1
1980-08 → 1983-07 ended
22R RN3#,4# —
17881-54060 Hose, Air Cleaner, NO.1
1981-01 → 1983-07 ended
L LN40 —
17882 — Hose, Air Cleaner, NO.2
17882-89101 Hose, Air Cleaner, NO.2
1978-08 → 1980-08 ended
20R RN3#,4# —
17882-89104 Hose, Air Cleaner, NO.2
1981-01 → 1983-07 ended
L LN40 —
17882-89105 Hose, Air Cleaner, NO.2
1980-08 → 1983-07 ended
22R RN3#,4# —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01003 Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-08 → 1980-08 ended
20R RN3#,4# —
90460-01017 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1983-07 ended
22R RN3#,4# —
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-01 → 1983-07 ended
L LN40 —
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1983-07 ended
22R RN38,48 —
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-08 ended
22R RN3#,4# —
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1983-07 ended
22R RN34,44 —
17883 — Hose, Air Cleaner, NO.3
17883-89102 Hose, Air Cleaner, NO.3
1981-01 → 1983-07 ended
L LN40 —
17883-89103 Hose, Air Cleaner, NO.3
1980-08 → 1983-07 ended
22R RN3#,4# —
