Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

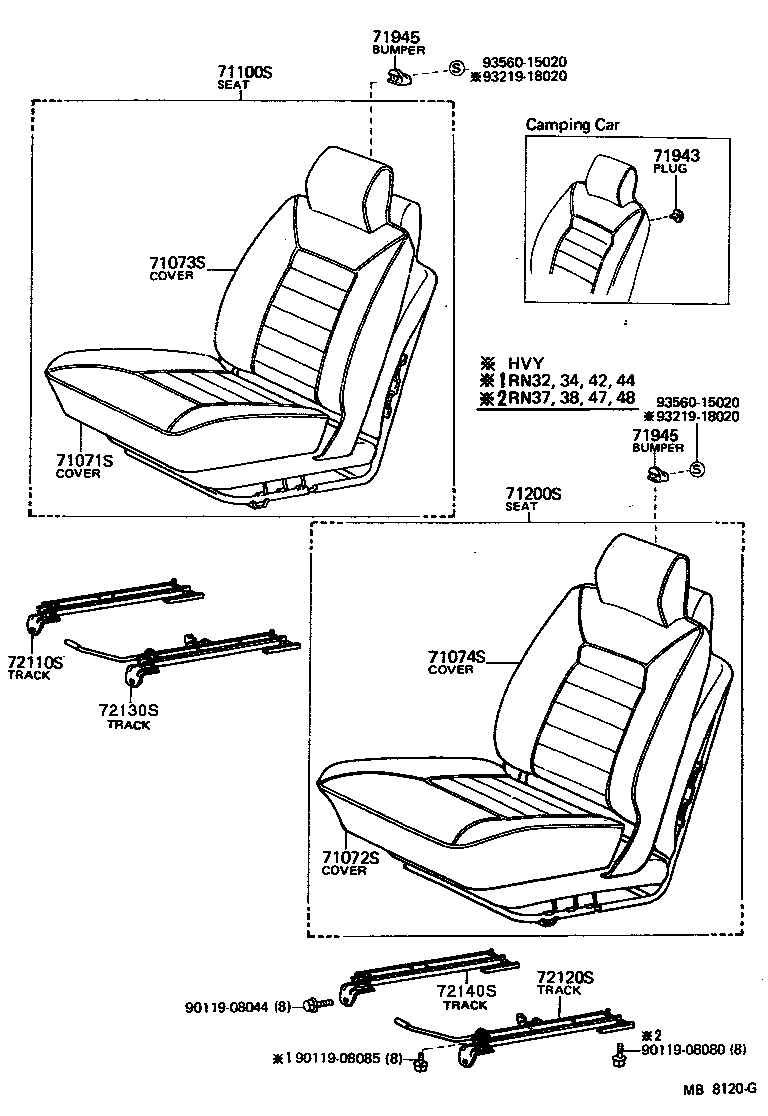

Exploded illustration MB8120G 71945 — BUMPER, SEATBACK (12 parts) 9356015020 — not listed in this catalogue 71100S — SEAT ASSY, FRONT RH (30 parts) 9321918020 — not listed in this catalogue 71943 — PLUG, SEATBACK (9 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (54 parts) 9356015020 — not listed in this catalogue 9321918020 — not listed in this catalogue 71945 — BUMPER, SEATBACK (12 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (44 parts) 71200S — SEAT ASSY, FRONT LH (30 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (54 parts) 72110S — TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) (8 parts) 72130S — TRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT) (8 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (44 parts) 72120S — TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) (9 parts) 72140S — TRACK ASSY, LH SEAT, INNER (FOR SEPARATE SEAT) (5 parts) 9011908044 — not listed in this catalogue 9011908080 — not listed in this catalogue 9011908085 — not listed in this catalogue
MB8120G · 13 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
307 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-89157-01 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71071-89157-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71071-89157-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71071-89163-01 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71071-89163-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71071-89163-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71071-89164-01 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71071-89164-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71071-89164-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71071-89171-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89172-01 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89172-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89172-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89173-01 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71071-89173-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71071-89173-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71071-89182-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89182-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89183-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89183-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89184-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71071-89184-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71071-89184-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71071-89192-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-06 → 1982-08 ended
RN44 DLX HVY —
71071-89206-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71071-89206-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71071-89207-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71071-89207-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71071-89208-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71071-89208-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71071-89208-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71071-89213 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1983-01 → 1983-07 ended
RN44 5F SR5 —
71071-95143-01 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71071-95143-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71071-95143-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71071-95151-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71071-95151-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71071-95151-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71071-95164-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71071-95164-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71071-95164-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71071-95166-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71071-95166-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71071-95166-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71071-89157-01 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71071-89157-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71071-89157-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71071-89163-01 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71071-89163-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71071-89163-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71071-89164-01 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71071-89164-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71071-89164-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71071-89171-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89172-01 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89172-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89172-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71071-89173-01 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71071-89173-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71071-89173-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71071-89182-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89182-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89183-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89183-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71071-89184-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71071-89184-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71071-89184-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71071-89192-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-06 → 1982-08 ended
RN44 DLX HVY —
71071-95143-01 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71071-95143-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71071-95143-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71071-95151-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71071-95151-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71071-95151-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71072-89115-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71072-89115-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71072-89116-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71072-89116-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71072-89117-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71072-89117-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71072-89117-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71072-89119 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1983-01 → 1983-07 ended
RN44 5F SR5 —
71072-95125-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71072-95125-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71072-95125-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71072-95126-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71072-95126-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71072-95126-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN38,48 SR5 —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-89170-01 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71073-89170-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71073-89170-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71073-89177-01 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71073-89177-01 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71073-89177-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71073-89177-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71073-89177-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71073-89177-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71073-89179-01 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71073-89179-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71073-89179-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71073-89184-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89185-01 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89185-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89185-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89199-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89199-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89200-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89200-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89201-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71073-89201-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71073-89201-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71073-89209-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-06 → 1982-08 ended
RN44 DLX HVY —
71073-89213-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71073-89213-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71073-89213-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71073-89223-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89223-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89224-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89224-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89229-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-89229-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-89230-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-89230-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-89231 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1983-01 → 1983-07 ended
RN44 5F SR5 —
71073-95145-01 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71073-95145-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71073-95145-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71073-95149-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71073-95149-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71073-95149-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71073-95167-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71073-95167-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71073-95167-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71073-95169-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71073-95169-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71073-95169-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71073-95181-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71073-95181-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71073-95181-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71073-95182-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71073-95182-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71073-95182-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71073-89170-01 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71073-89170-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71073-89170-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1978-08 → 1979-08 ended
RN32,42 SR5 —
71073-89177-01 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71073-89177-01 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71073-89177-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71073-89177-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71073-89177-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN44 HVY —
71073-89177-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN42 DLX HVY —
71073-89179-01 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71073-89179-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71073-89179-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-08 ended
RN32,42 SR5 —
71073-89184-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89185-01 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89185-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89185-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71073-89199-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89199-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89200-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89200-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN34,44 SR5 —
71073-89201-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71073-89201-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71073-89201-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-06 ended
RN44 DLX HVY —
71073-89209-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-06 → 1982-08 ended
RN44 DLX HVY —
71073-89213-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71073-89213-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71073-89213-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
RN44 DLX HVY —
71073-89223-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89223-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89224-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89224-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-08 ended
LN40,RN34,44 SR5 —
71073-89229-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-89229-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-89230-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-89230-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71073-95145-01 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71073-95145-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71073-95145-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1981-08 ended
RN38,48 —
71073-95149-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71073-95149-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71073-95149-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
RN38,48 SR5 —
71074-89113 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1983-01 → 1983-07 ended
RN44 5F SR5 —
71074-95124-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71074-95124-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71074-95124-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71074-95125-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71074-95125-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71074-95125-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1982-10 ended
RN38,48 SR5 —
71074-95129-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71074-95129-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71074-95129-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71074-95130-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71074-95130-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71074-95130-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-10 → 1983-07 ended
RN38,48 SR5 —
71100S — Seat Assy, Front RH
71090-89103-01 note Seat Assy, Front RH
1979-08 → 1980-08 ended
RN42 DLX HVY —
71090-89103-04 note Seat Assy, Front RH
1979-08 → 1980-08 ended
RN42 DLX HVY —
71090-89103-05 note Seat Assy, Front RH
1979-08 → 1980-08 ended
RN42 DLX HVY —
71090-89104-01 note Seat Assy, Front RH
1978-08 → 1979-08 ended
RN32,42 SR5 —
71090-89104-04 note Seat Assy, Front RH
1978-08 → 1979-08 ended
RN32,42 SR5 —
71090-89104-05 note Seat Assy, Front RH
1978-08 → 1979-08 ended
RN32,42 SR5 —
71090-89105-01 note Seat Assy, Front RH
1979-08 → 1980-08 ended
RN32,42 SR5 —
71090-89105-04 note Seat Assy, Front RH
1979-08 → 1980-08 ended
RN32,42 SR5 —
71090-89105-05 note Seat Assy, Front RH
1979-08 → 1980-08 ended
RN32,42 SR5 —
71090-89107-06 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89108-01 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89108-04 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89108-05 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89109-01 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN44 HVY —
71090-89109-04 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN44 HVY —
71090-89109-05 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN44 HVY —
71090-89113-04 note Seat Assy, Front RH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89113-05 note Seat Assy, Front RH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89114-03 note Seat Assy, Front RH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89114-06 note Seat Assy, Front RH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89115-03 note Seat Assy, Front RH
1981-08 → 1982-06 ended
RN44 DLX HVY —
71090-89115-04 note Seat Assy, Front RH
1981-08 → 1982-06 ended
RN44 DLX HVY —
71090-89115-05 note Seat Assy, Front RH
1981-08 → 1982-06 ended
RN44 DLX HVY —
71090-89116-05 note Seat Assy, Front RH
1982-06 → 1982-08 ended
RN44 DLX HVY —
71090-95112-01 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN38,48 —
71090-95112-04 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN38,48 —
71090-95112-05 note Seat Assy, Front RH
1980-08 → 1981-08 ended
RN38,48 —
71090-95118-03 note Seat Assy, Front RH
1981-08 → 1982-08 ended
RN38,48 SR5 —
71090-95118-04 note Seat Assy, Front RH
1981-08 → 1982-08 ended
RN38,48 SR5 —
71090-95118-05 note Seat Assy, Front RH
1981-08 → 1982-08 ended
RN38,48 SR5 —
71200S — Seat Assy, Front LH
71090-89103-01 note Seat Assy, Front LH
1979-08 → 1980-08 ended
RN42 DLX HVY —
71090-89103-04 note Seat Assy, Front LH
1979-08 → 1980-08 ended
RN42 DLX HVY —
71090-89103-05 note Seat Assy, Front LH
1979-08 → 1980-08 ended
RN42 DLX HVY —
71090-89104-01 note Seat Assy, Front LH
1978-08 → 1979-08 ended
RN32,42 SR5 —
71090-89104-04 note Seat Assy, Front LH
1978-08 → 1979-08 ended
RN32,42 SR5 —
71090-89104-05 note Seat Assy, Front LH
1978-08 → 1979-08 ended
RN32,42 SR5 —
71090-89105-01 note Seat Assy, Front LH
1979-08 → 1980-08 ended
RN32,42 SR5 —
71090-89105-04 note Seat Assy, Front LH
1979-08 → 1980-08 ended
RN32,42 SR5 —
71090-89105-05 note Seat Assy, Front LH
1979-08 → 1980-08 ended
RN32,42 SR5 —
71090-89107-06 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89108-01 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89108-04 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89108-05 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN34,44 5F SR5 —
71090-89109-01 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN44 HVY —
71090-89109-04 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN44 HVY —
71090-89109-05 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN44 HVY —
71090-89113-04 note Seat Assy, Front LH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89113-05 note Seat Assy, Front LH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89114-03 note Seat Assy, Front LH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89114-06 note Seat Assy, Front LH
1981-08 → 1982-08 ended
RN34,44 SR5 —
71090-89115-03 note Seat Assy, Front LH
1981-08 → 1982-06 ended
RN44 DLX HVY —
71090-89115-04 note Seat Assy, Front LH
1981-08 → 1982-06 ended
RN44 DLX HVY —
71090-89115-05 note Seat Assy, Front LH
1981-08 → 1982-06 ended
RN44 DLX HVY —
71090-89116-05 note Seat Assy, Front LH
1982-06 → 1982-08 ended
RN44 DLX HVY —
71090-95112-01 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN38,48 —
71090-95112-04 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN38,48 —
71090-95112-05 note Seat Assy, Front LH
1980-08 → 1981-08 ended
RN38,48 —
71090-95118-03 note Seat Assy, Front LH
1981-08 → 1982-08 ended
RN38,48 SR5 —
71090-95118-04 note Seat Assy, Front LH
1981-08 → 1982-08 ended
RN38,48 SR5 —
71090-95118-05 note Seat Assy, Front LH
1981-08 → 1982-08 ended
RN38,48 SR5 —
71943 — Plug, Seatback
90467-07162-01 note Plug, Seatback
1979-08 → 1980-08 ended
RN42 DLX HVY —
90467-07162-01 note Plug, Seatback
1980-08 → 1981-08 ended
RN44 HVY —
90467-07162-01 note Plug, Seatback
1981-08 → 1983-07 ended
RN44 DLX HVY —
90467-07162-04 note Plug, Seatback
1979-08 → 1980-08 ended
RN42 DLX HVY —
90467-07162-04 note Plug, Seatback
1981-08 → 1983-07 ended
RN44 DLX HVY —
90467-07162-04 note Plug, Seatback
1980-08 → 1981-08 ended
RN44 HVY —
90467-07162-05 note Plug, Seatback
1980-08 → 1981-08 ended
RN44 HVY —
90467-07162-05 note Plug, Seatback
1979-08 → 1980-08 ended
RN42 DLX HVY —
90467-07162-05 note Plug, Seatback
1981-08 → 1983-07 ended
RN44 DLX HVY —
71945 — Bumper, Seatback
71739-89101 Bumper, Seatback
1982-08 → 1983-07 ended
LN40,RN34,44 (DLX,STD) (3QT,HLF) —
71739-89101 Bumper, Seatback
1982-08 → 1983-07 ended
RN44 STD HVY —
71739-89101 Bumper, Seatback
1980-08 → 1982-08 ended
LN40,RN34,44 —
71739-89101 note Bumper, Seatback
1980-08 → 1981-08 ended
RN38,48 —
71739-89103 Bumper, Seatback
1980-08 → 1983-07 ended
RN38,48 DLX —
71739-89103 Bumper, Seatback
1978-08 → 1980-08 ended
RN3#,42 —
71739-89104 note Bumper, Seatback
1979-08 → 1980-08 ended
RN42 DLX HVY —
71739-89104 note Bumper, Seatback
1980-08 → 1981-08 ended
RN44 HVY —
71739-89105 Bumper, Seatback
1981-08 → 1983-07 ended
RN38,48 SR5 —
71739-89105 Bumper, Seatback
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
71739-89105 Bumper, Seatback
1982-08 → 1983-07 ended
RN44 DLX HVY —
71739-89106 note Bumper, Seatback
1981-08 → 1982-08 ended
RN44 DLX HVY —
72110S — Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72110-89136 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1979-08 → 1980-08 ended
RN42 DLX HVY —
72110-89136 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1981-08 → 1982-08 ended
RN44 DLX HVY —
72110-89136 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1981-08 → 1982-08 ended
RN3#,4# SR5 —
72110-89136 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 5F SR5 —
72110-89136 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1978-08 → 1980-08 ended
RN32,42 SR5 —
72110-89138 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
72110-89138 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
RN44 DLX HVY —
72110-95112 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
RN38,48 SR5 —
72120S — Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72120-89131 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1978-08 → 1979-08 ended
RN32,42 SR5 —
72120-89132 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1979-08 → 1980-08 ended
RN42 DLX HVY —
72120-89132 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1981-08 → 1982-08 ended
RN44 DLX HVY —
72120-89132 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1981-08 → 1982-08 ended
RN3#,4# SR5 —
72120-89132 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1979-08 → 1980-08 ended
RN32,42 SR5 —
72120-89132 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 5F SR5 —
72120-89136 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
LN40,RN34,44 SR5 —
72120-89136 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
RN44 DLX HVY —
72120-95114 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
RN38,48 SR5 —
72130S — Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72110-89136 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
RN44 DLX HVY —
72110-89136 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1982-08 → 1983-07 ended
LN40,RN3#,4# SR5 —
72120-89131 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1978-08 → 1979-08 ended
RN32,42 SR5 —
72120-89132 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1981-08 → 1982-08 ended
RN3#,4# SR5 —
72120-89132 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1981-08 → 1982-08 ended
RN44 DLX HVY —
72120-89132 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 5F SR5 —
72120-89132 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1979-08 → 1980-08 ended
RN42 DLX HVY —
72120-89132 Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
1979-08 → 1980-08 ended
RN32,42 SR5 —
72140S — Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
72110-89136 Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
1978-08 → 1980-08 ended
RN32,42 SR5 —
72110-89136 Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
1979-08 → 1980-08 ended
RN42 DLX HVY —
72110-89136 Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 5F SR5 —
72110-89136 Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
1981-08 → 1983-07 ended
LN40,RN3#,4# SR5 —
72110-89136 Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
1981-08 → 1983-07 ended
RN44 DLX HVY —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
