Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

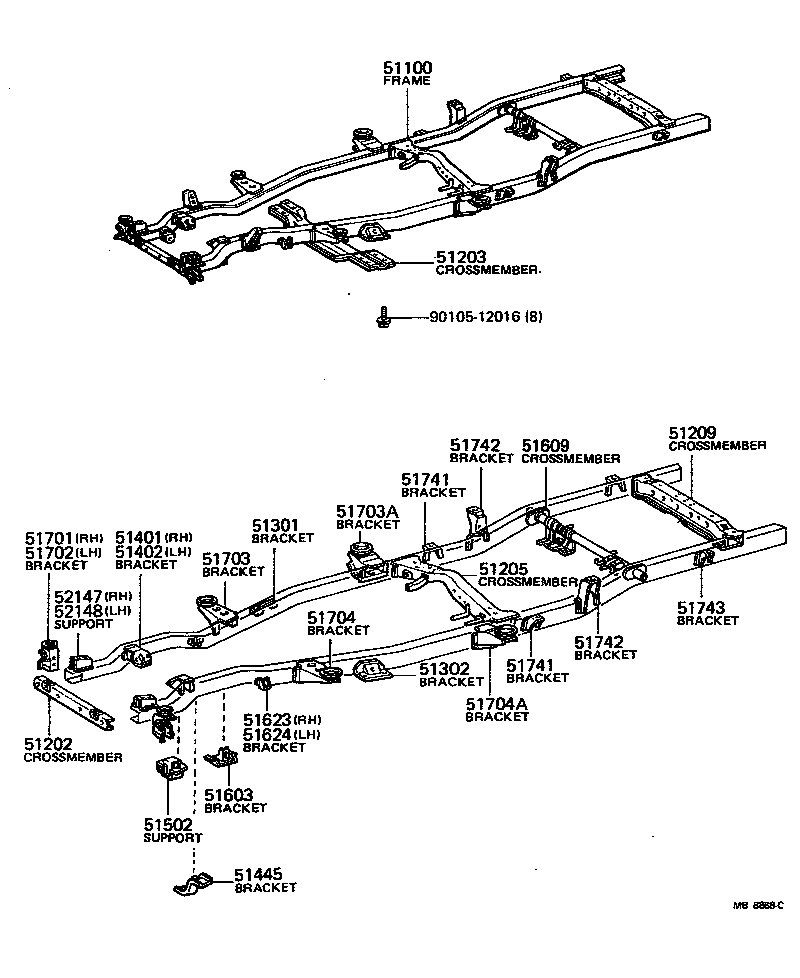

Exploded illustration MB8868C 51100 — FRAME ASSY (20 parts) 51203 — CROSSMEMBER SUB-ASSY, FRAME, NO.2 (3 parts) 9010512016 — not listed in this catalogue 51209 — CROSSMEMBER SUB-ASSY, FRAME, NO.8 (1 parts) 51742 — BRACKET, BODY MOUNTING, NO.2 (2 parts) 51609 — CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT (1 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (1 parts) 51703A — BRACKET SUB-ASSY, CAB REAR MOUNTING, RH (2 parts) 51301 — BRACKET, FRAME NO.2 CROSSMEMBER, RH (1 parts) 51401 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH (3 parts) 51701 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH (2 parts) 51402 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (3 parts) 51702 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH (2 parts) 51703 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH (3 parts) 51205 — CROSSMEMBER SUB-ASSY, FRAME, NO.4 (11 parts) 52147 — SUPPORT, FRONT BUMPER, RH (2 parts) 51743 — BRACKET, BODY MOUNTING, NO.3 (1 parts) 52148 — SUPPORT, FRONT BUMPER, LH (2 parts) 51704 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH (3 parts) 51742 — BRACKET, BODY MOUNTING, NO.2 (2 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (1 parts) 51302 — BRACKET, FRAME NO.2 CROSSMEMBER, LH (1 parts) 51704A — BRACKET SUB-ASSY, CAB REAR MOUNTING, LH (2 parts) 51623 — BRACKET, FRONT SPRING BOUND STOPPER, RH (1 parts) 51624 — BRACKET, FRONT SPRING BOUND STOPPER, LH (1 parts) 51202 — CROSSMEMBER SUB-ASSY, FRAME, NO.1 (2 parts) 51603 — BRACKET SUB-ASSY, FRONT SUSPENSION BOUND (1 parts) 51502 — SUPPORT SUB-ASSY, SUSPENSION ARM, LH (4 parts) 51445 — BRACKET, ENGINE UNDER COVER (1 parts)
MB8868C · 28 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
51100 — Frame Assy
51001-35860 Frame Assy
1978-08 → 1981-08 ended
RN32,34 —
51001-35861 Frame Assy
1981-08 → 1982-08 ended
RN34 —
51001-35862 Frame Assy
1982-08 → 1983-07 ended
RN34 —
51001-35870 Frame Assy
1978-08 → 1981-08 ended
RN42,44 HLF —
51001-35871 Frame Assy
1981-08 → 1982-08 ended
RN44 HLF —
51001-35872 Frame Assy
1982-08 → 1983-07 ended
RN44 HLF —
51001-3D080 Frame Assy
1979-01 → 1979-05 ended
RN37 —
51001-3D081 Frame Assy
1979-05 → 1980-01 ended
RN37 —
51001-3D082 Frame Assy
1980-01 → 1983-07 ended
RN37,38 —
51001-3D092 Frame Assy
1980-01 → 1983-07 ended
RN47,48 —
51001-3D180 Frame Assy
1979-01 → 1981-08 ended
RN42,44 3QT —
51001-3D181 Frame Assy
1981-08 → 1982-08 ended
RN44 3QT —
51001-3D182 Frame Assy
1982-08 → 1983-07 ended
RN44 3QT —
51001-3D290 Frame Assy
1979-08 → 1980-08 ended
RN42 HVY —
51001-3D291 Frame Assy
1980-08 → 1981-08 ended
RN44 HVY —
51001-3D292 Frame Assy
1981-08 → 1982-08 ended
RN44 HVY —
51001-3D293 Frame Assy
1982-08 → 1983-07 ended
RN44 HVY —
51001-3D410 Frame Assy
1981-01 → 1981-08 ended
LN40 —
51001-3D411 Frame Assy
1981-08 → 1982-08 ended
LN40 —
51001-3D412 Frame Assy
1982-08 → 1983-07 ended
LN40 —
51202 — Crossmember Sub-assy, Frame, NO.1
51201-35070 Crossmember Sub-assy, Frame, NO.1
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
51201-35080 Crossmember Sub-assy, Frame, NO.1
1979-01 → 1983-07 ended
RN37,38,47,48 —
51203 — Crossmember Sub-assy, Frame, NO.2
51202-35110 Crossmember Sub-assy, Frame, NO.2
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
51202-35130 Crossmember Sub-assy, Frame, NO.2
1979-01 → 1981-08 ended
RN37,38,47,48 —
51202-35131 Crossmember Sub-assy, Frame, NO.2
1981-08 → 1983-07 ended
RN38,48 —
51205 — Crossmember Sub-assy, Frame, NO.4
51204-35130 Crossmember Sub-assy, Frame, NO.4
1978-08 → 1983-07 ended
RN32,34 —
51204-35140 Crossmember Sub-assy, Frame, NO.4
1978-08 → 1980-08 ended
RN42 3QT,HLF —
51204-35140 Crossmember Sub-assy, Frame, NO.4
1980-08 → 1981-08 ended
LN40,RN44 —
51204-35140 Crossmember Sub-assy, Frame, NO.4
1981-08 → 1983-07 ended
RN44 —
51204-35150 Crossmember Sub-assy, Frame, NO.4
1979-01 → 1979-05 ended
RN37 —
51204-35151 Crossmember Sub-assy, Frame, NO.4
1979-05 → 1981-08 ended
RN37,38 —
51204-35152 Crossmember Sub-assy, Frame, NO.4
1981-08 → 1983-07 ended
RN38 —
51204-35161 Crossmember Sub-assy, Frame, NO.4
1979-05 → 1981-08 ended
RN47,48 —
51204-35162 Crossmember Sub-assy, Frame, NO.4
1981-08 → 1983-07 ended
RN48 —
51204-35190 Crossmember Sub-assy, Frame, NO.4
1979-08 → 1980-08 ended
RN42 HVY —
51204-35210 Crossmember Sub-assy, Frame, NO.4
1981-08 → 1983-07 ended
LN40 —
51209 — Crossmember Sub-assy, Frame, NO.8
51209-35080 Crossmember Sub-assy, Frame, NO.8
1978-08 → 1983-07 ended
LN40,RN3#,4# —
51301 — Bracket, Frame NO.2 Crossmember, RH
51321-35030 Bracket, Frame NO.2 Crossmember, RH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51302 — Bracket, Frame NO.2 Crossmember, LH
51322-35010 Bracket, Frame NO.2 Crossmember, LH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51401 — Bracket Sub-assy, Engine Front Mounting, RH
51401-35140 Bracket Sub-assy, Engine Front Mounting, RH
1978-08 → 1983-07 ended
RN32,34,42,44 —
51401-35150 Bracket Sub-assy, Engine Front Mounting, RH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51401-35160 Bracket Sub-assy, Engine Front Mounting, RH
1981-01 → 1983-07 ended
LN40 —
51402 — Bracket Sub-assy, Engine Front Mounting, LH
51402-35140 Bracket Sub-assy, Engine Front Mounting, LH
1978-08 → 1983-07 ended
RN32,34,42,44 —
51402-35150 Bracket Sub-assy, Engine Front Mounting, LH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51402-35160 Bracket Sub-assy, Engine Front Mounting, LH
1981-01 → 1983-07 ended
LN40 —
51445 — Bracket, Engine Under Cover
51445-35030 Bracket, Engine Under Cover
1980-01 → 1983-07 ended
RN37,38,47,48 —
51502 — Support Sub-assy, Suspension Arm, LH
51502-35010 Support Sub-assy, Suspension Arm, LH
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
51505-35040 Support Sub-assy, Suspension Arm, LH
1979-01 → 1980-01 ended
RN37 —
51505-35041 Support Sub-assy, Suspension Arm, LH
1980-01 → 1981-08 ended
RN37,38,47,48 —
51505-35042 Support Sub-assy, Suspension Arm, LH
1981-08 → 1983-07 ended
RN38,48 —
51603 — Bracket Sub-assy, Front Suspension Bound
51603-35010 Bracket Sub-assy, Front Suspension Bound
1979-01 → 1983-07 ended
RN37,38,47,48 —
51609 — Crossmember Sub-assy, Rear Shock Absorber Support
51205-35080 Crossmember Sub-assy, Rear Shock Absorber Support
1978-08 → 1983-07 ended
LN40,RN3#,4# —
51623 — Bracket, Front Spring Bound Stopper, RH
51623-35010 Bracket, Front Spring Bound Stopper, RH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51624 — Bracket, Front Spring Bound Stopper, LH
51624-35010 Bracket, Front Spring Bound Stopper, LH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51701 — Bracket Sub-assy, Cab Mounting, NO.1 RH
51701-35050 Bracket Sub-assy, Cab Mounting, NO.1 RH
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
51701-35060 Bracket Sub-assy, Cab Mounting, NO.1 RH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51702 — Bracket Sub-assy, Cab Mounting, NO.1 LH
51701-35050 Bracket Sub-assy, Cab Mounting, NO.1 LH
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
51701-35060 Bracket Sub-assy, Cab Mounting, NO.1 LH
1979-01 → 1983-07 ended
RN37,38,47,48 —
51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH
51703-35010 Bracket Sub-assy, Cab Mounting, NO.2, RH
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
51703-35020 Bracket Sub-assy, Cab Mounting, NO.2, RH
1979-01 → 1981-03 ended
RN37,38,47,48 —
51703-35021 Bracket Sub-assy, Cab Mounting, NO.2, RH
1981-03 → 1983-07 ended
RN38,48 —
51703A — Bracket Sub-assy, Cab Rear Mounting, RH
51705-35040 Bracket Sub-assy, Cab Rear Mounting, RH
1978-08 → 1982-08 ended
LN40,RN3#,4# —
51705-35050 Bracket Sub-assy, Cab Rear Mounting, RH
1982-08 → 1983-07 ended
LN40,RN3#,4# —
51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH
51703-35010 Bracket Sub-assy, Cab Mounting, NO.2 LH
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
51704-35040 Bracket Sub-assy, Cab Mounting, NO.2 LH
1979-01 → 1981-03 ended
RN37,38,47,48 —
51704-35041 Bracket Sub-assy, Cab Mounting, NO.2 LH
1981-03 → 1983-07 ended
RN38,48 —
51704A — Bracket Sub-assy, Cab Rear Mounting, LH
51705-35040 Bracket Sub-assy, Cab Rear Mounting, LH
1978-08 → 1982-08 ended
LN40,RN3#,4# —
51705-35050 Bracket Sub-assy, Cab Rear Mounting, LH
1982-08 → 1983-07 ended
LN40,RN3#,4# —
51741 — Bracket, Rear Body Mounting, NO.1
51741-35050 Bracket, Rear Body Mounting, NO.1
1978-08 → 1983-07 ended
LN40,RN3#,4# —
51742 — Bracket, Body Mounting, NO.2
51742-35040 note Bracket, Body Mounting, NO.2
1978-08 → 1983-07 ended
LN40,RN3#,4# —
51743-35060 note Bracket, Body Mounting, NO.2
1978-08 → 1983-07 ended
LN40,RN3#,4# —
51743 — Bracket, Body Mounting, NO.3
51741-35050 Bracket, Body Mounting, NO.3
1978-08 → 1983-07 ended
LN40,RN3#,4# —
52147 — Support, Front Bumper, RH
52147-35010 Support, Front Bumper, RH
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
52147-35020 Support, Front Bumper, RH
1979-01 → 1983-07 ended
RN37,38,47,48 —
52148 — Support, Front Bumper, LH
52148-35010 Support, Front Bumper, LH
1978-08 → 1983-07 ended
LN40,RN32,34,42,44 —
52148-35020 Support, Front Bumper, LH
1979-01 → 1983-07 ended
RN37,38,47,48 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
