Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03

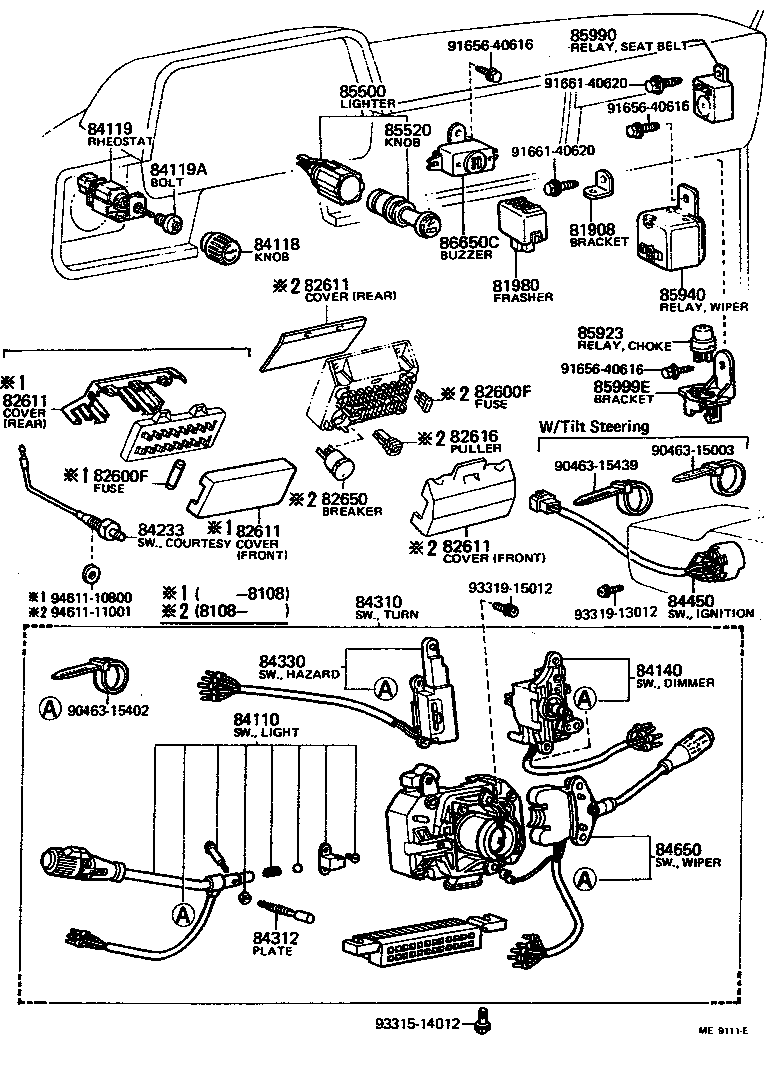

Exploded illustration ME9111E 85990 — RELAY OR COMPUTER ASSY, SEAT BELT WARNING (3 parts) 9165640616 — not listed in this catalogue 9166140620 — not listed in this catalogue 85500 — LIGHTER ASSY, CIGARETTE (2 parts) 9165640616 — not listed in this catalogue 84119 — RHEOSTAT, LIGHT CONTROL (2 parts) 85520 — KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER (1 parts) 9166140620 — not listed in this catalogue 84119A — BOLT OR NUT, RHEOSTAT CONTROL SET (3 parts) 81908 — BRACKET SUB-ASSY, FLASHER (1 parts) 86650C — BUZZER ASSY, SEDIMENTER WARNING (1 parts) 84118 — KNOB, LIGHT CONTROL RHEOSTAT (2 parts) 82611 — COVER, FUSE BLOCK (4 parts) 81980 — FLASHER ASSY, TURN SIGNAL (3 parts) 85940 — RELAY ASSY, WINDSHIELD WIPER (2 parts) 85923 — RELAY, CHOKE CONTROL (3 parts) 9165640616 — not listed in this catalogue 85999E — BRACKET, RELAY, NO.5 (1 parts) 82600F — FUSE, FUSE BLOCK (7 parts) 82611 — COVER, FUSE BLOCK (4 parts) 82616 — PULLER, FUSE (1 parts) 9046315003 — not listed in this catalogue 9046315439 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (7 parts) 82650 — BREAKER ASSY, WIRING CIRCUIT, NO.1 (1 parts) 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (3 parts) 82611 — COVER, FUSE BLOCK (4 parts) 82611 — COVER, FUSE BLOCK (4 parts) 9331915012 — not listed in this catalogue 9461110800 — not listed in this catalogue 84450 — SWITCH ASSY, IGNITION OR STARTER (6 parts) 84310 — SWITCH ASSY, TURN SIGNAL (12 parts) 9461111001 — not listed in this catalogue 9331913012 — not listed in this catalogue 84330 — SWITCH ASSY, HAZARD WARNING SIGNAL (6 parts) 84140 — SWITCH ASSY, HEADLAMP DIMMER (6 parts) 9046315402 — not listed in this catalogue 84110 — SWITCH ASSY, LIGHT CONTROL, NO.1 (7 parts) 84650 — SWITCH ASSY, WINDSHIELD WIPER (12 parts) 84312 — PLATE, HORN CONTACT (1 parts) 9331514012 — not listed in this catalogue
ME9111E · 28 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
81908 — Bracket Sub-assy, Flasher
85999-89101 Bracket Sub-assy, Flasher
1980-08 → 1983-07 ended
LN40,RN3#,4# —
81980 — Flasher Assy, Turn Signal
81980-22060 Flasher Assy, Turn Signal
1980-08 → 1981-08 ended
LN40,RN3#,4# —
81980-22070 Flasher Assy, Turn Signal
1981-08 → 1983-07 ended
LN40,RN3#,4# —
81980-30040 Flasher Assy, Turn Signal
1978-08 → 1980-08 ended
RN3#,42 —
82600F — Fuse, Fuse Block
90982-09002 note Fuse, Fuse Block
1981-08 → 1983-07 ended
LN40,RN3#,4# —
90982-09003 note Fuse, Fuse Block
1981-08 → 1983-07 ended
LN40,RN3#,4# —
90982-09004 note Fuse, Fuse Block
1981-08 → 1983-07 ended
LN40,RN3#,4# —
90982-09005 note Fuse, Fuse Block
1981-08 → 1983-07 ended
LN40,RN3#,4# —
99118-62005 note Fuse, Fuse Block
1978-08 → 1981-08 ended
LN40,RN3#,4# —
99118-62910 note Fuse, Fuse Block
1978-08 → 1981-08 ended
LN40,RN3#,4# —
99118-62915 note Fuse, Fuse Block
1978-08 → 1981-08 ended
LN40,RN3#,4# —
82611 — Cover, Fuse Block
82611-89105 note Cover, Fuse Block
1978-08 → 1981-08 ended
LN40,RN3#,4# —
82611-89106 note Cover, Fuse Block
1978-08 → 1981-08 ended
LN40,RN3#,4# —
82611-89108 note Cover, Fuse Block
1981-08 → 1983-07 ended
LN40,RN3#,4# —
82611-89109 note Cover, Fuse Block
1981-08 → 1983-07 ended
LN40,RN3#,4# —
82616 — Puller, Fuse
82616-12010 Puller, Fuse
1981-08 → 1983-07 ended
LN40,RN3#,4# —
82650 — Breaker Assy, Wiring Circuit, NO.1
82650-35010 note Breaker Assy, Wiring Circuit, NO.1
1981-08 → 1983-07 ended
LN40,RN3#,4# —
84110 — Switch Assy, Light Control, NO.1
84112-19085 Switch Assy, Light Control, NO.1
1978-08 → 1980-08 ended
RN3#,42 —
84112-19086 Switch Assy, Light Control, NO.1
1980-08 → 1981-08 ended
LN40,RN3#,4# —
84112-19265 note Switch Assy, Light Control, NO.1
1981-08 → 1983-07 ended
RN38,48;RN44 HVY;LN40,RN34,44 SR5 —
84112-39035 note Switch Assy, Light Control, NO.1
1979-01 → 1980-08 ended
RN37 —
84112-39035 note Switch Assy, Light Control, NO.1
1979-08 → 1980-08 ended
RN32,42 SR5 —
84112-39036 note Switch Assy, Light Control, NO.1
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 SR5 —
84112-39145 Switch Assy, Light Control, NO.1
1981-08 → 1983-07 ended
LN40,RN3#,4# —
84118 — Knob, Light Control Rheostat
84118-12030 Knob, Light Control Rheostat
1980-08 → 1983-07 ended
LN40,RN3#,4# —
84118-14010 Knob, Light Control Rheostat
1978-08 → 1980-08 ended
RN3#,42 —
84119 — Rheostat, Light Control
84119-89101 Rheostat, Light Control
1978-08 → 1980-08 ended
RN3#,42 —
84119-89102 Rheostat, Light Control
1980-08 → 1983-07 ended
LN40,RN3#,4# —
84119A — Bolt OR Nut, Rheostat Control Set
90984-01007 Bolt OR Nut, Rheostat Control Set
1980-08 → 1983-07 ended
LN40,RN34,44 —
90984-01007 Bolt OR Nut, Rheostat Control Set
1982-11 → 1983-07 ended
RN38,48 —
90984-01013 Bolt OR Nut, Rheostat Control Set
1978-08 → 1982-11 ended
RN32,37,38,42,47,48 —
84140 — Switch Assy, Headlamp Dimmer
84140-19025 Switch Assy, Headlamp Dimmer
1978-08 → 1981-08 ended
LN40,RN3#,4# —
84140-19055 note Switch Assy, Headlamp Dimmer
1981-08 → 1983-07 ended
RN38,48;RN44 HVY;LN40,RN34,44 SR5 —
84140-39015 note Switch Assy, Headlamp Dimmer
1979-08 → 1980-08 ended
RN32,42 SR5 —
84140-39015 note Switch Assy, Headlamp Dimmer
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 SR5 —
84140-39015 note Switch Assy, Headlamp Dimmer
1979-01 → 1980-08 ended
RN37 —
84140-39065 Switch Assy, Headlamp Dimmer
1981-08 → 1983-07 ended
LN40,RN3#,4# —
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84230-20040 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1978-08 → 1981-08 ended
LN40,RN3#,4# —
84230-89102 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1982-06 → 1983-07 ended
LN40,RN3#,4# —
84231-20060 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1981-08 → 1982-06 ended
LN40,RN3#,4# —
84310 — Switch Assy, Turn Signal
84310-10230 Switch Assy, Turn Signal
1978-08 → 1980-08 ended
RN3#,42 —
84310-10231 Switch Assy, Turn Signal
1980-08 → 1981-08 ended
LN40,RN3#,4# —
84310-10240 note Switch Assy, Turn Signal
1979-01 → 1980-08 ended
RN37 USA —
84310-10240 note Switch Assy, Turn Signal
1978-08 → 1979-10 ended
RN32,42 SR5 —
84310-10241 note Switch Assy, Turn Signal
1980-08 → 1981-08 ended
RN34,48 USA —
84310-10241 note Switch Assy, Turn Signal
1980-08 → 1981-08 ended
RN44 HVY;RN34,44 SR5 —
84310-35111 note Switch Assy, Turn Signal
1979-01 → 1980-08 ended
RN37 —
84310-35111 note Switch Assy, Turn Signal
1979-08 → 1980-08 ended
RN32,42 SR5 —
84310-35112 note Switch Assy, Turn Signal
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 SR5 —
84310-35150 Switch Assy, Turn Signal
1981-08 → 1983-07 ended
LN40,RN3#,4# DLX,STD —
84310-35160 Switch Assy, Turn Signal
1981-08 → 1983-07 ended
LN40,RN3#,4# SR5 —
84310-35170 note Switch Assy, Turn Signal
1981-08 → 1983-07 ended
RN38,48;RN44 HVY;LN40,RN34,44 SR5 —
84312 — Plate, Horn Contact
84312-20011 Plate, Horn Contact
1978-08 → 1983-07 ended
LN40,RN3#,4# —
84330 — Switch Assy, Hazard Warning Signal
84332-19025 Switch Assy, Hazard Warning Signal
1978-08 → 1981-08 ended
LN40,RN3#,4# —
84332-39035 note Switch Assy, Hazard Warning Signal
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 SR5 —
84332-39035 note Switch Assy, Hazard Warning Signal
1979-08 → 1980-08 ended
RN32,42 SR5 —
84332-39035 note Switch Assy, Hazard Warning Signal
1979-01 → 1980-08 ended
RN37 —
84332-39105 note Switch Assy, Hazard Warning Signal
1981-08 → 1983-07 ended
RN38,48;RN44 HVY;LN40,RN34,44 SR5 —
84332-39125 Switch Assy, Hazard Warning Signal
1981-08 → 1983-07 ended
LN40,RN3#,4# —
84450 — Switch Assy, Ignition OR Starter
84450-14021 Switch Assy, Ignition OR Starter
1978-08 → 1981-08 ended
LN40,RN3#,4# —
84450-22090 note Switch Assy, Ignition OR Starter
1981-08 → 1983-07 ended
RN38,48;RN44 HVY;LN40,RN34,44 SR5 —
84450-30131 note Switch Assy, Ignition OR Starter
1979-08 → 1980-08 ended
RN32,42 SR5 —
84450-30131 note Switch Assy, Ignition OR Starter
1979-01 → 1981-08 ended
RN37,38,47,48 —
84450-30131 note Switch Assy, Ignition OR Starter
1980-08 → 1981-08 ended
RN44 HVY USA;RN34,44 SR5 +1 —
84450-35050 Switch Assy, Ignition OR Starter
1981-08 → 1983-07 ended
LN40,RN3#,4# —
84650 — Switch Assy, Windshield Wiper
84652-19155 Switch Assy, Windshield Wiper
1978-08 → 1980-08 ended
RN3#,42 —
84652-19156 Switch Assy, Windshield Wiper
1980-08 → 1981-08 ended
LN40,RN3#,4# —
84652-19165 note Switch Assy, Windshield Wiper
1979-01 → 1980-08 ended
RN37 USA —
84652-19165 note Switch Assy, Windshield Wiper
1978-08 → 1979-10 ended
RN32,42 SR5 —
84652-19166 note Switch Assy, Windshield Wiper
1980-08 → 1981-08 ended
RN44 HVY;RN34,44 SR5 —
84652-19166 note Switch Assy, Windshield Wiper
1980-08 → 1981-08 ended
RN38,48 USA —
84652-39016 note Switch Assy, Windshield Wiper
1979-01 → 1980-08 ended
RN37 —
84652-39016 note Switch Assy, Windshield Wiper
1979-08 → 1980-08 ended
RN32,42 SR5 —
84652-39017 note Switch Assy, Windshield Wiper
1980-08 → 1981-08 ended
RN38,48;RN44 HVY;RN34,44 SR5 —
84652-39175 Switch Assy, Windshield Wiper
1981-08 → 1983-07 ended
LN40,RN3#,4# DLX,STD —
84652-39185 Switch Assy, Windshield Wiper
1981-08 → 1983-07 ended
LN40,RN3#,4# SR5 —
84652-69285 note Switch Assy, Windshield Wiper
1981-08 → 1983-07 ended
RN38,48;RN44 HVY;LN40,RN34,44 SR5 —
85500 — Lighter Assy, Cigarette
85500-20042 Lighter Assy, Cigarette
1978-08 → 1980-08 ended
RN3#,42 —
85500-30340 Lighter Assy, Cigarette
1980-08 → 1983-07 ended
LN40,RN3#,4# —
85520 — Knob And Element Assy, Cigarette Lighter
85520-30151 Knob And Element Assy, Cigarette Lighter
1980-08 → 1983-07 ended
LN40,RN3#,4# —
85923 — Relay, Choke Control
90987-03001 Relay, Choke Control
1980-08 → 1980-11 ended
RN3#,4# —
90987-03001 Relay, Choke Control
1980-11 → 1983-07 ended
RN44 4FC SR5 —
90987-03001 Relay, Choke Control
1980-11 → 1983-07 ended
RN3#,4# 3FC,4F,5F —
85940 — Relay Assy, Windshield Wiper
85940-36010 note Relay Assy, Windshield Wiper
1978-08 → 1979-03 ended
RN37;RN32,42 SR5 —
85940-89101 note Relay Assy, Windshield Wiper
1979-03 → 1983-07 ended
RN42,44 HVY;RN37,38,47,48;LN40,RN32,34,42,44 SR5 —
85990 — Relay OR Computer Assy, Seat Belt Warning
85991-12011 Relay OR Computer Assy, Seat Belt Warning
1978-08 → 1980-08 ended
RN37;RN32,42 USA —
85991-20020 Relay OR Computer Assy, Seat Belt Warning
1981-08 → 1983-07 ended
LN40,RN3#,4# —
85991-89101 Relay OR Computer Assy, Seat Belt Warning
1980-08 → 1981-08 ended
LN40,RN3#,4# —
85999E — Bracket, Relay, NO.5
85999-12050 Bracket, Relay, NO.5
1980-08 → 1983-07 ended
RN3#,4# —
86650C — Buzzer Assy, Sedimenter Warning
86650-55080 Buzzer Assy, Sedimenter Warning
1981-01 → 1983-07 ended
LN40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
