Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03

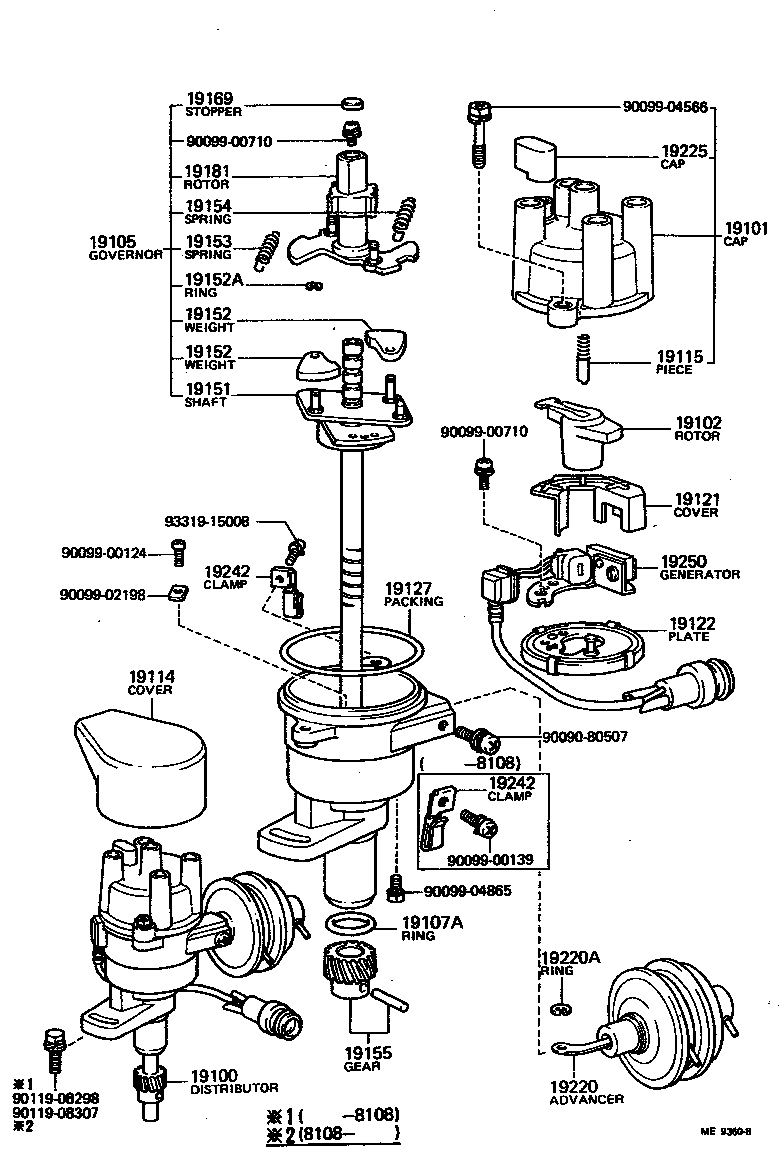

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100 — Distributor Assy | ||||
| 19100-35030 |
Distributor Assy
1981-08 → 1982-08
ended
|
22R RN3#,4# | — | |
| 19100-35040 |
Distributor Assy
1980-08 → 1981-08
ended
|
22R RN3#,4# | — | |
| 19100-35130 |
Distributor Assy
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19100-38150 |
Distributor Assy
1978-08 → 1979-08
ended
|
20R RN32,42 MTM USA | — | |
| 19100-38180 |
Distributor Assy
1978-08 → 1979-08
ended
|
20R RN32,42 3FC USA | — | |
| 19100-38180 |
Distributor Assy
1979-01 → 1979-08
ended
|
20R RN37 USA | — | |
| 19100-38190 |
Distributor Assy
1978-08 → 1979-08
ended
|
20R RN3#,4# MTM CND | — | |
| 19100-38200 |
Distributor Assy
1978-08 → 1979-08
ended
|
20R RN42 3FC CND | — | |
| 19100-38250 note |
Distributor Assy
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19100-38250 |
Distributor Assy
1979-08 → 1980-08
ended
|
20R RN42 HVY USA | — | |
| 19100-38260 |
Distributor Assy
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19100-38270 |
Distributor Assy
1979-08 → 1980-08
ended
|
20R RN3#,4# CND CBU | — | |
| 19100-38280 |
Distributor Assy
1979-08 → 1980-08
ended
|
20R RN42 CND IV | — | |
| 19101 — Cap Sub-assy, Distributor | ||||
| 19101-35120 |
Cap Sub-assy, Distributor
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19101-38150 |
Cap Sub-assy, Distributor
1978-08 → 1979-08
ended
|
20R RN3#,4# | — | |
| 19101-38210 |
Cap Sub-assy, Distributor
1979-08 → 1982-08
ended
|
20R,22R RN3#,4# | — | |
| 19102 — Rotor Sub-assy, Distributor | ||||
| 19102-15021 |
Rotor Sub-assy, Distributor
1979-08 → 1980-08
ended
|
20R RN3#,4# USA | — | |
| 19102-33012 |
Rotor Sub-assy, Distributor
1978-08 → 1979-08
ended
|
20R RN3#,4# USA | — | |
| 19102-38160 |
Rotor Sub-assy, Distributor
1978-08 → 1979-08
ended
|
20R RN3#,4# CND | — | |
| 19102-38210 |
Rotor Sub-assy, Distributor
1979-08 → 1980-08
ended
|
20R RN3#,4# CND | — | |
| 19102-38210 |
Rotor Sub-assy, Distributor
1980-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19105 — Governor Sub-assy | ||||
| 19105-35010 |
Governor Sub-assy
1980-08 → 1981-08
ended
|
22R RN3#,4# | — | |
| 19105-35030 |
Governor Sub-assy
1981-08 → 1982-08
ended
|
22R RN3#,4# | — | |
| 19105-35130 |
Governor Sub-assy
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19105-38040 |
Governor Sub-assy
1978-08 → 1979-08
ended
|
20R RN3#,4# | — | |
| 19105-38040 |
Governor Sub-assy
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19105-38210 |
Governor Sub-assy
1979-08 → 1980-08
ended
|
20R RN3#,4# CND | — | |
| 19105-38210 |
Governor Sub-assy
1979-08 → 1980-08
ended
|
20R RN42 HVY USA | — | |
| 19105-38210 note |
Governor Sub-assy
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19107A — Ring, O, Distributor Housing | ||||
| 90099-14020 |
Ring, O, Distributor Housing
1978-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19114 — Cover, Water Proof(FOR DISTRIBUTOR) | ||||
| 19114-35010 |
Cover, Water Proof(FOR DISTRIBUTOR)
1981-08 → 1982-08
ended
|
22R RN3#,4# CND | — | |
| 19114-35010 note |
Cover, Water Proof(FOR DISTRIBUTOR)
1981-08 → 1982-08
ended
|
22R RN3#,4# USA | — | |
| 19114-35011 note |
Cover, Water Proof(FOR DISTRIBUTOR)
1982-08 → 1983-07
ended
|
22R RN3#,4# USA | — | |
| 19114-35011 |
Cover, Water Proof(FOR DISTRIBUTOR)
1982-08 → 1983-07
ended
|
22R RN3#,4# CND | — | |
| 19114-38150 |
Cover, Water Proof(FOR DISTRIBUTOR)
1978-08 → 1979-08
ended
|
20R RN3#,4# CND | — | |
| 19114-38150 note |
Cover, Water Proof(FOR DISTRIBUTOR)
1978-08 → 1979-08
ended
|
20R RN3#,4# USA | — | |
| 19114-38151 note |
Cover, Water Proof(FOR DISTRIBUTOR)
1979-08 → 1981-08
ended
|
20R,22R RN3#,4# USA | — | |
| 19114-38151 |
Cover, Water Proof(FOR DISTRIBUTOR)
1979-08 → 1981-08
ended
|
20R,22R RN3#,4# CND | — | |
| 19114-38151 note |
Cover, Water Proof(FOR DISTRIBUTOR)
1979-08 → 1980-08
ended
|
20R RN37 USA | — | |
| 19115 — Piece, Distributor Cap, Center | ||||
| 19115-50010 |
Piece, Distributor Cap, Center
1978-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19121 — Cover, Dust Proof | ||||
| 19121-27020 |
Cover, Dust Proof
1978-08 → 1979-08
ended
|
20R RN3#,4# | — | |
| 19121-38210 |
Cover, Dust Proof
1979-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19122 — Plate, Stationary, Distributor | ||||
| 19122-88262 |
Plate, Stationary, Distributor
1978-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19127 — Packing, Dust Proof | ||||
| 19127-15010 |
Packing, Dust Proof
1978-08 → 1978-12
ended
|
20R RN32,42 | — | |
| 19127-15021 |
Packing, Dust Proof
1979-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19127-38150 |
Packing, Dust Proof
1978-12 → 1979-08
ended
|
20R RN3#,4# | — | |
| 19151 — Shaft, Governor | ||||
| 19151-37081 |
Shaft, Governor
1981-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19151-38011 |
Shaft, Governor
1978-08 → 1981-08
ended
|
20R,22R RN3#,4# | — | |
| 19152 — Weight, Governor | ||||
| 19152-35030 |
Weight, Governor
1981-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19152-44170 |
Weight, Governor
1980-08 → 1981-08
ended
|
22R RN3#,4# | — | |
| 19152-45060 |
Weight, Governor
1978-08 → 1980-08
ended
|
20R RN3#,4# | — | |
| 19152A — Ring, Snap(FOR GOVERNOR WEIGHT) | ||||
| 90099-07104 |
Ring, Snap(FOR GOVERNOR WEIGHT)
1978-08 → 1980-08
ended
|
20R RN3#,4# | — | |
| 90099-07109 |
Ring, Snap(FOR GOVERNOR WEIGHT)
1980-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19153 — Spring, Governor, A | ||||
| 19153-35010 |
Spring, Governor, A
1980-08 → 1981-08
ended
|
22R RN3#,4# | — | |
| 19153-35011 |
Spring, Governor, A
1981-08 → 1982-08
ended
|
22R RN3#,4# | — | |
| 19153-35130 |
Spring, Governor, A
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19153-38040 |
Spring, Governor, A
1978-08 → 1980-08
ended
|
20R RN3#,4# | — | |
| 19154 — Spring, Governor, B | ||||
| 19154-35010 |
Spring, Governor, B
1980-08 → 1981-08
ended
|
22R RN3#,4# | — | |
| 19154-35011 |
Spring, Governor, B
1981-08 → 1982-08
ended
|
22R RN3#,4# | — | |
| 19154-35130 |
Spring, Governor, B
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19154-38040 |
Spring, Governor, B
1978-08 → 1980-08
ended
|
20R RN3#,4# | — | |
| 19155 — Gear, Spiral, Distributor | ||||
| 19195-38150 |
Gear, Spiral, Distributor
1978-08 → 1979-08
ended
|
20R RN3#,4# | — | |
| 19195-38210 |
Gear, Spiral, Distributor
1979-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19169 — Stopper, Cam Grease | ||||
| 19169-32010 |
Stopper, Cam Grease
1978-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19181 — Rotor, Distributor, Signal | ||||
| 19181-26280 |
Rotor, Distributor, Signal
1978-08 → 1979-08
ended
|
20R RN3#,4# | — | |
| 19181-26280 |
Rotor, Distributor, Signal
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19181-27050 |
Rotor, Distributor, Signal
1980-08 → 1982-08
ended
|
22R RN3#,4# | — | |
| 19181-38210 |
Rotor, Distributor, Signal
1979-08 → 1980-08
ended
|
20R RN3#,4# CND | — | |
| 19181-38210 |
Rotor, Distributor, Signal
1979-08 → 1980-08
ended
|
20R RN42 HVY USA | — | |
| 19181-38210 note |
Rotor, Distributor, Signal
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19181-44230 |
Rotor, Distributor, Signal
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19220 — Advancer Assy, Vacuum, Distributor | ||||
| 19220-35010 |
Advancer Assy, Vacuum, Distributor
1980-08 → 1982-08
ended
|
22R RN3#,4# | — | |
| 19220-35120 |
Advancer Assy, Vacuum, Distributor
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19220-38150 |
Advancer Assy, Vacuum, Distributor
1979-01 → 1979-08
ended
|
20R RN37 CND | — | |
| 19220-38150 |
Advancer Assy, Vacuum, Distributor
1978-08 → 1979-08
ended
|
20R RN32,42 MTM | — | |
| 19220-38180 |
Advancer Assy, Vacuum, Distributor
1978-08 → 1979-08
ended
|
20R RN32,42 3FC | — | |
| 19220-38180 |
Advancer Assy, Vacuum, Distributor
1979-01 → 1979-08
ended
|
20R RN37 USA | — | |
| 19220-38220 |
Advancer Assy, Vacuum, Distributor
1979-08 → 1980-08
ended
|
20R RN42 HVY | — | |
| 19220-38220 note |
Advancer Assy, Vacuum, Distributor
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19220-38260 |
Advancer Assy, Vacuum, Distributor
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19220-38260 |
Advancer Assy, Vacuum, Distributor
1979-08 → 1980-08
ended
|
20R RN3#,4# CND CBU | — | |
| 19220A — Ring, Snap(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
Ring, Snap(FOR DISTRIBUTOR VACUUM ADVANCER)
1978-08 → 1983-07
ended
|
20R,22R RN3#,4# | — | |
| 19225 — Cap, Rubber | ||||
| 19225-38011 |
Cap, Rubber
1978-08 → 1982-08
ended
|
20R,22R RN3#,4# | — | |
| 19225-41140 |
Cap, Rubber
1982-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19242 — Clamp, Cord | ||||
| 19242-26250 |
Clamp, Cord
1978-08 → 1981-08
ended
|
20R,22R RN3#,4# | — | |
| 19242-37080 |
Clamp, Cord
1981-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19250 — Generator Assy, Signal | ||||
| 19250-37080 |
Generator Assy, Signal
1981-08 → 1983-07
ended
|
22R RN3#,4# | — | |
| 19250-38150 |
Generator Assy, Signal
1978-08 → 1979-08
ended
|
20R RN3#,4# USA | — | |
| 19250-38190 |
Generator Assy, Signal
1978-08 → 1979-08
ended
|
20R RN3#,4# CND | — | |
| 19250-38210 |
Generator Assy, Signal
1979-08 → 1980-08
ended
|
20R RN42 HVY USA | — | |
| 19250-38210 note |
Generator Assy, Signal
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19250-38210 |
Generator Assy, Signal
1980-08 → 1981-08
ended
|
22R RN3#,4# | — | |
| 19250-38260 |
Generator Assy, Signal
1979-08 → 1980-08
ended
|
20R RN3#,4# (3QT,HLF) USA | — | |
| 19250-38270 |
Generator Assy, Signal
1979-08 → 1980-08
ended
|
20R RN3#,4# CND | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
