Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03

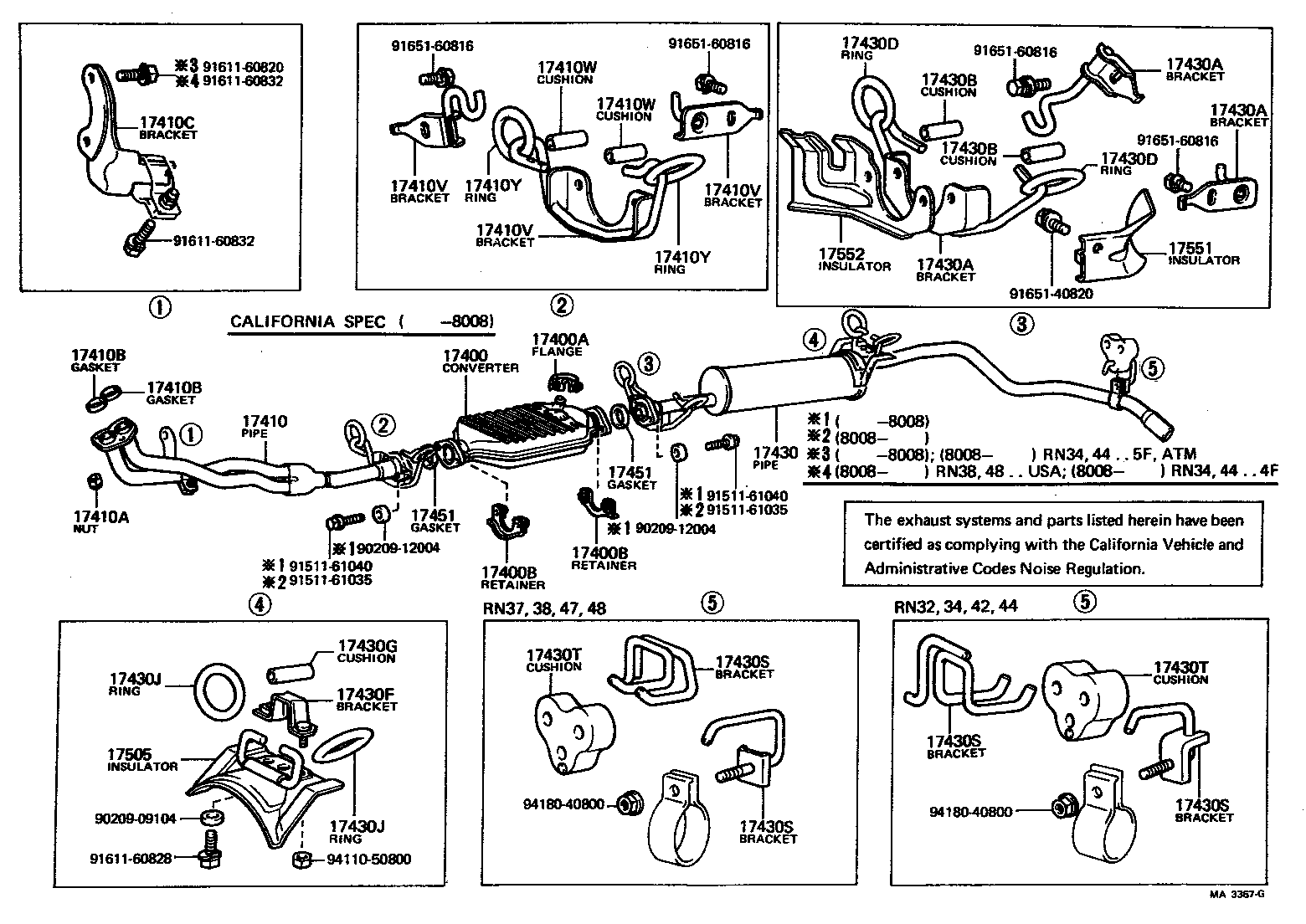

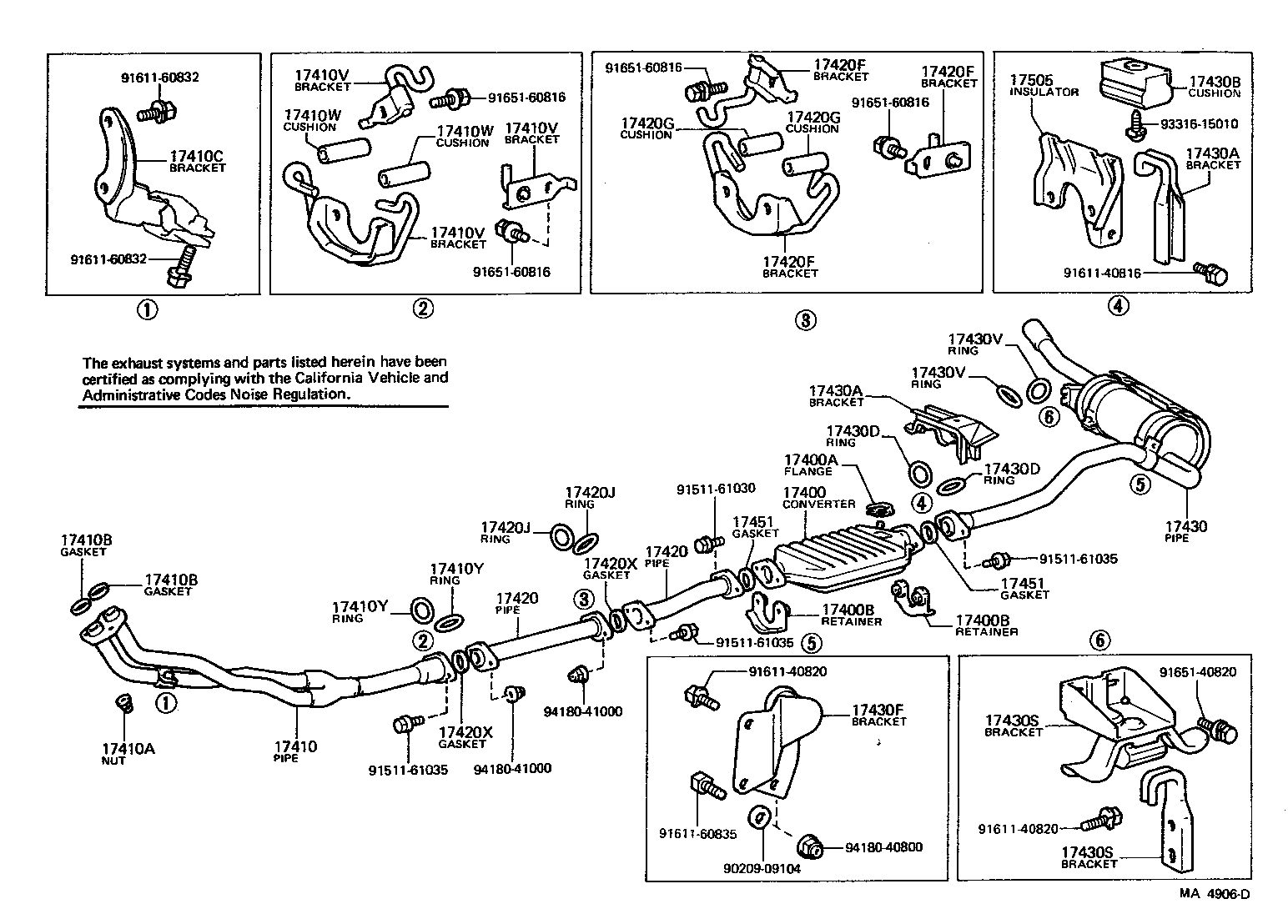

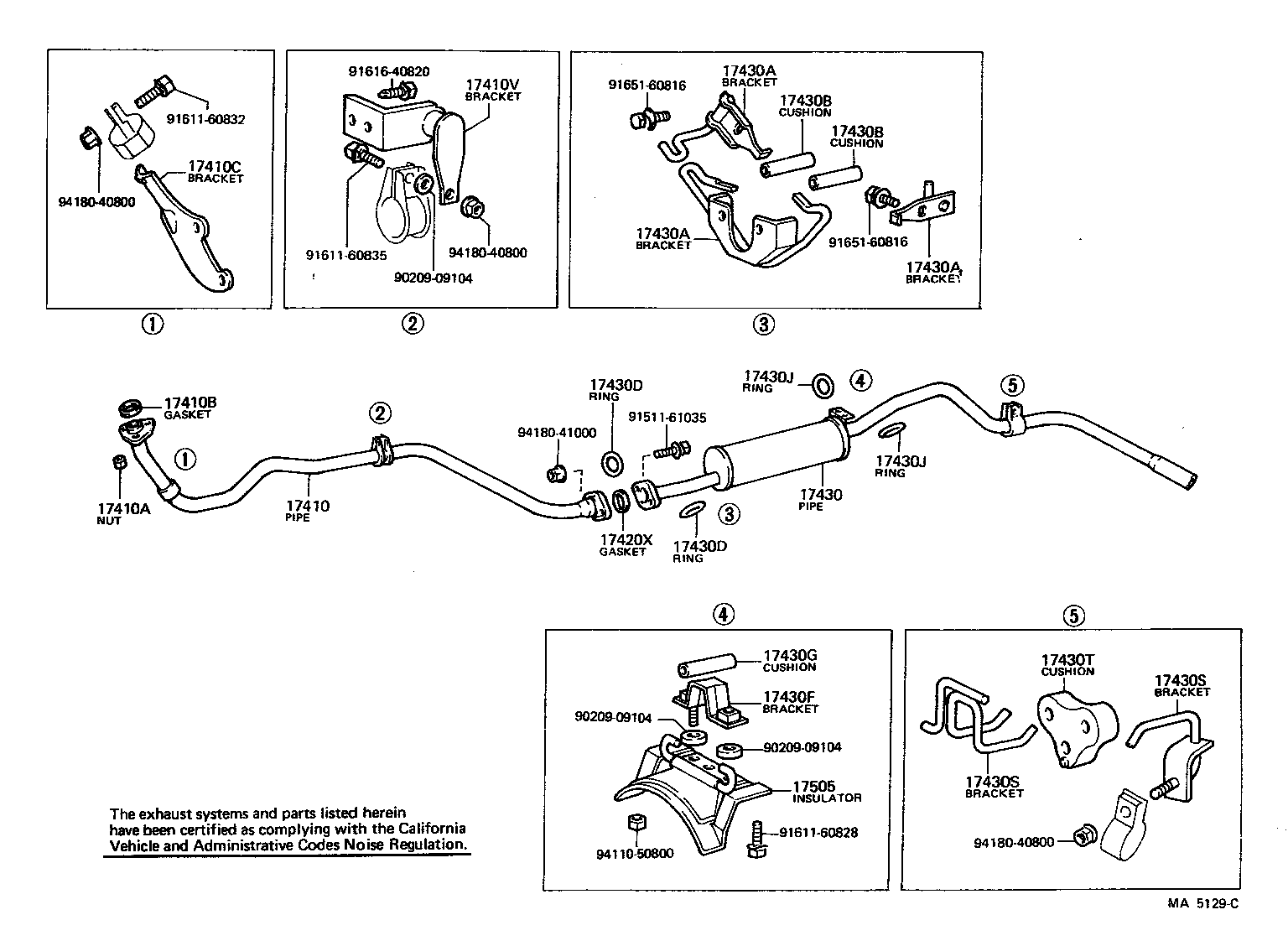

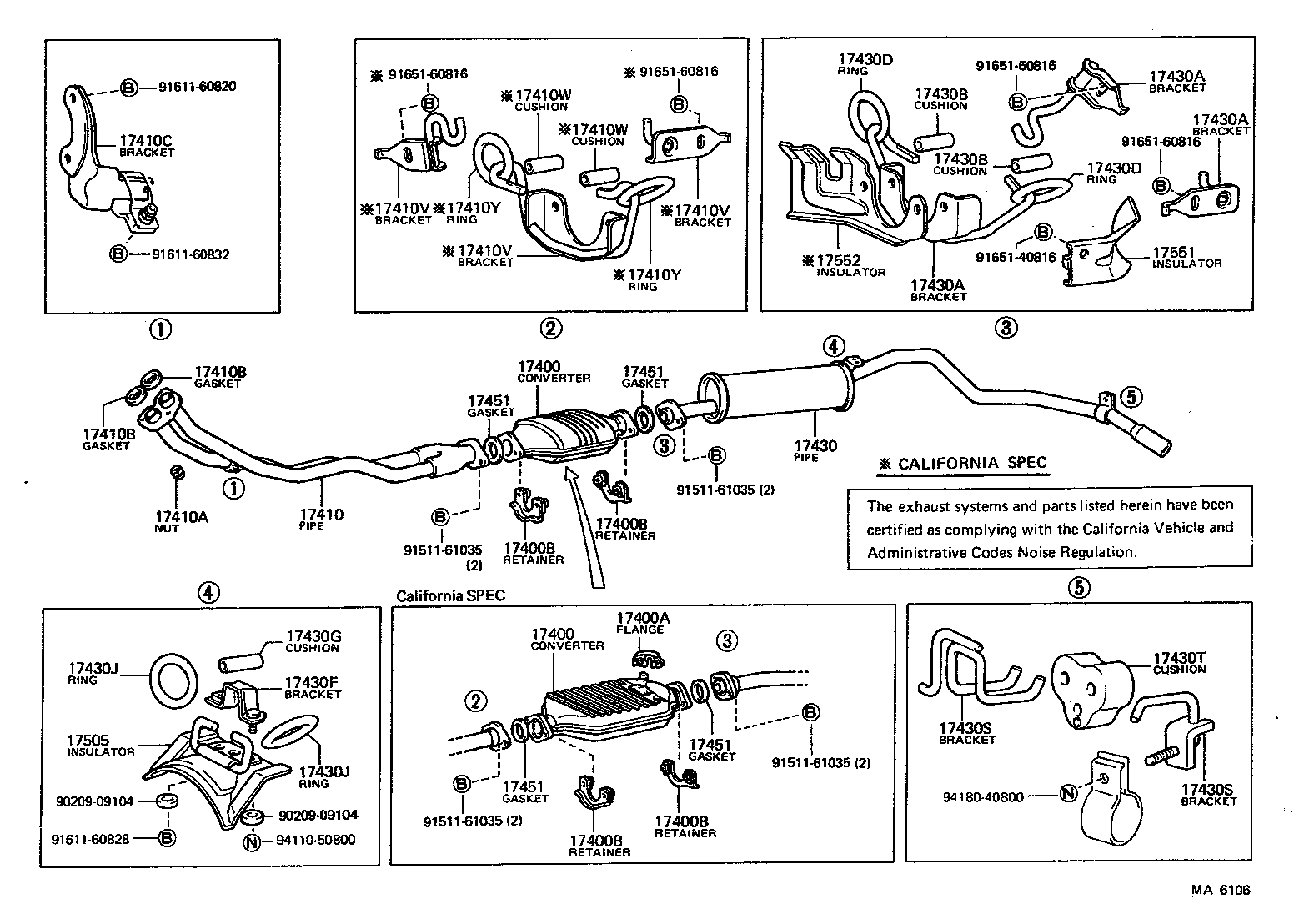

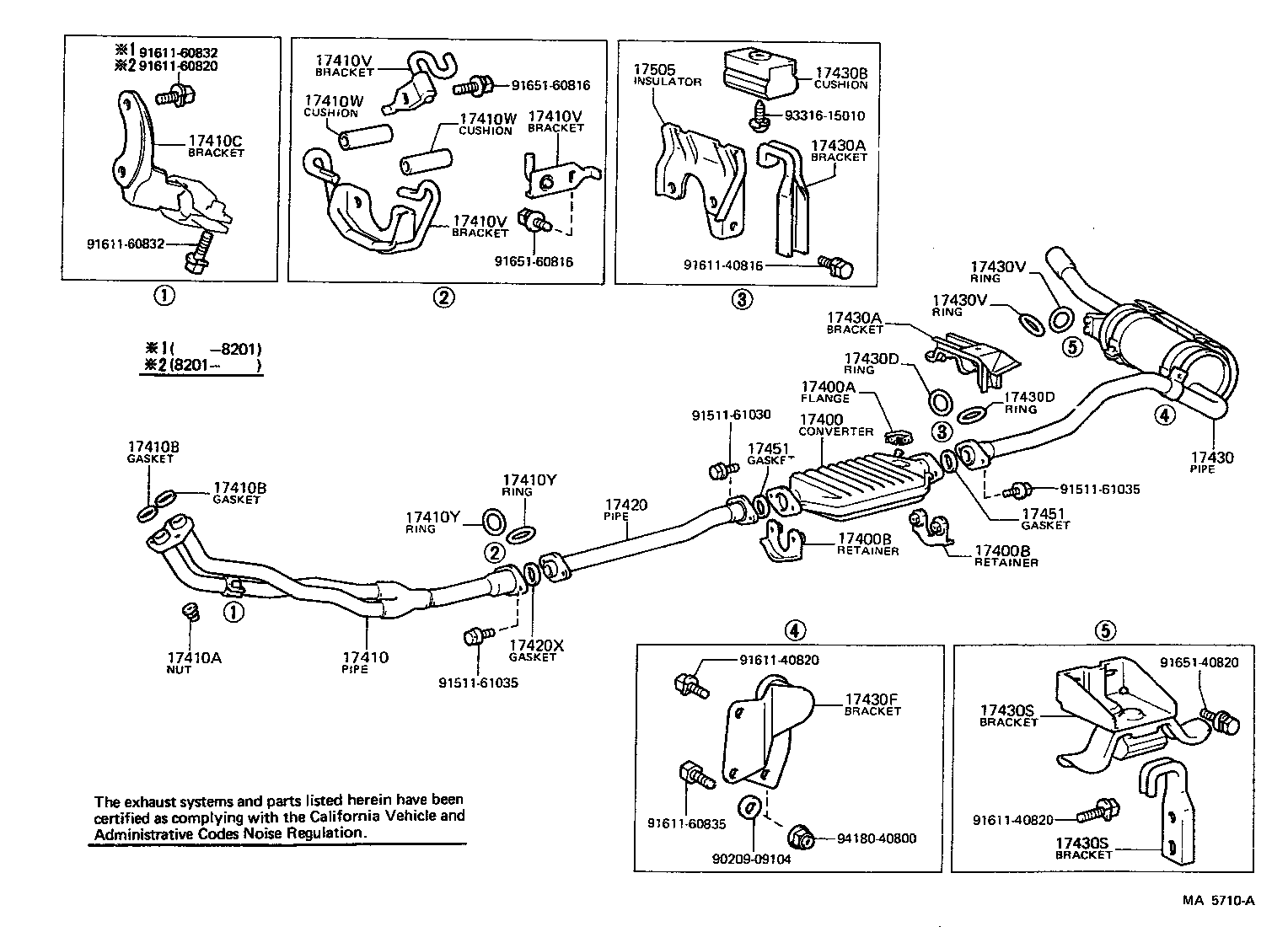

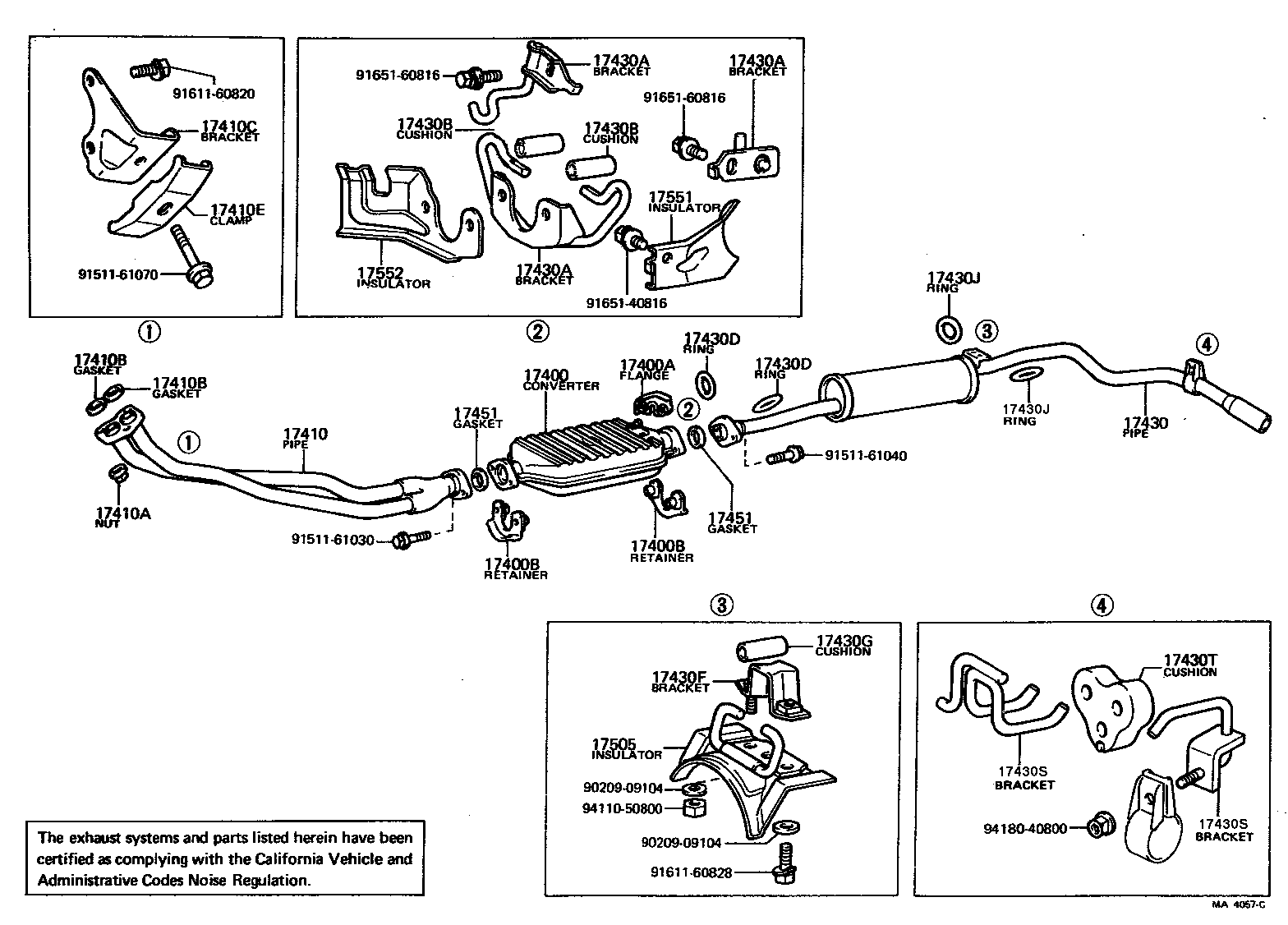

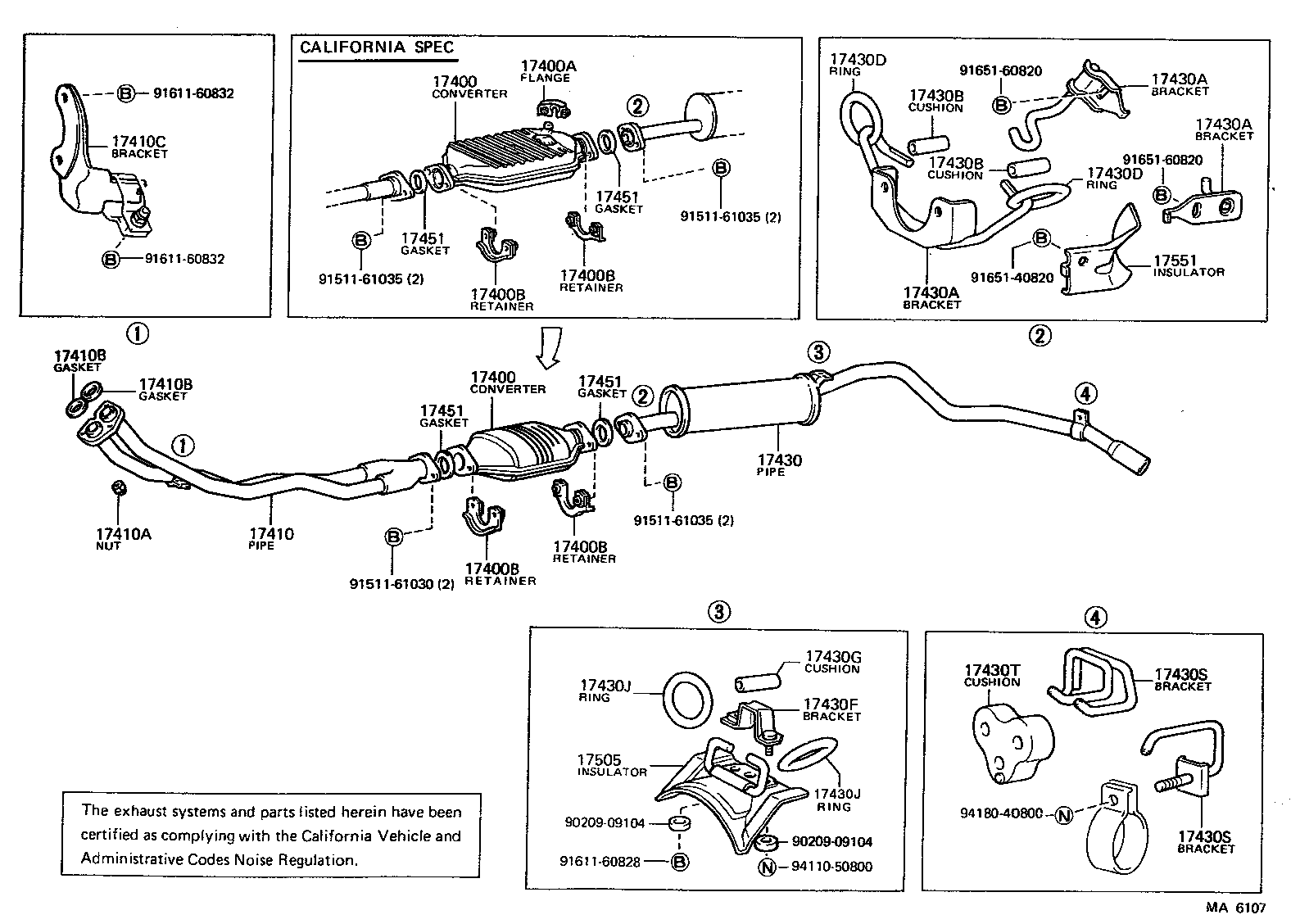

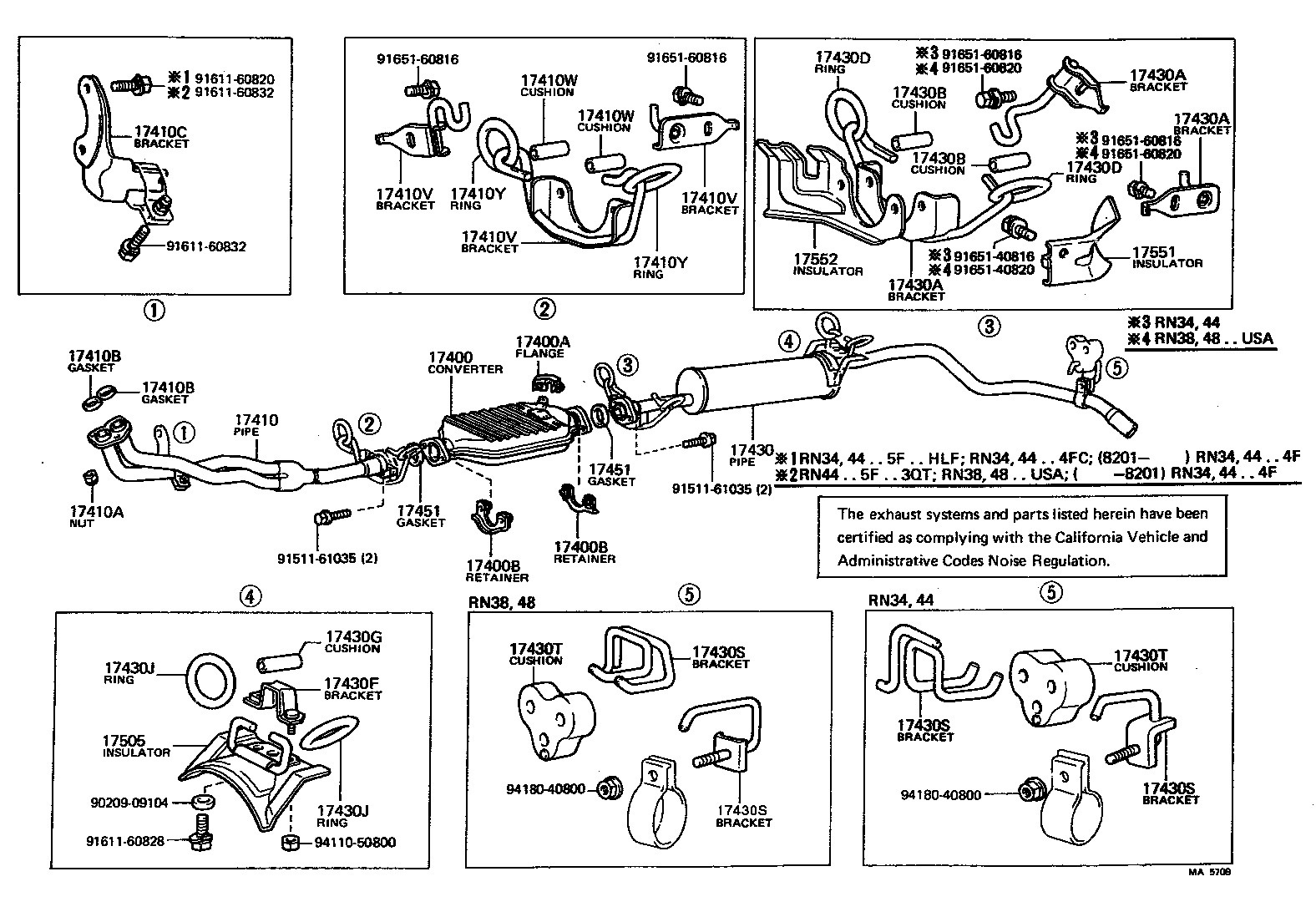

Exhaust Pipe
30 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400A | Flange, Thermosenser Inlet |
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17410V | Bracket, Exhaust Pipe Front (FOR REAR) |
| 17410W | Cushion, Exhaust Pipe Front (FOR REAR) |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420F | Bracket, Exhaust Pipe, Center |
| 17420G | Cushion, Exhaust Pipe Center, Center |
| 17420J | Bolt OR Ring, Exhaust Pipe Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430A | Bracket, Exhaust Tailpipe(FOR FRONT) |
| 17430B | Cushion, Exhaust Tailpipe(FOR FRONT) |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17430G | Cushion, Exhaust Tailpipe(FOR CENTER) |
| 17430J | Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17505 | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17552 | Insulator, Exhaust Pipe Heat, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
