Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

22 part groups · 7 illustrations

Illustrations

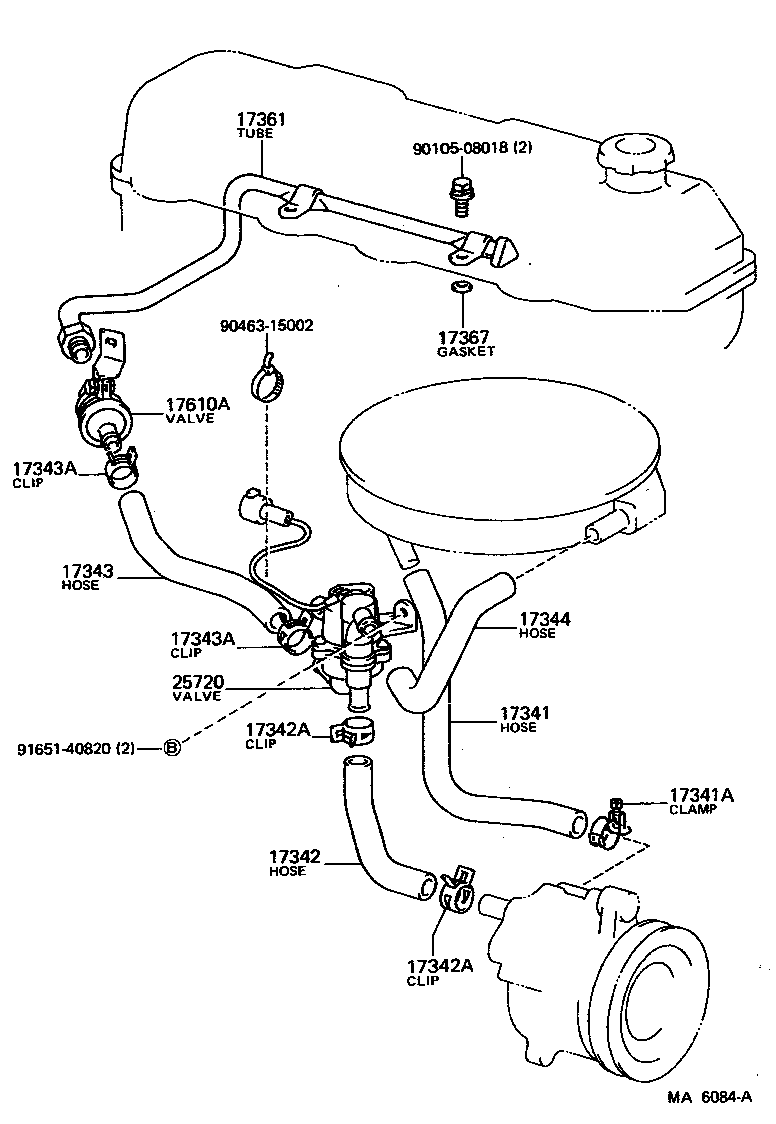

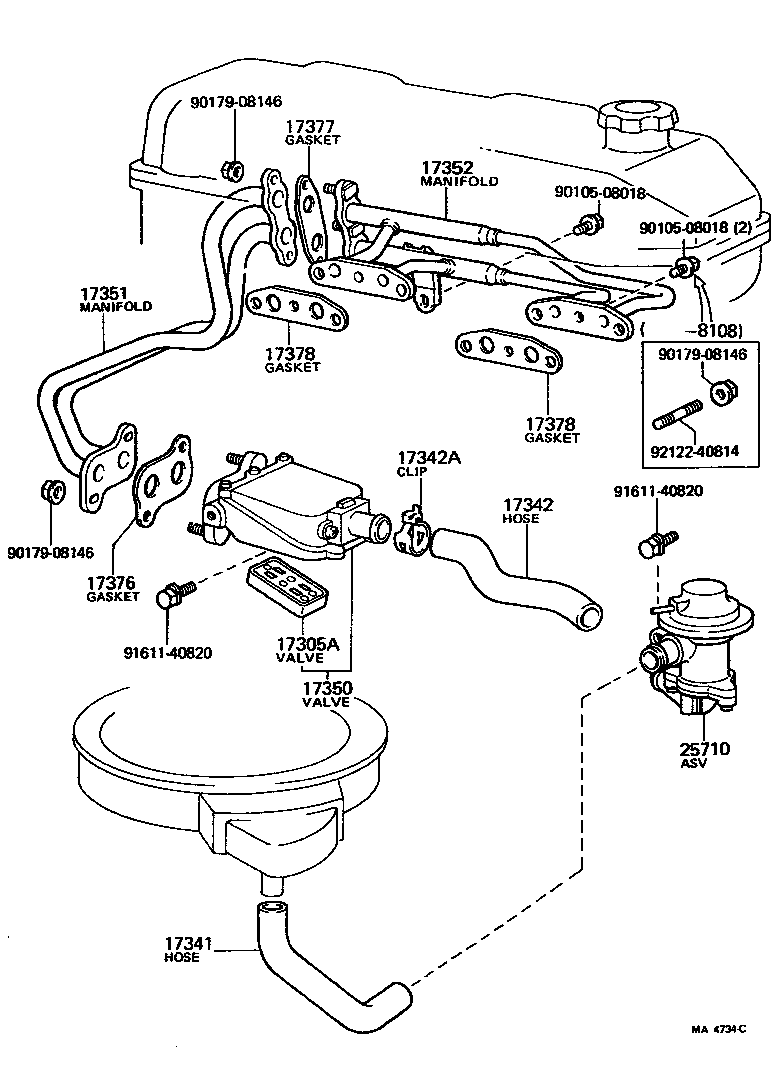

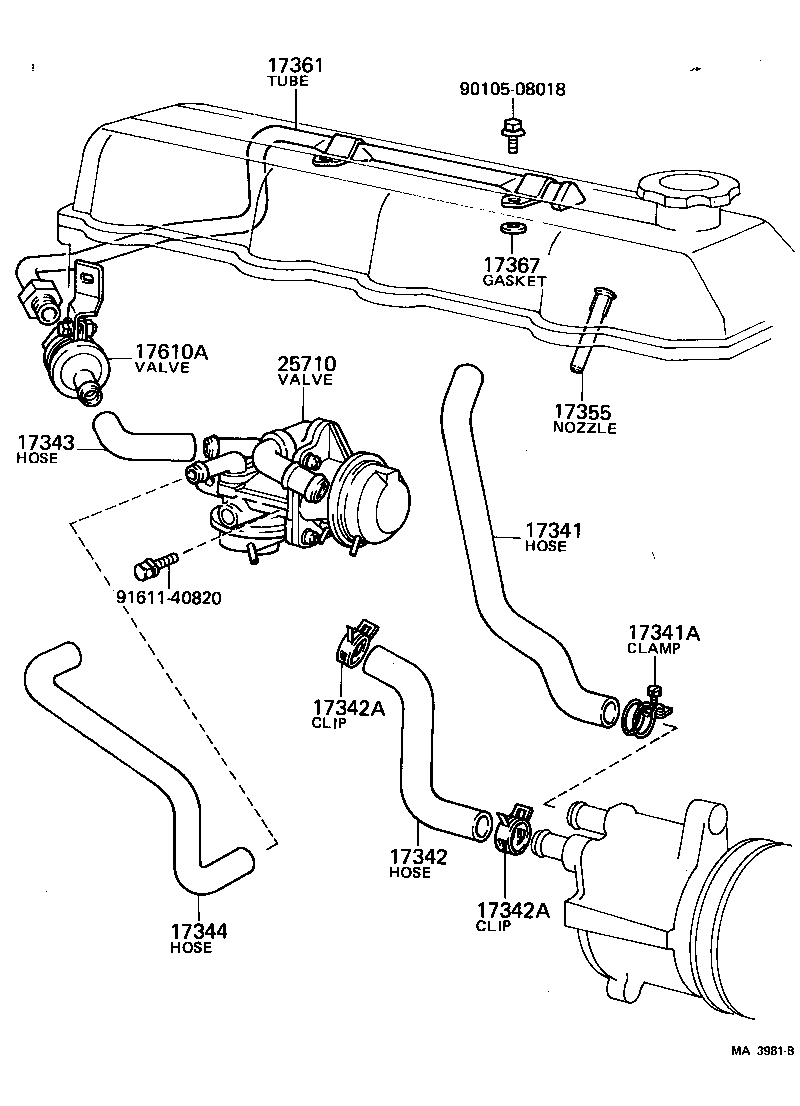

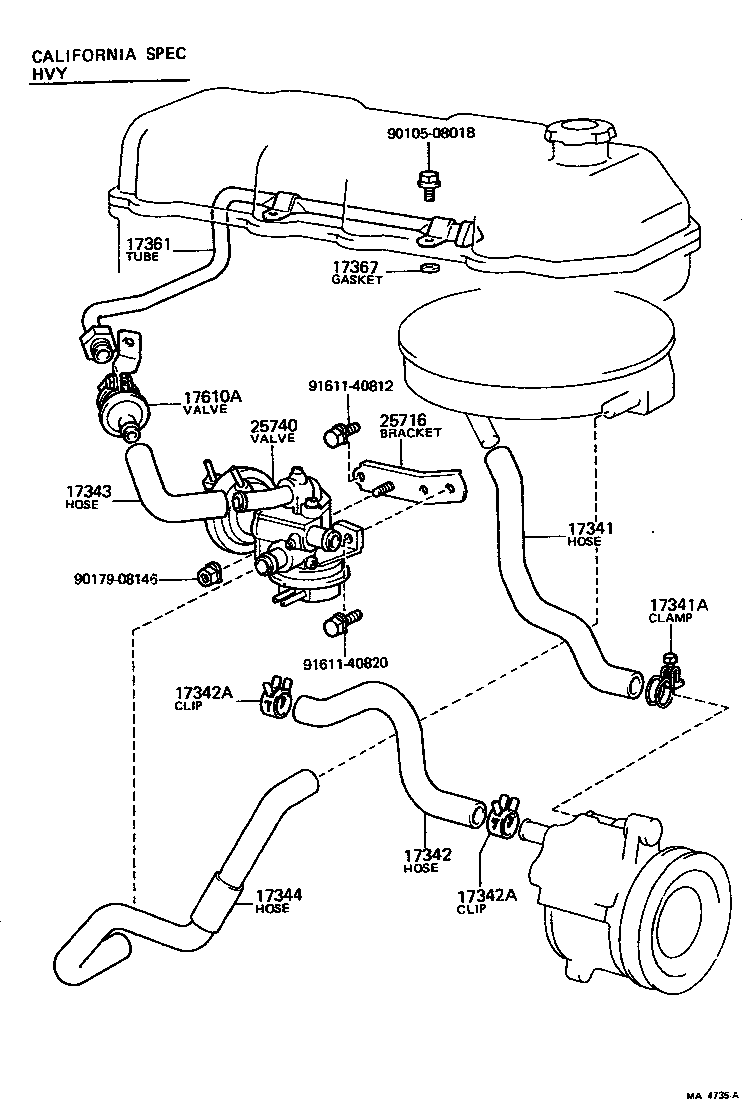

Figure MA3400C MA3400C 1978-08 → 1979-08 Figure MA3400C MA3400C 1979-01 → 1979-08 Figure MA3981B MA3981B 1979-08 → 1980-08 Figure MA4734C MA4734C 1980-08 → 1982-08 Figure MA6168 MA6168 1982-08 → — Figure MA4735A MA4735A 1980-08 → 1982-08 Figure MA6084A MA6084A 1982-08 → —

Part groups

PNCDescription
17305A Valve Sub-assy, Reed
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17355 Nozzle, Air Injection
17361 Tube, Air
17367 Gasket, Air Tube
17376 Gasket, Air Tube, NO.1
17377 Gasket, Air Tube, NO.2
17378 Gasket Air Tube, NO.3
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
25710 Valve Assy, Air Switching
25716 Bracket, Air Switching Valve
25720 Valve Assy, Electric Air Control
25740 Valve Assy, Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
