Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

31 part groups · 30 illustrations

Illustrations

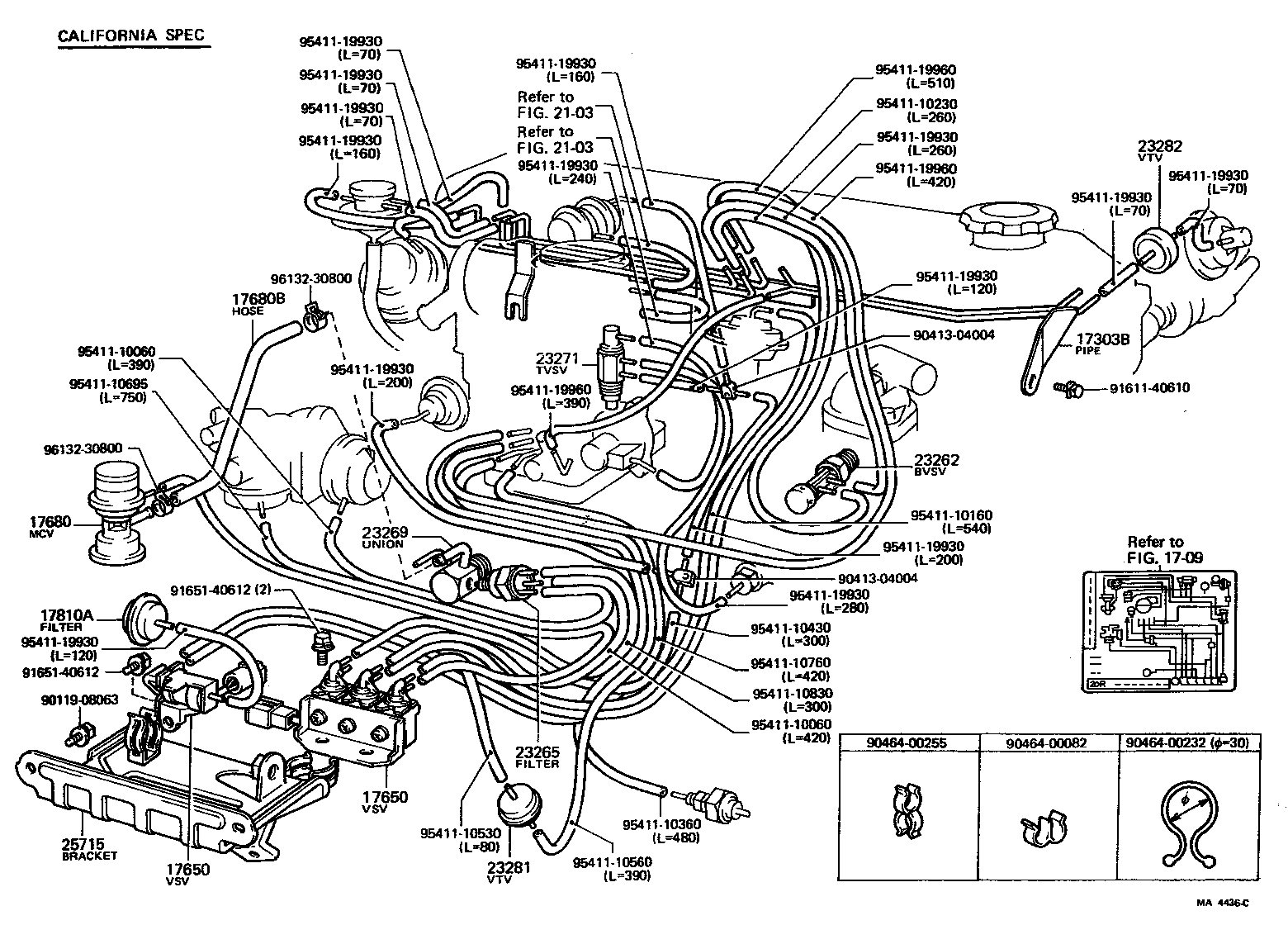

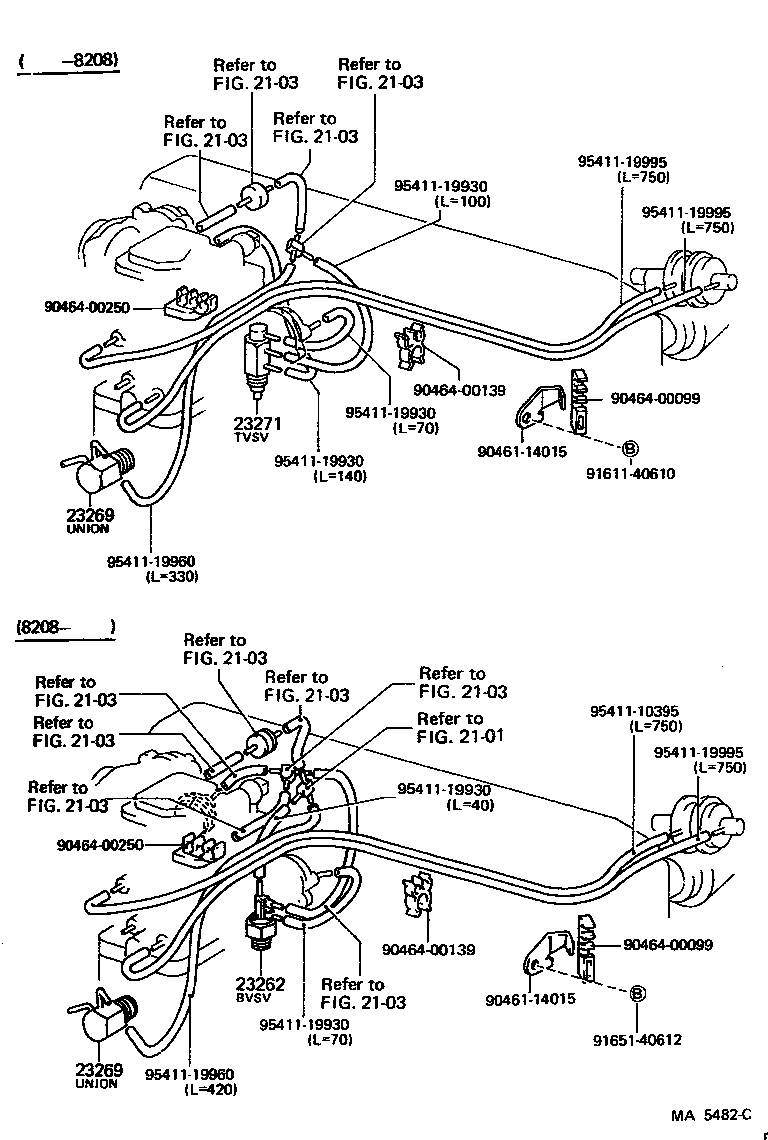

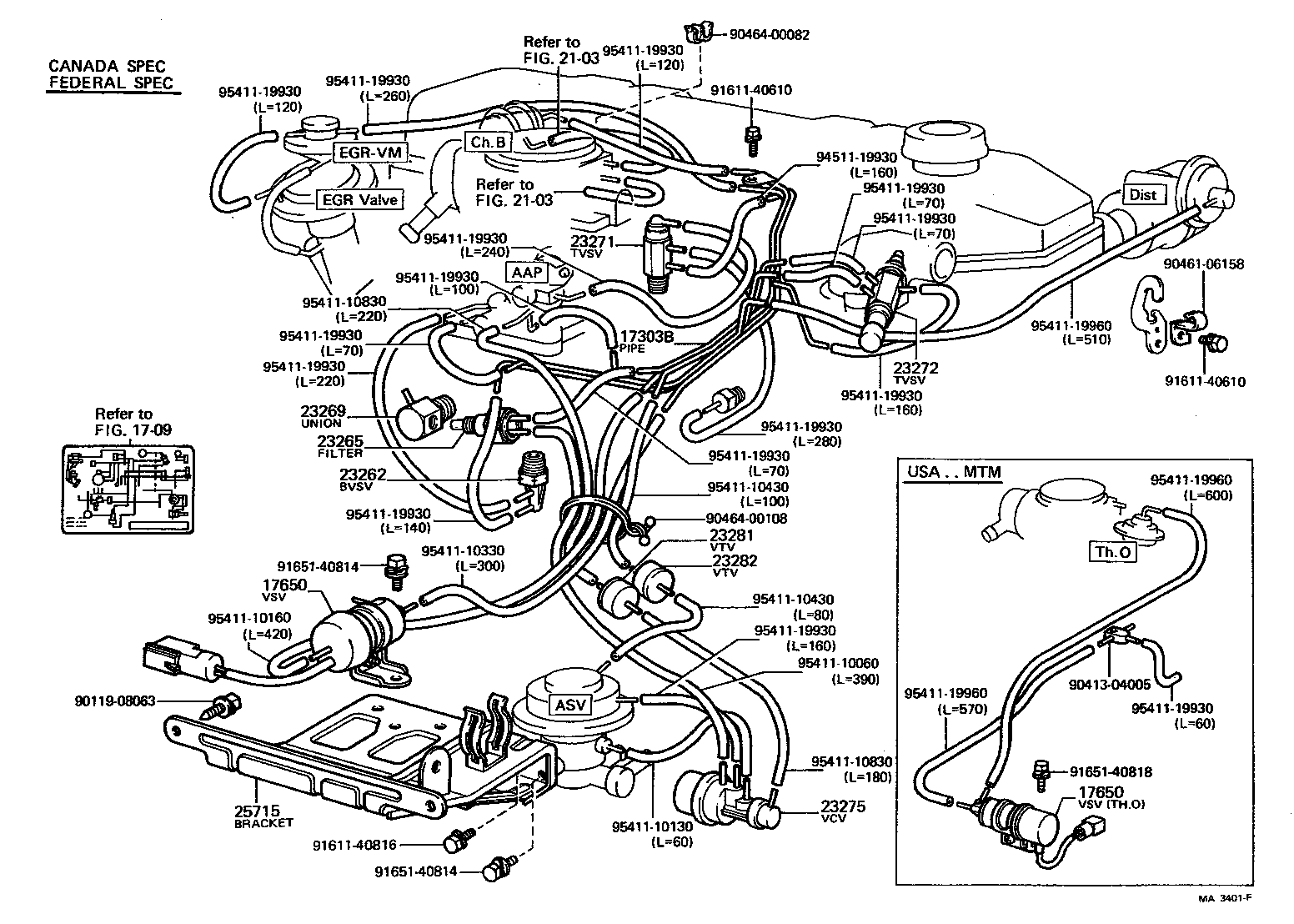

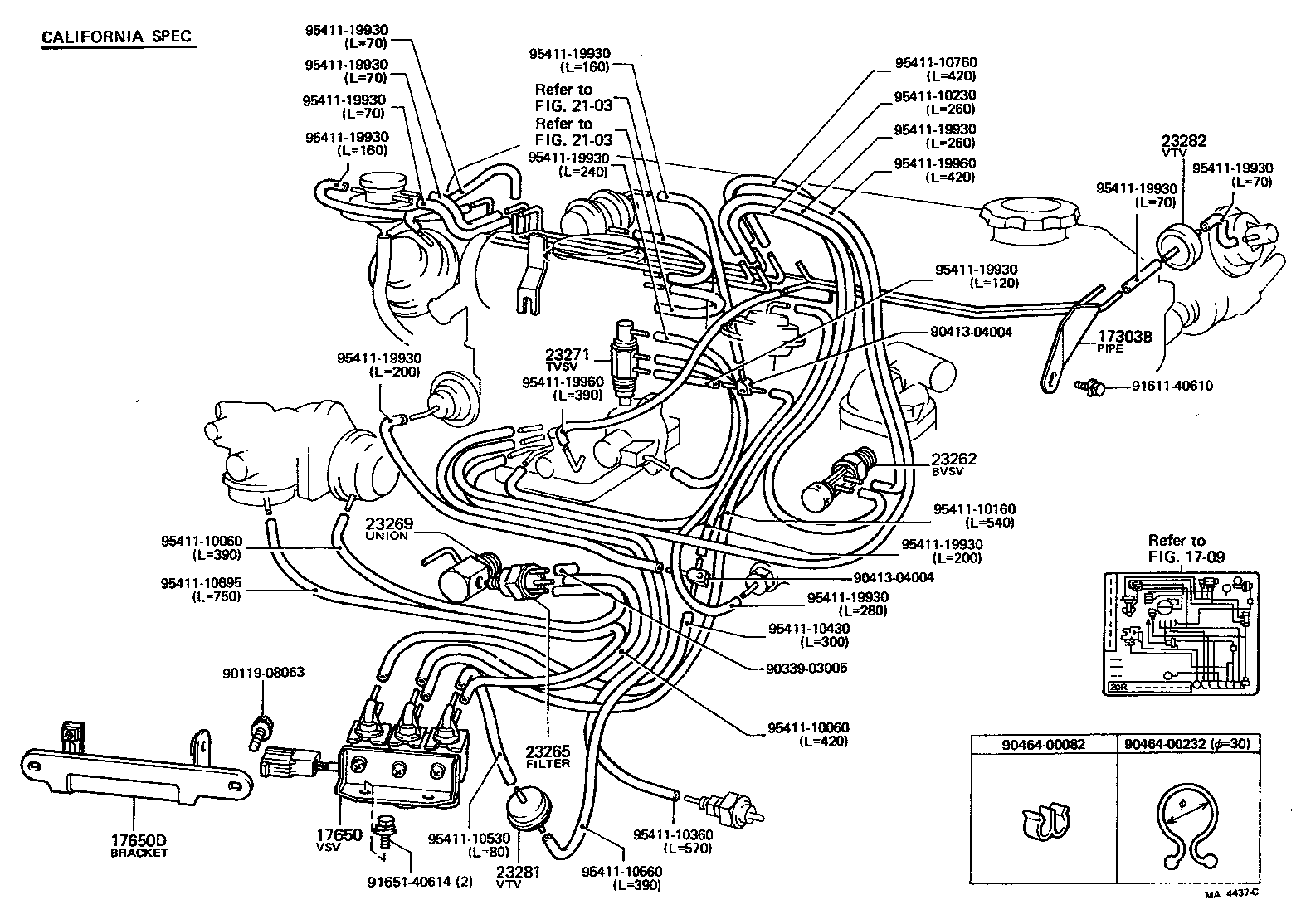

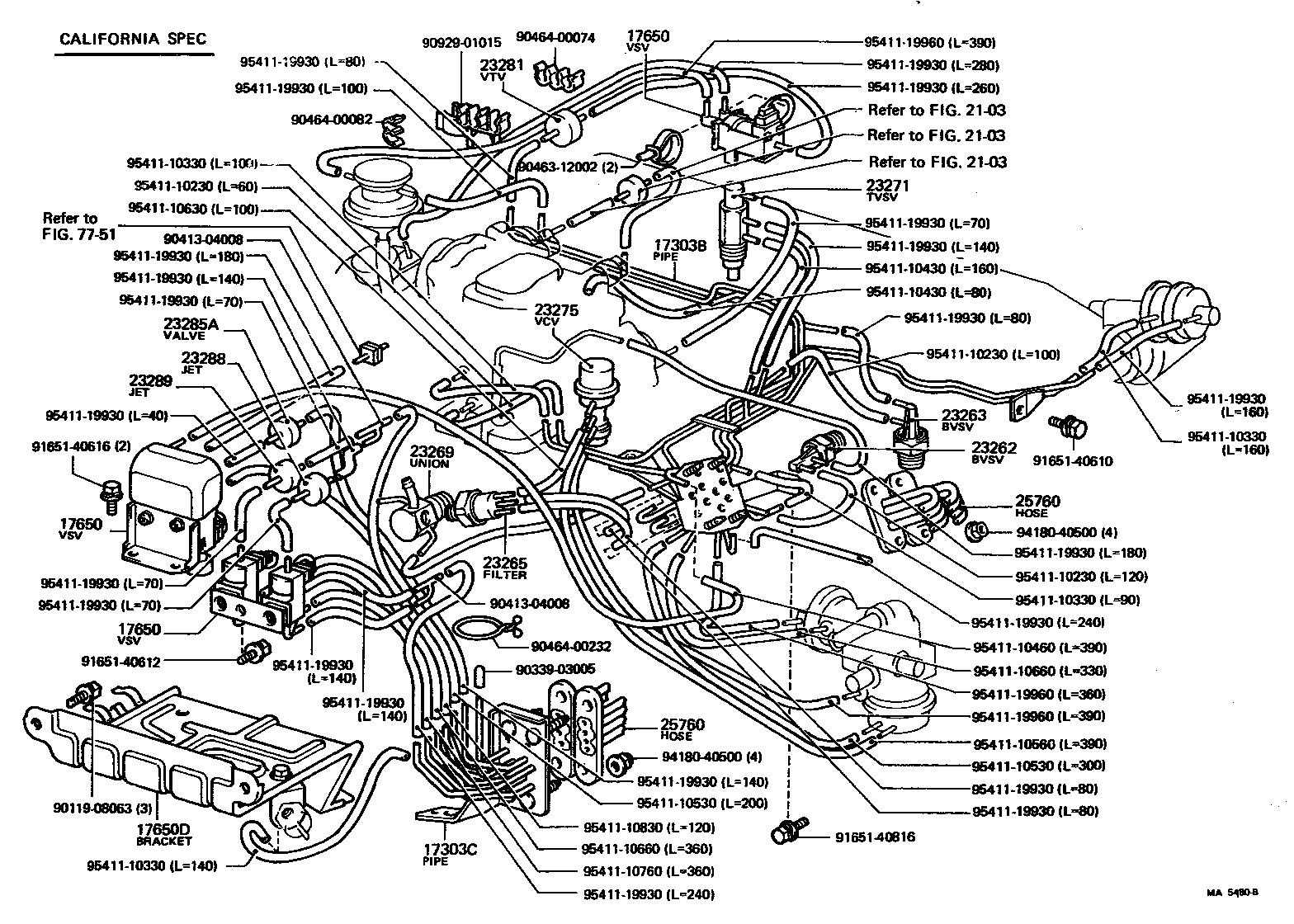

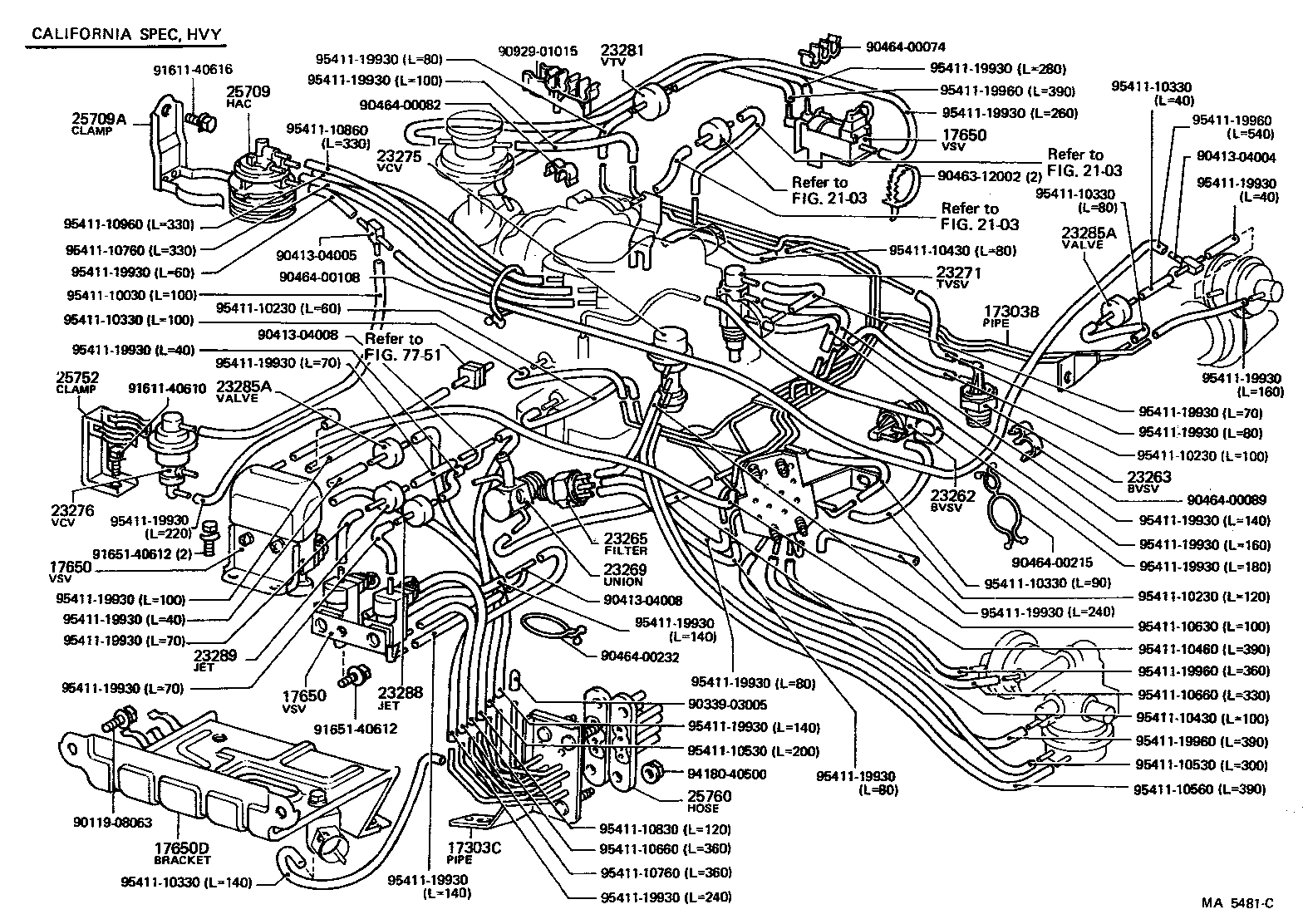

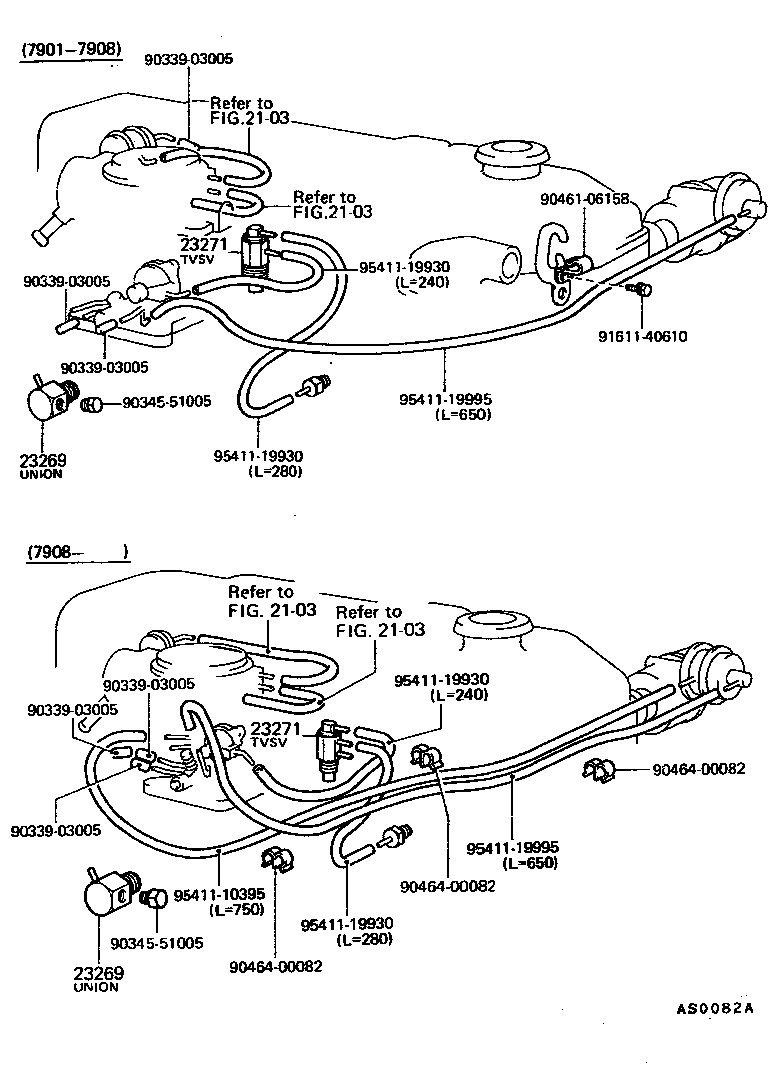

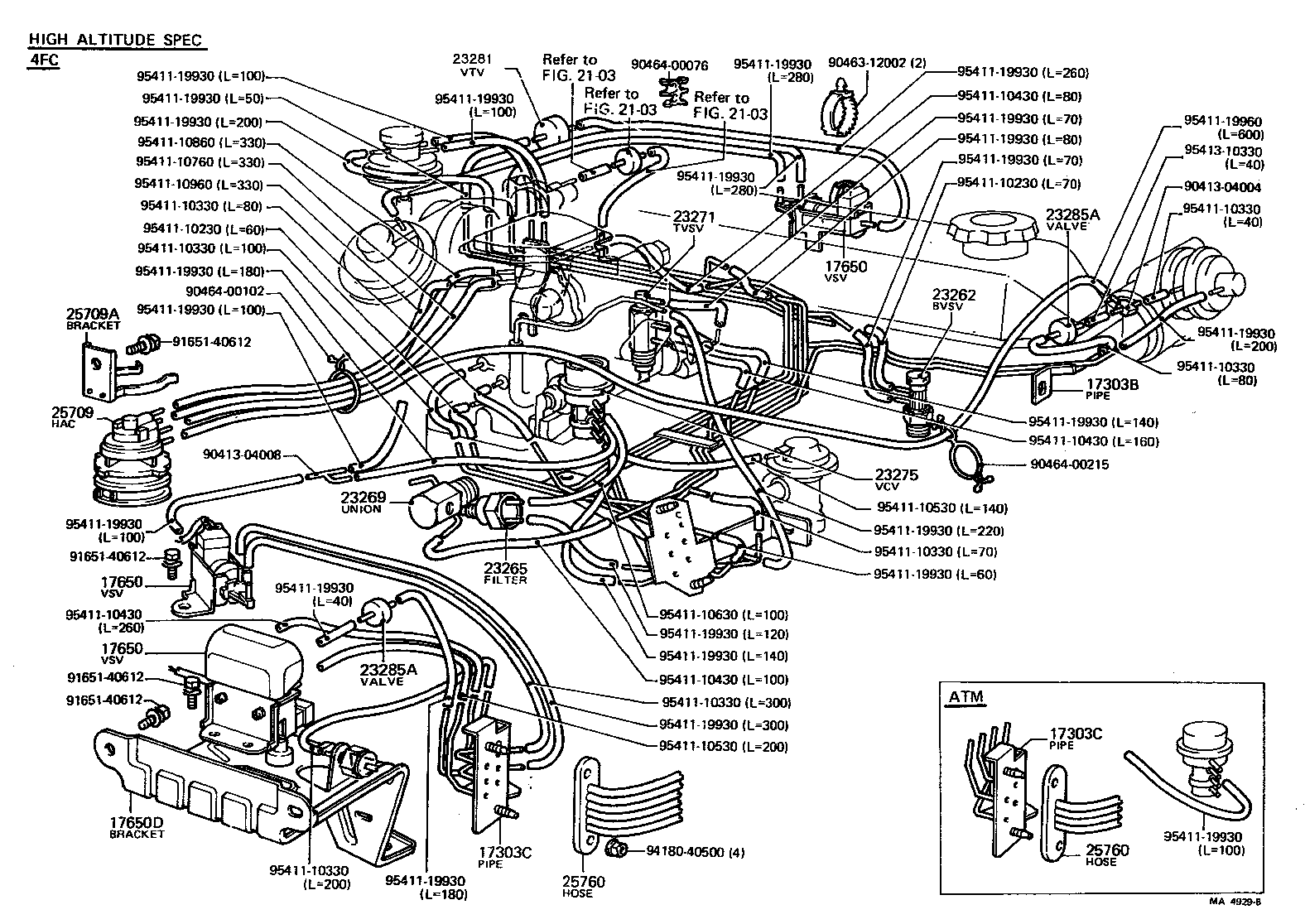

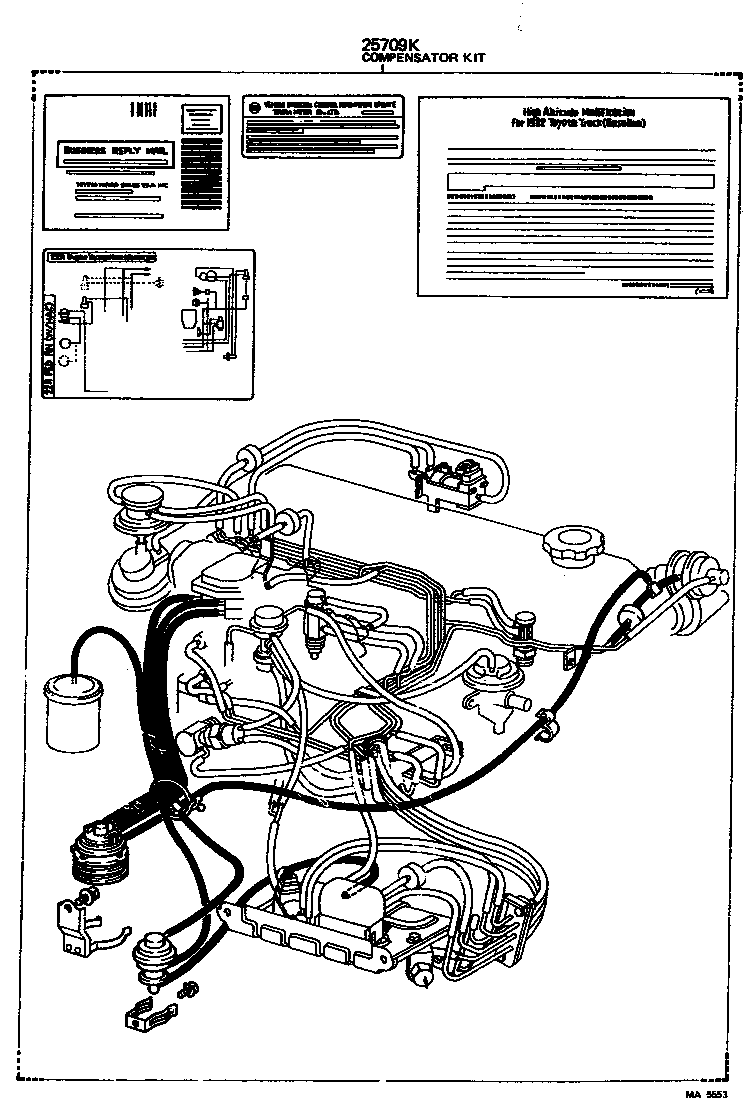

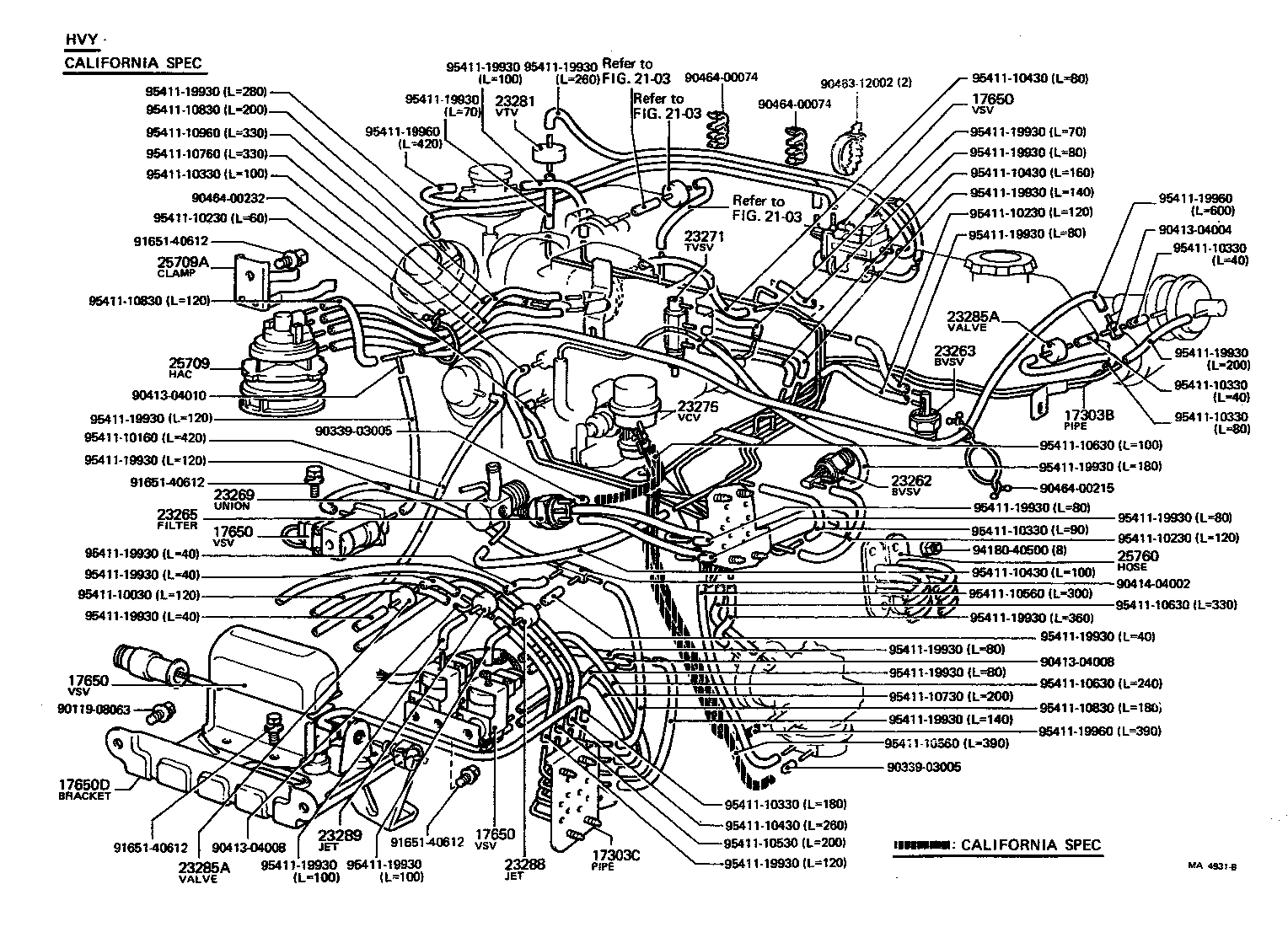

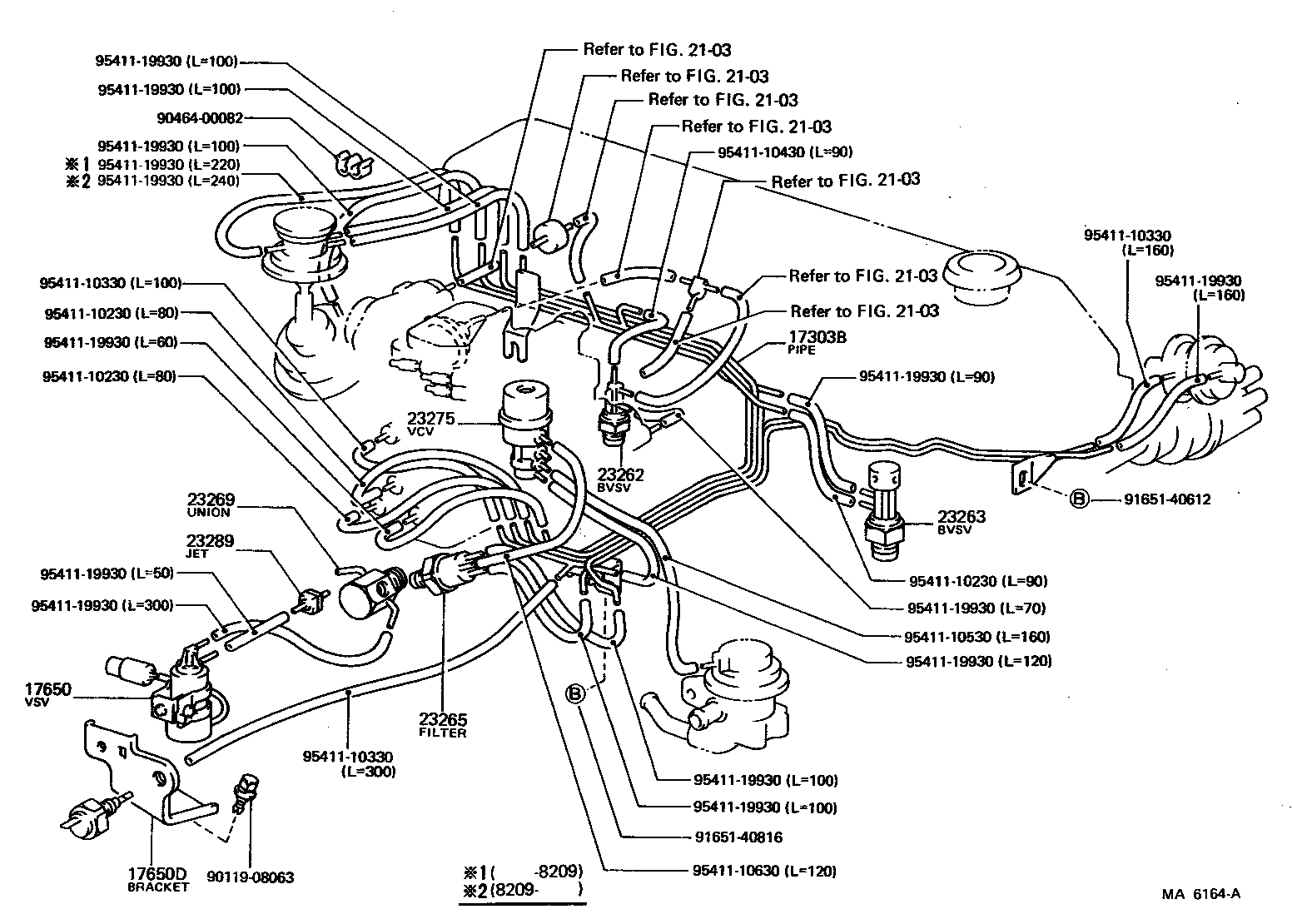

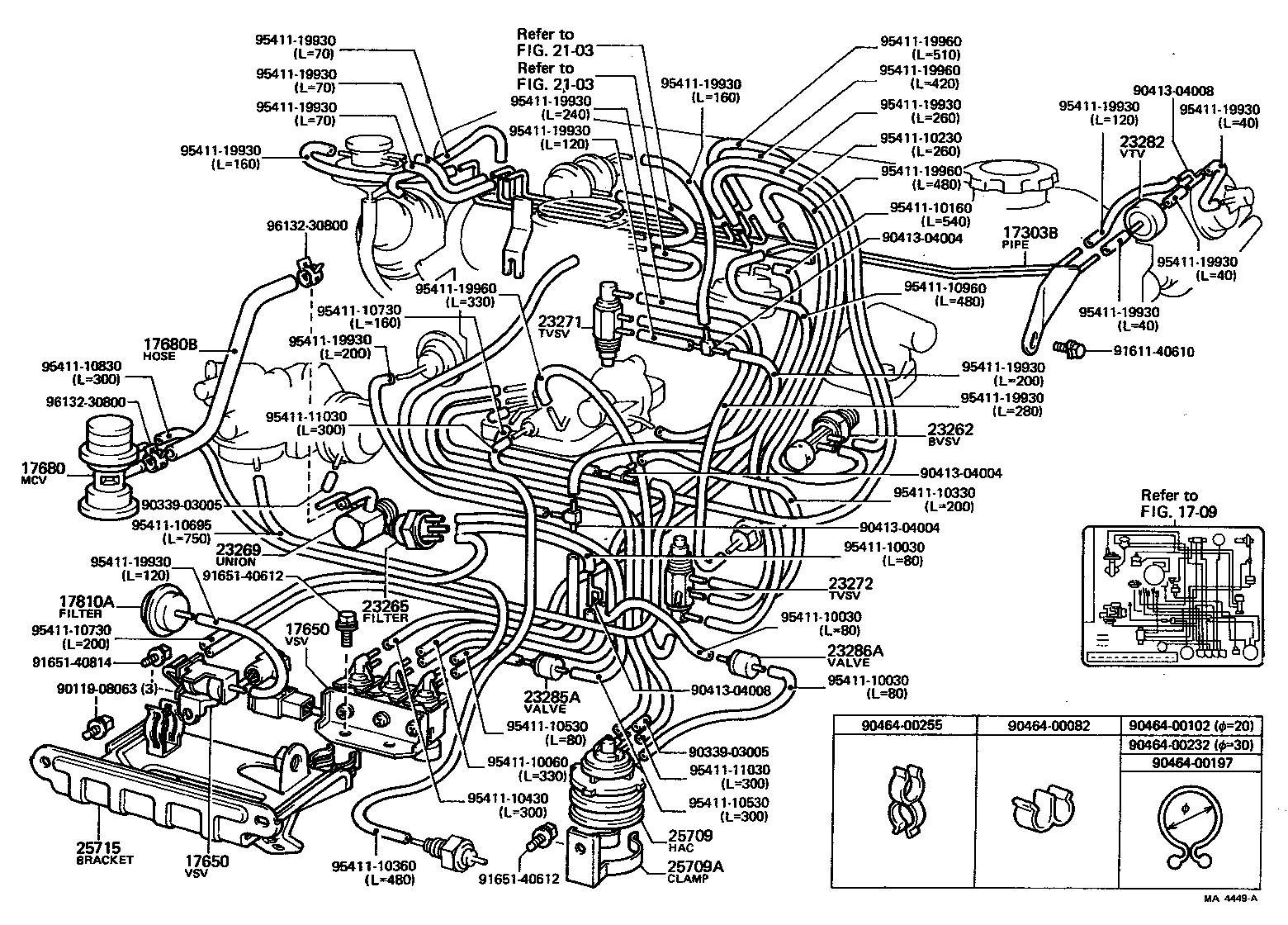

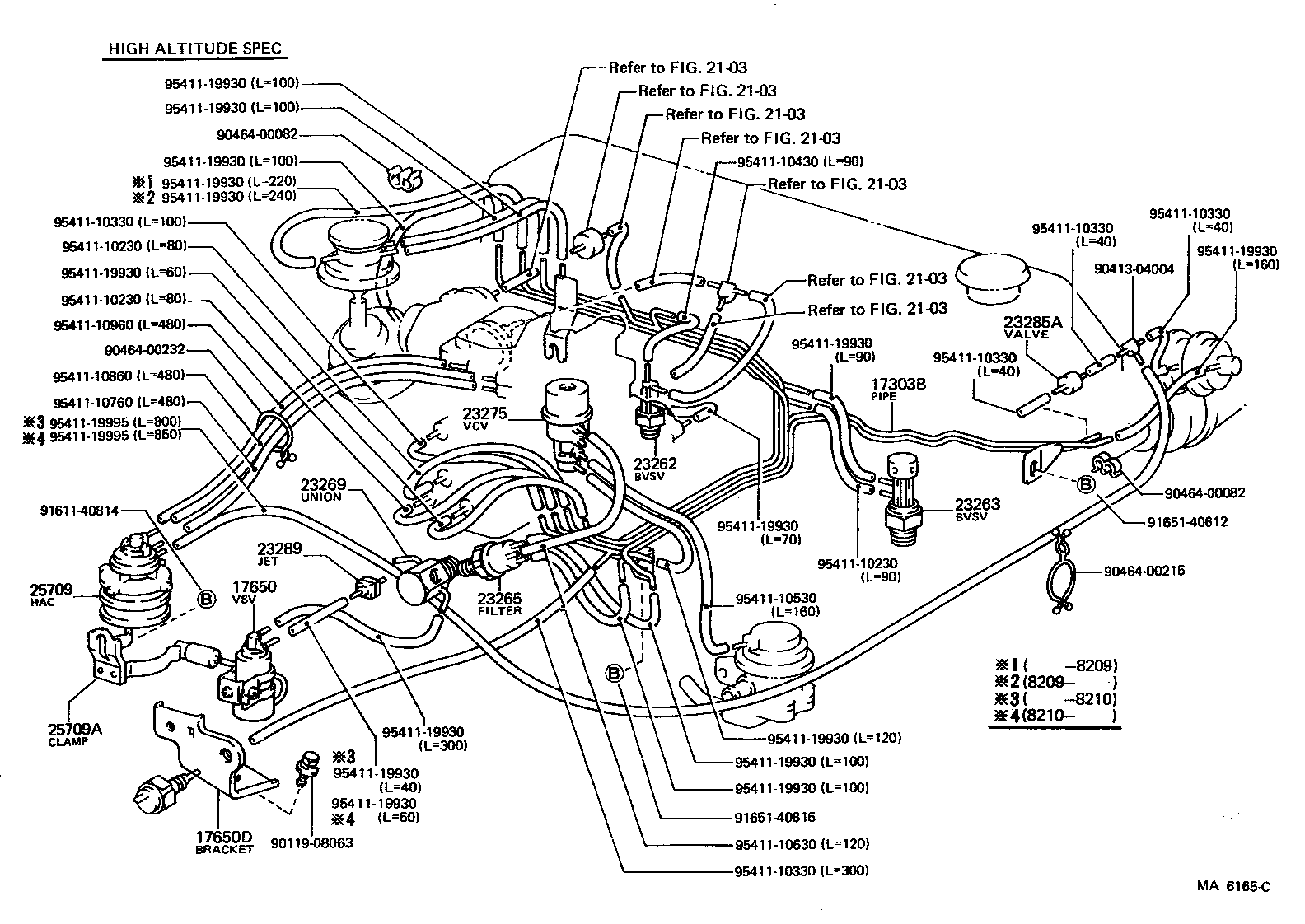

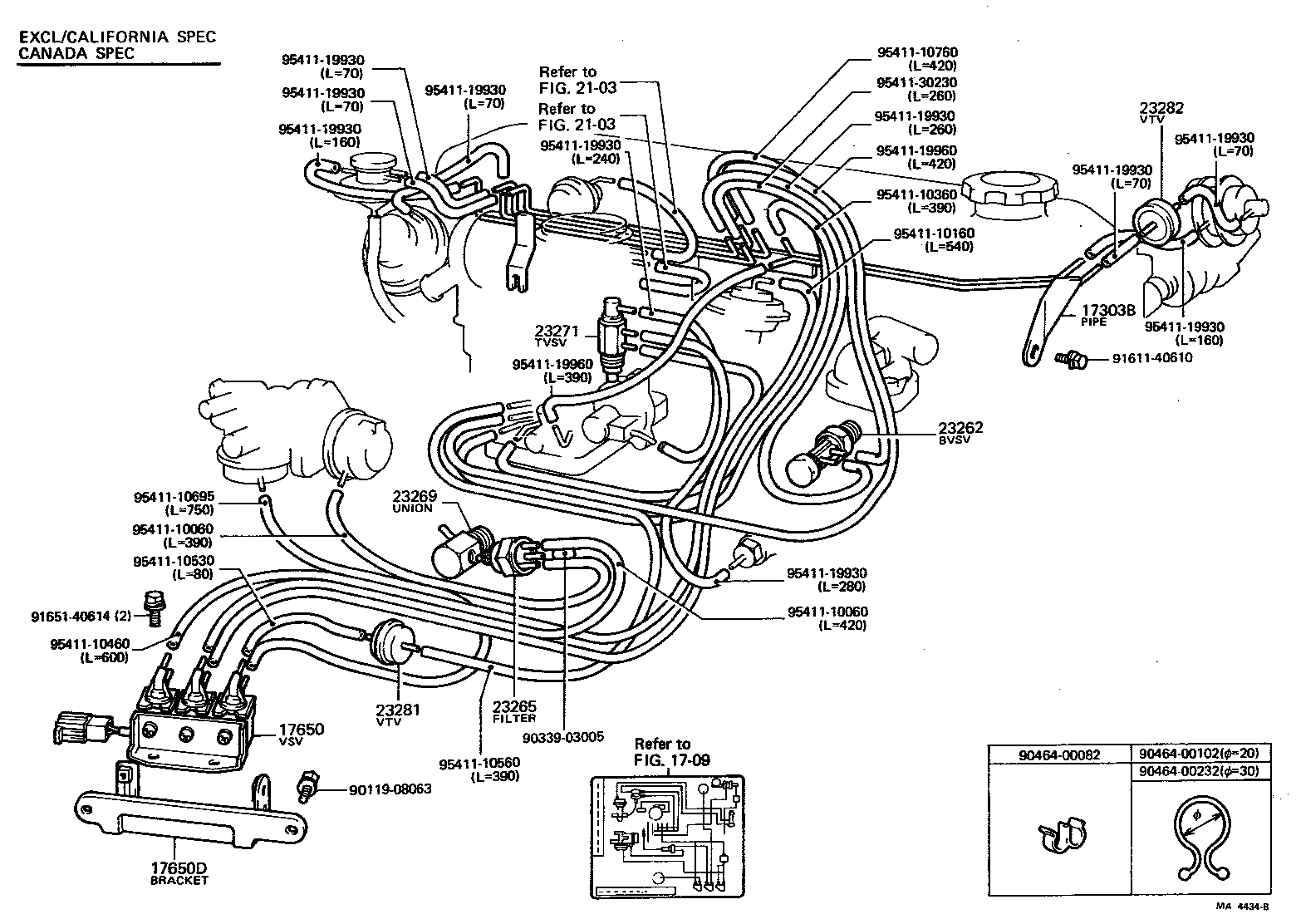

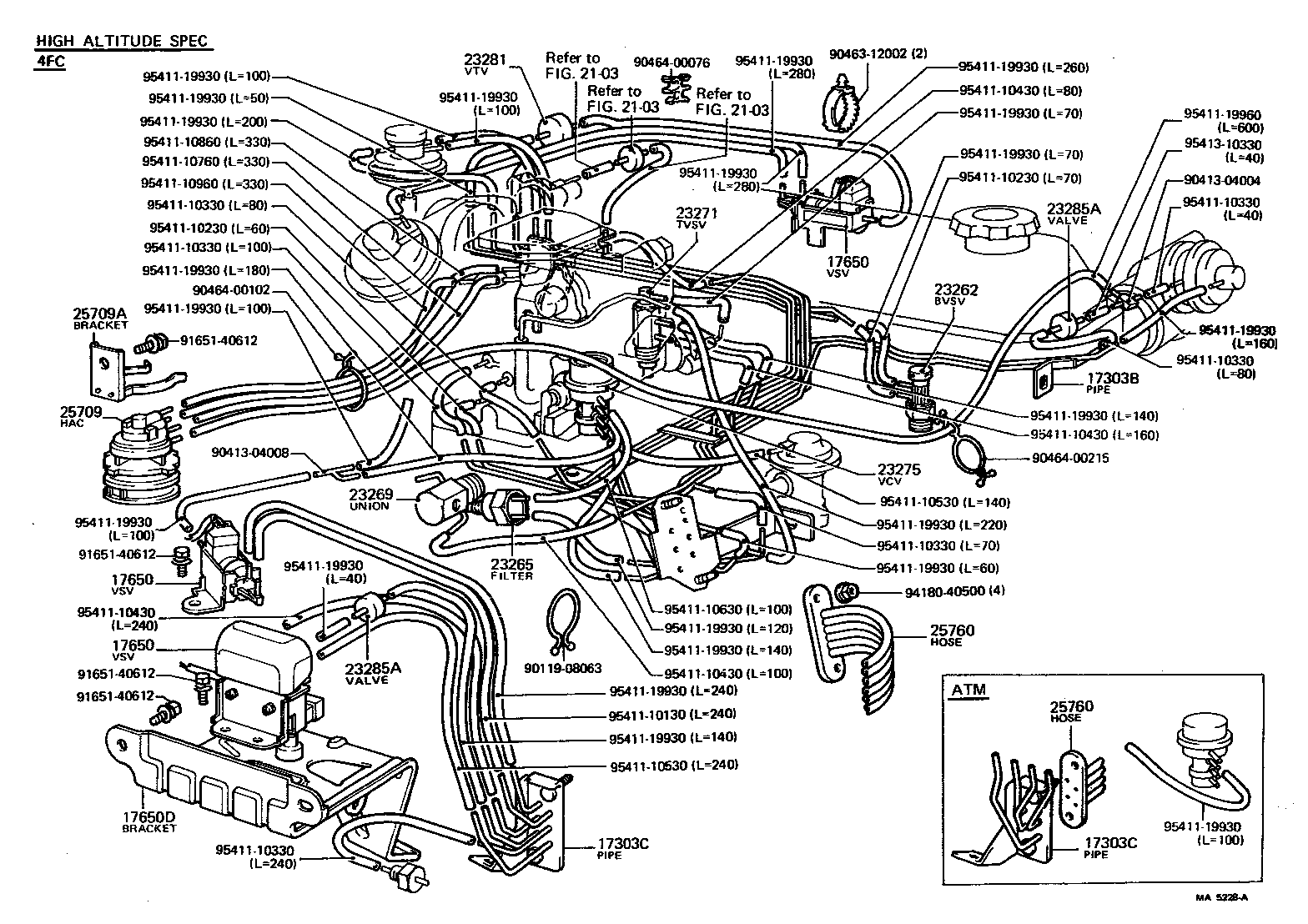

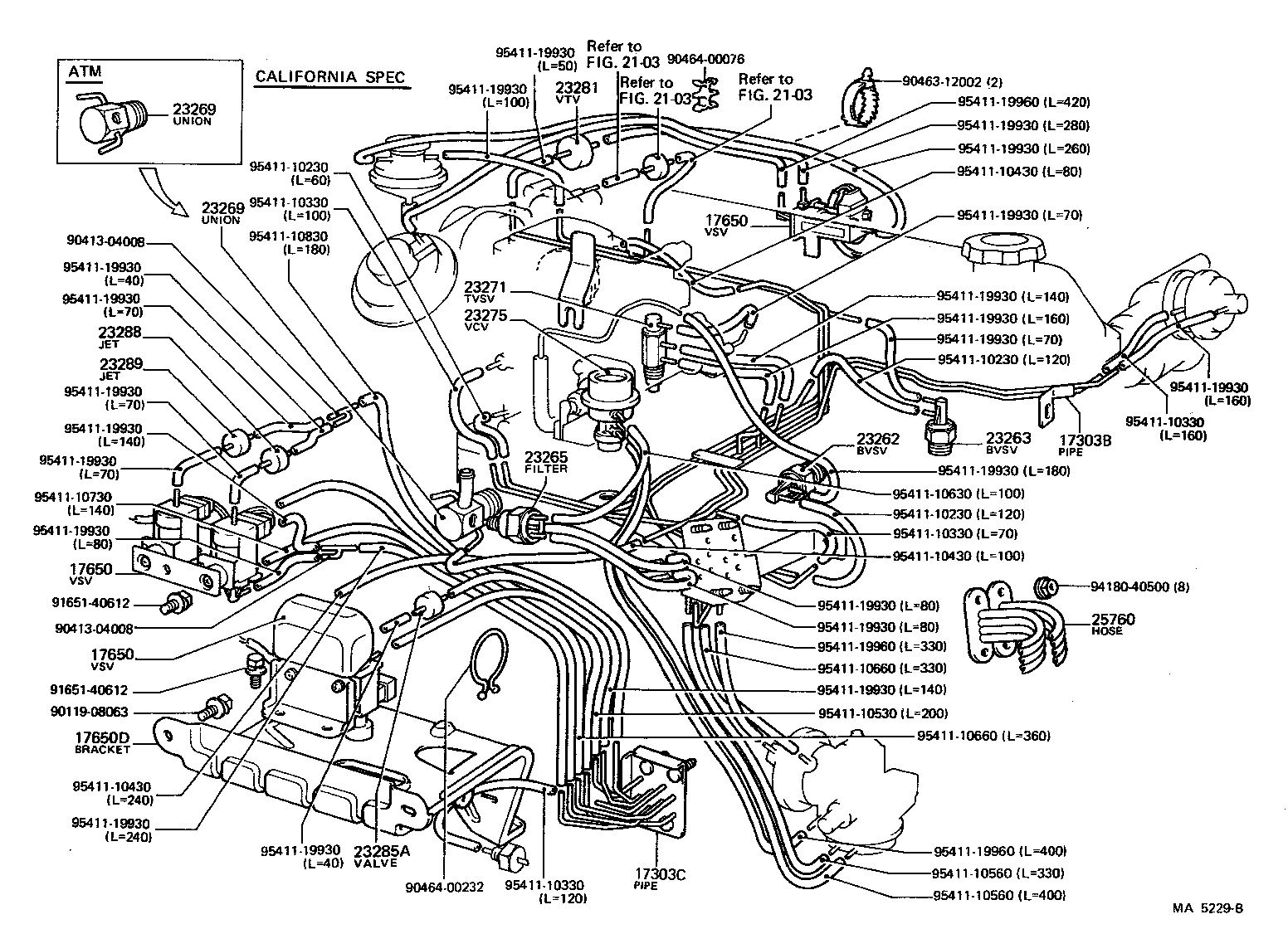

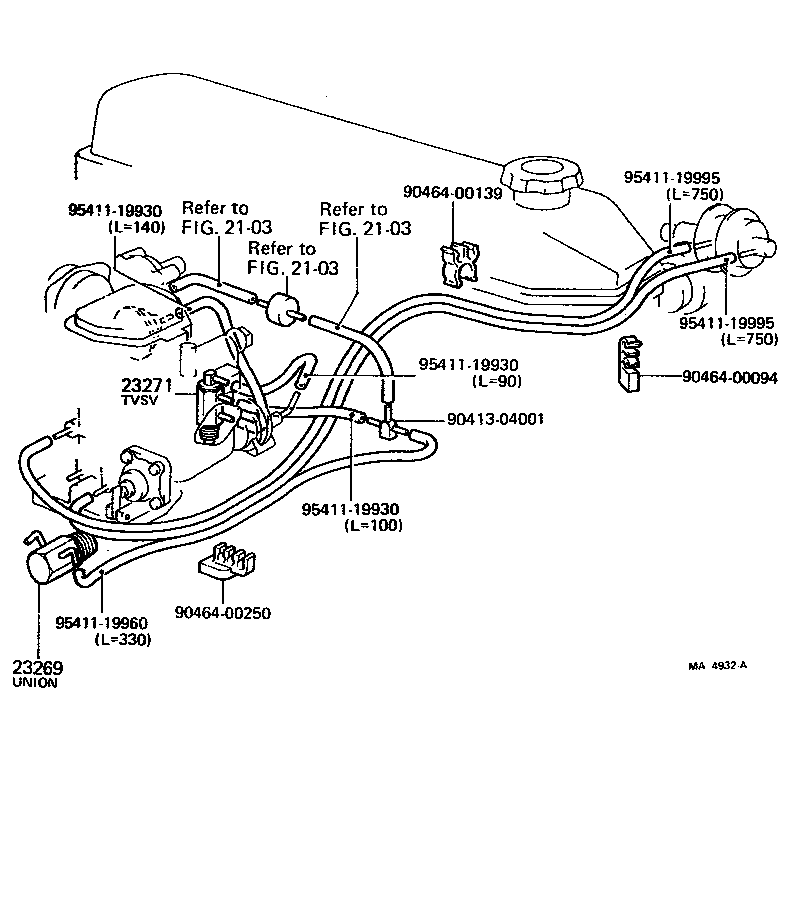

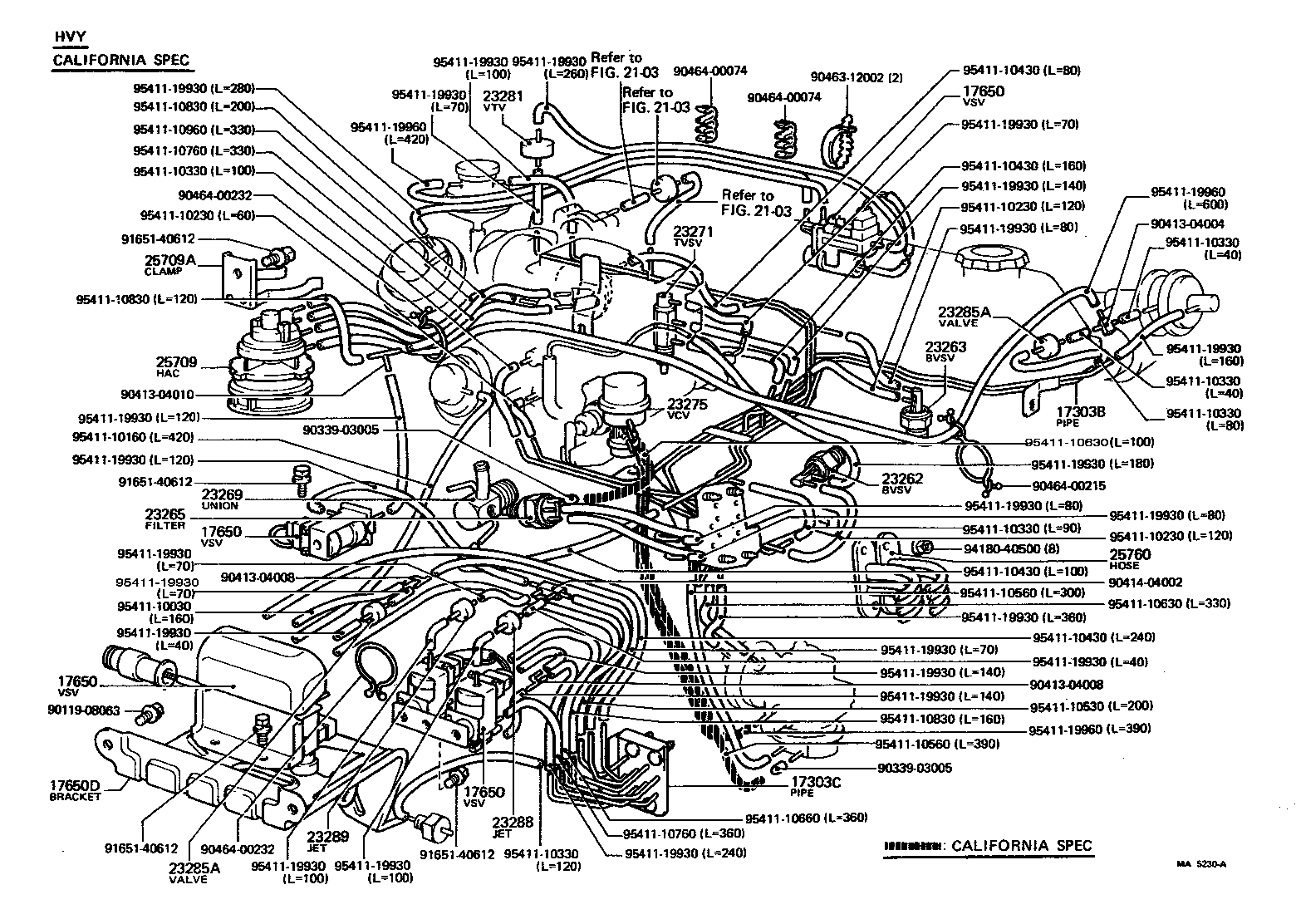

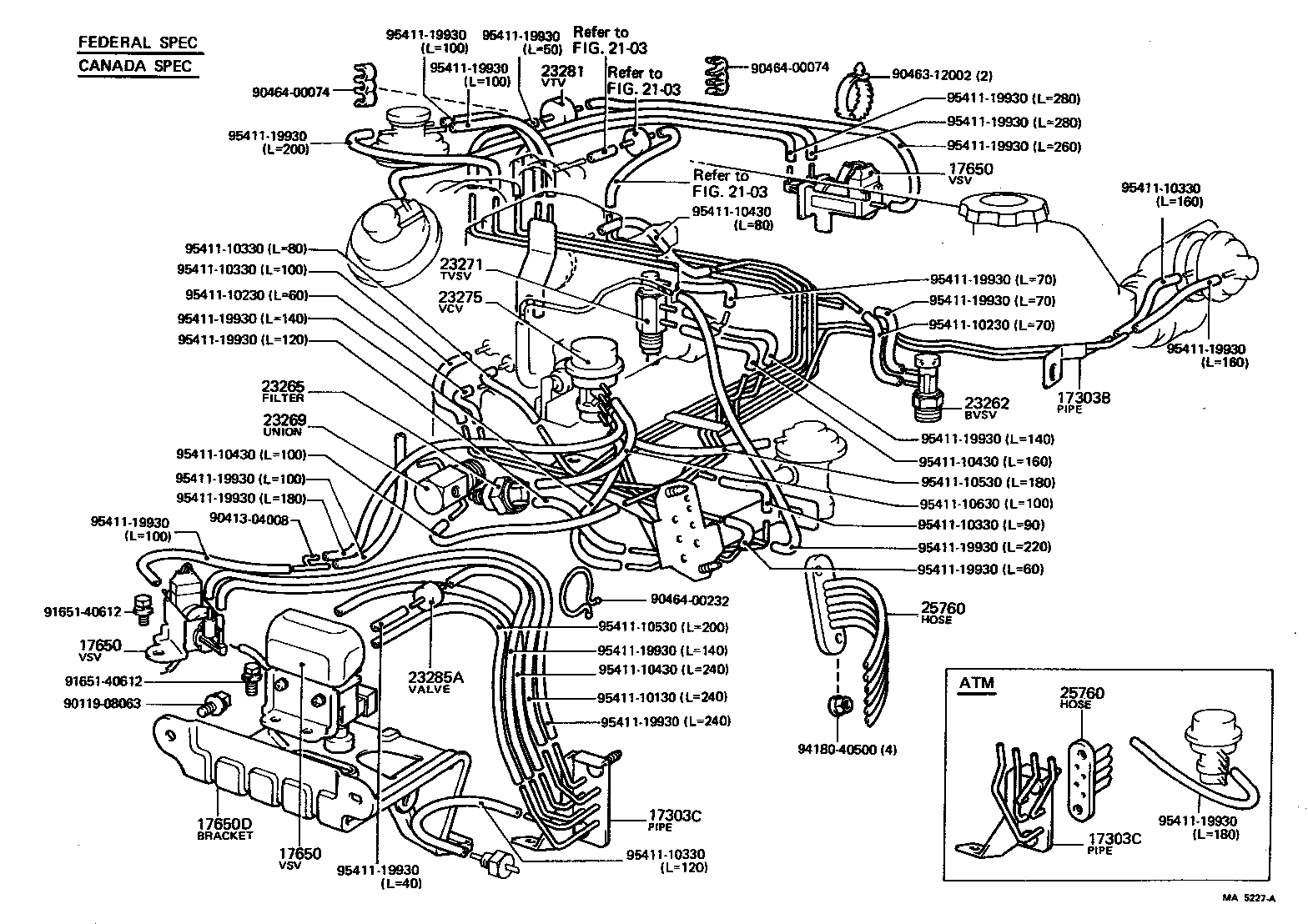

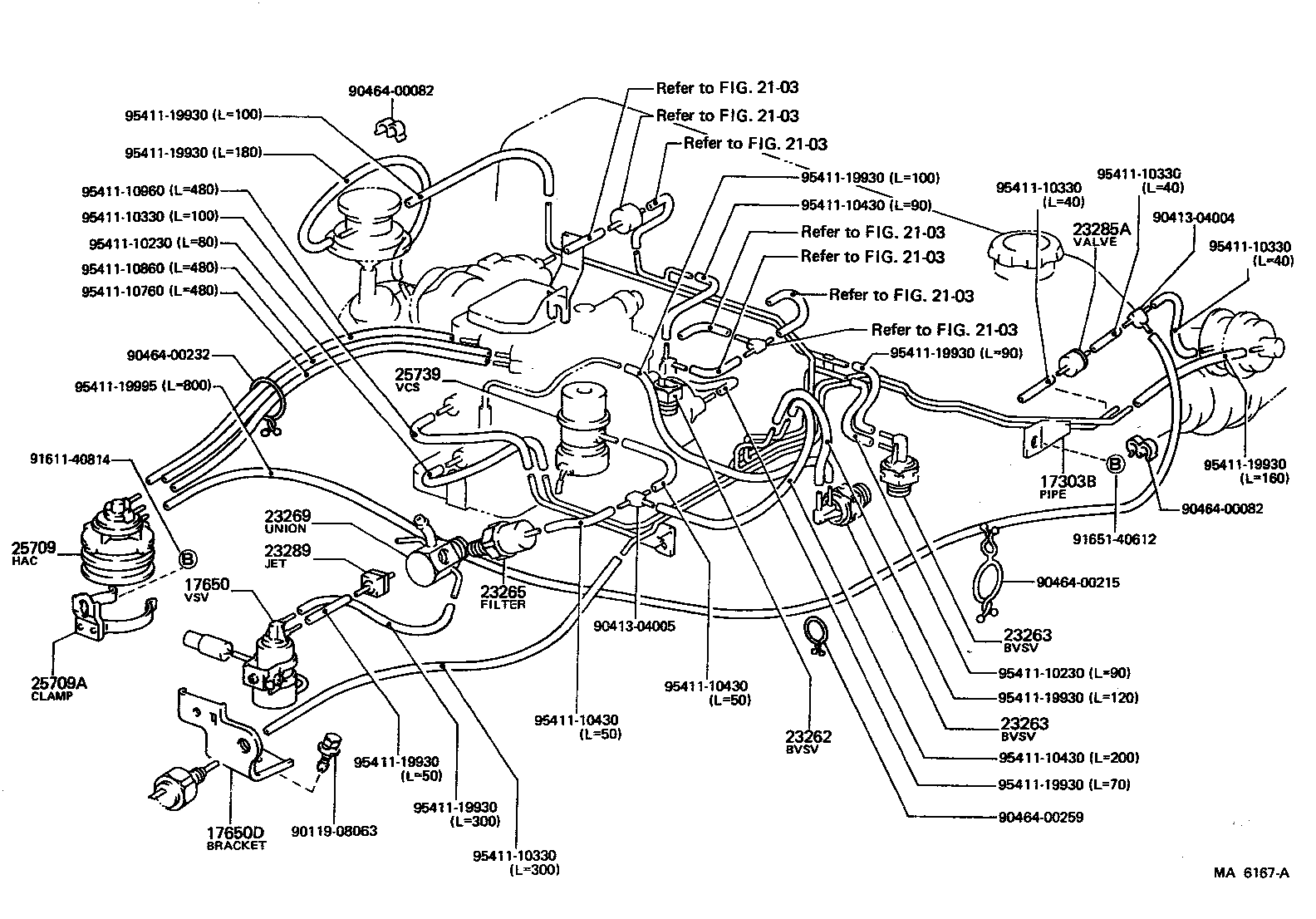

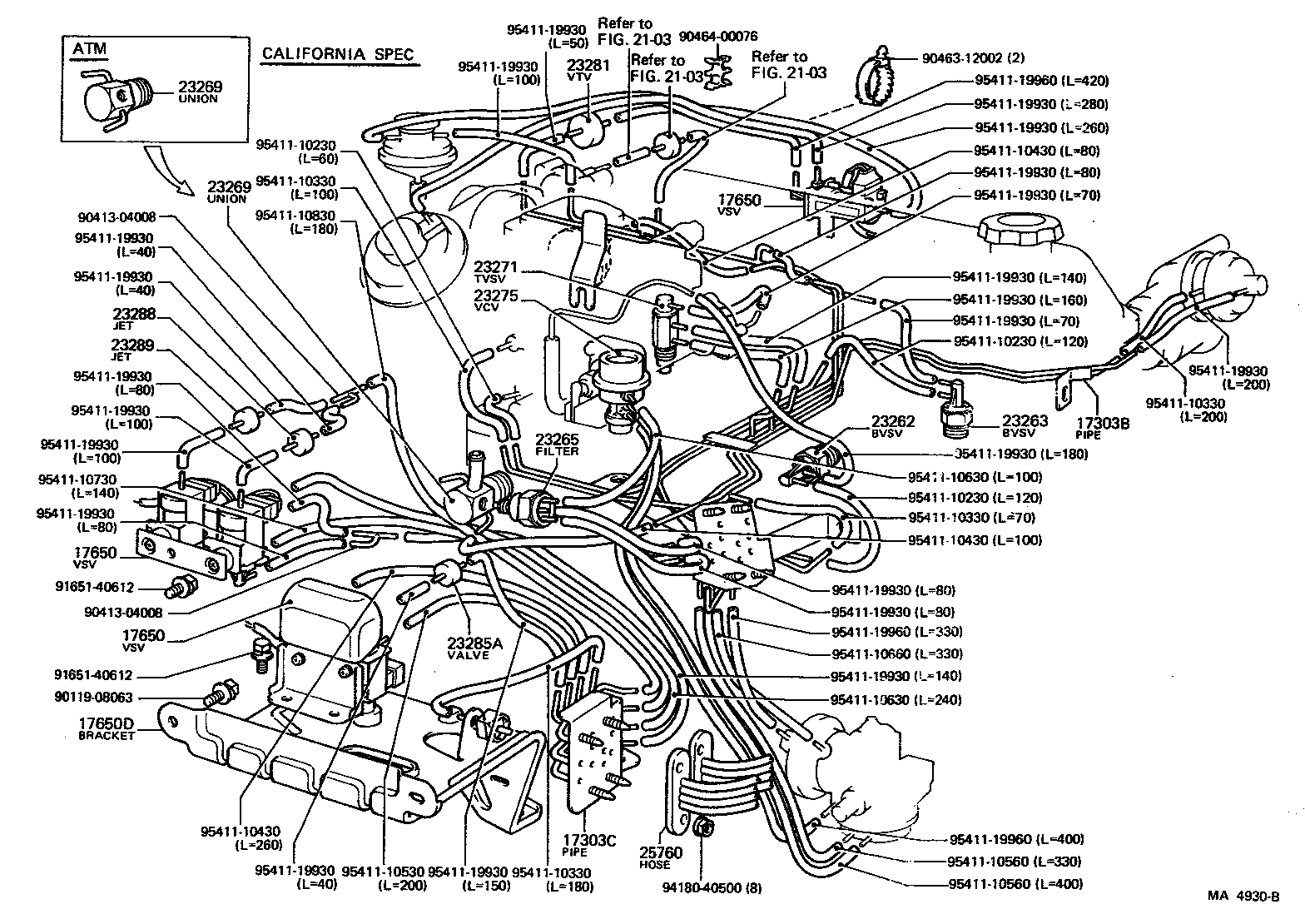

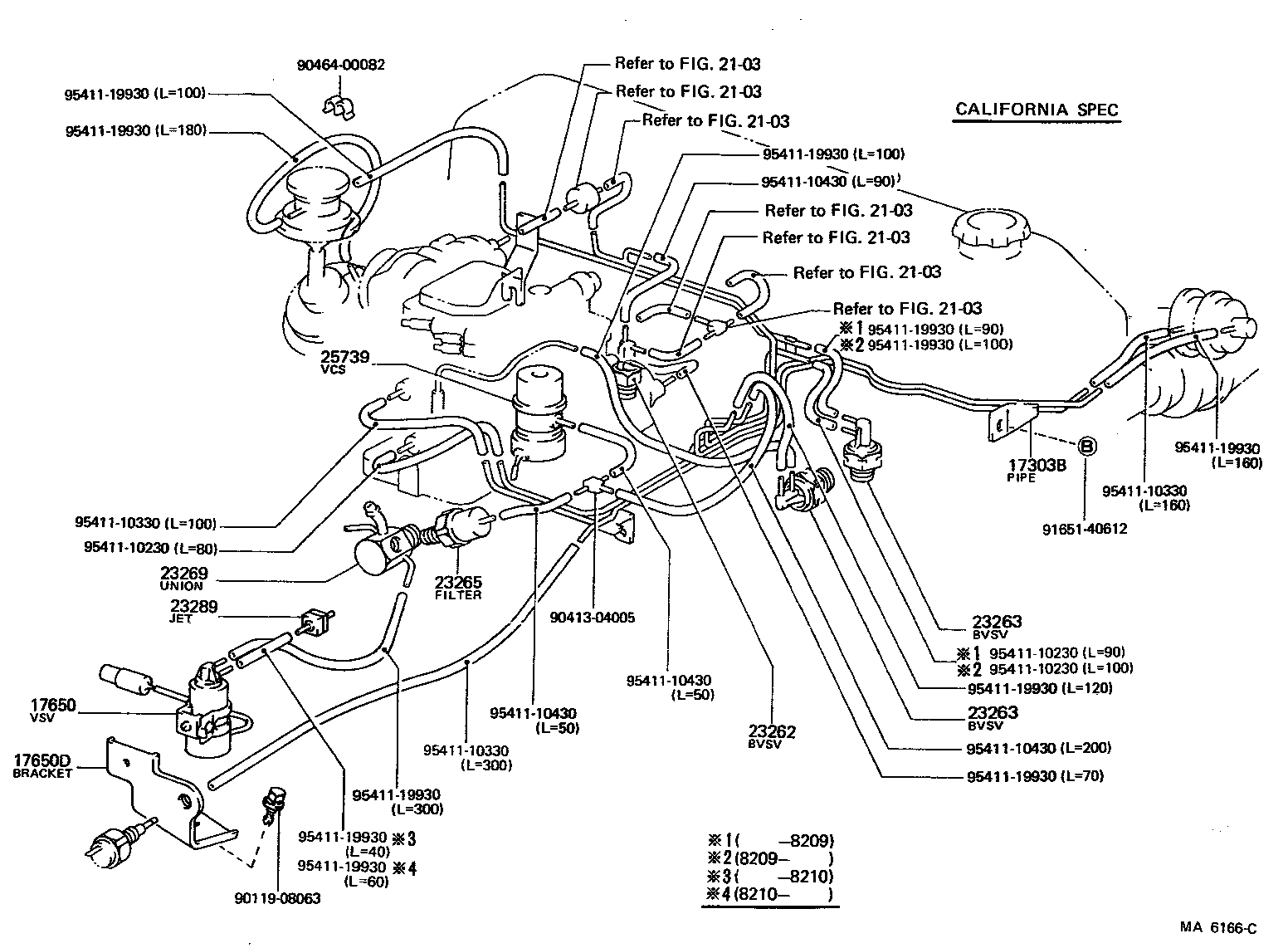

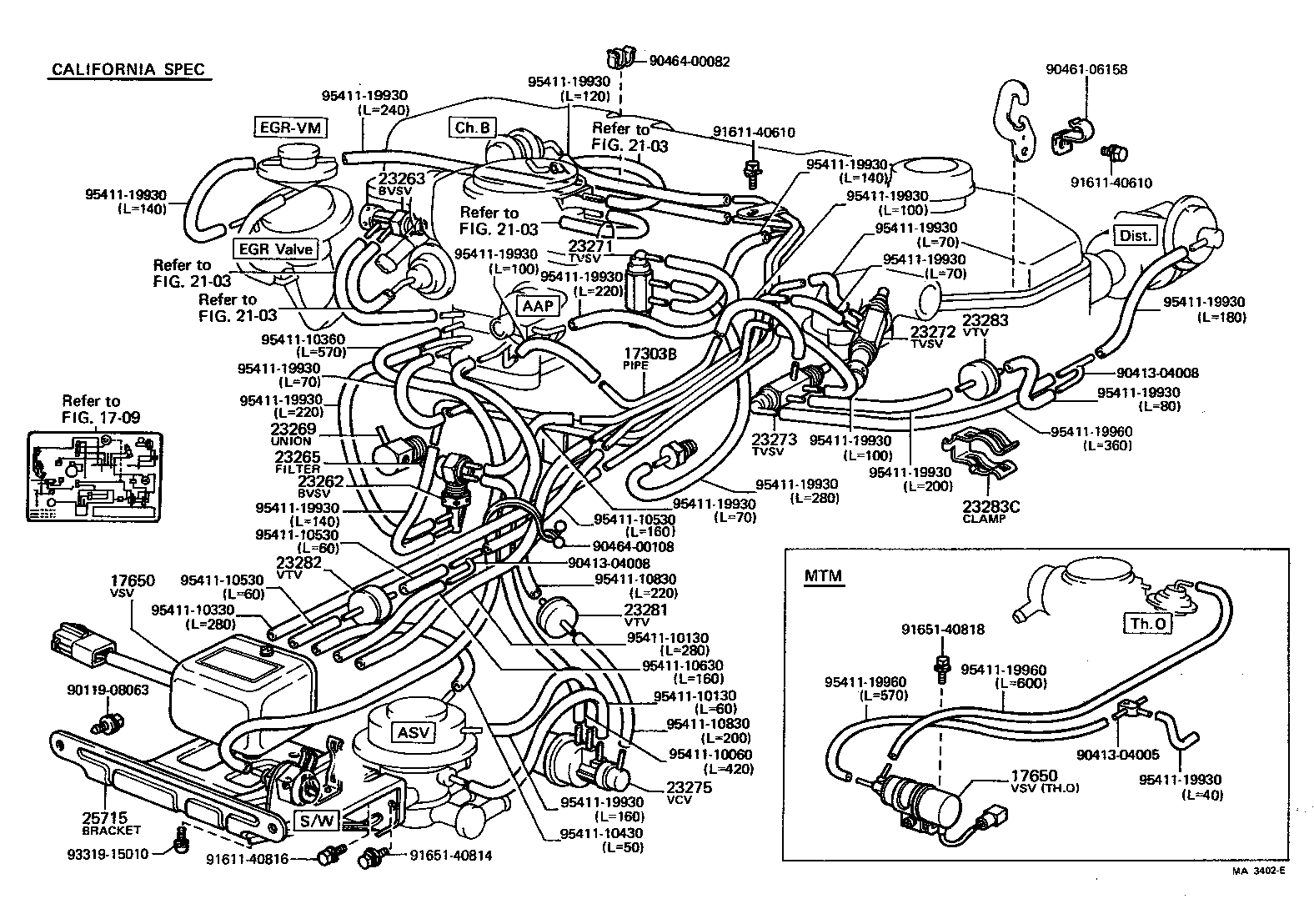

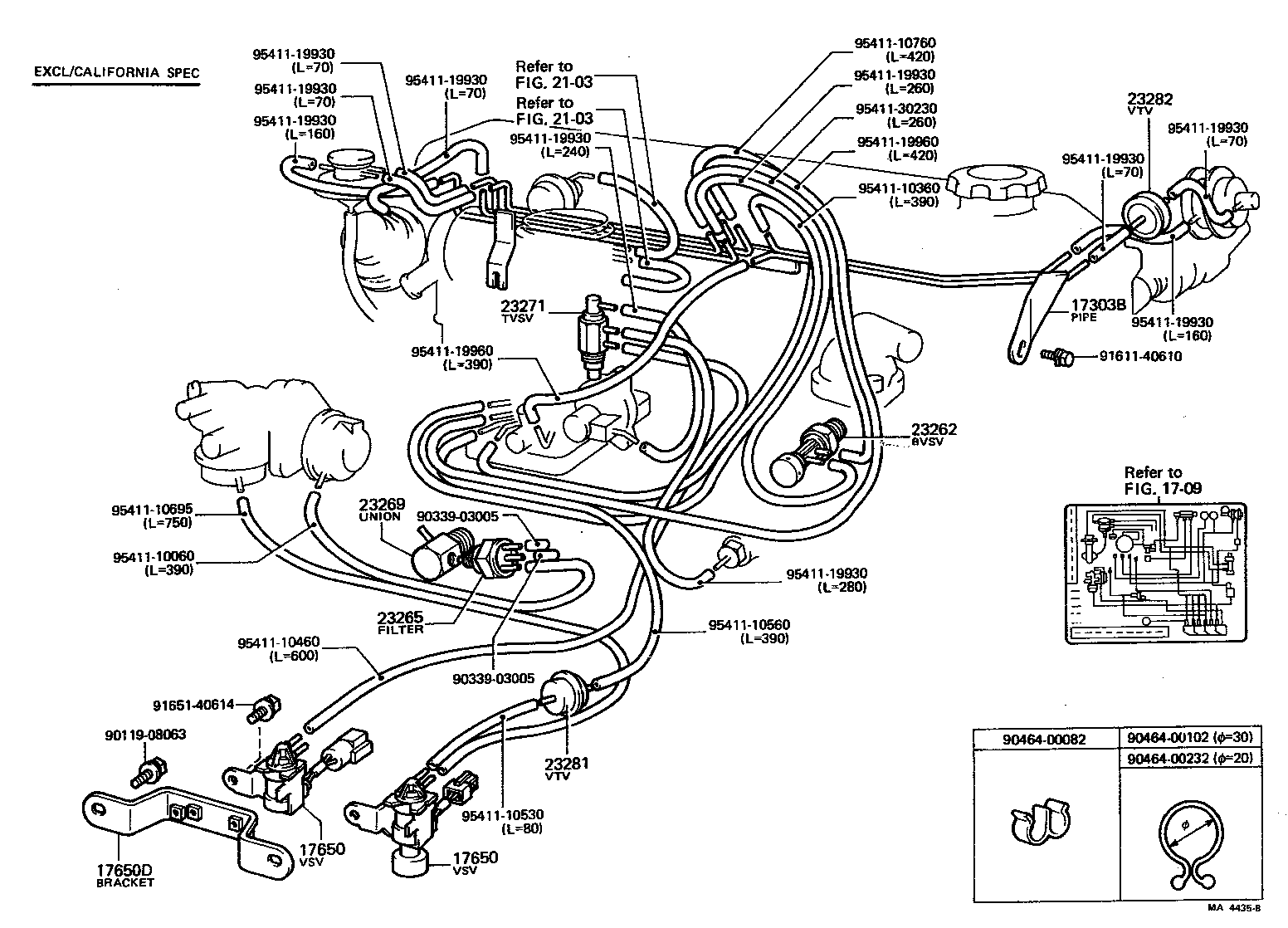

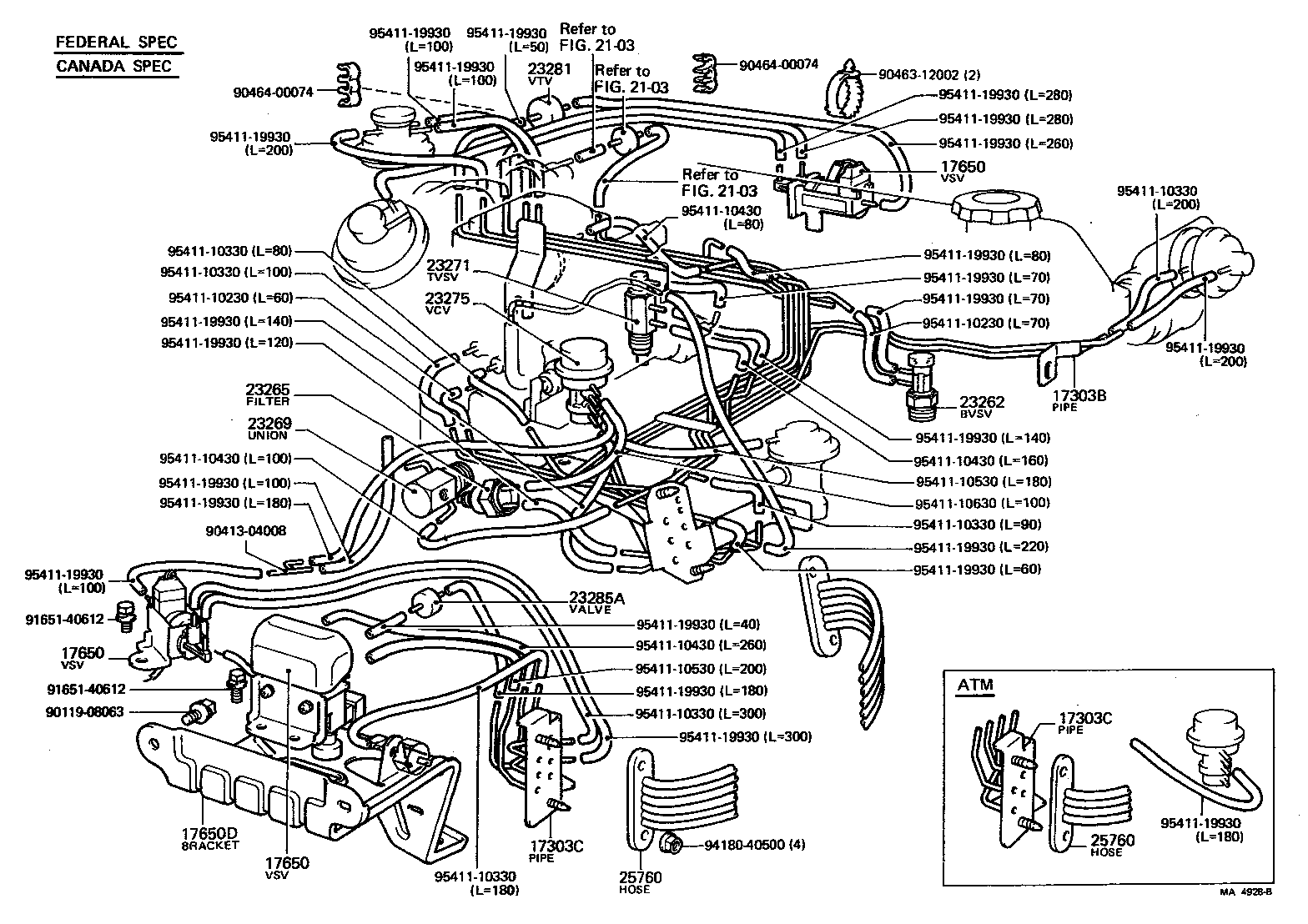

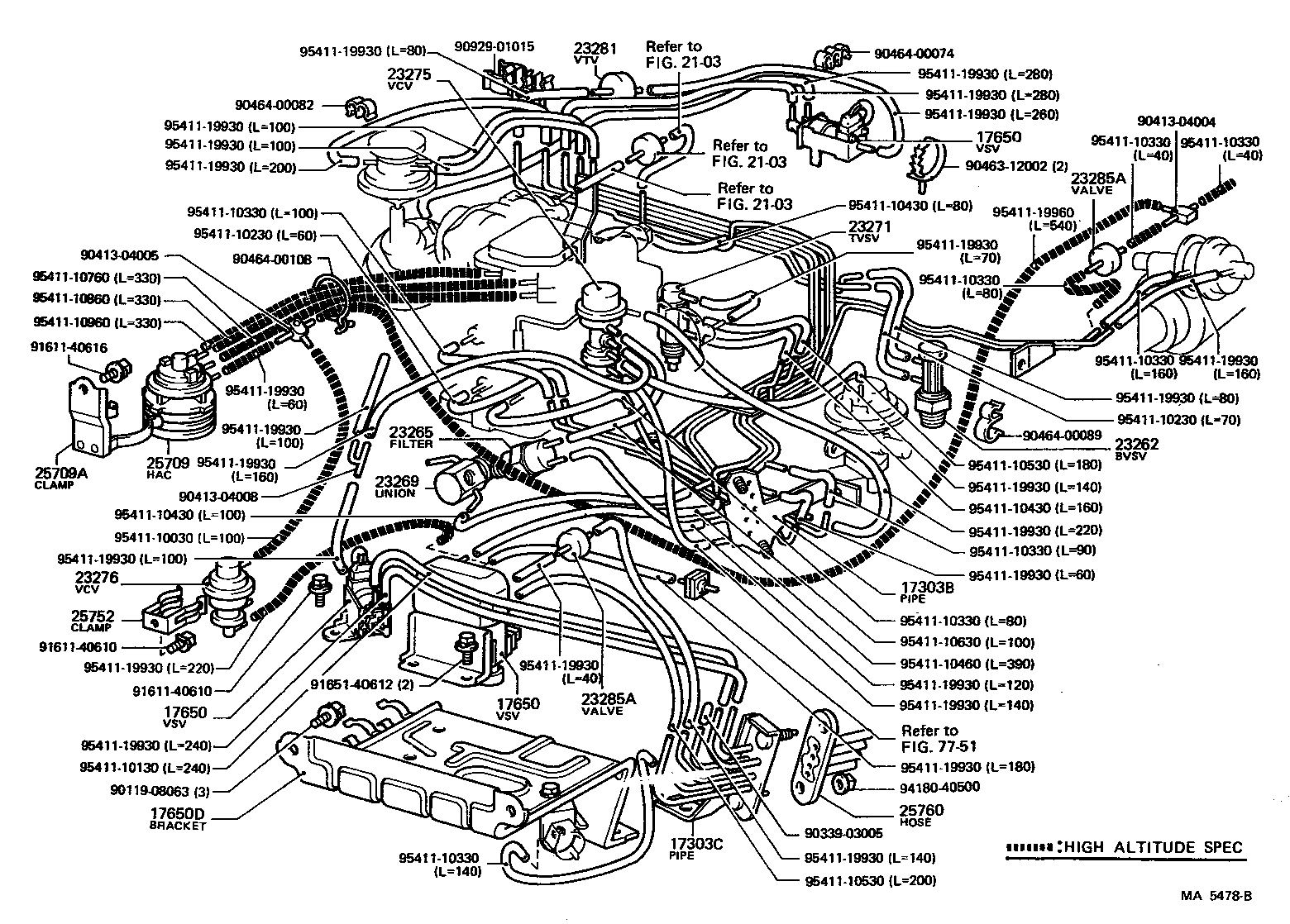

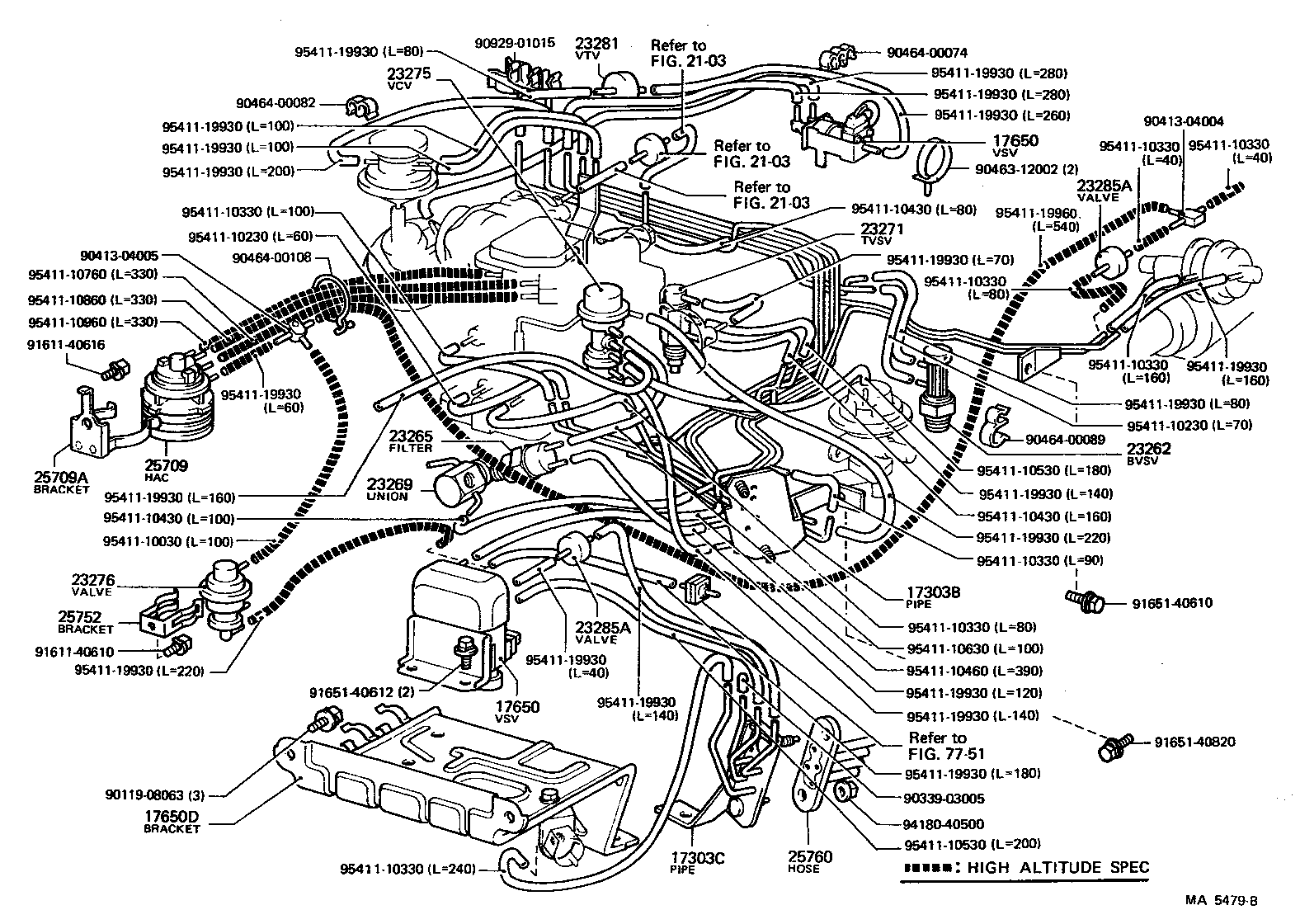

Figure MA9502Z MA9502Z 1978-08 → — Figure MA3401F MA3401F 1978-08 → 1979-08 Figure MA3401F MA3401F 1979-01 → 1979-08 Figure MA3402E MA3402E 1978-08 → 1979-08 Figure MA4434B MA4434B 1979-08 → 1980-08 Figure MA4435B MA4435B 1979-08 → 1980-08 Figure MA4436C MA4436C 1979-08 → 1980-08 Figure MA4437C MA4437C 1979-08 → 1980-08 Figure MA4449A MA4449A 1979-08 → 1980-08 Figure AS0082A AS0082A 1979-01 → 1980-08 Figure MA4928B MA4928B 1980-08 → 1981-04 Figure MA4929B MA4929B 1980-08 → 1981-04 Figure MA4930B MA4930B 1980-08 → 1981-04 Figure MA4931B MA4931B 1980-08 → 1981-04 Figure MA5227A MA5227A 1981-04 → 1981-08 Figure MA5228A MA5228A 1981-04 → 1981-08 Figure MA5229B MA5229B 1981-04 → 1981-08 Figure MA5230A MA5230A 1981-04 → 1981-08 Figure MA4932A MA4932A 1980-08 → 1981-08 Figure MA5478B MA5478B 1981-08 → 1982-08 Figure MA5479B MA5479B 1981-08 → 1982-08 Figure MA5553 MA5553 1981-08 → 1982-08 Figure MA5480B MA5480B 1981-08 → 1982-08 Figure MA5481C MA5481C 1981-08 → 1982-08 Figure MA5482C MA5482C 1981-08 → — Figure MA6164A MA6164A 1982-08 → — Figure MA6123 MA6123 1982-08 → — Figure MA6165C MA6165C 1982-08 → — Figure MA6166C MA6166C 1982-08 → — Figure MA6167A MA6167A 1982-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23272 Valve, Thermostatic Vacuum Switching, NO.2
23273 Valve, Thermostatic Vacuum Switching, NO.3
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23283C Clamp, Vacuum Transmitting Valve
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25709K Compensator Kit, High Altitude
25715 Bracket, Emission Control Valve
25739 Switch, Vacuum Control
25752 Clamp, Vacuum Control Valve, NO.2
25760 Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
