Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03

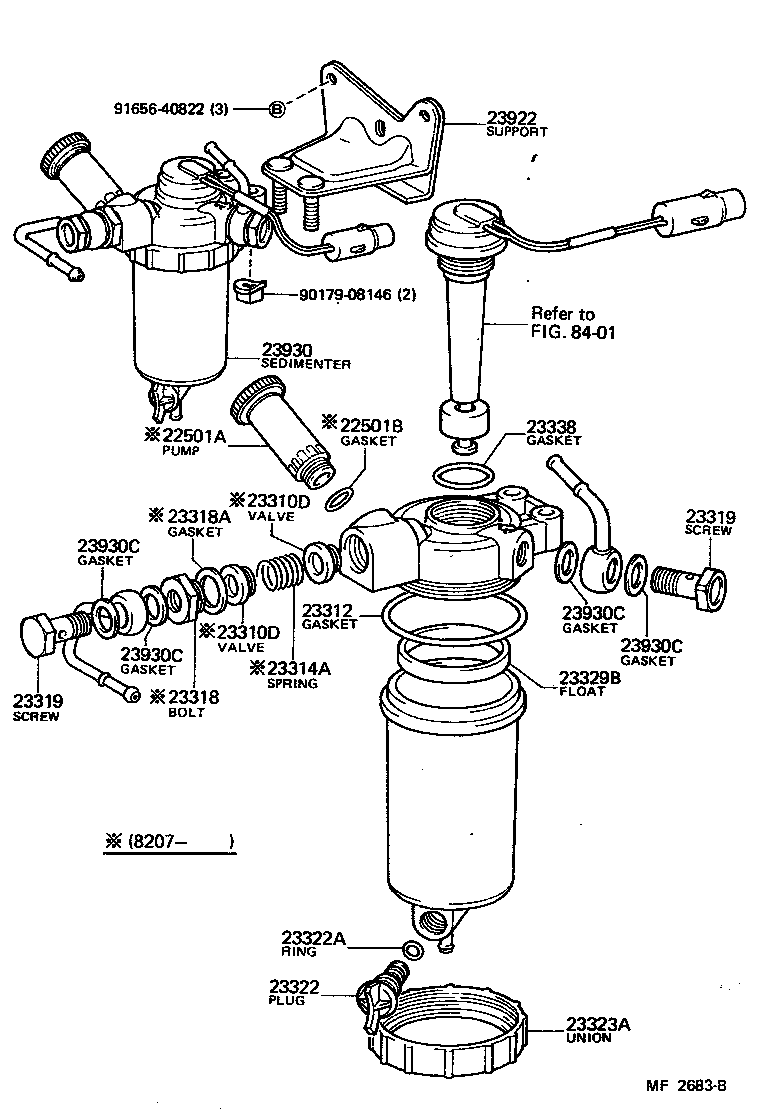

Fuel Filter
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22501A | Pump Sub-assy, Priming |
| 22501B | Gasket(FOR PRIMING PUMP) |
| 23300 | Filter Assy, Fuel |
| 23300A | Union, Nipple(FOR FUEL FILTER INLET) |
| 23300B | Union, Nipple(FOR FUEL FILTER OUTLET) |
| 23300C | Gasket, Nipple Union(FOR FUEL) |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23303 | Element Sub-assy, Fuel Filter |
| 23310D | Valve Sub-assy, Fuel Sedimenter |
| 23312 | Gasket, Filter Bowl |
| 23314A | Spring, Fuel Sedimenter |
| 23318 | Bolt, Union |
| 23318A | Gasket(FOR UNION BOLT) |
| 23319 | Screw, Fuel Pipe Follow |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23323A | Union |
| 23329B | Float, Level Warning |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23921 | Support, Fuel Filter |
| 23922 | Support, Fuel Sedimenter |
| 23930 | Sedimenter Assy, Fuel |
| 23930C | Gasket, Union(FOR FUEL SEDIMENTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
