Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

13 part groups · 3 illustrations

Illustrations

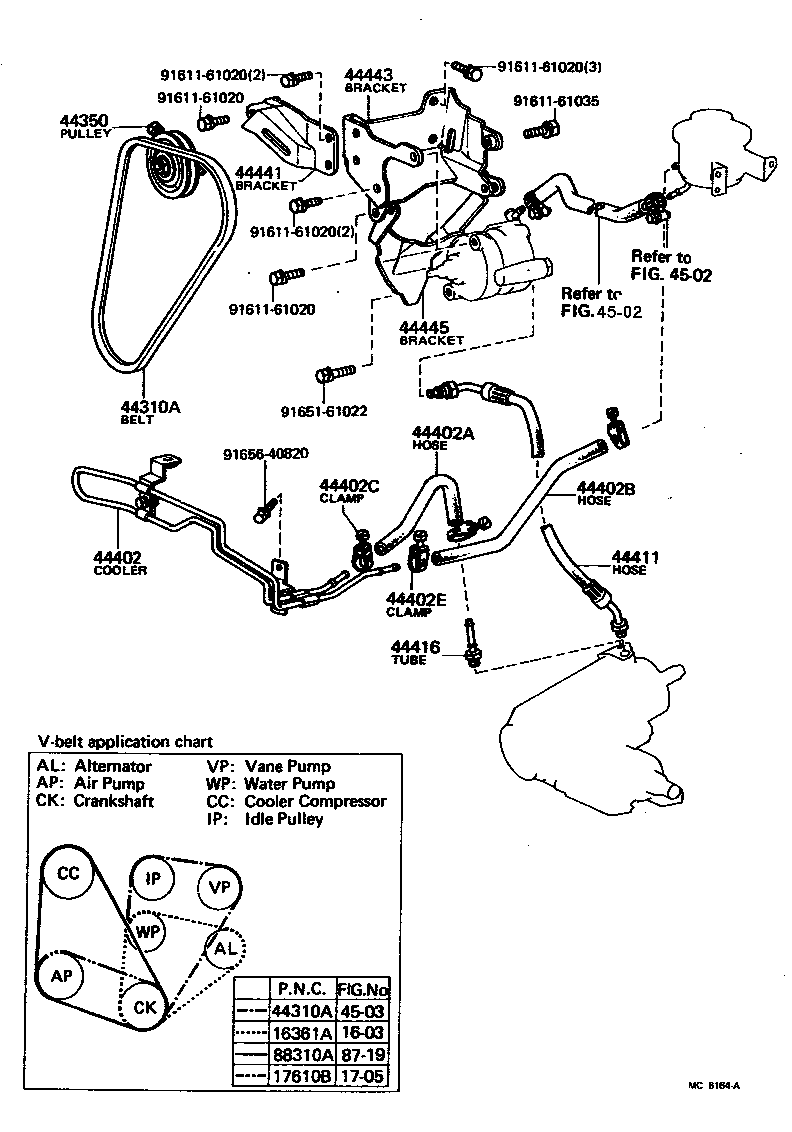

Figure MC7070A MC7070A 1980-08 → — Figure MC7070A MC7070A 1983-04 → — Figure MC6164A MC6164A 1979-01 → —

Part groups

PNCDescription
44350 Pulley Assy, Power Steering Idle
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423F Bolt, Union
44423G Gasket, Union Bolt
44441 Bracket, Pump, Front
44443 Bracket, Pump
44445 Bracket, Pump, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
