Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

14 part groups · 7 illustrations

Illustrations

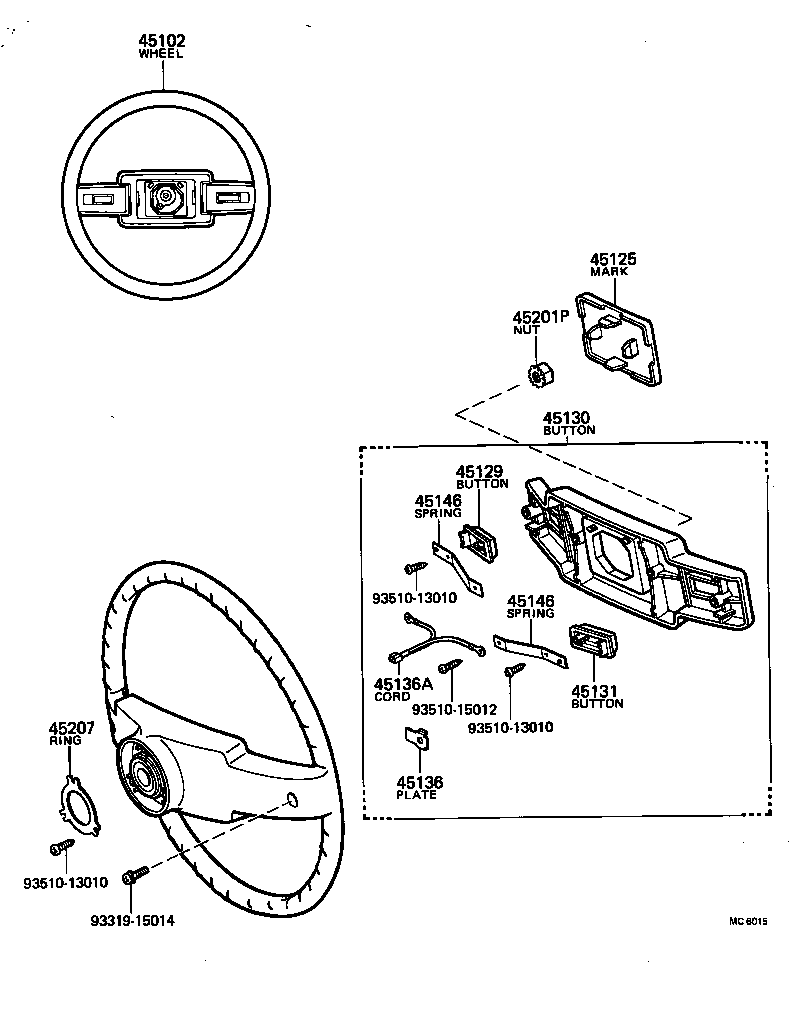

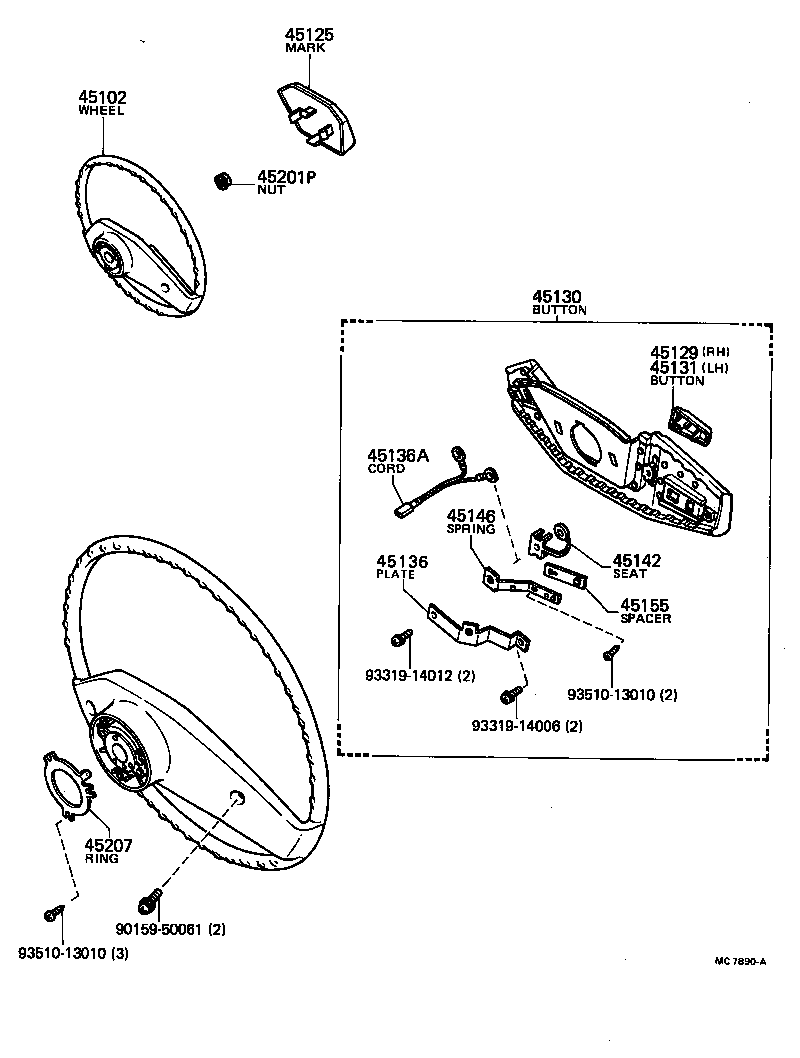

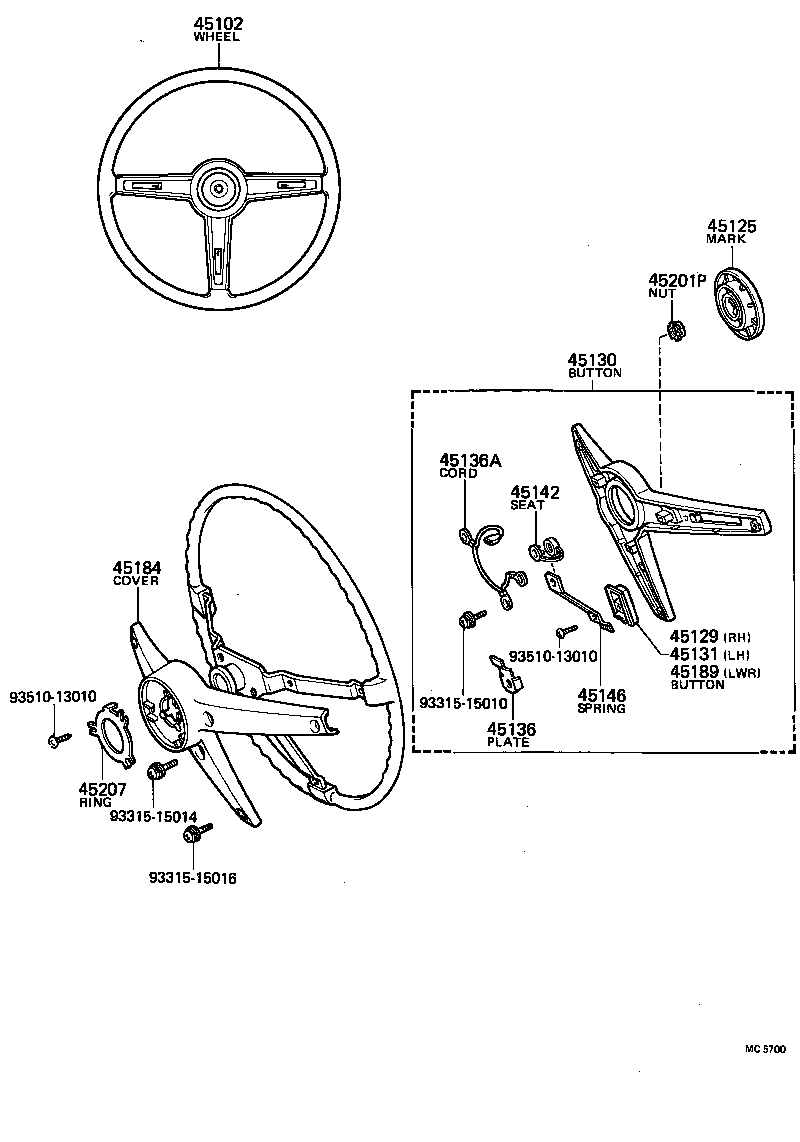

Figure MC5699 MC5699 1978-08 → 1981-08 Figure MC7890A MC7890A 1981-08 → — Figure MC6015 MC6015 1979-01 → 1981-08 Figure MC6015 MC6015 1981-08 → — Figure MC5700 MC5700 1978-08 → 1981-08 Figure MC5700 MC5700 1981-08 → — Figure MC5102A MC5102A 1983-01 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
