Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03

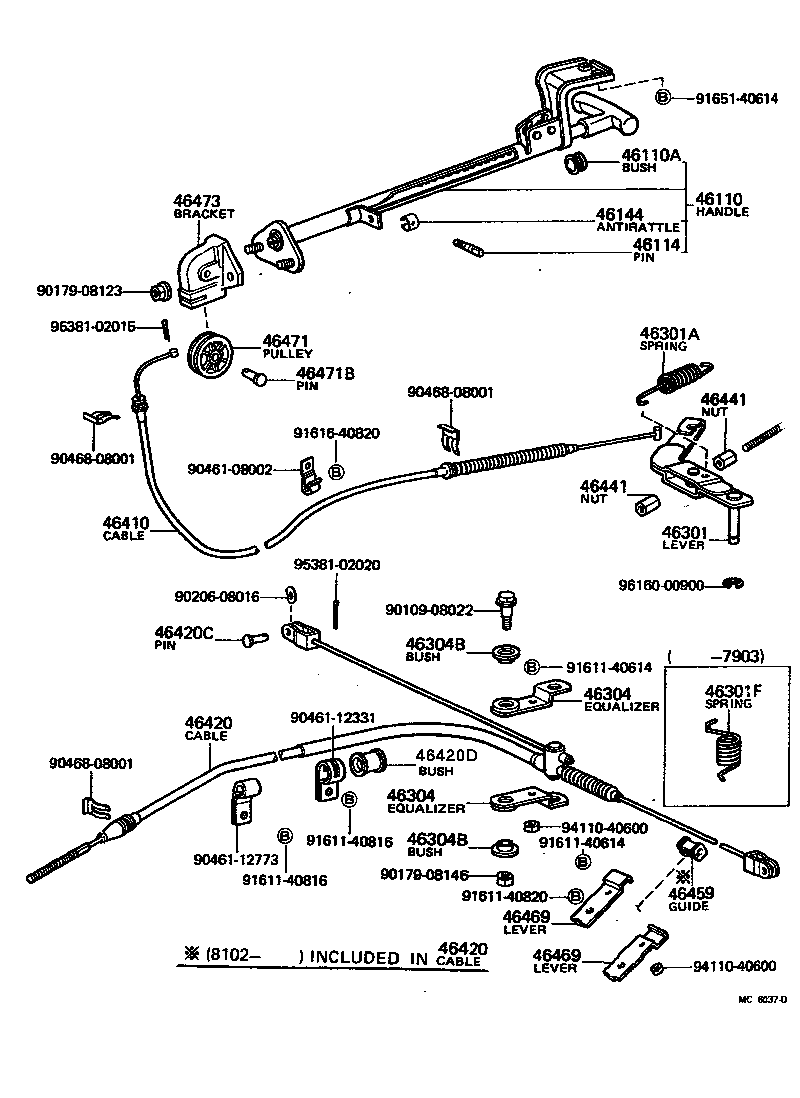

Parking Brake & Cable
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46110 | Handle Assy, Parking Brake Control |
| 46110A | Bush OR Ring, O (FOR PARKING BRAKE PLUNGER) |
| 46114 | Pin, Parking Brake Plunger |
| 46144 | Anti-rattle, Parking Brake Plunger |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301A | Spring, Tension(FOR INTERMEDIATE LEVER) |
| 46301F | Spring, Torsion(FOR PARKING BRAKE INTERMEDIATE LEVER) |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46304B | Bush(FOR PARKING BRAKE EQUALIZER) |
| 46361 | Rod, Parking Brake Pull |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46420D | Grommet OR Bush(FOR PARKING BRAKE CABLE CLAMP) |
| 46420E | Grommet(FOR PARKING BRAKE CABLE CLAMP) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46438 | Insulator, Parking Cable Dust Cover Heat |
| 46439 | Insulator, Parking Brake Cable Heat |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46459 | Guide, Cable |
| 46469 | Lever, Cable Guide Support |
| 46471 | Pulley, Wire |
| 46471B | Pin, W/Hole(FOR WIRE PULLEY SET) |
| 46473 | Bracket, Pulley |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
