Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03
Rear Drum Brake Wheel Cylinder & Backing Plate

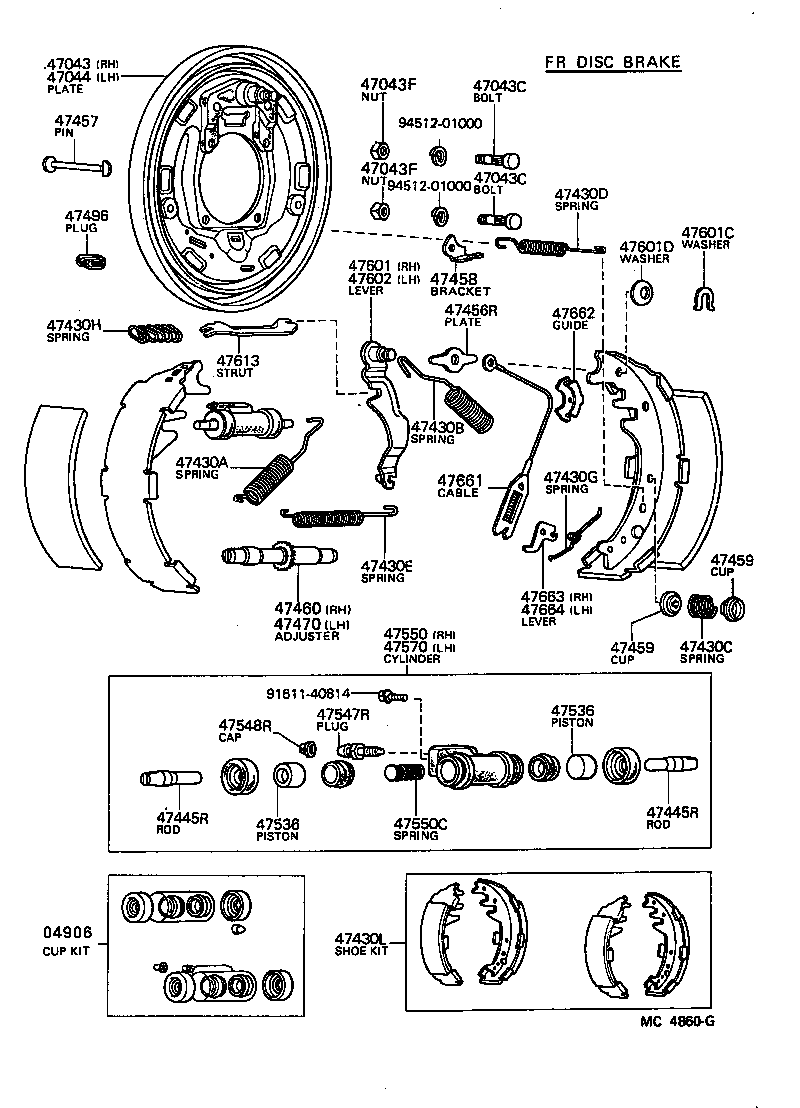

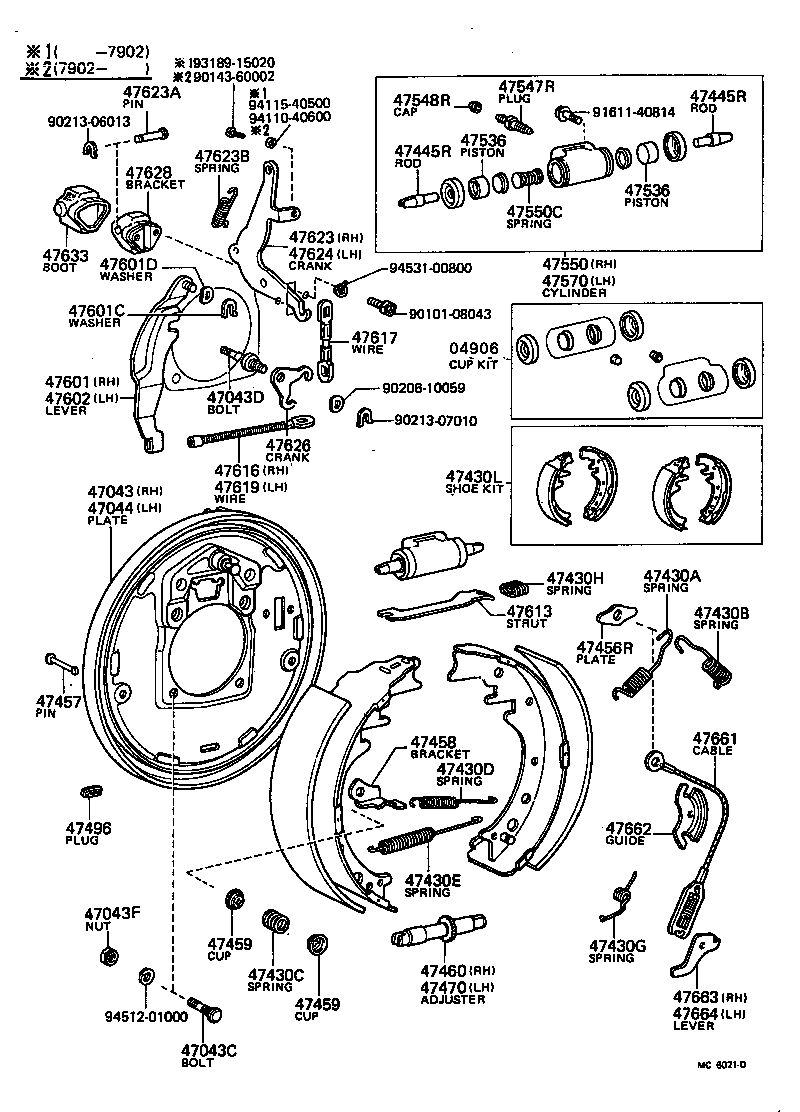

49 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043C | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043D | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47430A | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430B | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430G | Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) |
| 47430H | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47430L | Shoe Kit, Rear Brake |
| 47445R | Rod, Rear Wheel Cylinder |
| 47456R | Plate, Rear Brake Shoe Guide |
| 47457 | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47458 | Bracket, Rear Brake Shoe Return Spring |
| 47459 | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47460 | Adjuster Assy, Shoe, RH(FOR REAR BRAKE) |
| 47470 | Adjuster Assy, Shoe, LH(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47536 | Piston, Wheel Brake Cylinder(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47601 | Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47601D | Washer, Wave(FOR REAR BRAKE) |
| 47602 | Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) |
| 47613 | Strut, Parking Brake Shoe (FOR REAR BRAKE) |
| 47616 | Wire, Parking Brake, RH |
| 47617 | Wire, Parking Brake, NO.2 |
| 47619 | Wire, Parking Brake, LH |
| 47623 | Crank, Parking Brake Bell, NO.1 |
| 47623A | Pin(FOR PARKING BRAKE BELL CRANK) |
| 47623B | Spring, Tension(FOR PARKING BRAKE BELL CRANK RETURN) |
| 47624 | Crank, Parking Brake Bell, NO.2 |
| 47626 | Crank, Parking Brake Bell, NO.3 |
| 47628 | Bracket, Rear Brake Bellcrank |
| 47633 | Boot, Parking Brake Bellcrank |
| 47653 | Lining, Rear Brake Shoe(FOR FRONT OR UPPER) |
| 47654 | Lining, Rear Brake Shoe(FOR REAR OR LOWER) |
| 47661 | Cable, Automatic Adjust(FOR REAR BRAKE) |
| 47662 | Guide, Automatic Adjust Cable(FOR REAR BRAKE) |
| 47663 | Lever, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47664 | Lever, Automatic Adjust, LH(FOR REAR BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
