Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03

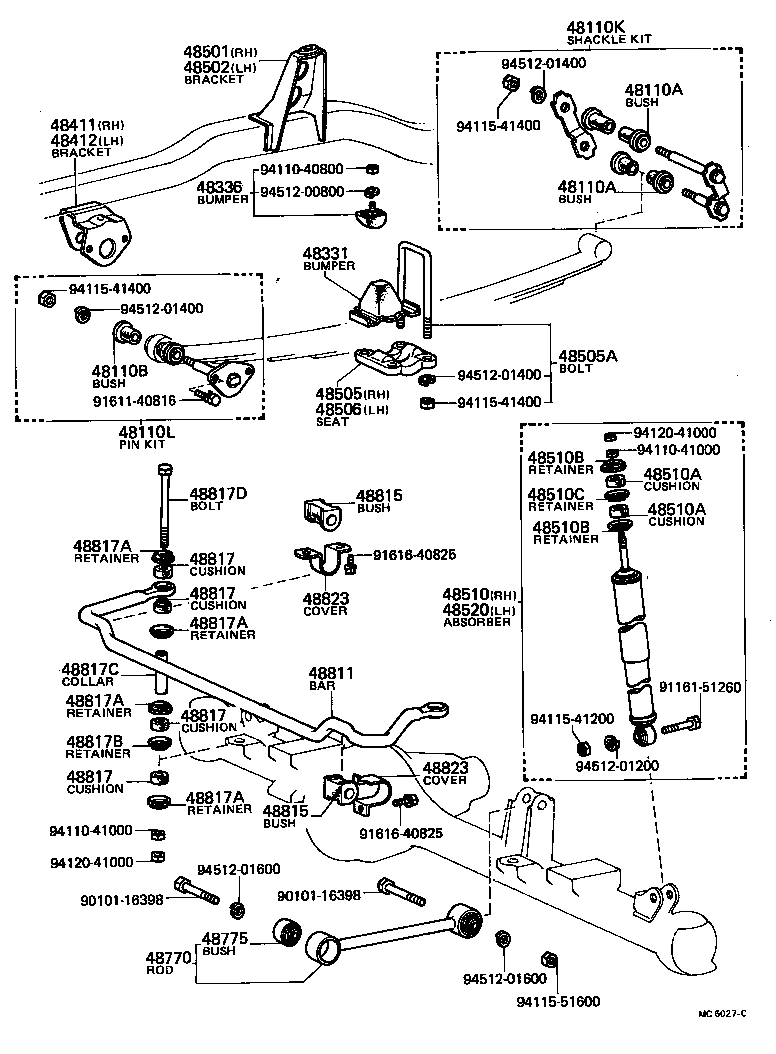

Front Spring & Shock Absorber
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 48107 | Arm Sub-assy, Anchor, RH |
| 48108 | Arm Sub-assy, Anchor, LH |
| 48110 | Spring Assy, Front, RH |
| 48110A | Bush(FOR FRONT SPRING SHACKLE) |
| 48110B | Bush(FOR FRONT SPRING PIN) |
| 48110K | Shackle Kit, Front Spring |
| 48110L | Pin Kit, Front Spring |

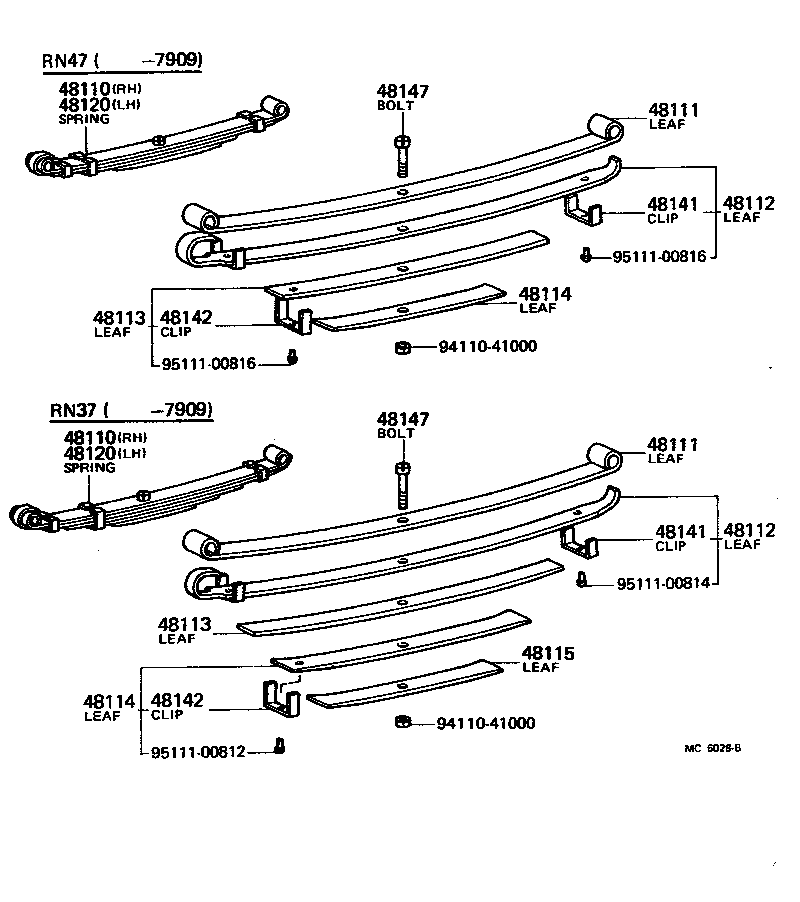

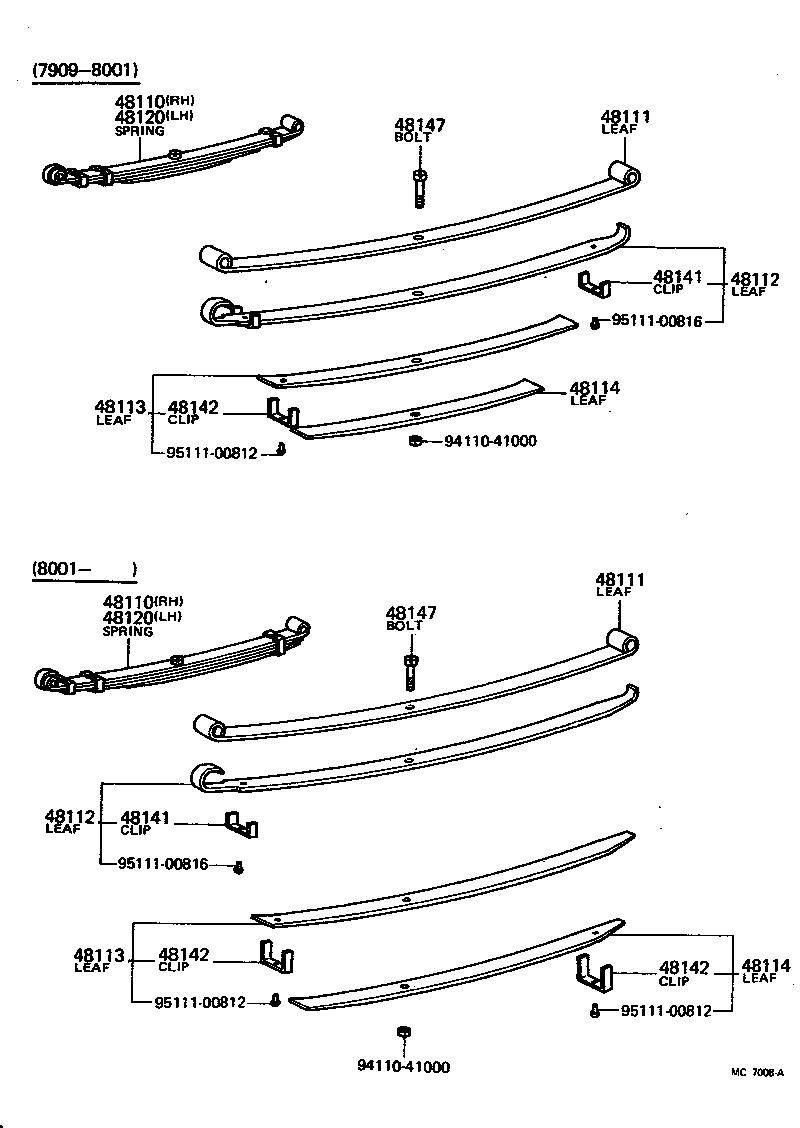

| 48111 | Leaf, Front Spring, NO.1 |
| 48112 | Leaf, Front Spring, NO.2 |
| 48113 | Leaf, Front Spring, NO.3 |
| 48114 | Leaf, Front Spring, NO.4 |
| 48115 | Leaf, Front Spring, NO.5 |
| 48120 | Spring Assy, Front, LH |
| 48141 | Clip, Front Spring, NO.1 |
| 48142 | Clip, Front Spring, NO.2 |
| 48147 | Bolt, Front Spring, Center |
| 48161 | Spring, Torsion Bar, RH |
| 48162 | Spring, Torsion Bar, LH |
| 48173 | Seat, Anchor Arm Adjuster |
| 48173A | Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING) |
| 48174 | Cover, Torsion Bar Dust |
| 48331 | Bumper, Front Spring, NO.1 |
| 48336 | Bumper, Front Spring, NO.2 |
| 48411 | Bracket, Front Spring(FOR FRONT RH) |
| 48412 | Bracket, Front Spring(FOR FRONT LH) |
| 48501 | Bracket Sub-assy, Front Shock Absorber, Upper RH |
| 48502 | Bracket Sub-assy, Front Shock Absorber, Upper LH |
| 48505 | Seat, Front Spring, RH |
| 48505A | Bolt, U(FOR FRONT SPRING) |
| 48506 | Seat, Front Spring, LH |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510A | Cushion, Front Shock Absorber |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510C | Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER) |
| 48520 | Absorber Assy, Shock, Front LH |
| 48660 | Bar Assy, Strut, RH |
| 48670 | Bar Assy, Strut, LH |
| 48674 | Cushion, Strut Bar |
| 48674B | Collar(FOR STRUT BAR CUSHION) |
| 48770 | Rod Sub-assy, Torque |
| 48775 | Bush, Torque Rod |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817B | Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR) |
| 48817C | Collar(FOR STABILIZER BAR) |
| 48817D | Bolt(FOR FRONT STABILIZER) |
| 48823 | Cover, Stabilizer Link(FOR FRONT) |
| 48824 | Bracket, Stabilizer, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
