Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

6 part groups · 3 illustrations

Illustrations

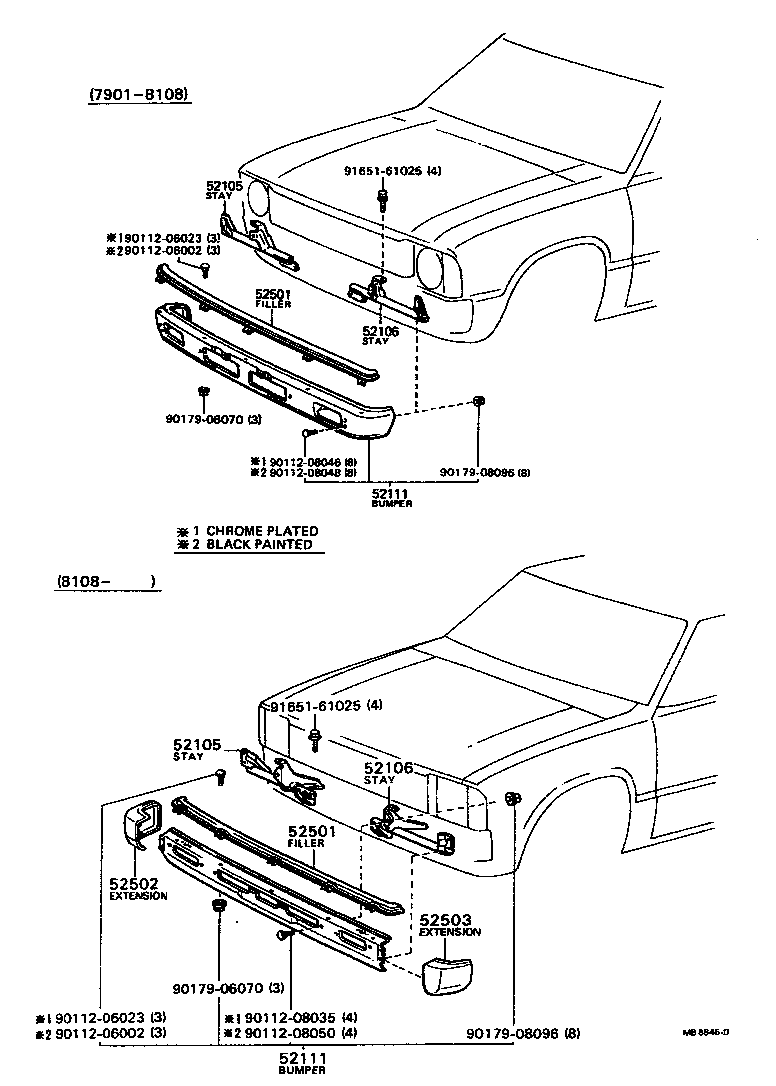

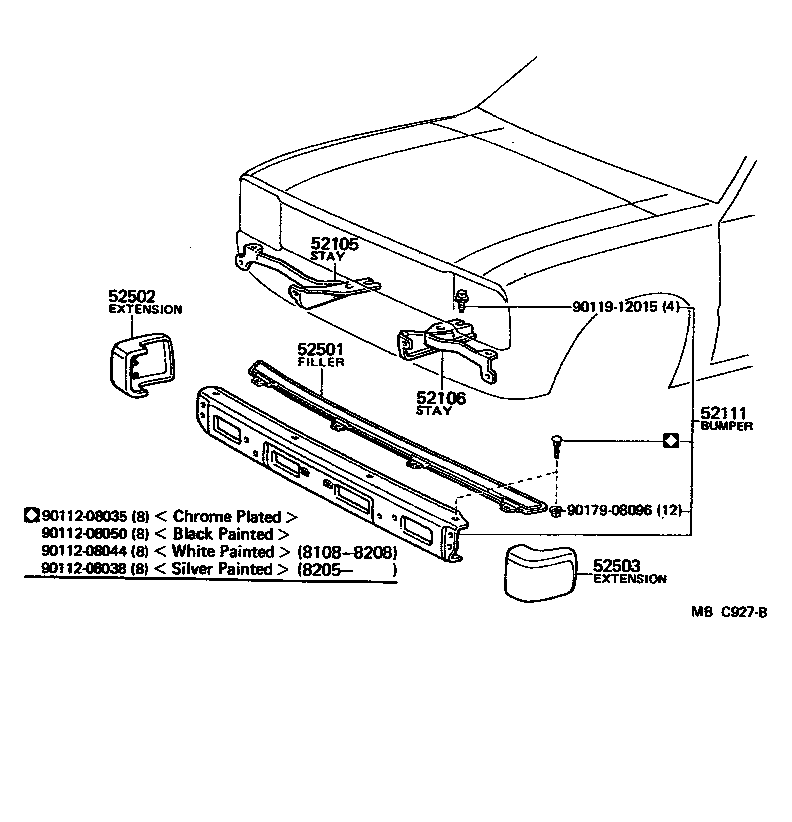

Figure MB8062E MB8062E 1978-08 → 1981-08 Figure MBC927B MBC927B 1981-08 → — Figure MB8846D MB8846D 1979-01 → —

Part groups

PNCDescription
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52501 Filler Sub-assy, Front Bumper
52502 Extension Sub-assy, Front Bumper, RH
52503 Extension Sub-assy, Front Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
