Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

18 part groups · 6 illustrations

Illustrations

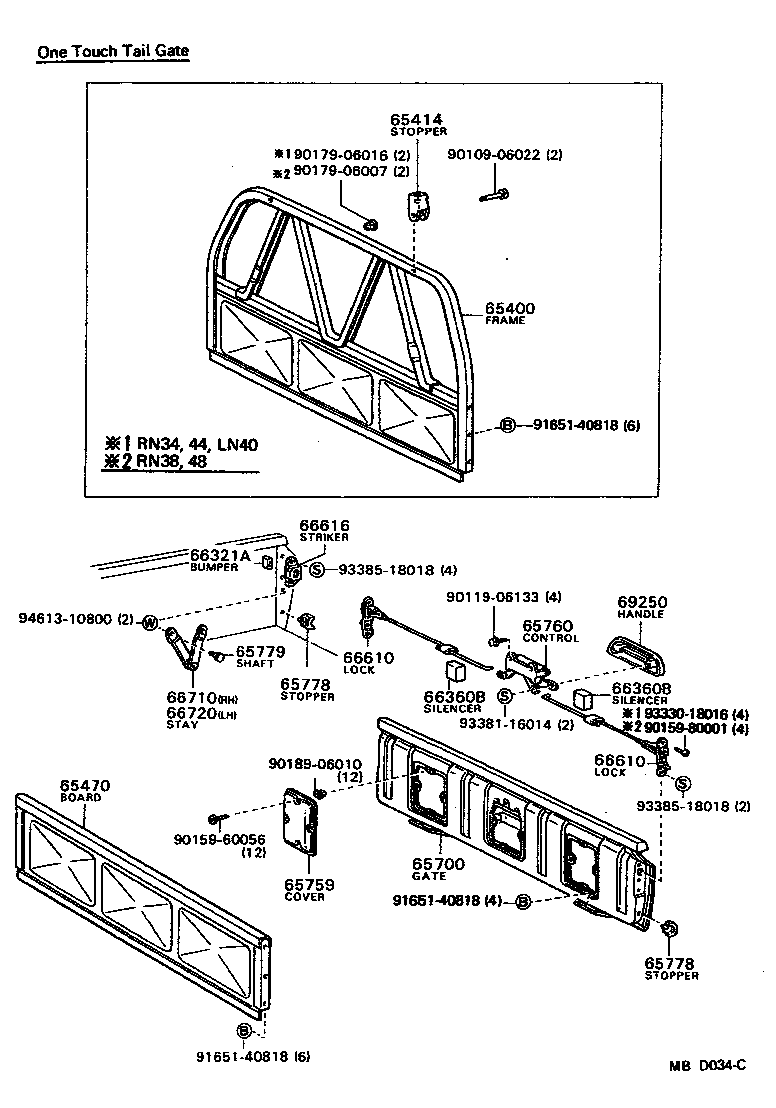

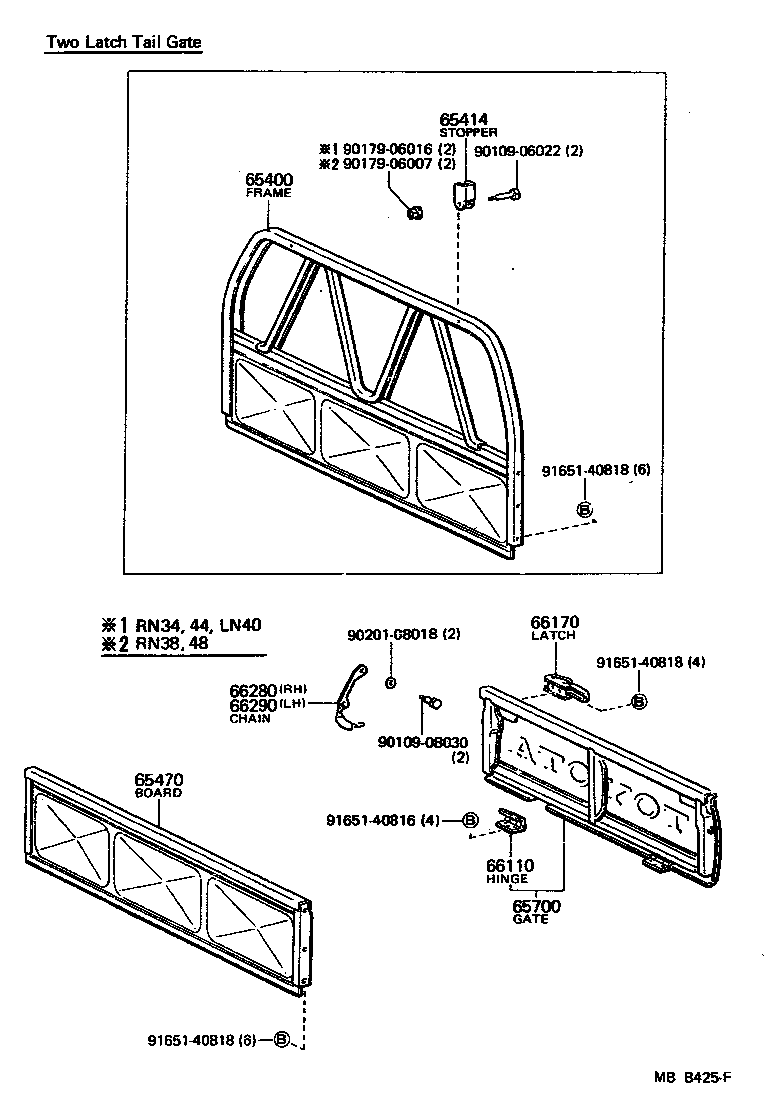

Figure MB8103G MB8103G 1978-08 → 1980-08 Figure MBB425F MBB425F 1980-08 → 1981-01 Figure MBB425F MBB425F 1981-01 → 1981-08 Figure MBB425F MBB425F 1982-05 → — Figure MBC291D MBC291D 1981-01 → — Figure MBD034C MBD034C 1981-08 → —

Part groups

PNCDescription
65400 Frame Assy, Rear Body Guard
65414 Stopper, Guard Frame
65470 Board Assy, Header
65700 Gate Assy, Rear Body Tail
65759 Cover, Tail Gate Service Hole
65760 Control Assy,Tail Gate Lock
65778 Stopper, Tail Gate Stay
65779 Shaft, Tail Gate Stay, Upper
66110 Hinge Assy, Tail Gate
66170 Latch Assy, Rear Body Tail Gate
66280 Chain Assy, Tail Gate, RH
66290 Chain Assy, Tail Gate, LH
66321A Bumper, Gate Rubber
66360B Silencer, Door Lock Link
66610 Lock Assy, Tail Gate
66616 Striker, Tail Gate Lock
66710 Stay Assy, Tail Gate, RH
66720 Stay Assy, Tail Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
