Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

21 part groups · 4 illustrations

Illustrations

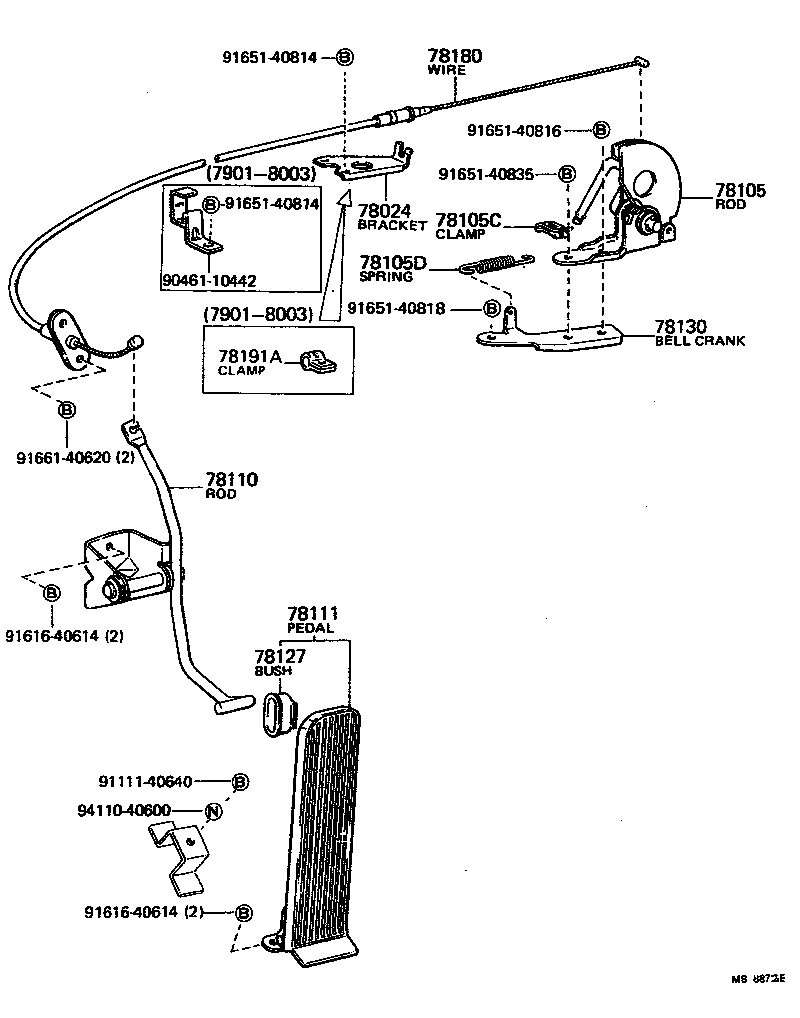

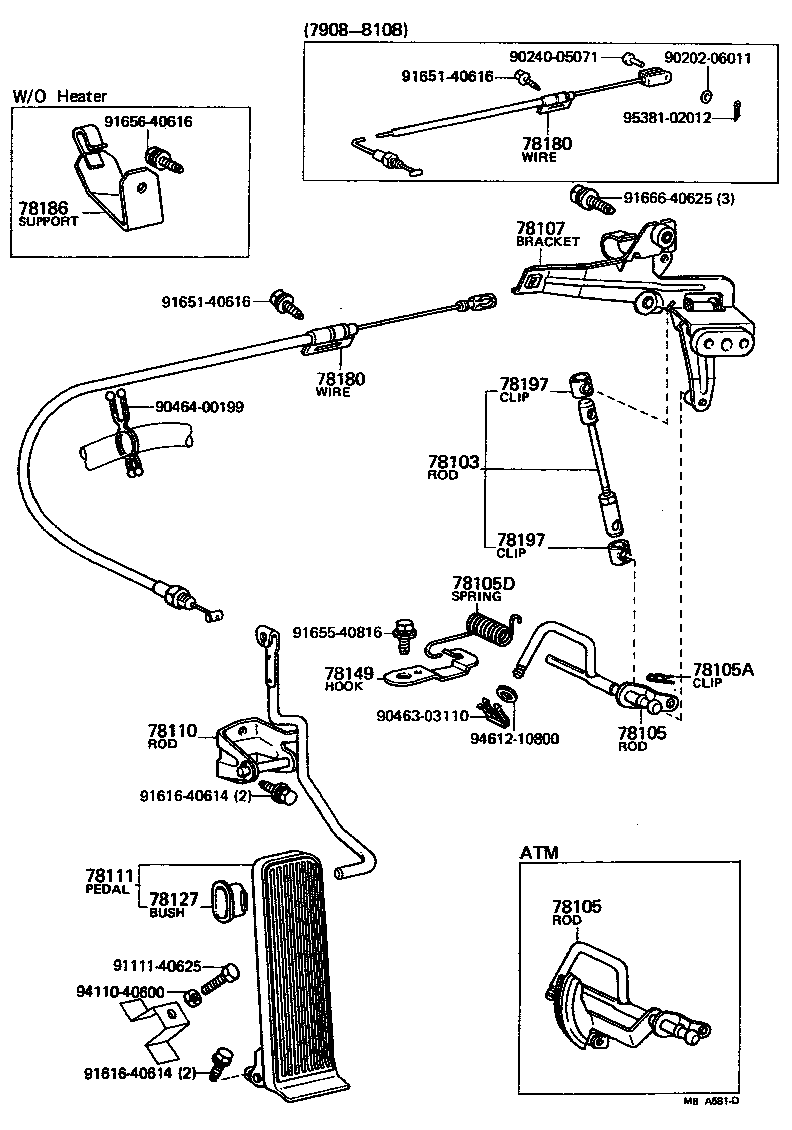

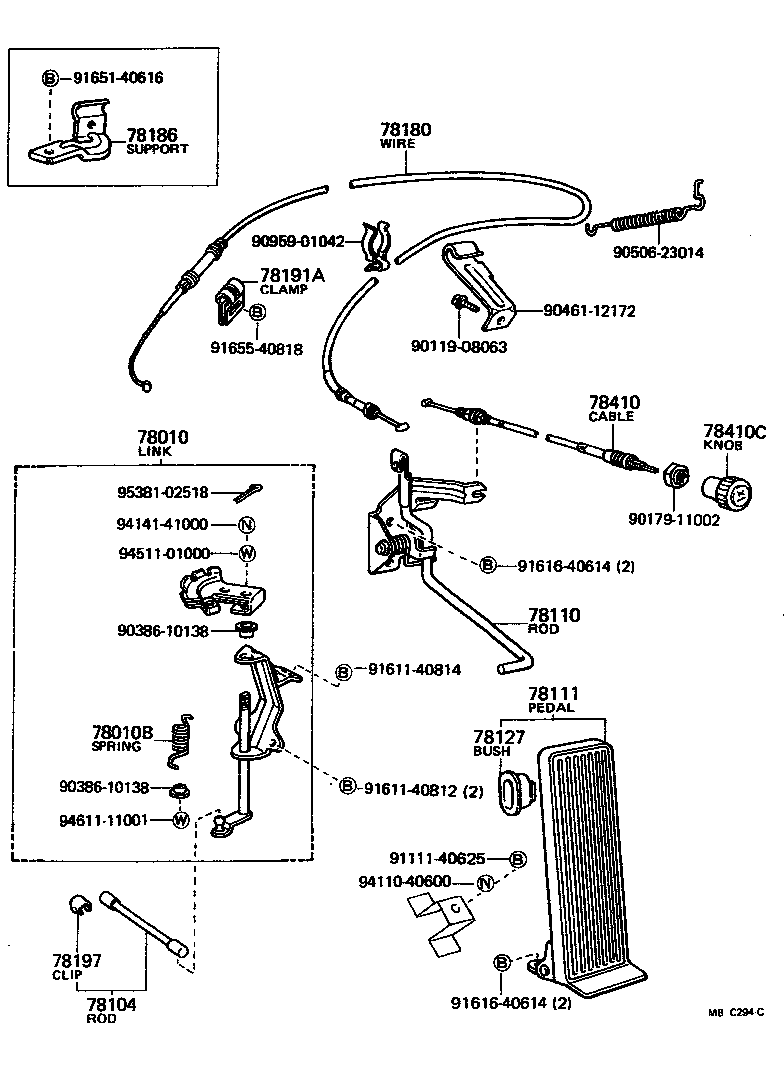

Figure MB8150F MB8150F 1978-08 → 1979-08 Figure MBA581D MBA581D 1979-08 → — Figure MBC294C MBC294C 1981-01 → — Figure MB8872E MB8872E 1979-01 → —

Part groups

PNCDescription
78010 Link, Accelerator
78010B Spring, Torsion (FOR ACCELERATOR LINK)
78024 Bracket Sub-assy, Accelerator Control Cable
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78105A Clip (FOR ACCELERATOR TORQUE ROD)
78105C Clamp (FOR ACCELERATOR TORQUE ROD)
78105D Spring (FOR ACCELERATOR TORQUE ROD)
78107 Bracket Sub-assy, Accelerator Torque Rod
78110 Rod Assy, Accelerator Pedal
78111 Pedal, Accelerator
78127 Bush, Accelerator Pedal, NO.2
78130 Bellcrank Assy, Accelerator
78149 Hook, Accelerator Torque Rod Spring
78180 Wire Assy, Accelerator
78186 Support, Accelerator Control Cable, NO.1
78191A Clamp (FOR ACCELERATOR WIRE SET)
78197 Clip, Accelerator Joint Ball
78410 Cable Assy, Throttle Control
78410C Knob, Throttle Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
