Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Side Marker Lamp

7 part groups · 2 illustrations

Illustrations

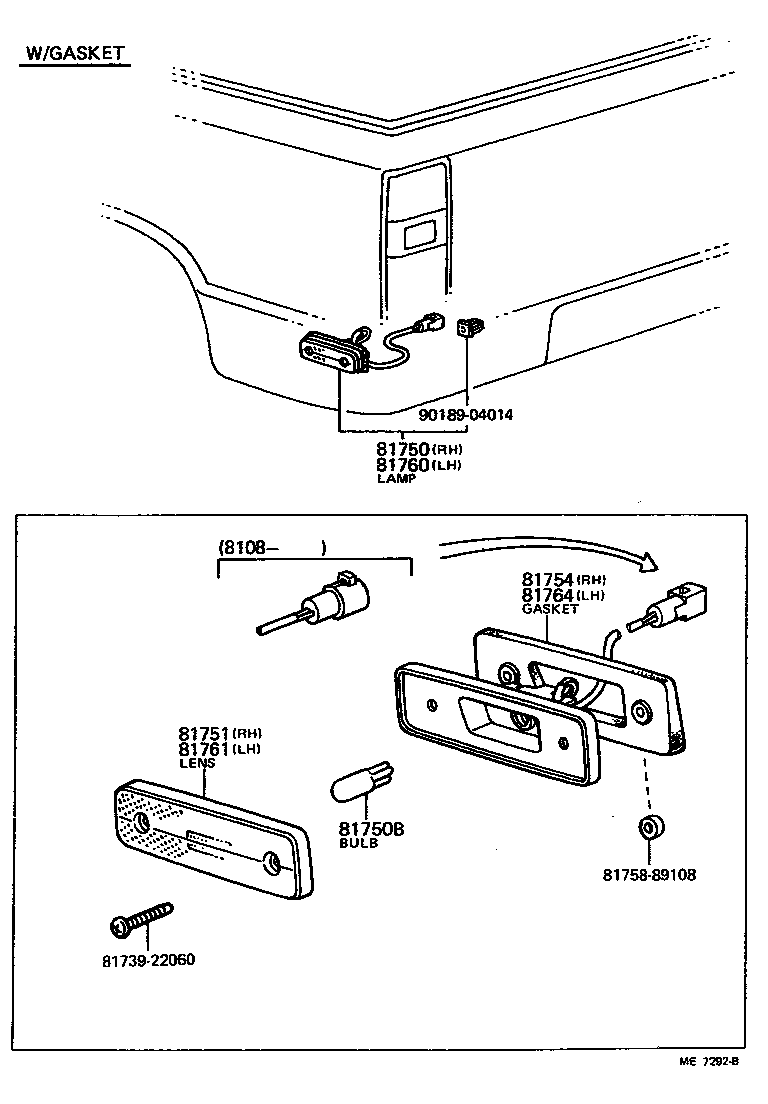

Figure ME7291C ME7291C 1978-08 → — Figure ME7292B ME7292B 1978-08 → —

Part groups

PNCDescription
81750 Lamp Assy, Rear Side Marker, RH
81750B Bulb, Rear Side Marker Lamp
81751 Lens, Rear Side Marker Lamp, RH
81754 Gasket, Rear Side Marker Lamp Body, RH
81760 Lamp Assy, Rear Side Marker, LH
81761 Lens, Rear Side Marker Lamp, LH
81764 Gasket, Rear Side Marker Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
