Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

12 part groups · 3 illustrations

Illustrations

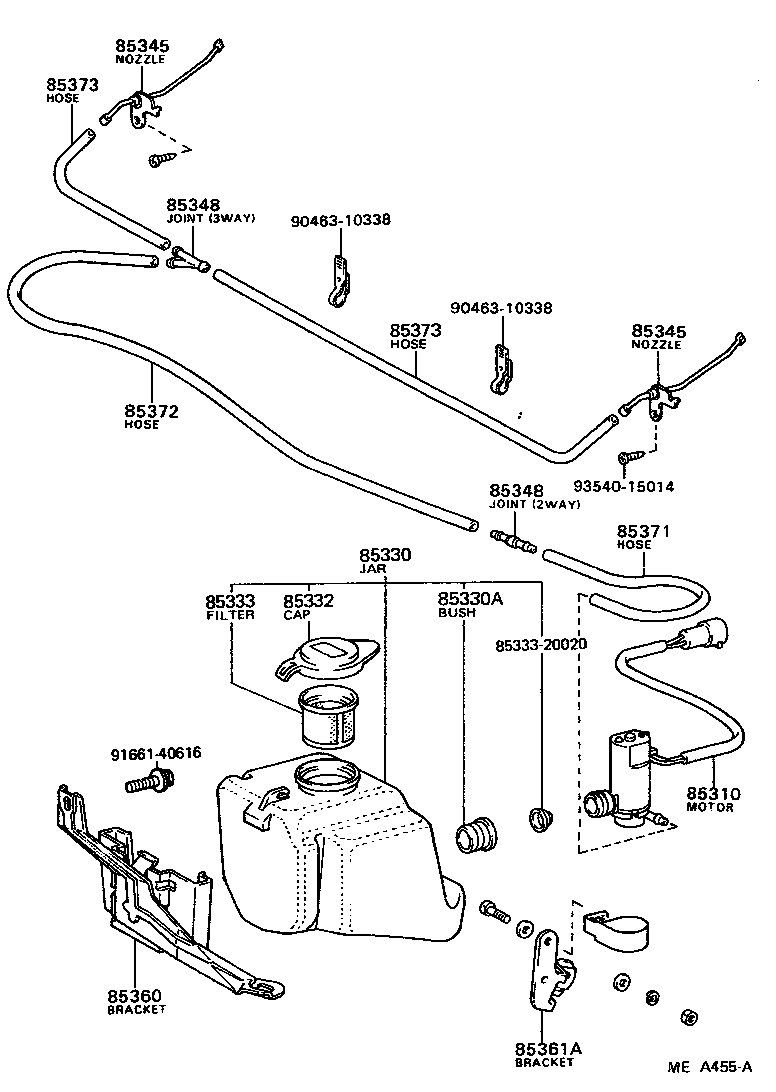

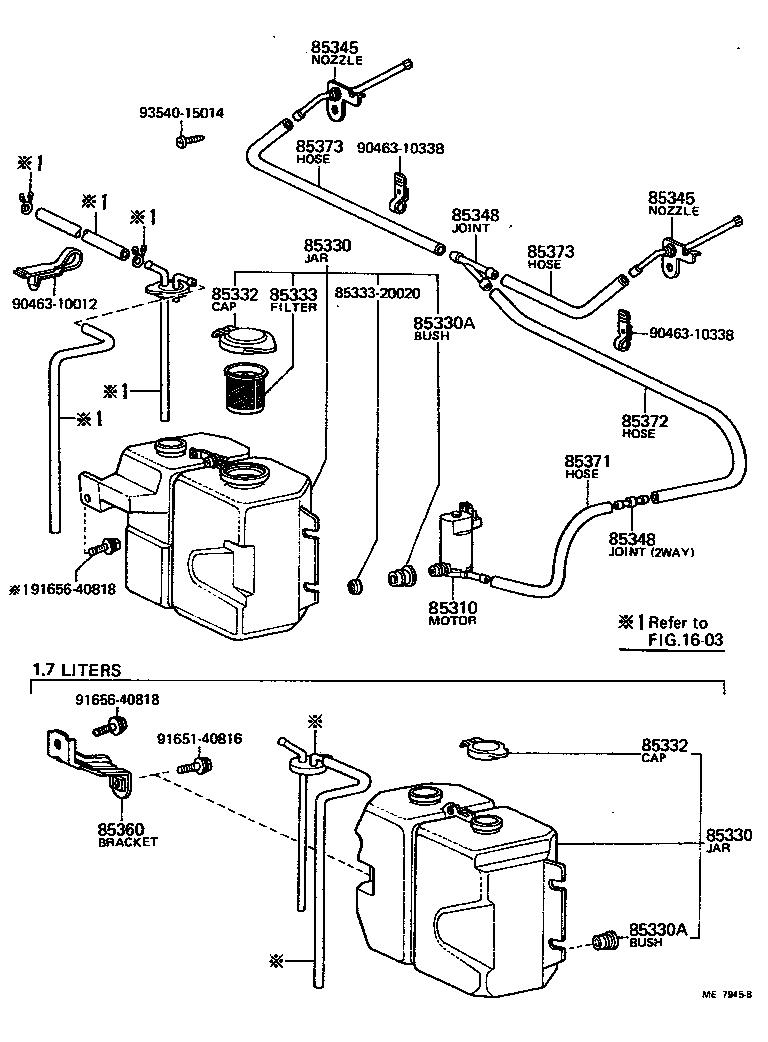

Figure ME7303B ME7303B 1978-08 → 1979-02 Figure ME7945B ME7945B 1979-02 → — Figure MEA455A MEA455A 1981-01 → —

Part groups

PNCDescription
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85360 Bracket Assy, Windshield Washer
85361A Bracket, Windshield Washer, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
