Toyota Pickup

1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States

Discontinued model Data version 1984-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

16 part groups · 4 illustrations

Illustrations

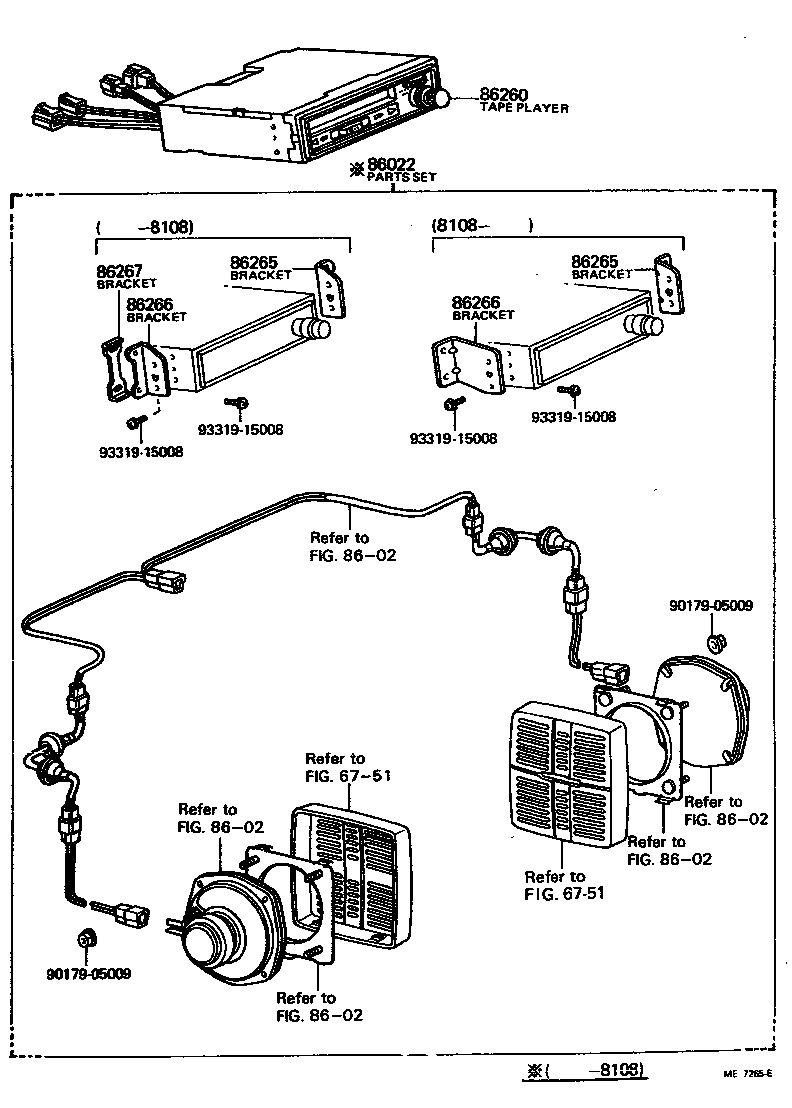

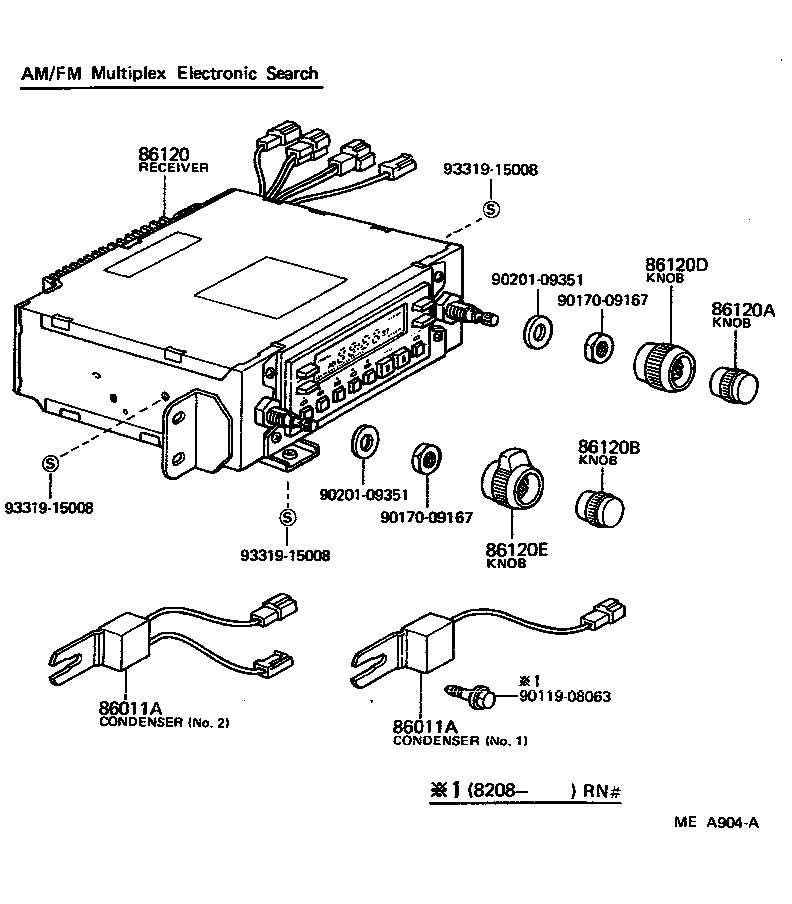

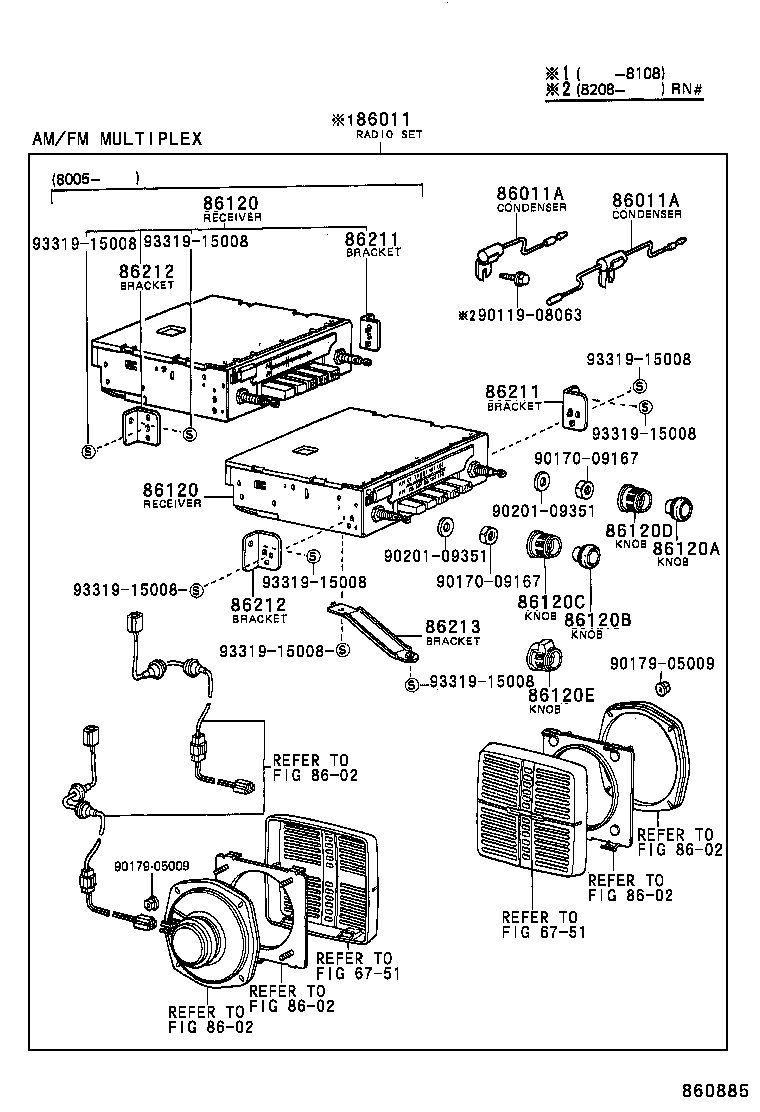

Figure ME7571F ME7571F 1978-08 → — Figure 860885 860885 1979-08 → — Figure MEA904A MEA904A 1981-08 → — Figure ME7265E ME7265E 1978-08 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86022 Parts Set, Tape Player Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120C Knob, Radio Receiver Tuning, NO.2
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
